Pan-Term® P10-10R-L Ring Terminal, Bare, 10-14 AWG, #10 Stud, PK50

Manufacturer: Panduit | Catalog # P10-10R-L | Electrozad South Part # 32371
$72.54 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL

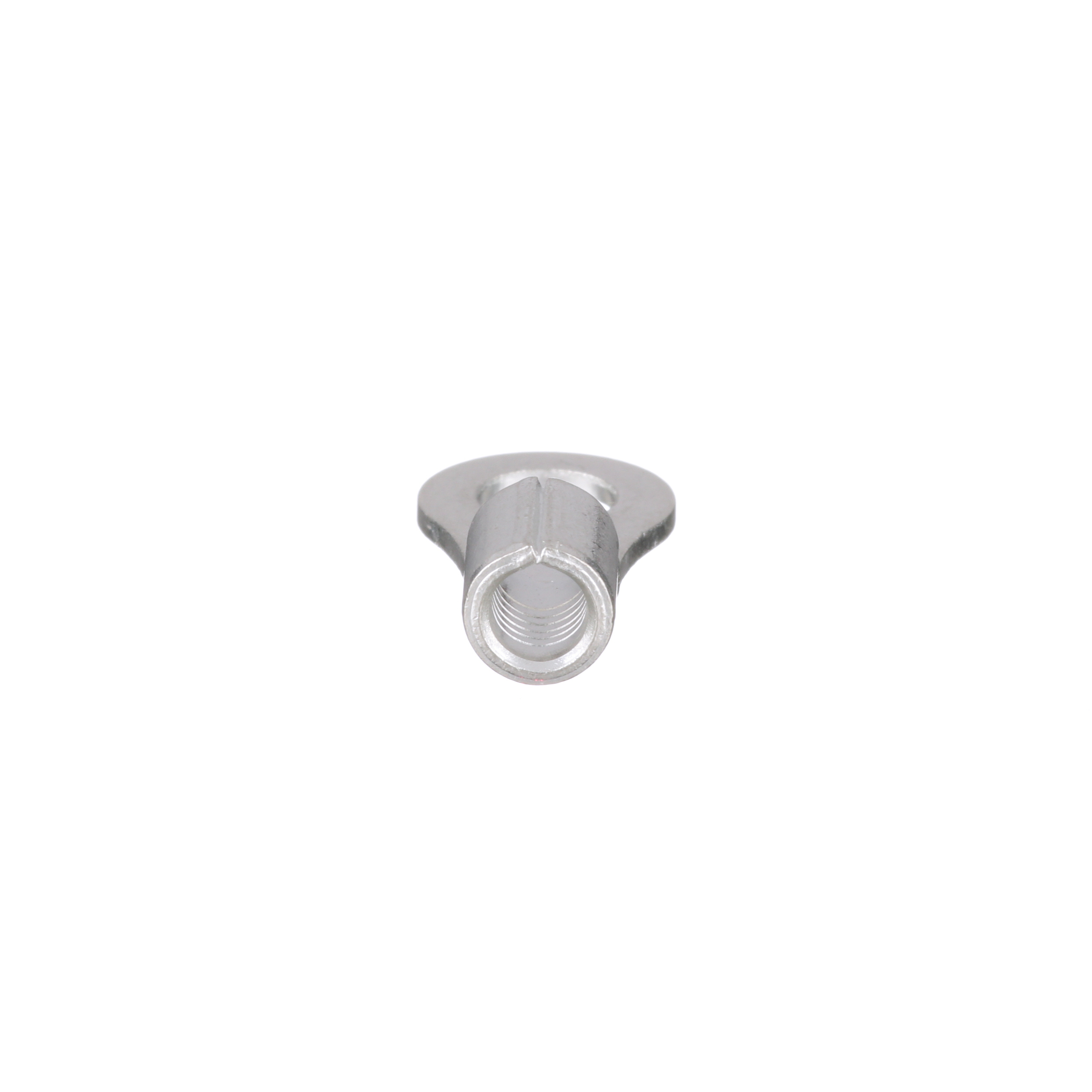

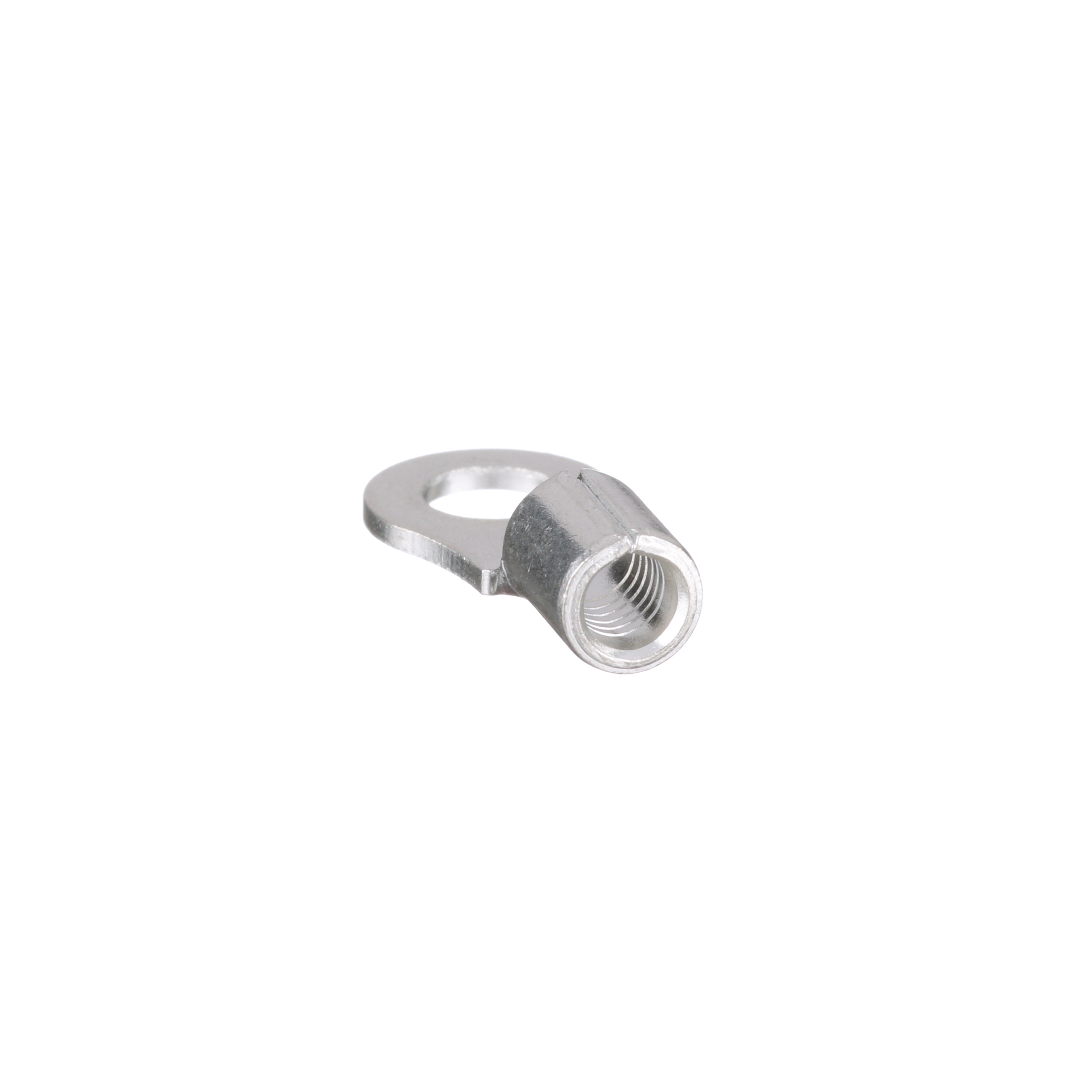

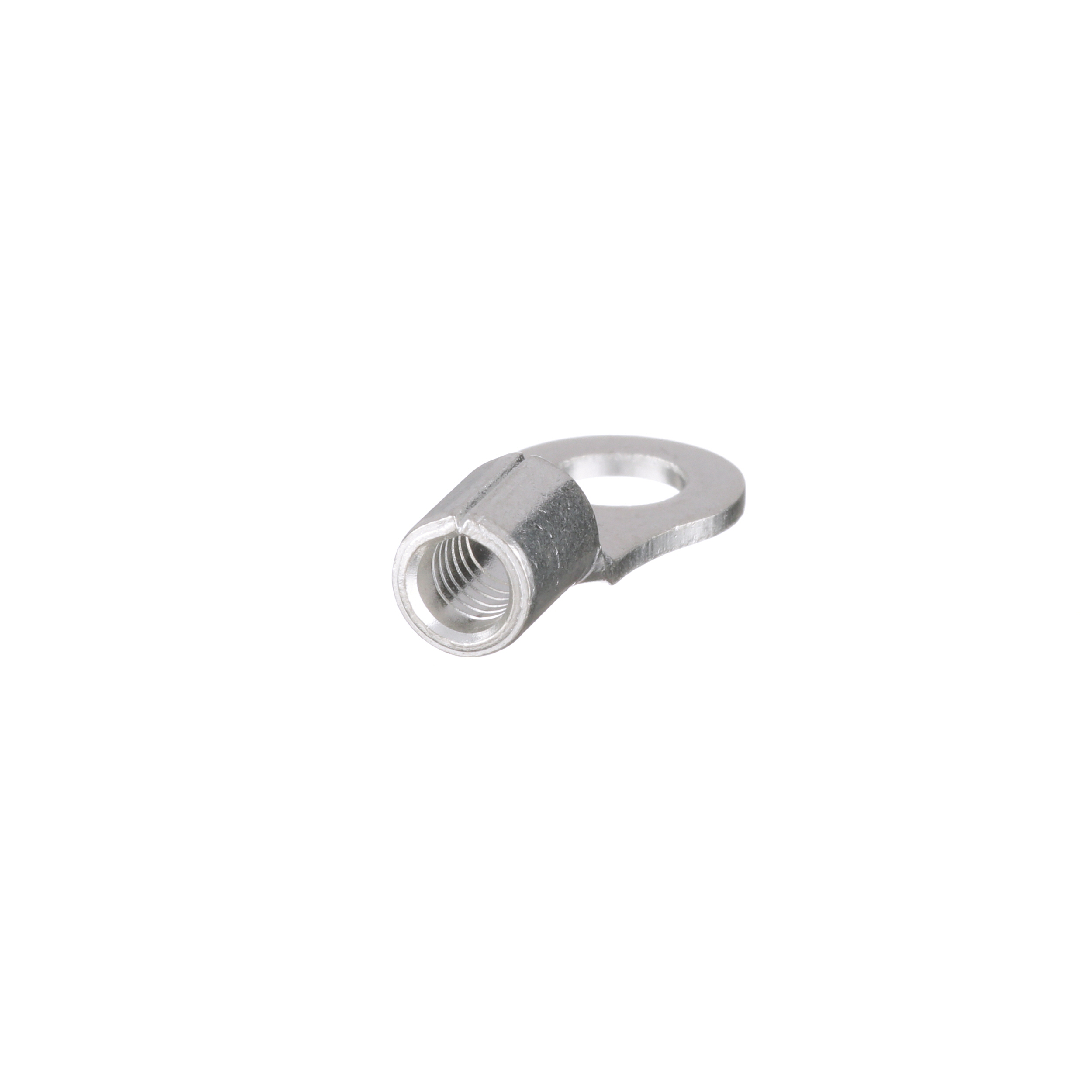

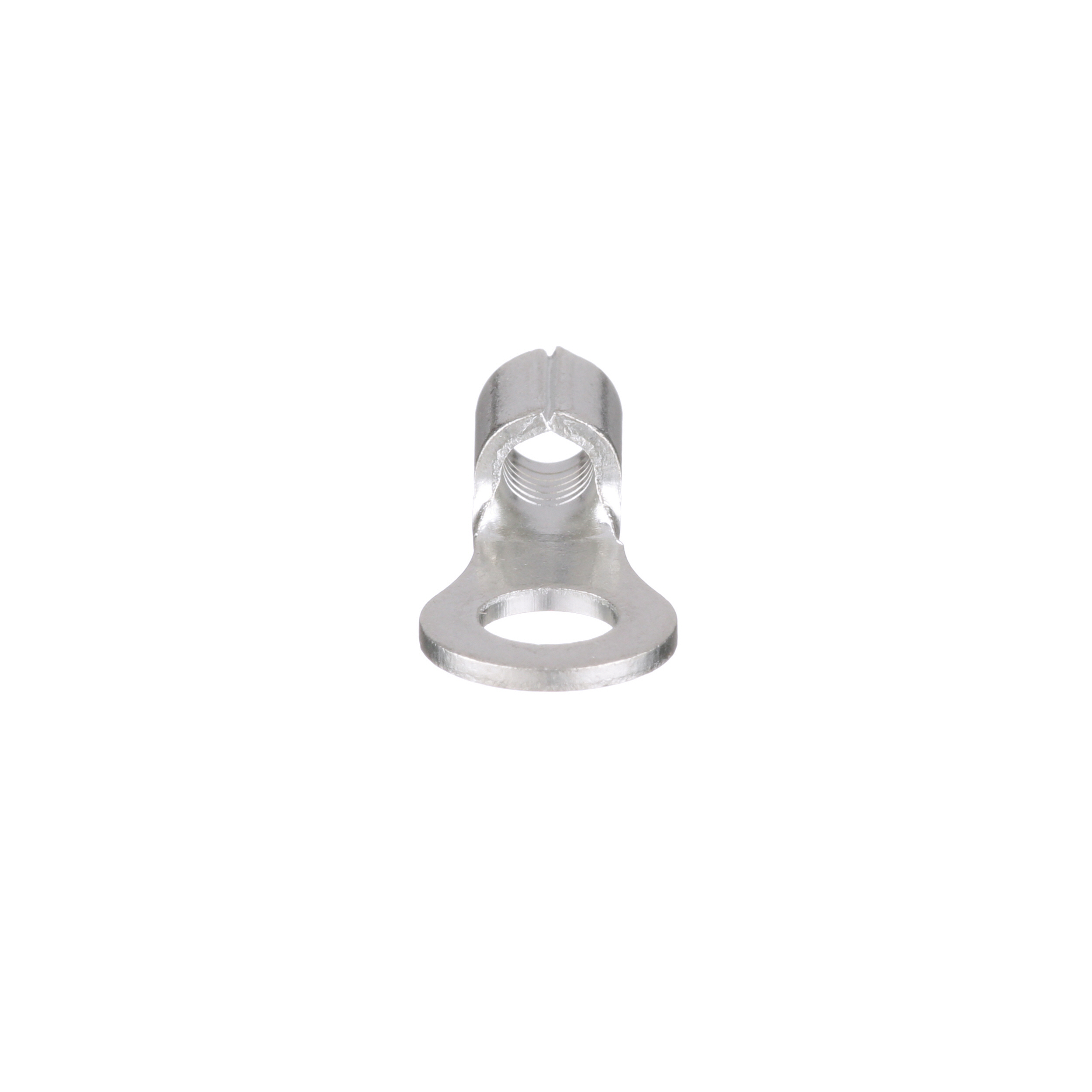

The P10-10R-L Pan-Term® Terminal is a non-insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.

Technical Information

Barrel Length
0.31 in
Barrel Type
Beveled
Color Coding
Silver
Conductor Size
14-10 AWG
Enclosure
Ring shape
Material
Copper
Max Operating Temperature
150 degrees C
Minimum Operating Temperature
302 degrees F
Size
10 in
Standard
CSA,E2186,UL
Stud Size
#10
TC Connection
Standard
Temperature Rating
302 degrees F
Tongue Thickness
0.04 in
Tongue Width
0.38 in
Type
Ring Terminal
Wire Size
2.5 - 6 AWG

Packaging

Package Qty
50

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983802326
Color
Silver
Finish
Tin Plated
GTIN
00074983802326
Product UPC
07498380232

Dimensions

Outer Diameter
0.22 in
Overall Length
0.81 in
Width
0.38 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
