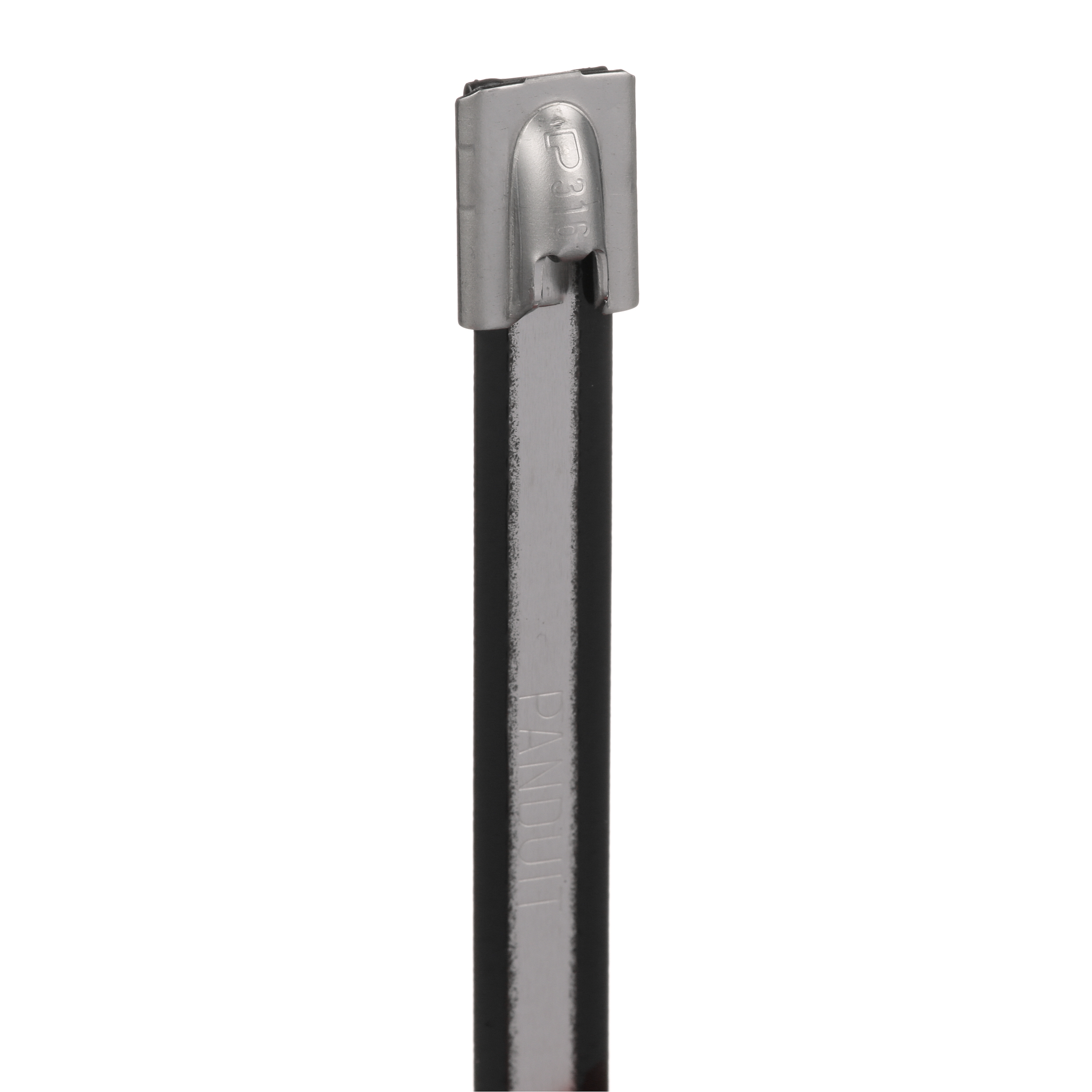

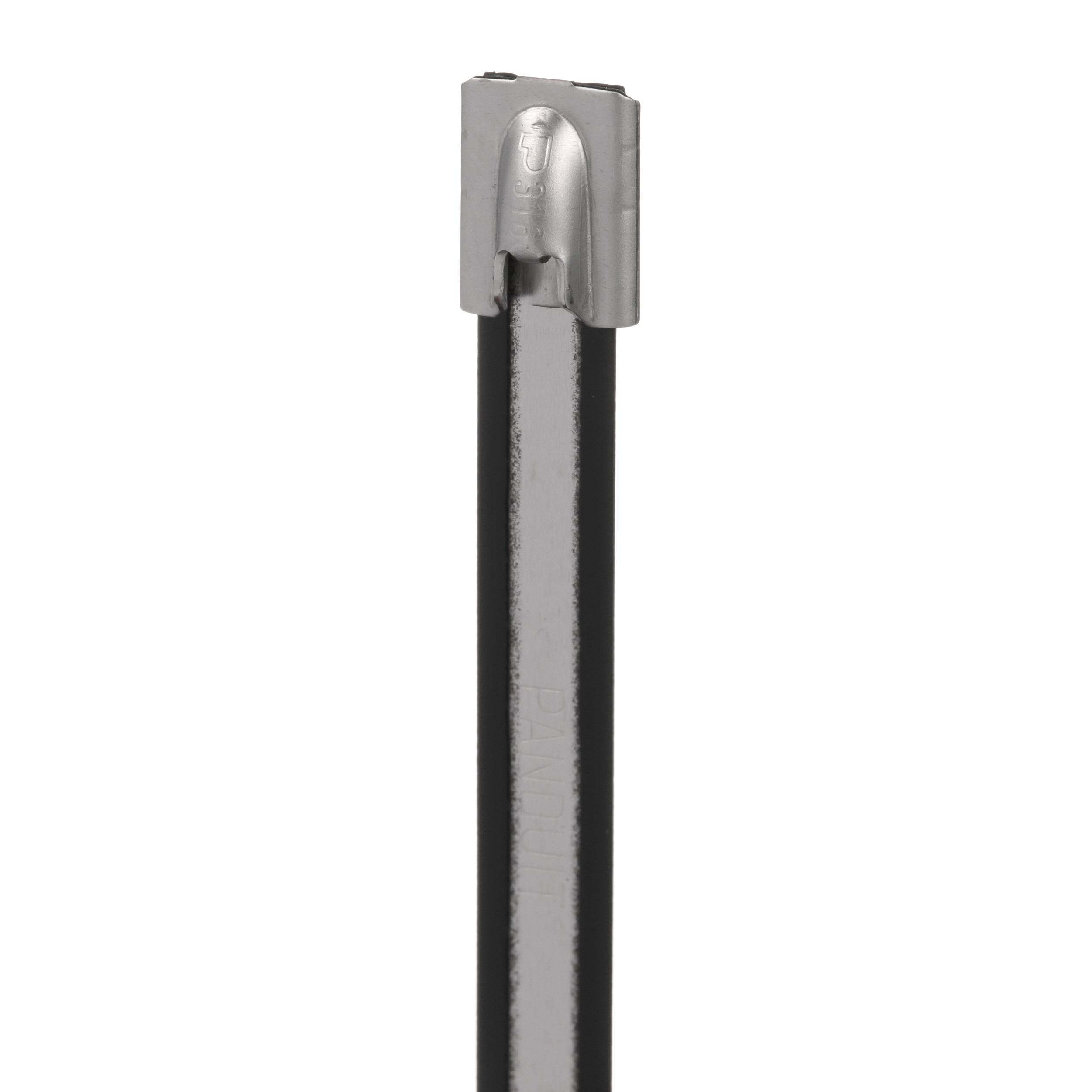

PANDUIT MLTC4H-LP316 TYRAP 14.3" NYLON COATED STAINLESS STEEL CABLE TIE 316SS H TS1112 50/PACK

Manufacturer: Panduit | Catalog # MLTC4H-LP316 | Electrozad South Part # 323841
$5,801.50 /m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
The MLTC4H-LP316 self-locking cable tie speeds up installation with a unique self-locking head design that locks into any part of the tie body. The Nylon 11 coating provides additional edge protection and prevents corrosion between dissimilar metals. The 316 stainless steel is wrapped in UV-resistant, halogen-free, low-smoke Nylon to promote worker safety and reliability in corrosive environments.

Technical Information

Applications
For Load Break Switching, Separate Disconnect Means within Sight of All Motor Loads to Comply with NEC Article 430, Circuit Isolation, Service Entrance Ratings Available, Food Processing, Conveyor Systems, Harsh Industrial Environments
Body Thickness
0.01 in
Body Width
0.319 in
Bundle Diameter
102 mm
Material
Nylon 11/316 Stainless Steel
Max Operating Temperature
140 degrees C
Minimum Operating Temperature
-40 degrees C
Temperature Rating
-40 to 140 degrees C
Tensile Strength
1112 lb
Type
Halogen-Free

Packaging

Package Qty
50
Standard Packaging Qty
50/Pack

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Steel

General Product Info

12-Digit UPC
074983221288
Color
Black
Environment
Harsh
Environmental Conditions
Harsh Environment
GTIN
00074983221288
Product UPC
07498322128

Dimensions

Length
14.3 in
Overall Length
362 mm
Thickness
0.25 mm
Width
NA In.

Certifications & Compliance

Country of Origin
USA
