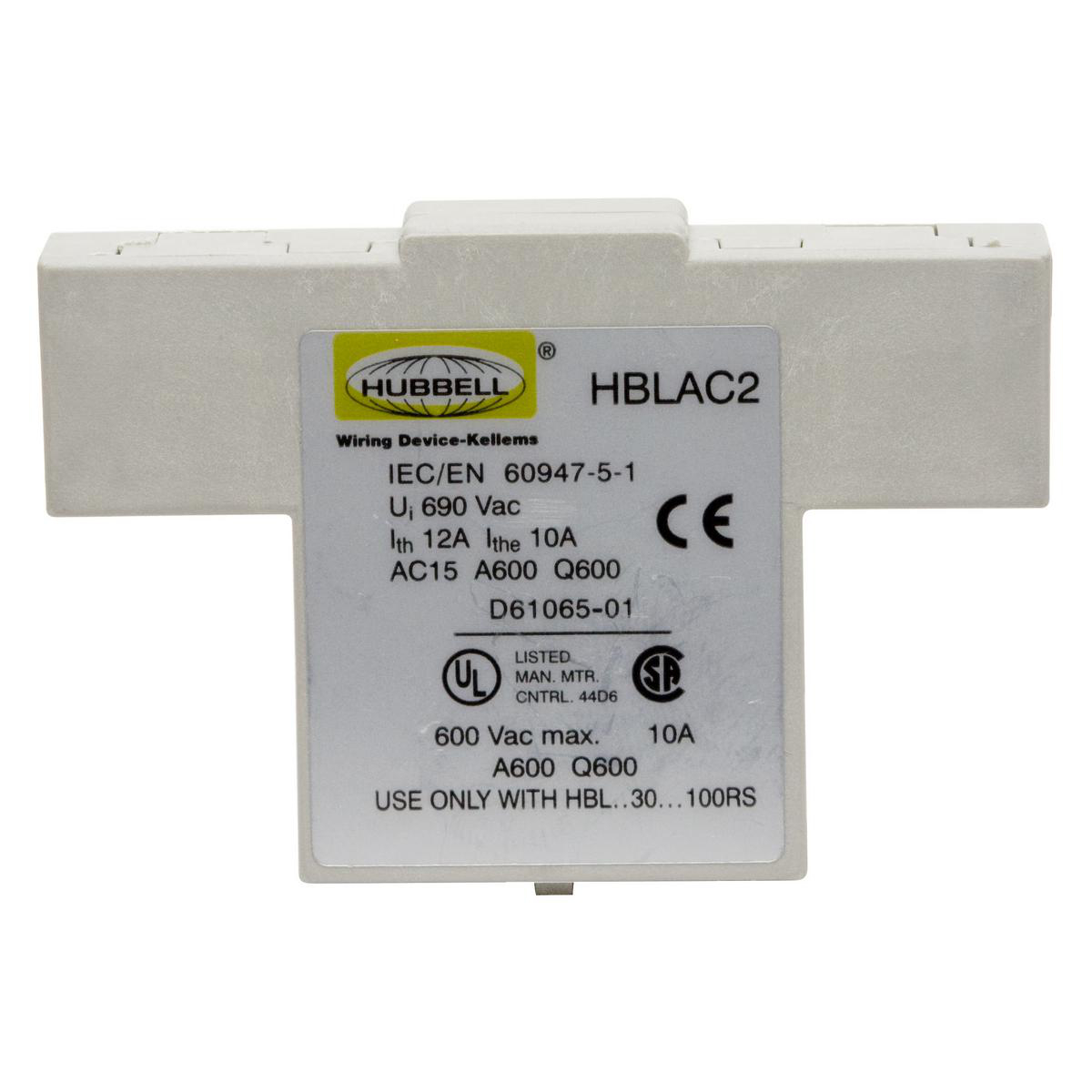

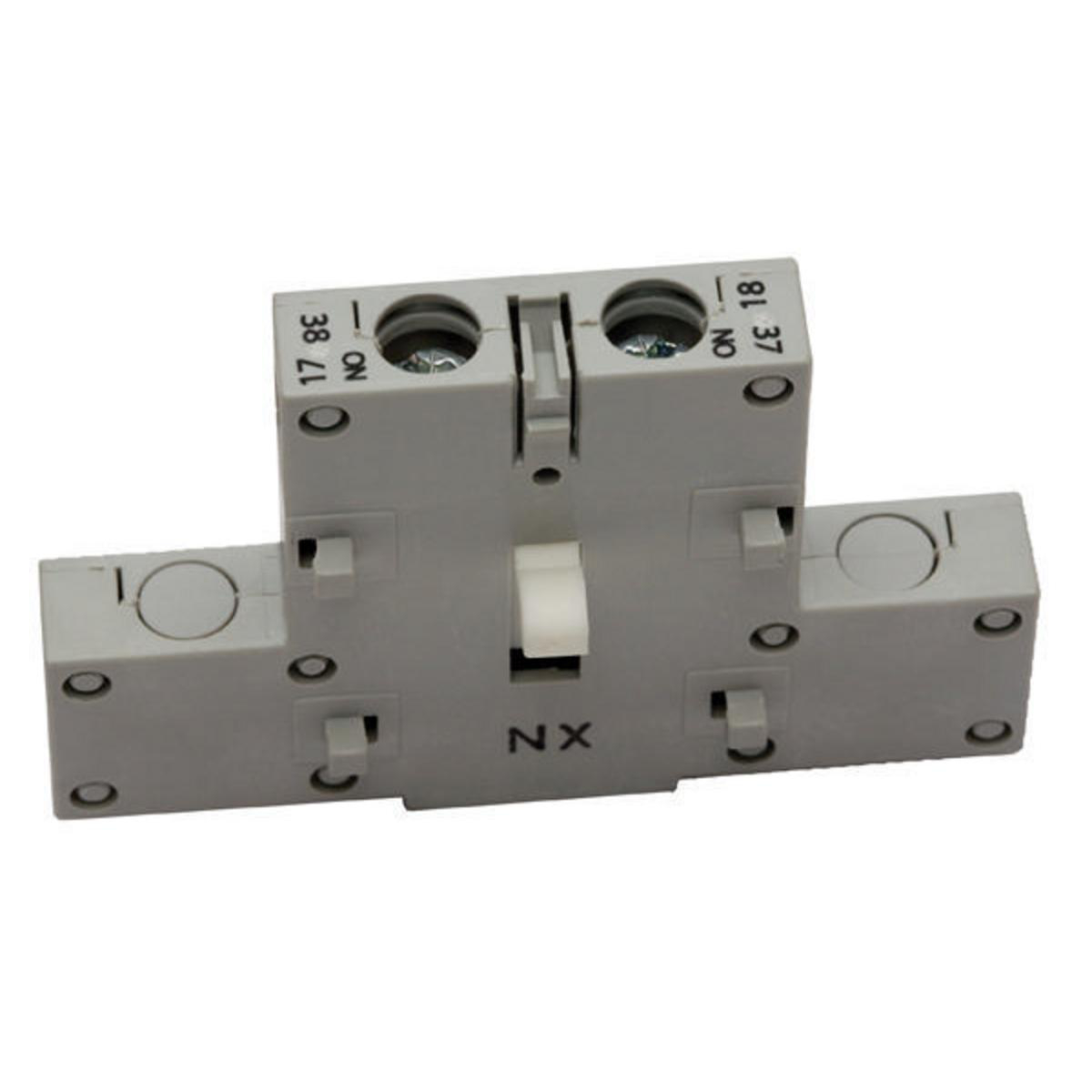

Product image for HUB HBLAC2 CONTACT AUXILLARY F DISC 1 SET N/O "BREAK BEFORE MAIN BREAK"
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

HUB HBLAC2 CONTACT AUXILLARY F DISC 1 SET N/O "BREAK BEFORE MAIN BREAK"

Manufacturer: Hubbell Wiring Devices | Catalog # HBLAC2 | Electrozad South Part # 32653
$81.63 /ea
pc
Log in or register to view your price, purchase history, and more!
4 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual
CIRCUIT-LOCK® switched enclosure auxiliary contact with break before break contact type, NO/NC. Maximum 30 ..C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75, -40 to 75 ..C.

Technical Information

Applications
For HBLDS Series
Connection Type
Screw
Contact Configuration
1 NO, 1 NC
Contact Rating
10A
Load Rating
2500 W
Mounting Type
Side
Number of Poles
3
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
12K Enclosure Rating,CSA Standard,Type 3R,UL Standard
Style
Auxiliary Contacts
TC Connection
Terminal Screws
Temperature Rating
-67 degrees C Maximum Continuous, -40 degrees C Minimum without Impact
Type
Break Before Break, Standard
Wattage
2,500 Watt

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Circuit-Lock®

General Product Info

12-Digit UPC
783585955131
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTIN
00783585955131
Housing Material
Composite
Product Series
Non-Fused
Product UPC
78358595513
Used With
HBLDS Series Disconnect Switches
Weight
1 lb

Dimensions

Height
1.5 in
Length
4.120 in
Width
1.810 in

Certifications & Compliance

Country of Origin
Poland
