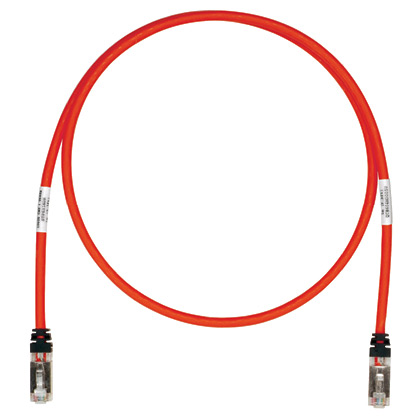

Cat 6A 26 AWG Shielded Patch Cord, 5 m, Red

Manufacturer: Panduit | Catalog # STP6X5MRD | Electrozad South Part # 327306
$56.24 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL P WARRANTY URL
This TX6A™ 10Gig Cat 6A STP Patch Cord is a 5-Meter, Red cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Technical Information

Applications
(1) Stacking switched and switch-to-switch links(2) Aggregation of Gigabit Ethernet channels(3) Streaming video(4) Scientific modeling(5) Storage area networks(6) Real-time intensive financial transactions(7) Animation(8) Medical imaging
Boot Color
Black
Cable Type
26 AWG S/FTP
Conductor Material
Copper
Conductor Type
Stranded
Connector Type
Modular Plug
Material
Copper
Max Operating Temperature
140 degrees F
Minimum Operating Temperature
-10 degrees C
Performance Level
Category 6A
Plug Type
Modular Plug with Bulkhead and Dust Cap
Temperature Rating
140 degrees F
Type
Category 6A
Wire Size
26

Manufacturer Information

Brand
Panduit
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983711444
Color
Red
GTIN
00074983711444
Jacket Material
LSZH Material
Product UPC
07498371144

Dimensions

Cable Length
5 m
Length
16.4 in
Outside Diameter
6.1 mm
Overall Length
16.4 ft

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
China,Mexico,Romania
