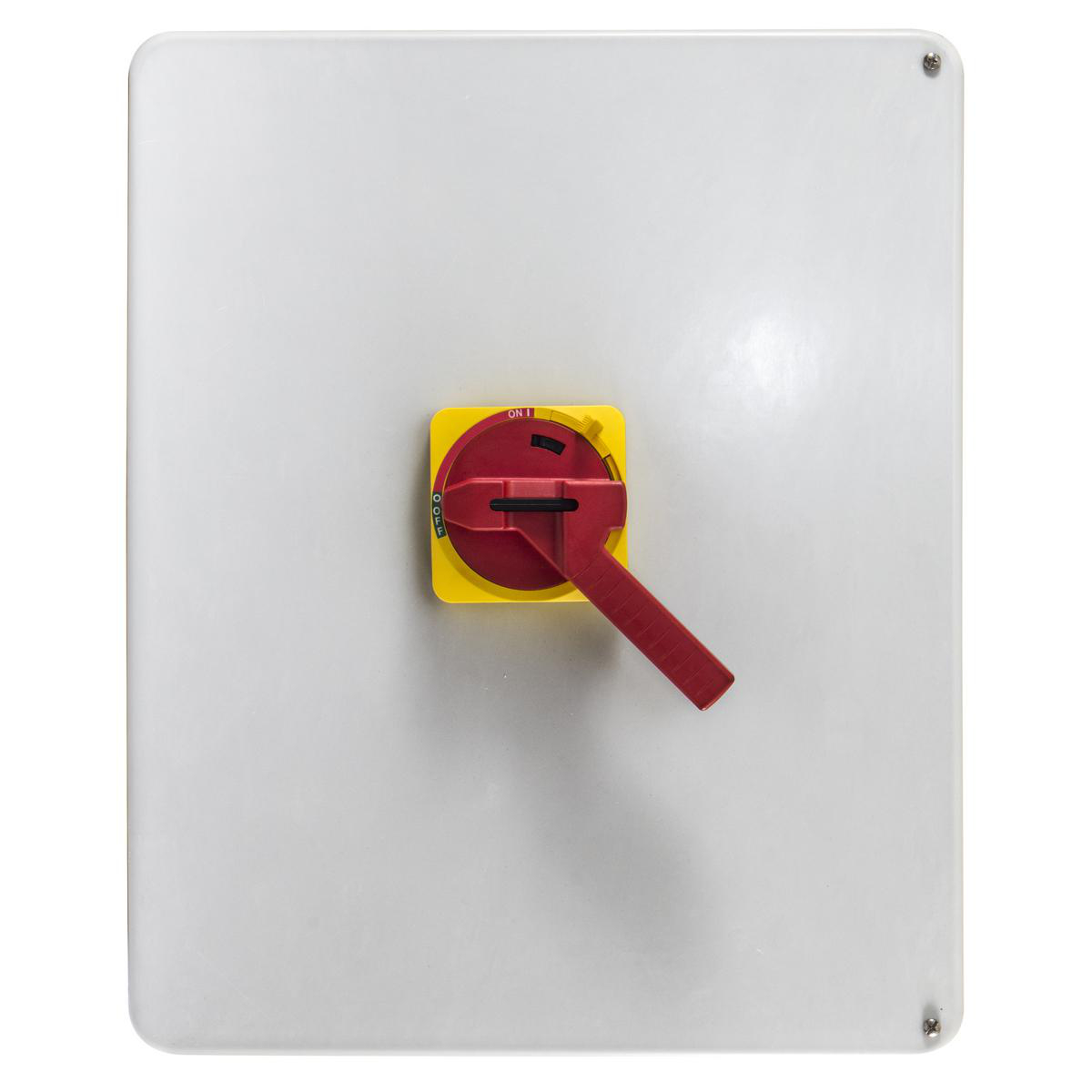

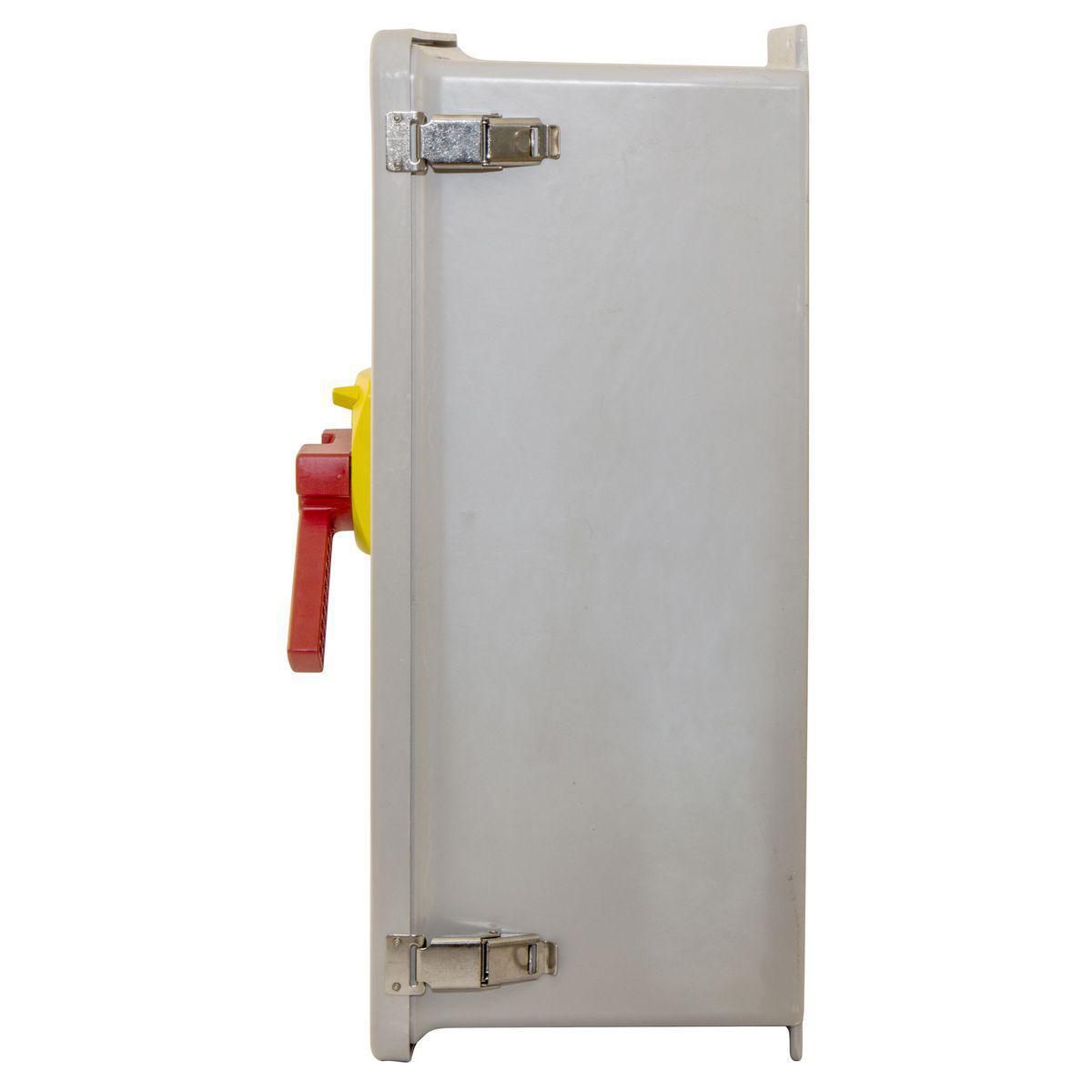

Product image for Disconnect Switches, 3-Pole, 200A 600VAC, Unfused, Non-Metallic NEMA 4X Enclosure
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Disconnect Switches, 3-Pole, 200A 600VAC, Unfused, Non-Metallic NEMA 4X Enclosure

Manufacturer: Hubbell Wiring Devices | Catalog # HBLDS20 | Electrozad South Part # 327531
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Disconnect Switches, 3-Pole, 200A 600VAC, Unfused, Non-Metallic NEMA 4X Enclosure

Technical Information

Amperage
200 A
Current
200 A
Fuse Type
Unfused
Number of Poles
3
Style
Heavy Duty
Type
Heavy Duty, Non-Fused

Manufacturer Information

Brand
Hubbell Wiring Device Kellems

General Product Info

12-Digit UPC
783585580241
GTIN
00783585580241
Product Series
Non-Fused
Product UPC
78358558024
Shape
Square Top

Dimensions

Height
12.900 in
Length
26.700 in
Width
21.100 in

Certifications & Compliance

Country of Origin
France
Overview
  • Cover Locked when Energized
  • Highly Visible Red Rotary Handle
  • OSHA Compliant Lockout/Tagout Handle
  • Type 4X, 12
  • Unable to Open the Cover when ON
