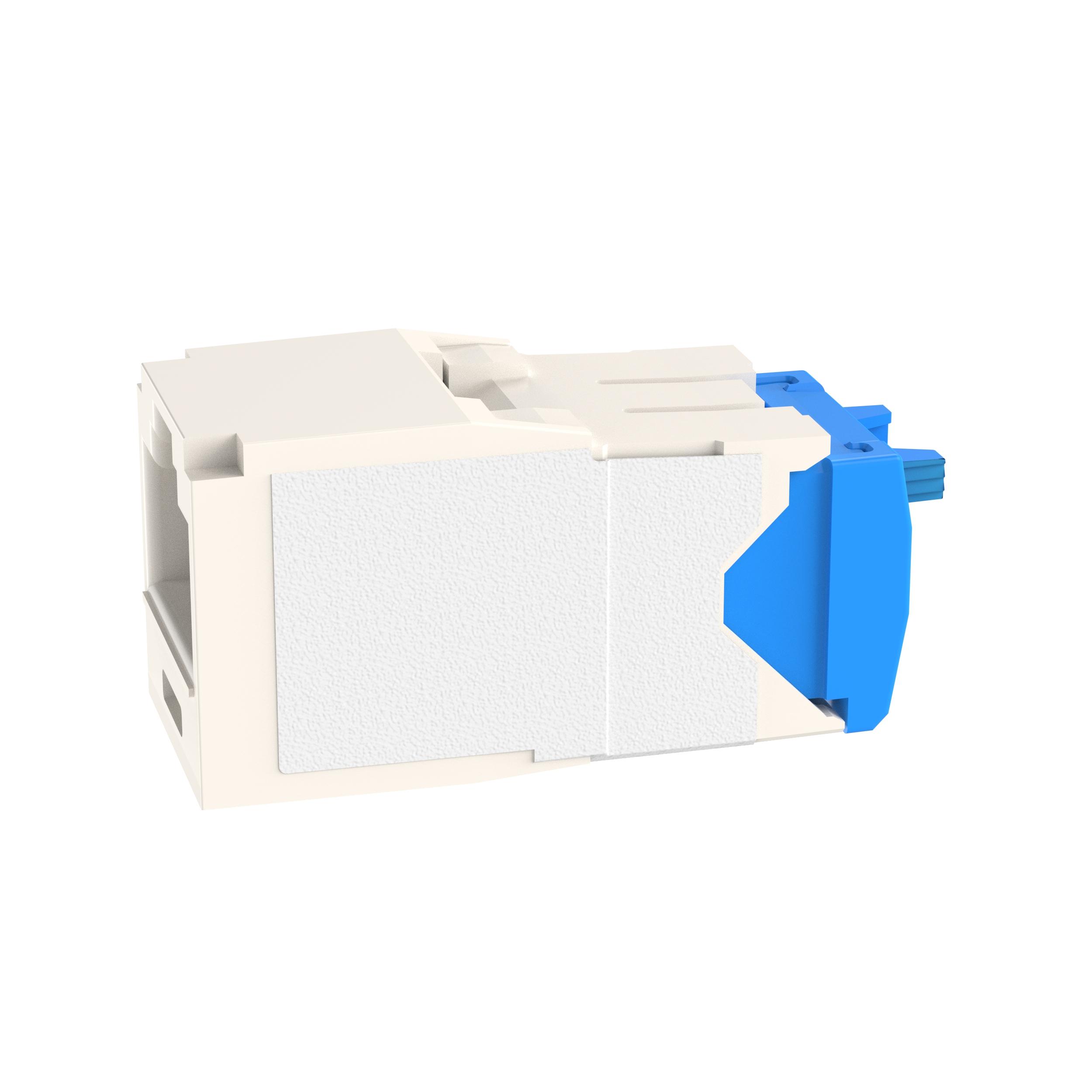

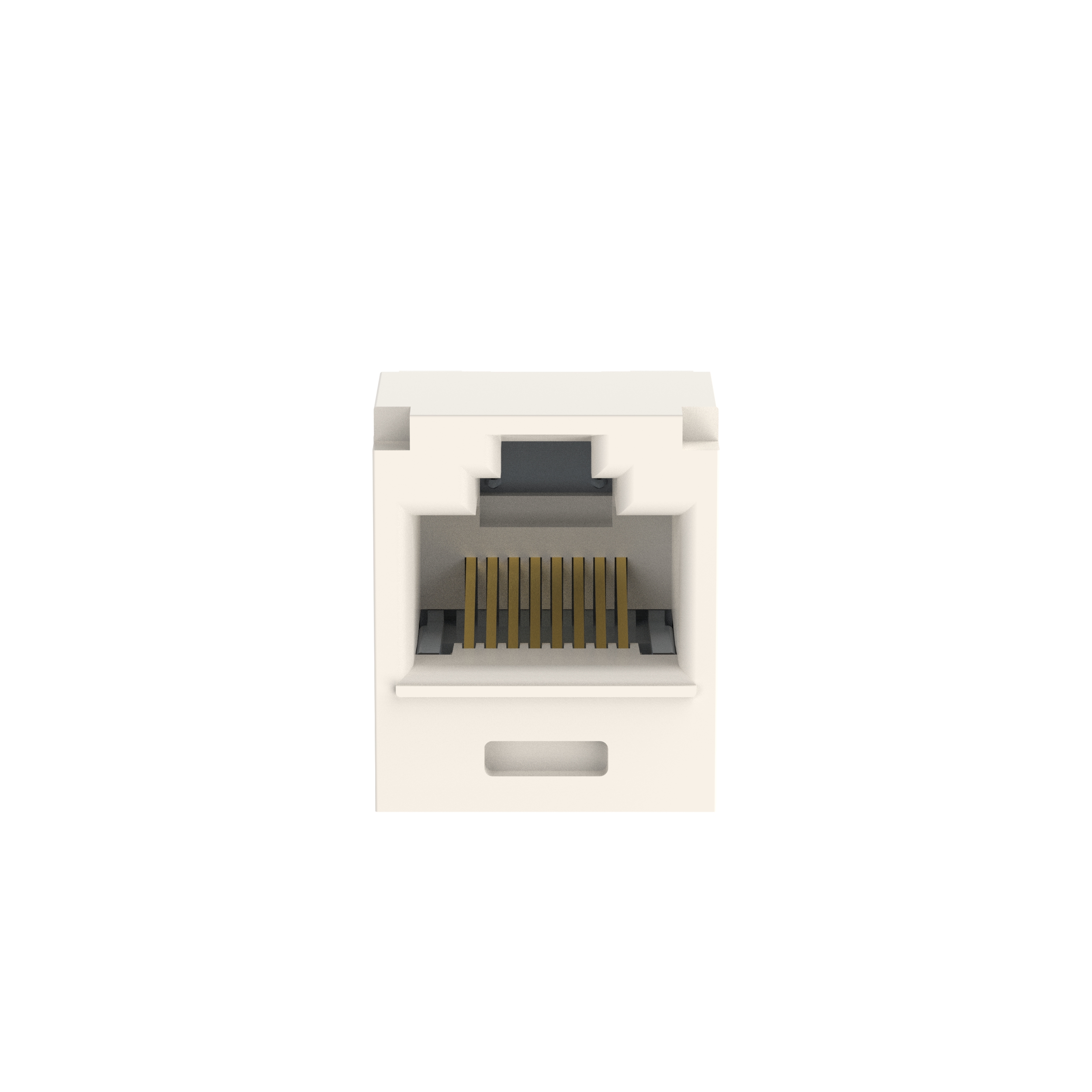

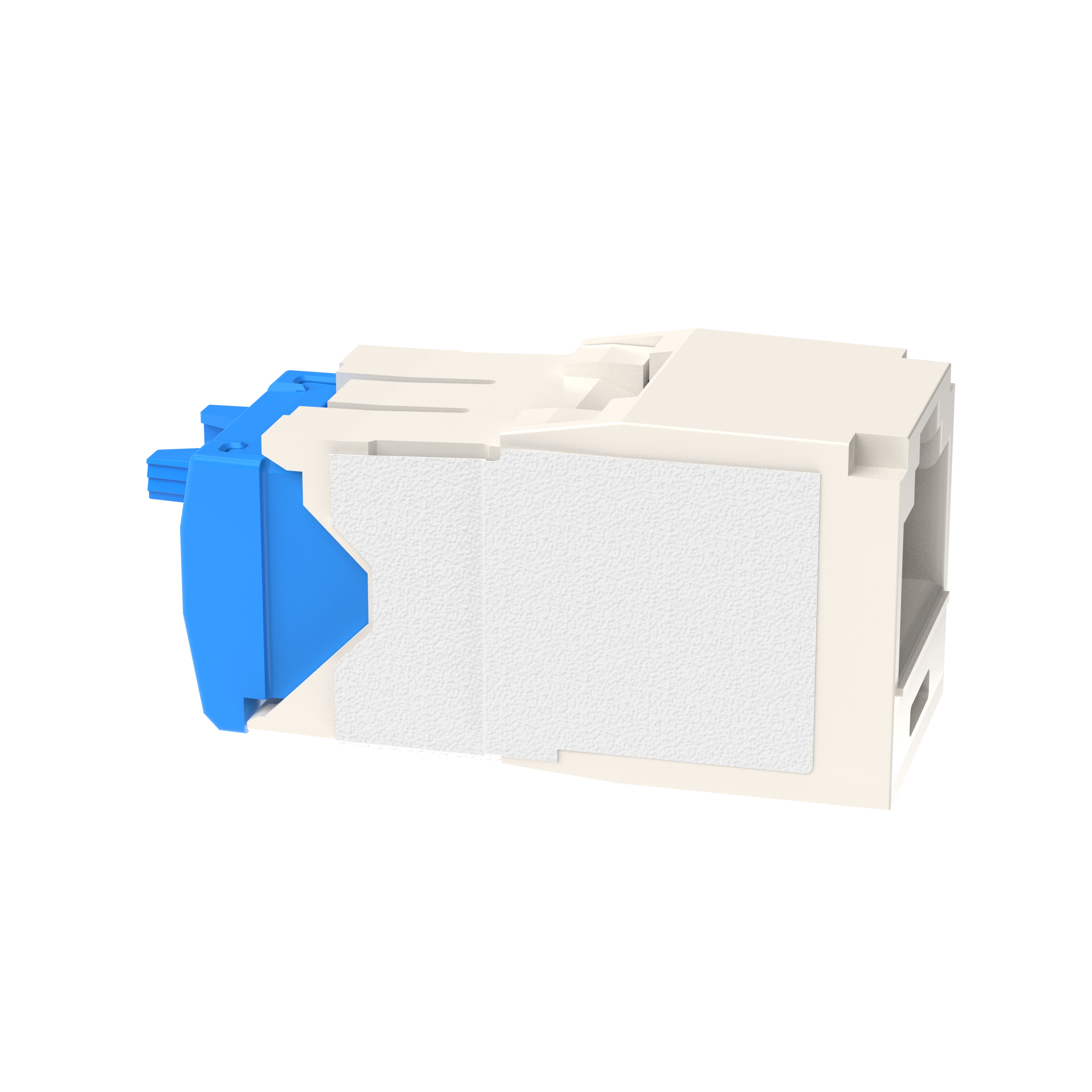

Product image for Mini-Com® UTP RJ45 Cat 6A TG Jack Module, White
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Mini-Com® UTP RJ45 Cat 6A TG Jack Module, White

Manufacturer: Panduit | Catalog # CJ6X88TGWH | Electrozad South Part # 327637
$29.34 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
The Mini-Com® Cat 6A UTP RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is white.

Technical Information

Applications
Unshielded
Cable Entry
T568A/T568B
Cable Type
Category 6A
Material
ABS
Max Operating Temperature
167 degrees F
Minimum Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 6A
Type
Universal, Unshielded

Packaging

Package Qty
1

Manufacturer Information

Brand
Panduit
Sub Brand
Mini-Com

General Product Info

12-Digit UPC
074983634385
Color
White
GTIN
00074983634385
Product UPC
07498363438

Dimensions

Depth
1.5 in
Height
0.71 in
Overall Length
38.1 mm
Width
16 mm

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
