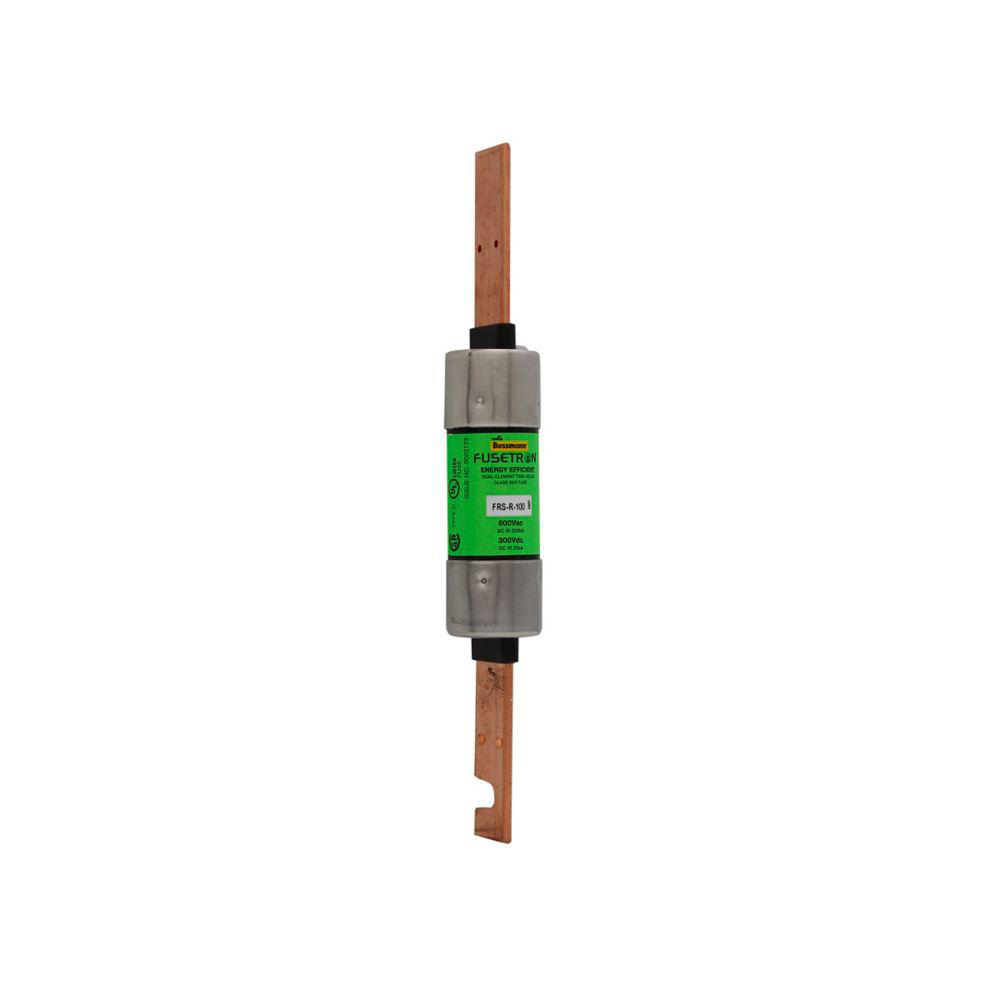

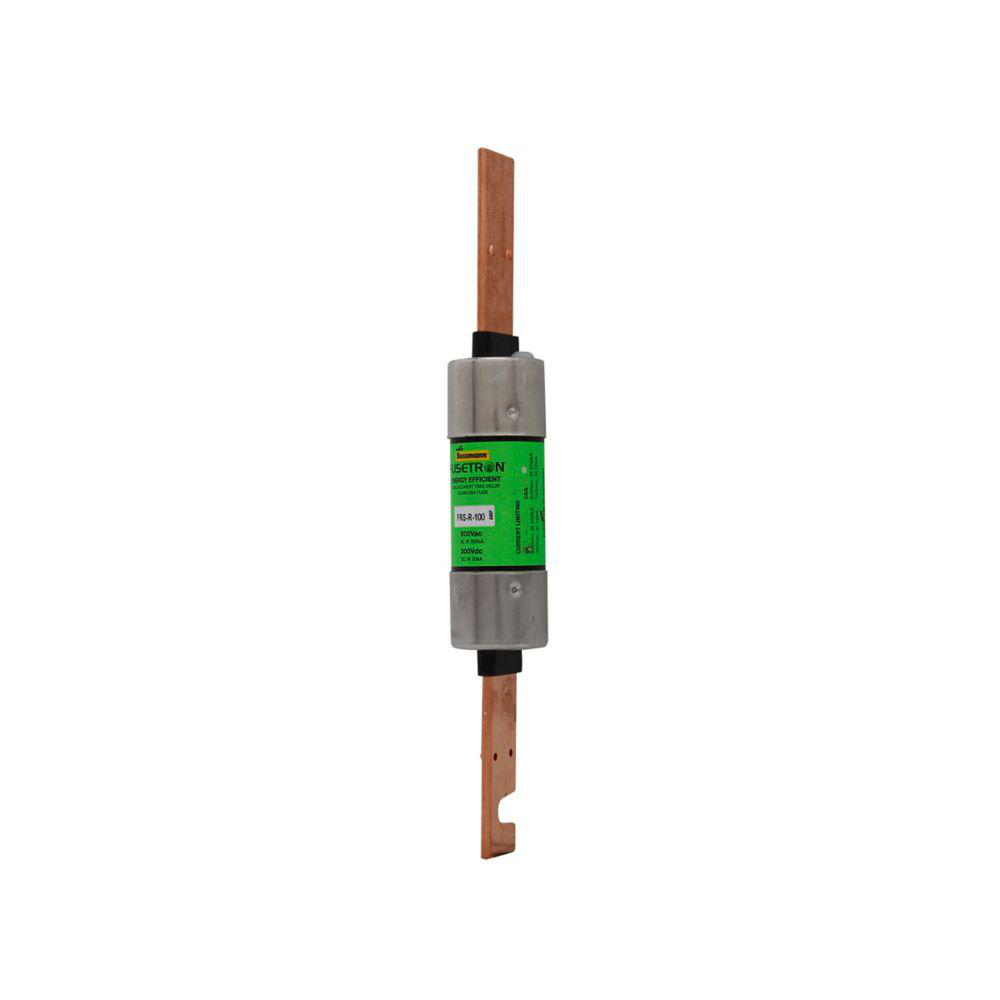

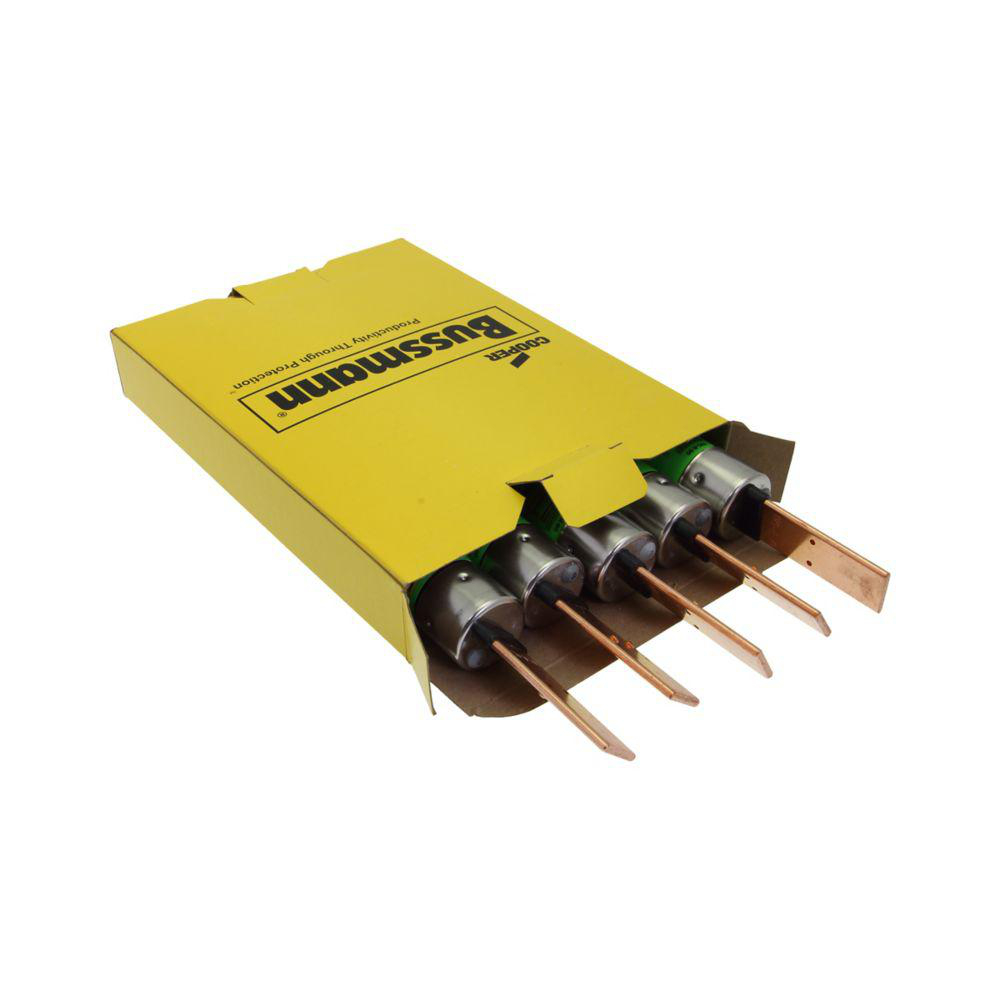

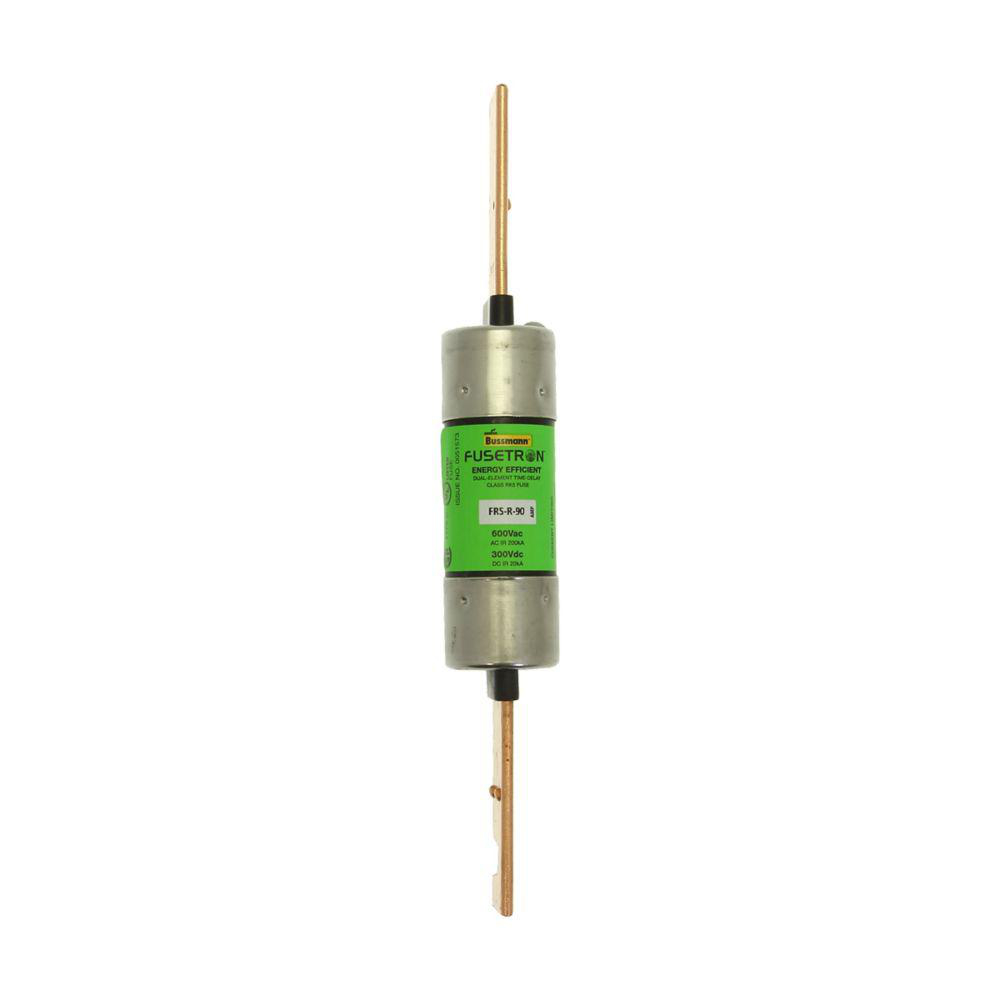

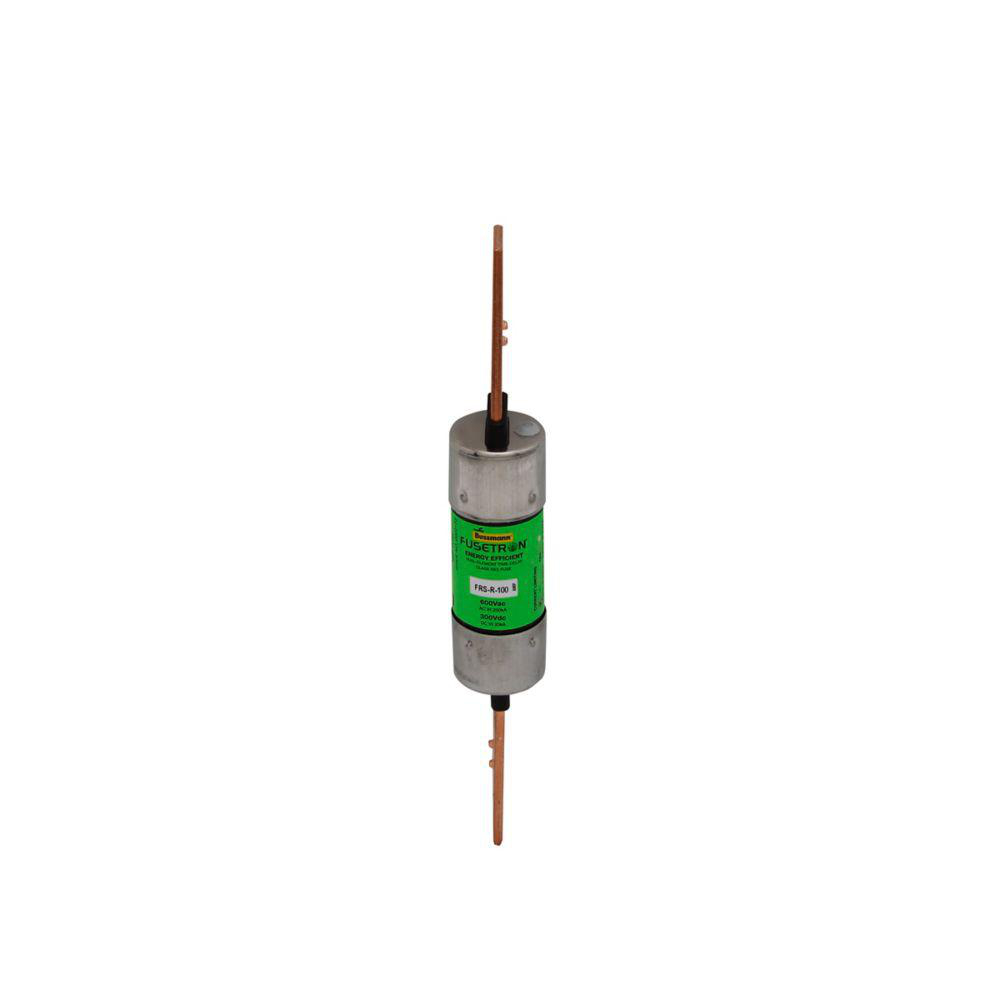

Product image for FUSETRON DUAL ELEMENT FUSE CLASS RK5
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

FUSETRON DUAL ELEMENT FUSE CLASS RK5

Manufacturer: Bussman Cooper Fuses | Catalog # FRS-R-90 | Electrozad South Part # 32814
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure
Eaton Bussmann Series Class RK5 fuse, FRS-R, time-delay, dual-element, current limiting fuse, 90 A, non-indicating fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc

Technical Information

Amperage
90 A
Applications
Combination Starters, Motor Control Centers, Machinery Disconnects and Power Panelboards Applications
Connection Type
Blade
End Type
Blade
Fuse Class
Class RK5
Interrupt Rating
20 kA
Response Time
10m s
Size
1.11 In Diameter X 7.88 In Length
Standard
CSA,E2186,UL
TC Connection
Rod To Blade
Type
Current Limiting, Renewable, Time Delay
Voltage
300 V

Manufacturer Information

Brand
Cooper Industries
Sub Brand
Bussmann™, Fusetron

General Product Info

12-Digit UPC
051712508421
Class
Class RK5
GTIN
00051712508421
Product UPC
51712508421
Weight
.4 lb

Dimensions

Diameter
1.11 in
Height
0.81 in
Length
5 in
