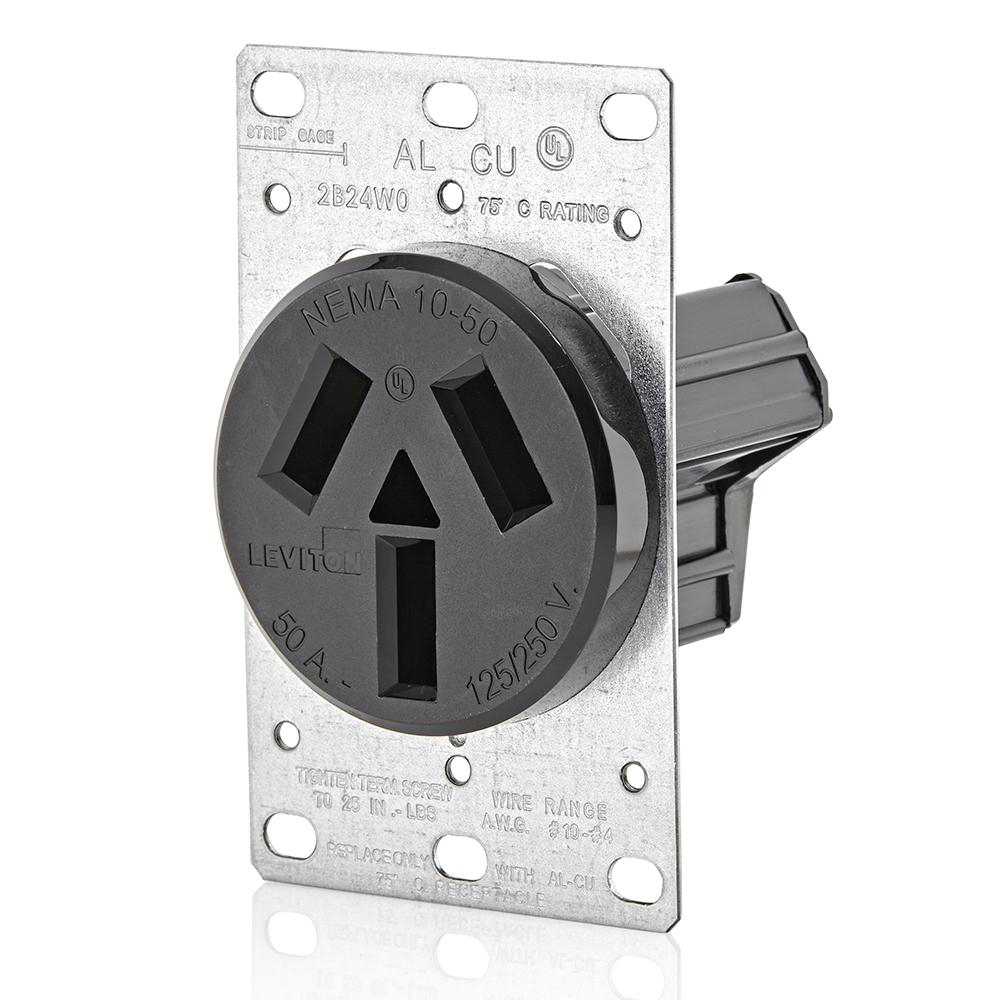

Receptacle non-grounding flush mount 50A 125/250V

Manufacturer: Leviton Manufacturing | Catalog # 5206-S10 | Electrozad South Part # 331438
$26.08 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL
Industrial grade power device. Flush mount receptacle. Heavy-gauge, double-wipe copper alloy contacts. Easy-to-wire terminals accept up to no.4 AWG conductors. Terminals marked for easy identification and fast wiring. All mounting hardware included. Flush-mount devices fit single or two-gang outlet boxes. Surface-mount devices are commercial grade and have concentric knockouts for 3/4 and 1 inch conduit and adjustable cord clamp for back and bottom entrance of cable.

Technical Information

Amperage
50 A
Applications
Industrial use
Conductor Size
4 AWG
Connection Type
Side Wire
Contact Material
Double-Wipe Copper Alloy
Device Type
Single Receptacle
Grade
Industrial
Grounding
Non-Grounding
Material
Thermoplastic
Mounting Type
Flush
NEMA
10-50R
Number of Poles
3
Number of Wires
3-Wire Non-Grounding
Standard
UL
Temperature Rating
-40 to 75 degrees C
Type
Shallow, Slim Body

Manufacturer Information

Brand
Leviton
Sub Brand
RESIDENTIAL RECEPTACLES

General Product Info

12-Digit UPC
078477905739
Color
Black
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTIN
00078477905739
Product UPC
07847790573
Used With
2.15 in dia Wallplates

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
