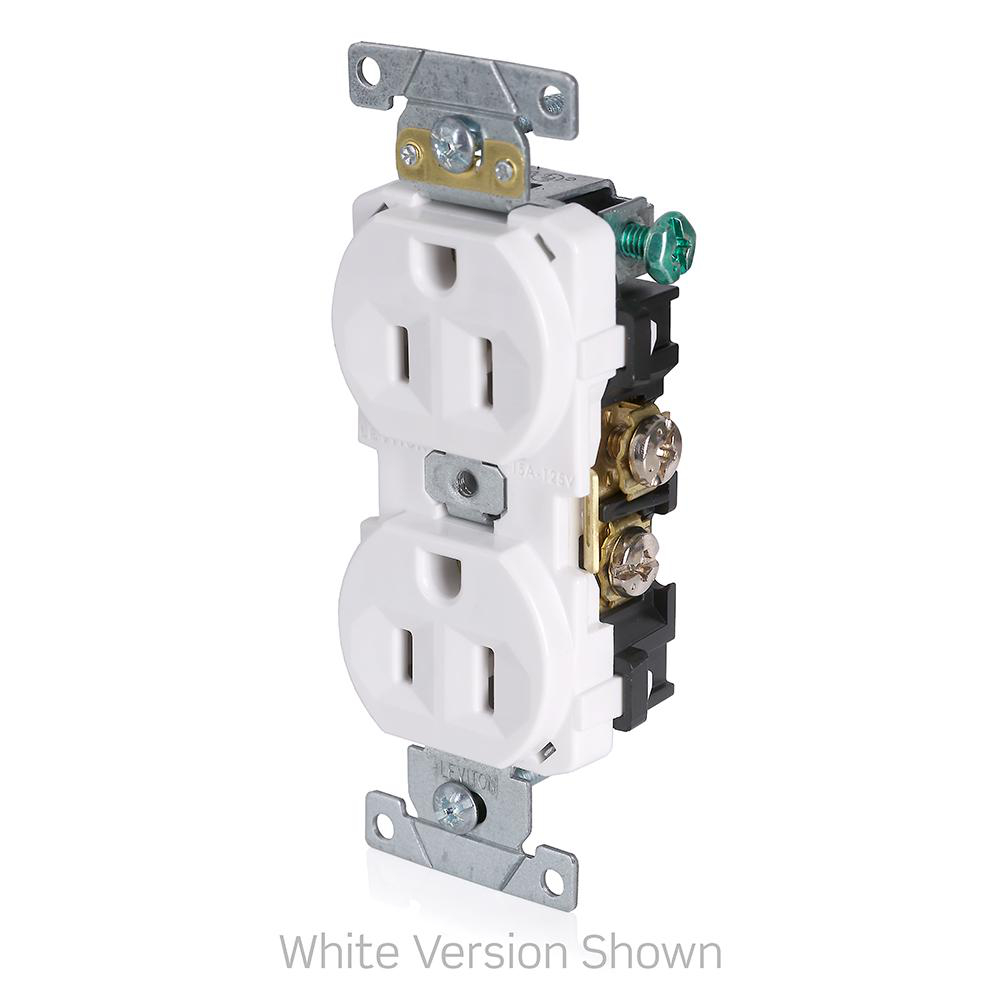

Image thumbnail 1

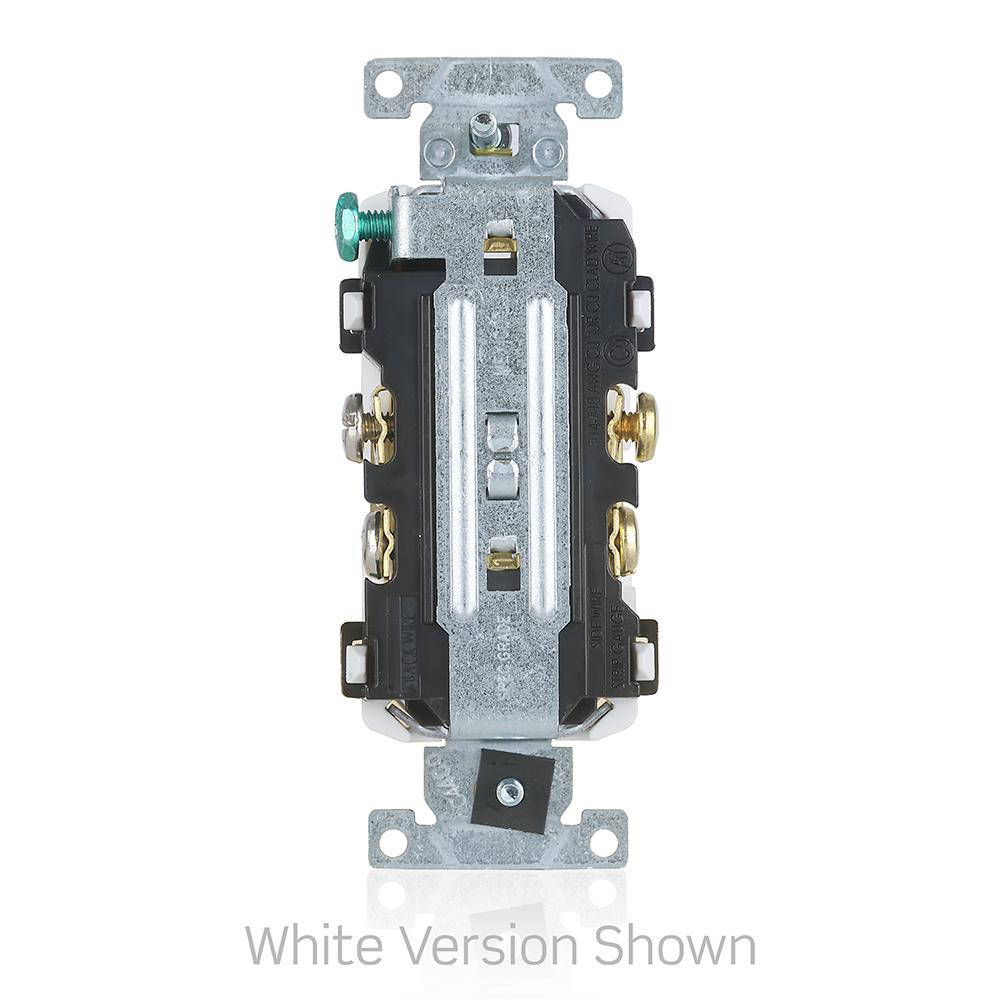

Image thumbnail 2

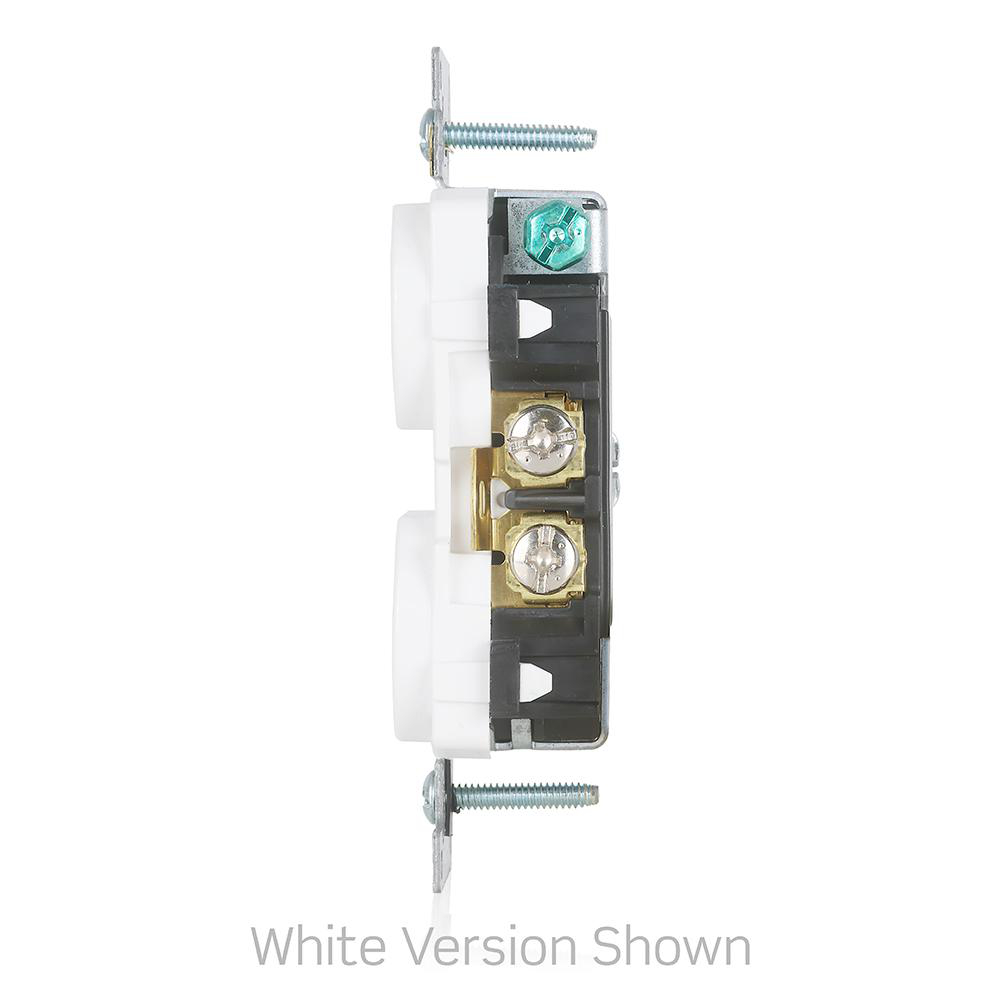

Image thumbnail 3
Email

Receptacle straight 2P3W 125V 15A white

Manufacturer: Leviton Manufacturing | Catalog # BR15-W | Electrozad South Part # 331538
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL I INSTALL ASSEMBLY INSTRUCTIONS URL
Levitons line of heavy-duty specification grade receptacle are designed and manufactured to withstand the most demanding environments. These commercial grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.

Technical Information

Amperage
15 A
Applications
Commercial
Body Material
Polypropylene
Conductor Size
14-10 AWG
Connection Type
Back and Side Wire
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 V
Enclosure
WD-6
Face Material
Nylon
Grade
Commercial
Grounding
Self-Grounding
Horsepower
1/2 hp
Material
Nylon
Mounting Type
Wallbox, Flush
NEMA
WD-1
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
46 H x 1.56 W x 19 D IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Type
Outlet
Voltage
125 V
Wire Count
3
Wire Size
14 - 10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Commercial Receptacles

General Product Info

12-Digit UPC
078477819777
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Finish
Matte
GTIN
00078477819777
Product UPC
07847781977

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
