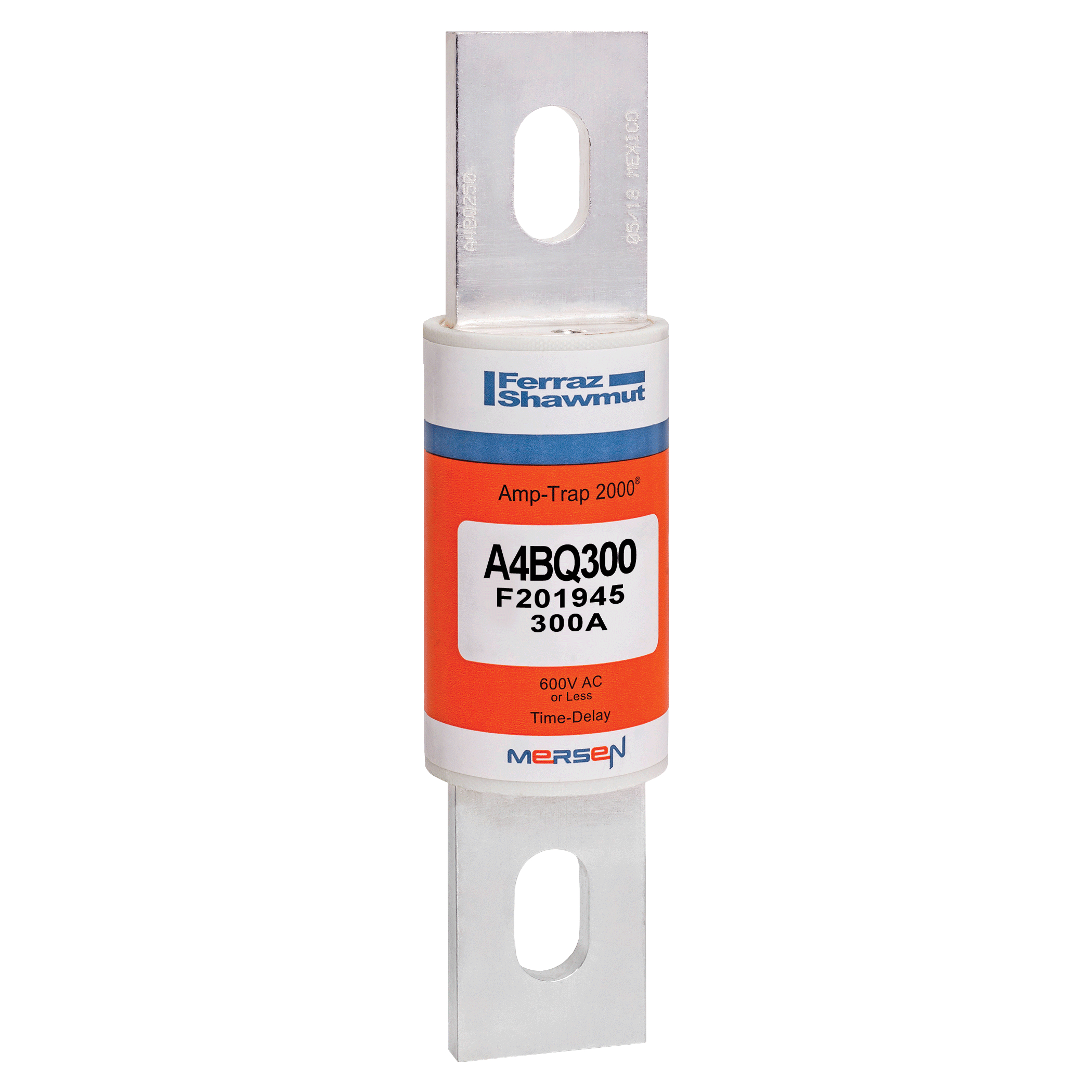

MERSEN A4BQ300 FUSE HRC-I TD 300A 600VAC 600VDC TIME DELAY CLASS L

Manufacturer: Ferraz Shawmut Mersen | Catalog # A4BQ300 | Electrozad South Part # 333589
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet

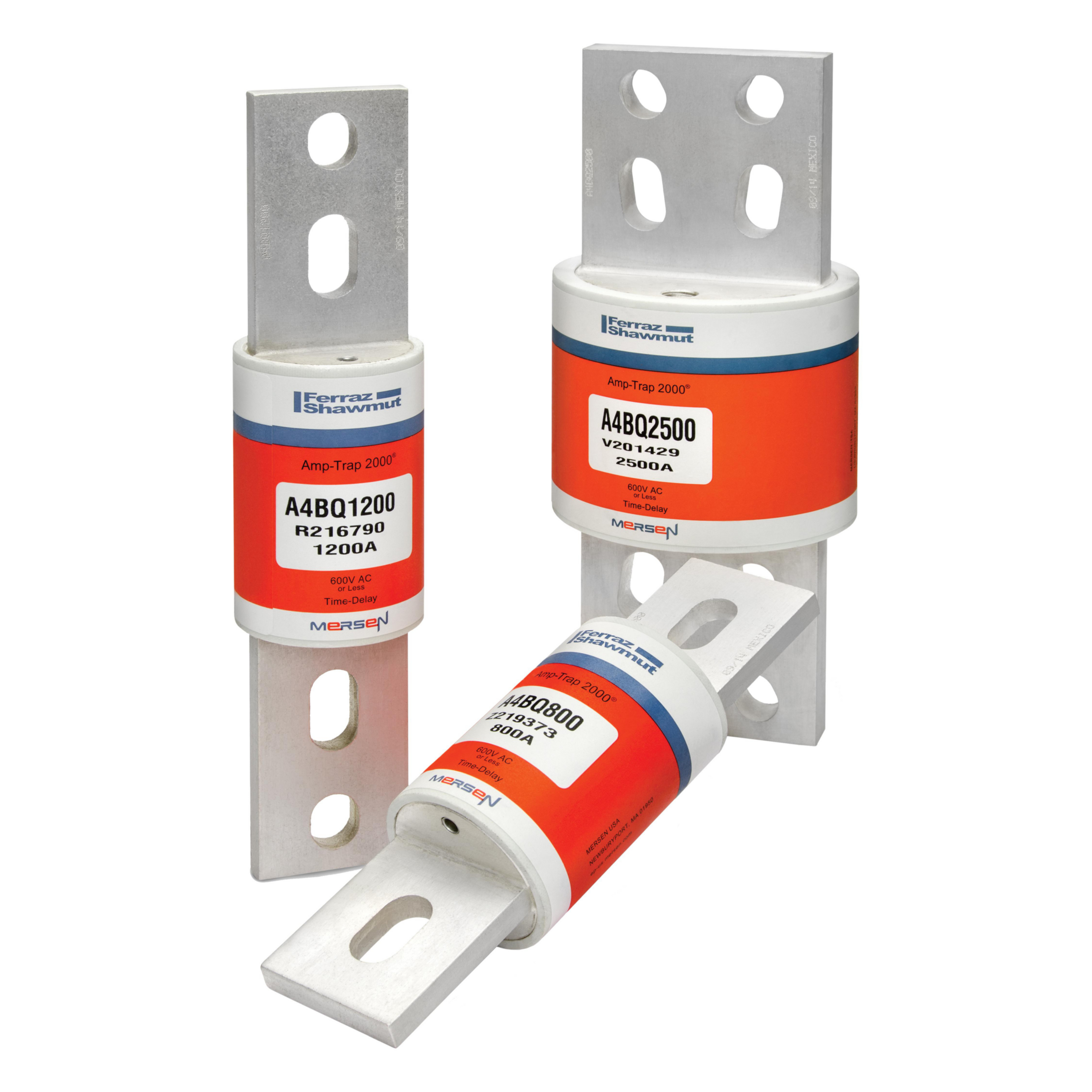

Amp-Trap 2000 A4BQ fuses are 20 percent more current limiting than any other Class L fuse on the market. When correctly coordinated, they bring a superior level of protection to service entrance equipment. Downstream circuit components have maximum protection against short circuit let-thru current. A4BQ's built-in 4-second time-delay characteristic (at 500percent of rated current) accommodates harmless inrush currents with no nuisance opening.

Technical Information

Amperage
300 A
Applications
Mains, Feeders, Large Motors, Lighting, Heating and General Loads, Circuit Breaker Back-Up, UPS, Battery Circuits
Connection Type
Blade
Frequency
50/60 Hz
Fuse Class
Class L
Insulation Material
GMG
Interrupt Rating
200 kA
Mounting Type
Bolt-On
Rated Voltage AC
600 V
Rated Voltage DC
500 V
TC Connection
Blade
Terminal Material
Silver-Plated Copper
Terminal Type
Blade
Type
North American, Time Delay

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap® 2000, SmartSpot

General Product Info

12-Digit UPC
782001931117
Class
L
GTIN
10782001931114
Product UPC
78200193111
Weight
2.44 lb

Dimensions

Diameter
2 in
Length
8.63 in
