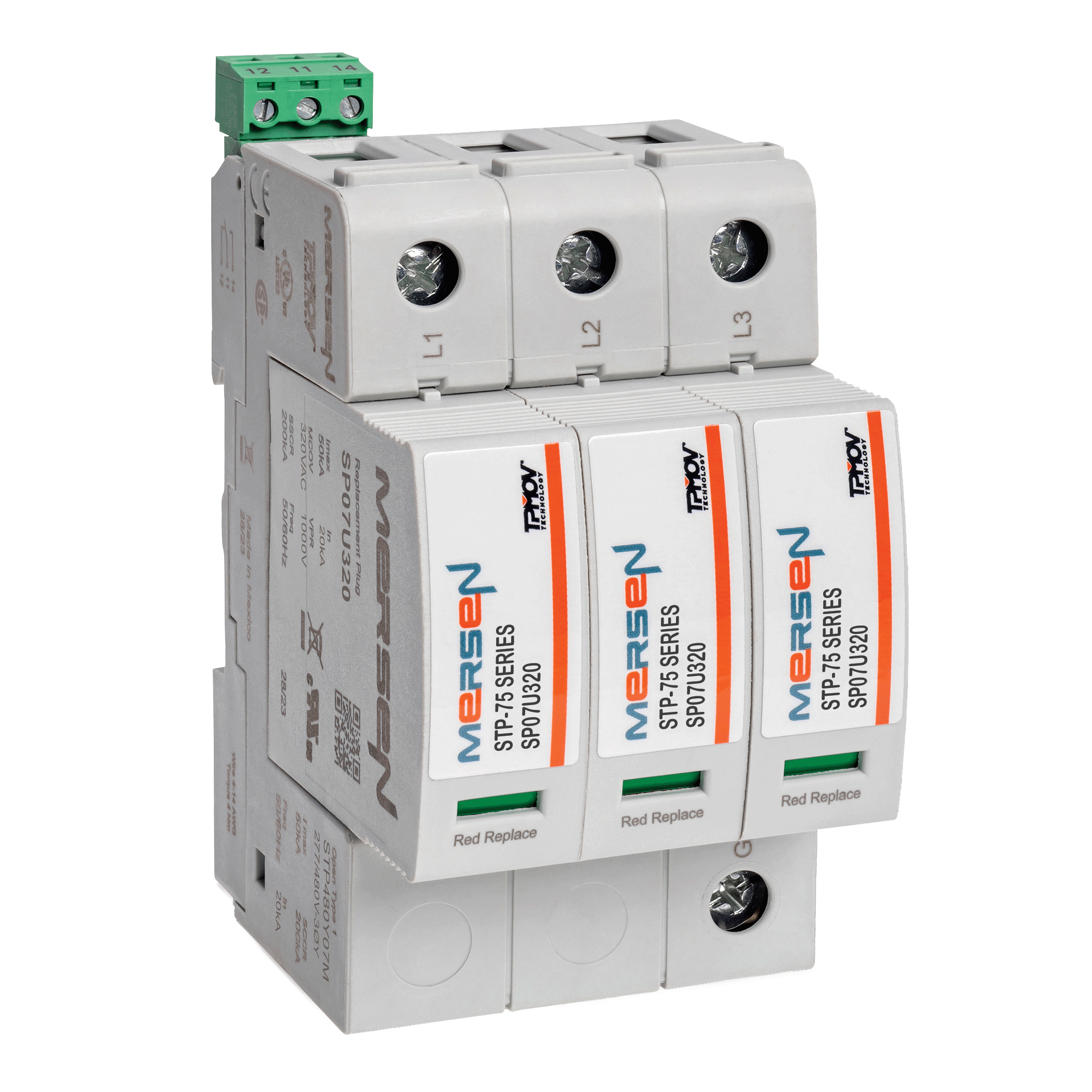

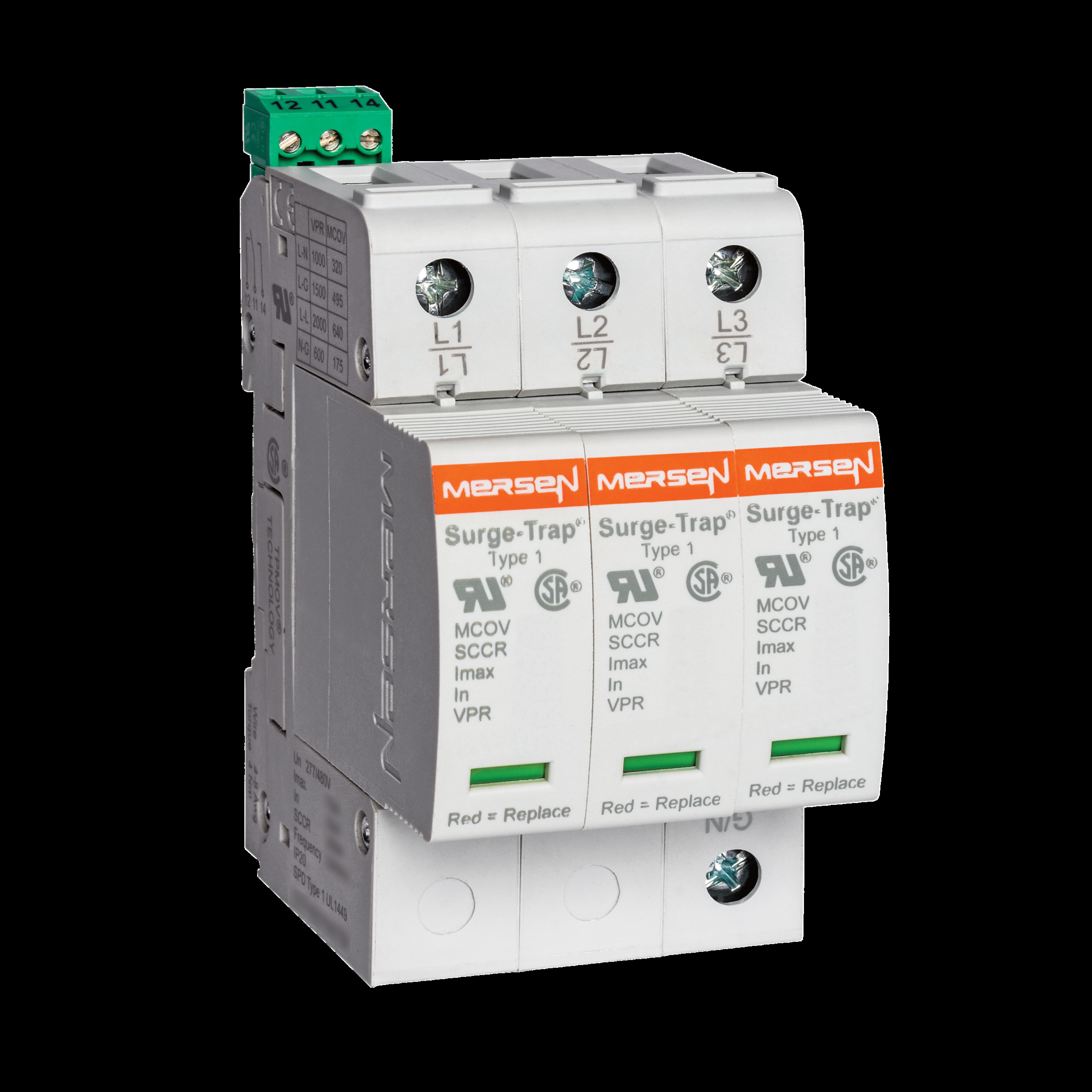

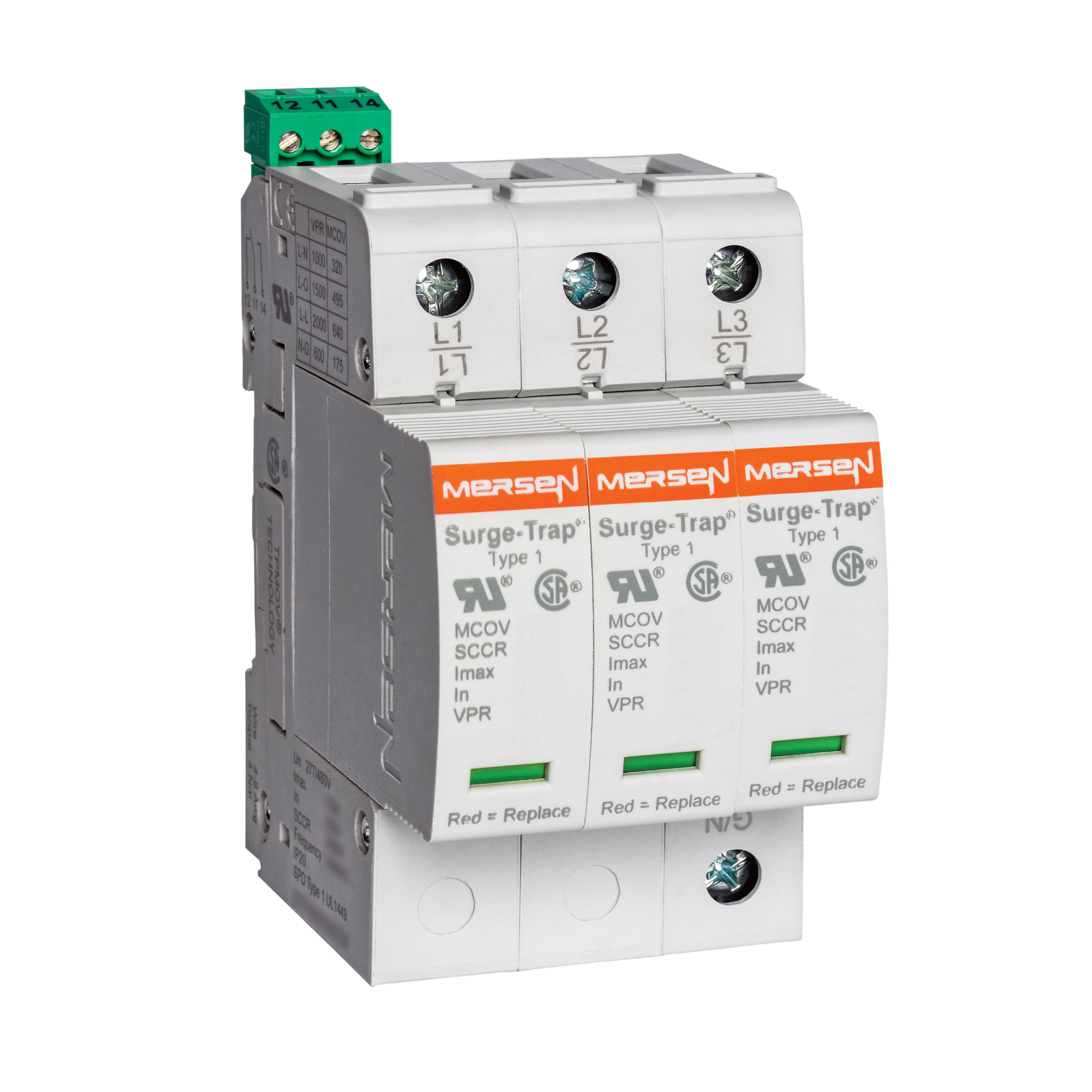

Product image for MERSEN STP480Y07M SURGE TRAP PLUGABLE 75 SERIES 480V 75KA 3POLE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

MERSEN STP480Y07M SURGE TRAP PLUGABLE 75 SERIES 480V 75KA 3POLE

Manufacturer: Ferraz Shawmut Mersen | Catalog # STP480Y07M | Electrozad South Part # 333602
$551.92 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Surge-Trap® Pluggable Surge Protective Device (SPD) is a no-fuse, fail-safe surge suppressor featuring Mersen’s patented TPMOV® technology inside. UL 1449 4th Edition approved, it is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator, and a small footprint. A remote indicator option provides status to critical control circuitry. The Surge-Trap Pluggable SPD has a high short circuit rating and a thermally protected MOV, which eliminates the need for additional overcurrent protection devices.

Technical Information

Connection Type
Box
Current Type
AC
Frequency
50/60 Hz
Indicator
Microswitch
Max Discharge Current
75 kA
Max Operating Temperature
85 degrees C
Minimum Operating Temperature
-40 degrees C
Mounting Type
DIN Rail
Nominal Discharge Current
20 kA
Number of Poles
3
Number of Wires
4
Response Time
<25 Nano-Seconds
Short Circuit Current Rating
200000 A
Terminal Type
Box
Torque
35.4 lb-in
Torque Rating
35.4 lb-in

Packaging

Package Qty
1

General Product Info

12-Digit UPC
782001477820
GTiN
00782001477820
Housing Material
Polyethelene Terphthalate
Product UPC
78200147782
Weight
1.15 lb

Dimensions

Height
2.81 in
Length
4.19 in
Width
2.07 in

Certifications & Compliance

Country of Origin
Mexico
