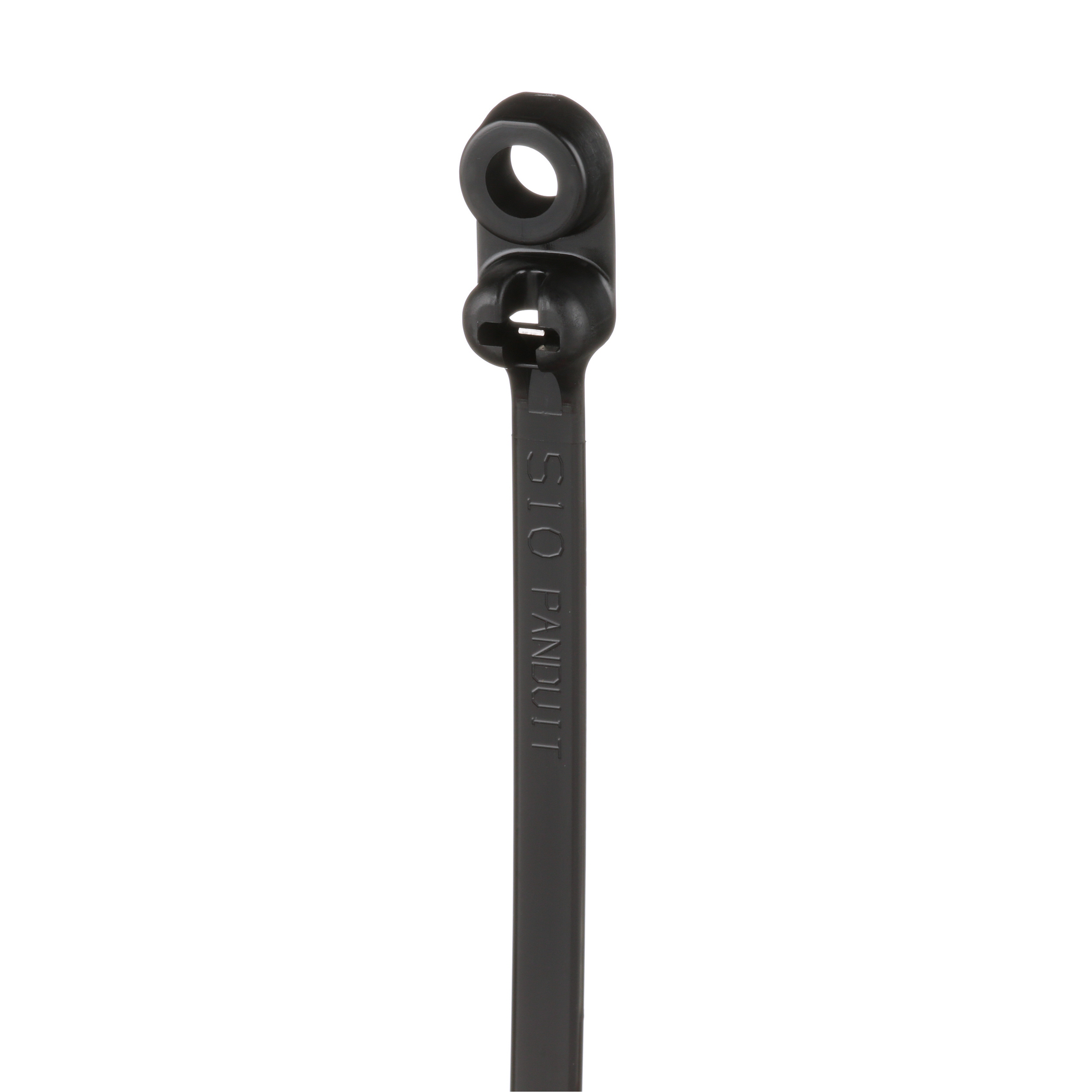

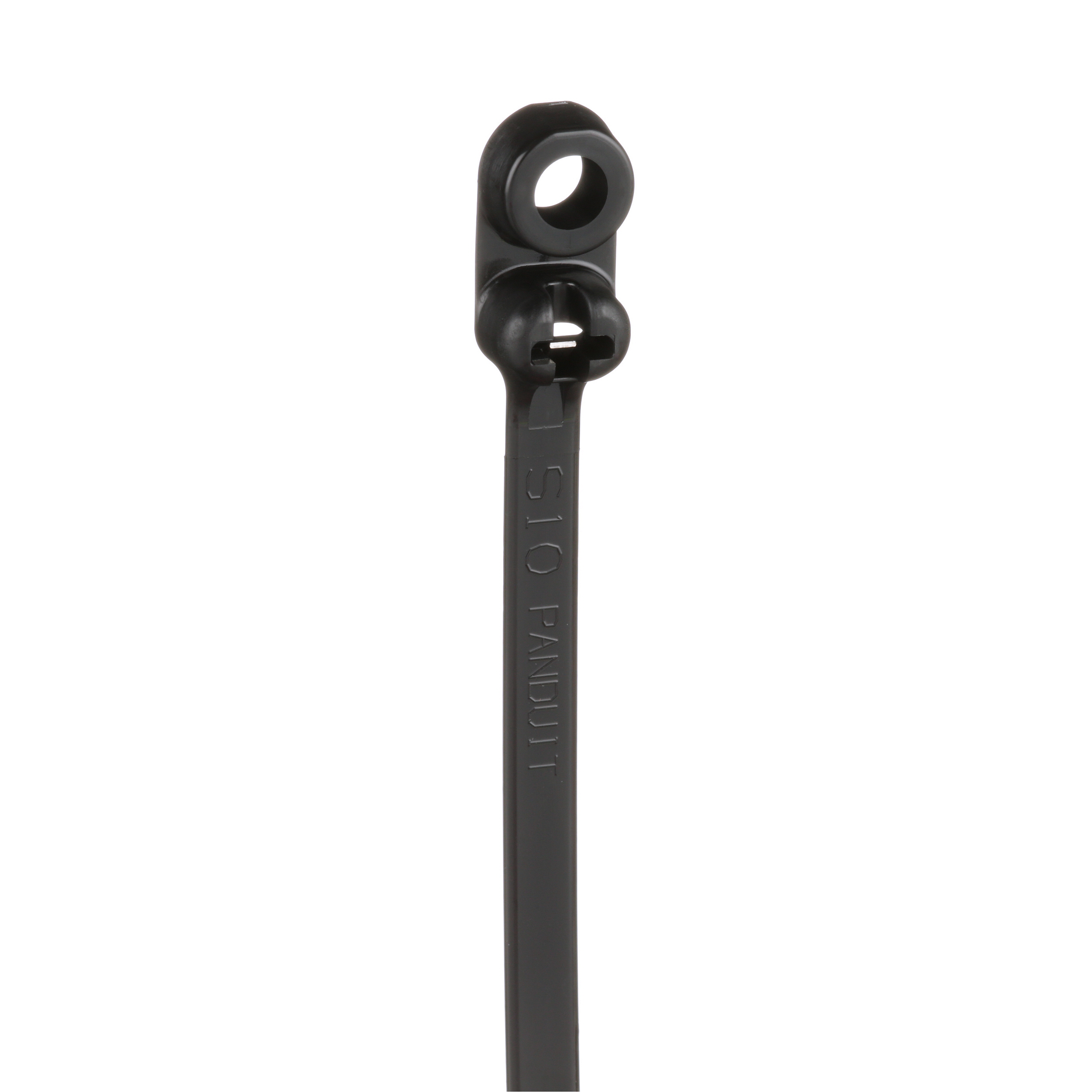

Dome-Top® BC2S-S10-C0 Locking Clamp Barb Tie, Black, UV PA6.6, M5, 8.5"L, 50lb

Manufacturer: Panduit | Catalog # BC2S-S10-C0 | Electrozad South Part # 334756
$65.61 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
Dome-Top® barb ty clamp tie, standard cross section, #10 (M5) screw, 8.5 (216mm) length, weather resistant nylon 6.6, black, standard package.

Technical Information

Applications
For General, Outdoor use
Body Thickness
0.052 in
Body Width
0.185 in
Bundle Diameter
50.8 mm
Material
Nylon 6.6
Max Operating Temperature
185 degrees F
Minimum Operating Temperature
-60 degrees C
Standard
CSA,E2186,UL
Temperature Rating
-60 to 85 degrees C
Tensile Strength
222 N
Type
Standard Cross Section, UV-Resistant, Weather Resistant

Packaging

Package Qty
100
Standard Packaging Qty
100/Pack

Manufacturer Information

Brand
Panduit
Sub Brand
Dome-Top

General Product Info

12-Digit UPC
074983523153
Color
Black
Environment
Outdoor
Environmental Conditions
32 °F
GTIN
00074983523153
Product UPC
07498352315
UNSPSC
39121703

Dimensions

Length
8.5 in
Overall Length
8.5 in
Thickness
1.3 mm
Width
4.7 mm

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Costa Rica
