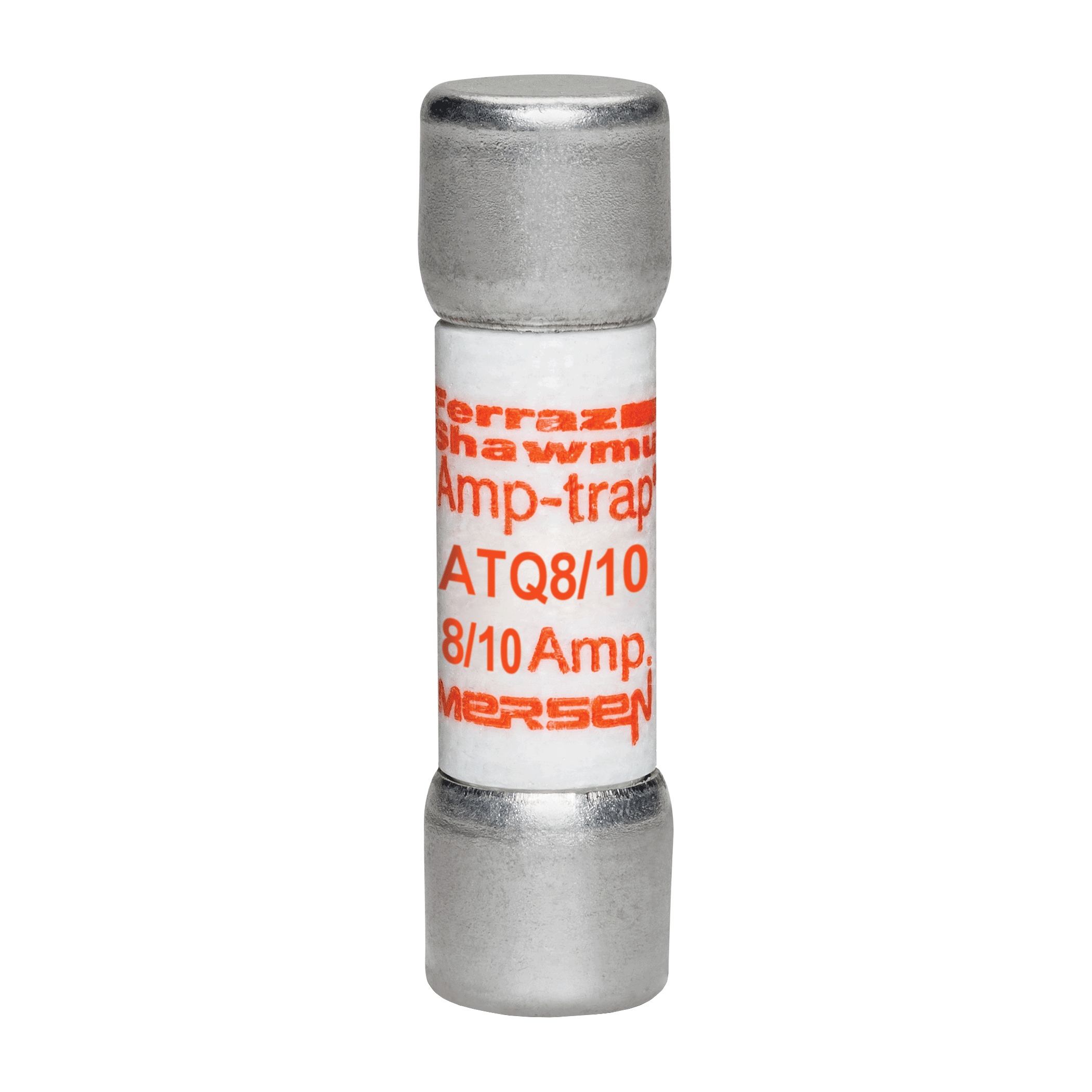

MERSEN ATQ8/10 FUSE MIDGET 8/10A 500V 12SEC TIME DELAY 1-1/2" X 13/32"

Manufacturer: Ferraz Shawmut Mersen | Catalog # ATQ8/10 | Electrozad South Part # 33491
*Call For Price*
Log in or register to view your price, purchase history, and more!
12 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet

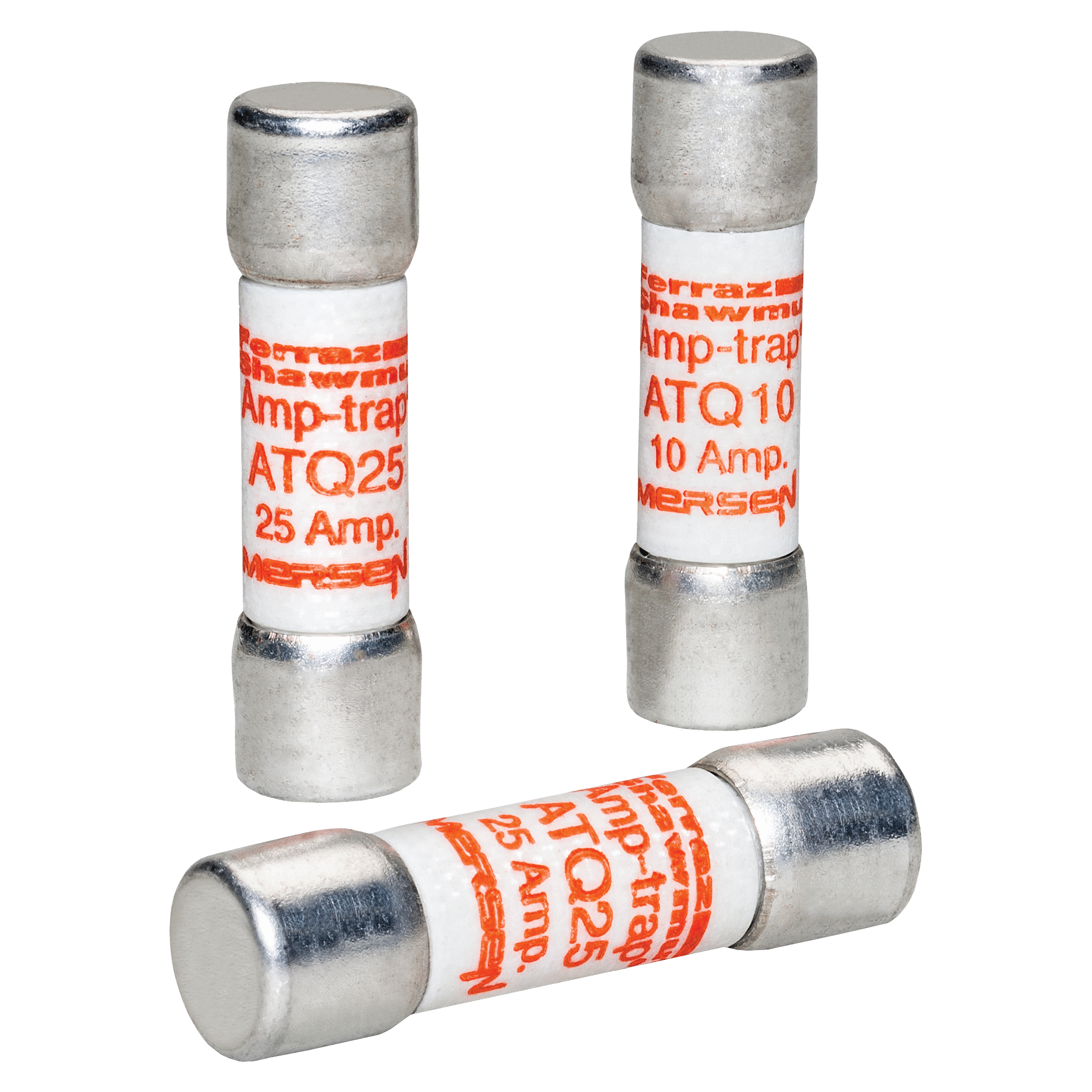

Amp-Trap ATQ midget time-delay fuses are rated 500VAC with 42 ampere ratings from 1/10 to 30A. They are an excellent choice for supplemental protection of circuits where the available short circuit current does not exceed 10,000A. (Not for Branch Circuit Protection)

Technical Information

Amperage
0.8 A
Applications
Supplemental Protection of Lighting, Solenoid, Motor and Transformer Circuits
Connection Type
Ferrule
Frequency
50/60 Hz
Fuse Class
Midget
Insulation Material
GMG
Interrupt Rating
10 kA
Mounting Type
Clip
Rated Voltage AC
500 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Time Delay

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001902681
Class
M
GTIN
30782001902682
Product UPC
78200190268
Weight
0.014 lb

Dimensions

Diameter
0.41 in
Length
1.5 in
