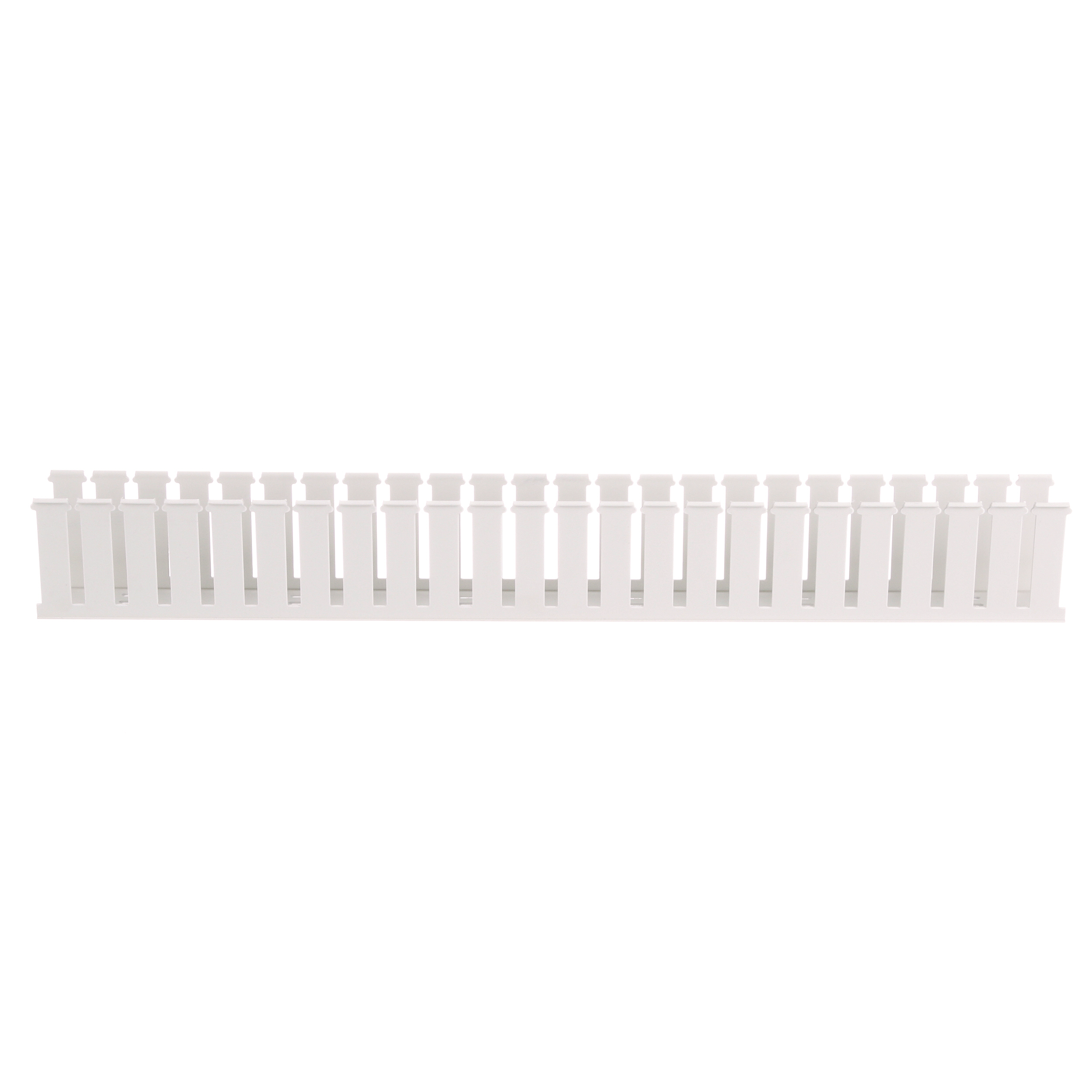

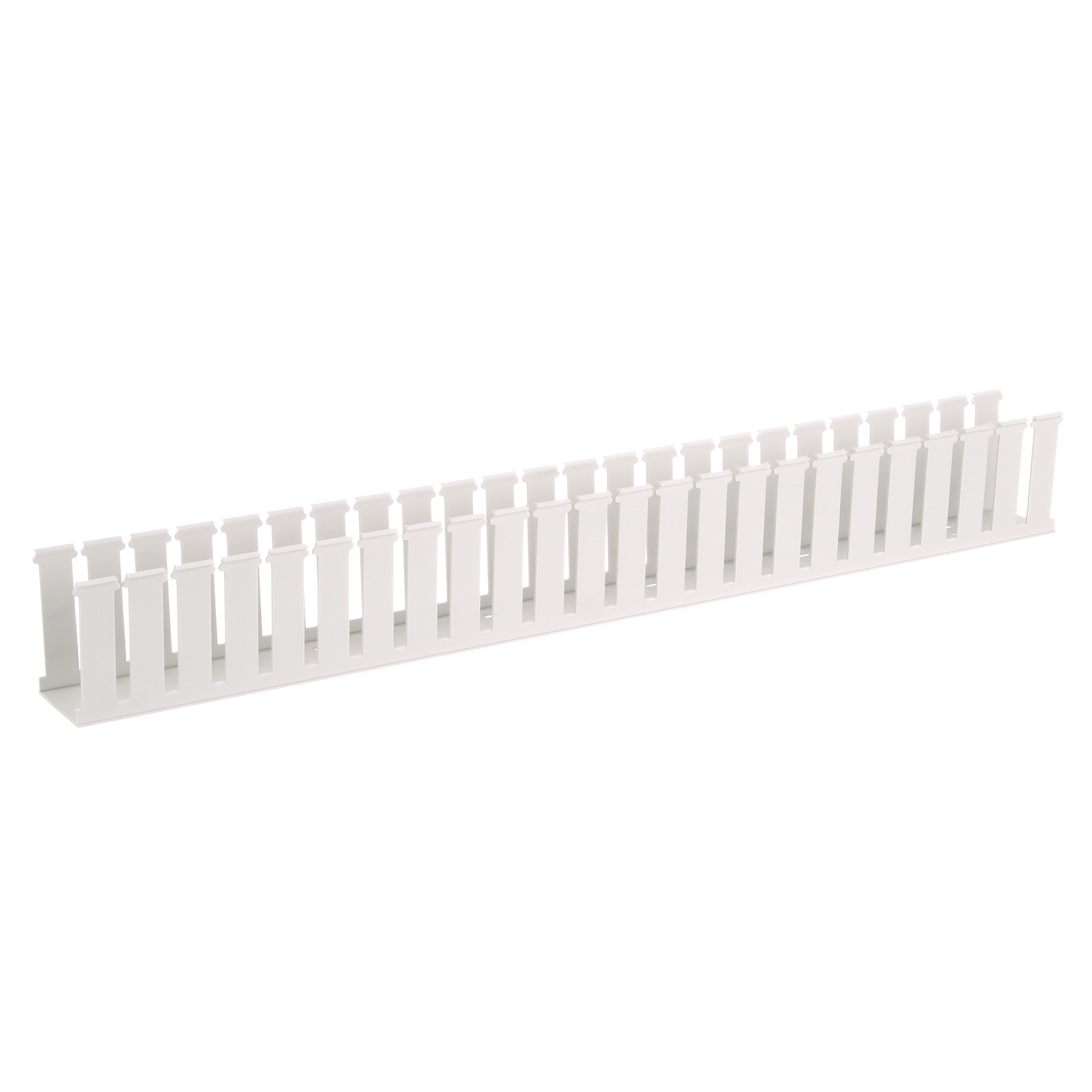

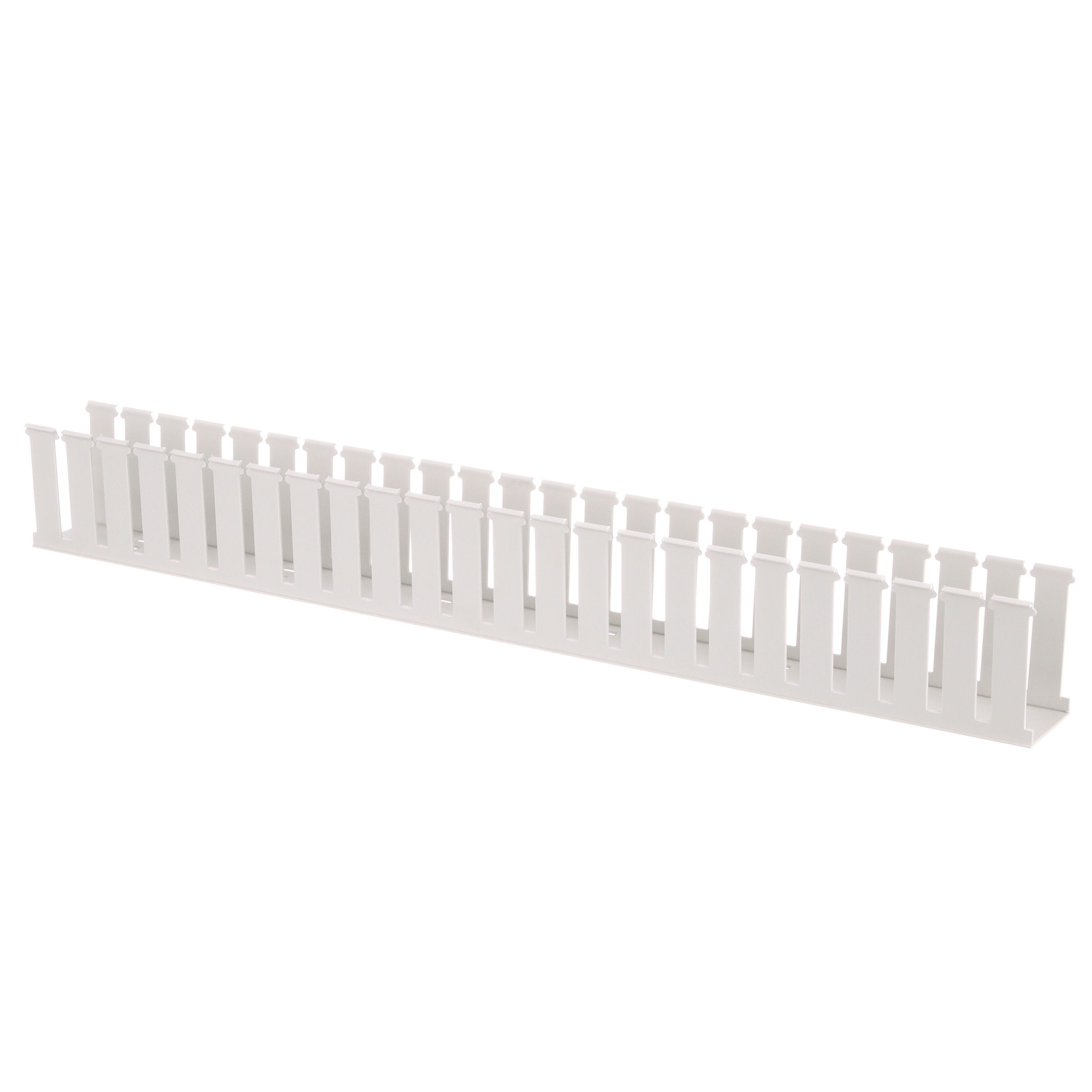

Product image for PANDUIT NE2X3WH6 SLOT HAL-FREE DUCT 2X3X6' WH 6FT
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

PANDUIT NE2X3WH6 SLOT HAL-FREE DUCT 2X3X6' WH 6FT

Manufacturer: Panduit | Catalog # NE2X3WH6 | Electrozad South Part # 334989
$26.62 /ea
ft
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
The NE2X3WH6 Panduct NE Halogen-Free Slotted Wiring Duct has a nominal duct size designed to optimize space. Manufactured with a special-purpose material for use in halogen-free or high-temperature applications. It has a UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95..C (203..F) and is 20% lighter than PVC. Mounting holes provided. Modified Polyphenylene Oxide (mPPO). 2" x 3" (50.8mm x 76.2mm) and 6' (1.83 m) long. Cover sold separately. Color White. 6/package.

Technical Information

Applications
Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of flame retardant applications
Material
Polyphenylene Oxide
Mounting Type
DIN Standard Mounting Holes
Size
2.00 x 3.00
TC Connection
Standard Mounting Holes
Type
Base Wiring Duct

Packaging

Package Qty
6

Manufacturer Information

Brand
Panduit
Sub Brand
Panduct

General Product Info

12-Digit UPC
074983214945
Color
White
GTIN
00074983214945
Product UPC
07498321494

Dimensions

Height
3.06 in
Length
1.8 m
Overall Length
6 ft
Thickness
0.07 IN
Width
2.14 in

Certifications & Compliance

Country of Origin
USA
