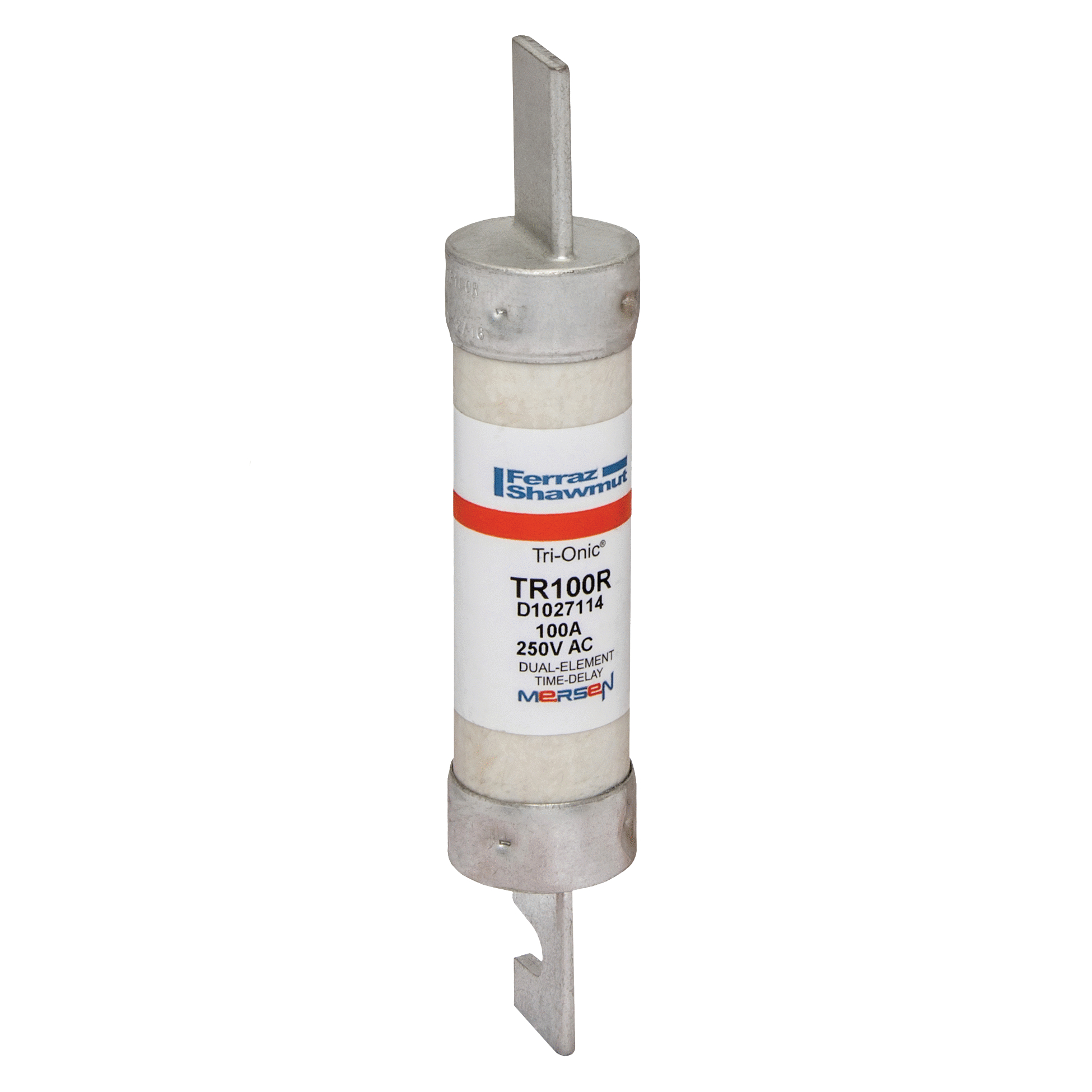

Fuse TR-R - Class RK5 - Time-Delay 250VAC 250VDC 100A Blade Tri-Onic®

Manufacturer: Ferraz Shawmut Mersen | Catalog # TR100R | Electrozad South Part # 335
$17.45 /ea
ea
Log in or register to view your price, purchase history, and more!
9 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet
Tri-Onic TR-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TR-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.

Technical Information

Amperage
100 A
Applications
Optional solid-state SmartSpot indicator Time-delay for motor start-ups and transformer inrush currents without nuisance opening Current-limiting for low peak let-thru current Rejection-style design prevents replacement errors (when used with recommended fuse block)
Connection Type
Blade
Frequency
50/60 Hz
Fuse Class
Class RK5
Insulation Material
PolyTube
Interrupt Rating
200 kA
Mounting Type
Clip
Rated Voltage AC
250 V
Rated Voltage DC
250 V
TC Connection
Blade
Terminal Material
Tin-Plated Copper
Terminal Type
Blade
Type
Time-Delay

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001748012
Class
RK-5
GTIN
30782001748013
Product UPC
78200174801
Weight
0.303 lb

Dimensions

Diameter
0.06 in
Length
5.88 in
