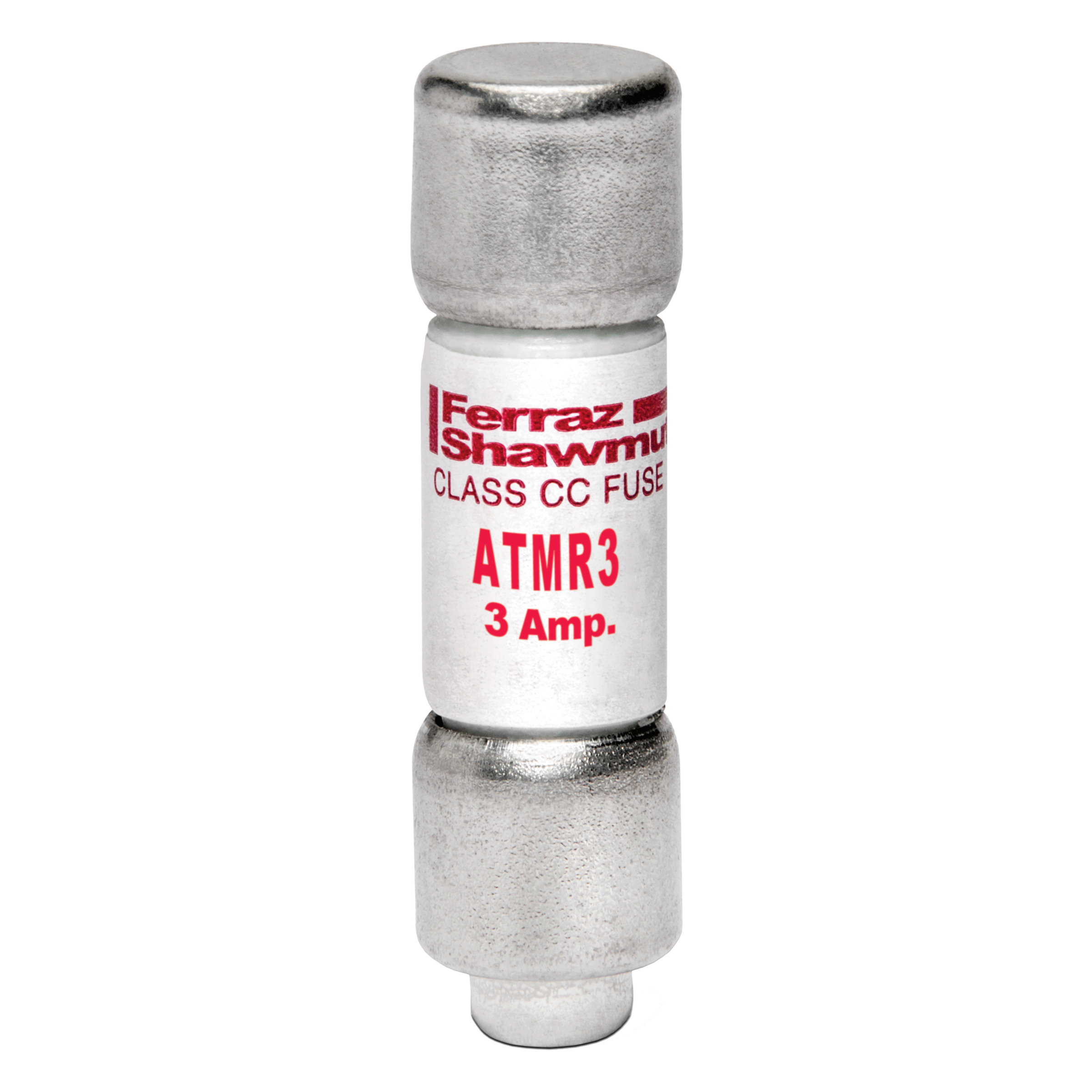

MERSEN ATMR3 FUSE CLASS CC 3A 600VAC FAST ACTING REJECTION STYLE

Manufacturer: Ferraz Shawmut Mersen | Catalog # ATMR3 | Electrozad South Part # 33560
$10.92 /ea
ea
Log in or register to view your price, purchase history, and more!
6 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet
Amp-Trap ATMR fast-acting fuses are the smallest dimension 600V fuses suitable for branch-circuit protection. The ATMR is a popular choice for economical protection of control circuits and control circuit transformers where available short circuit currents exceed 10,000 amperes. ATMR's rejection dimensions prevent substitution by lesser rated fuses. These fast-acting fuses give current-limiting protection to general circuits.

Technical Information

Amperage
3 A
Applications
For Control Circuits, Lighting, General Loads
Connection Type
Ferrule
Frequency
50/60 Hz
Fuse Class
Class CC
Insulation Material
GMG
Interrupt Rating
200 kA
Mounting Type
Clip
Rated Voltage AC
600 V
Rated Voltage DC
600 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
North American Power Fuses

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001903862
Class
CC
Construction
Fiberglass
GTIN
30782001903863
Product UPC
78200190386
Weight
0.017 lb

Dimensions

Diameter
0.41 in
Length
1.5 in
