PANDUIT FLCS2/9SOCU9BU CONNECTOR FIBER LC-UPC SPLICE ON FOR 250/ 900UM

Manufacturer: Panduit | Catalog # FLCS2/9SOCU9BU | Electrozad South Part # 335887
$37.13 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Installation / Instruction Manual

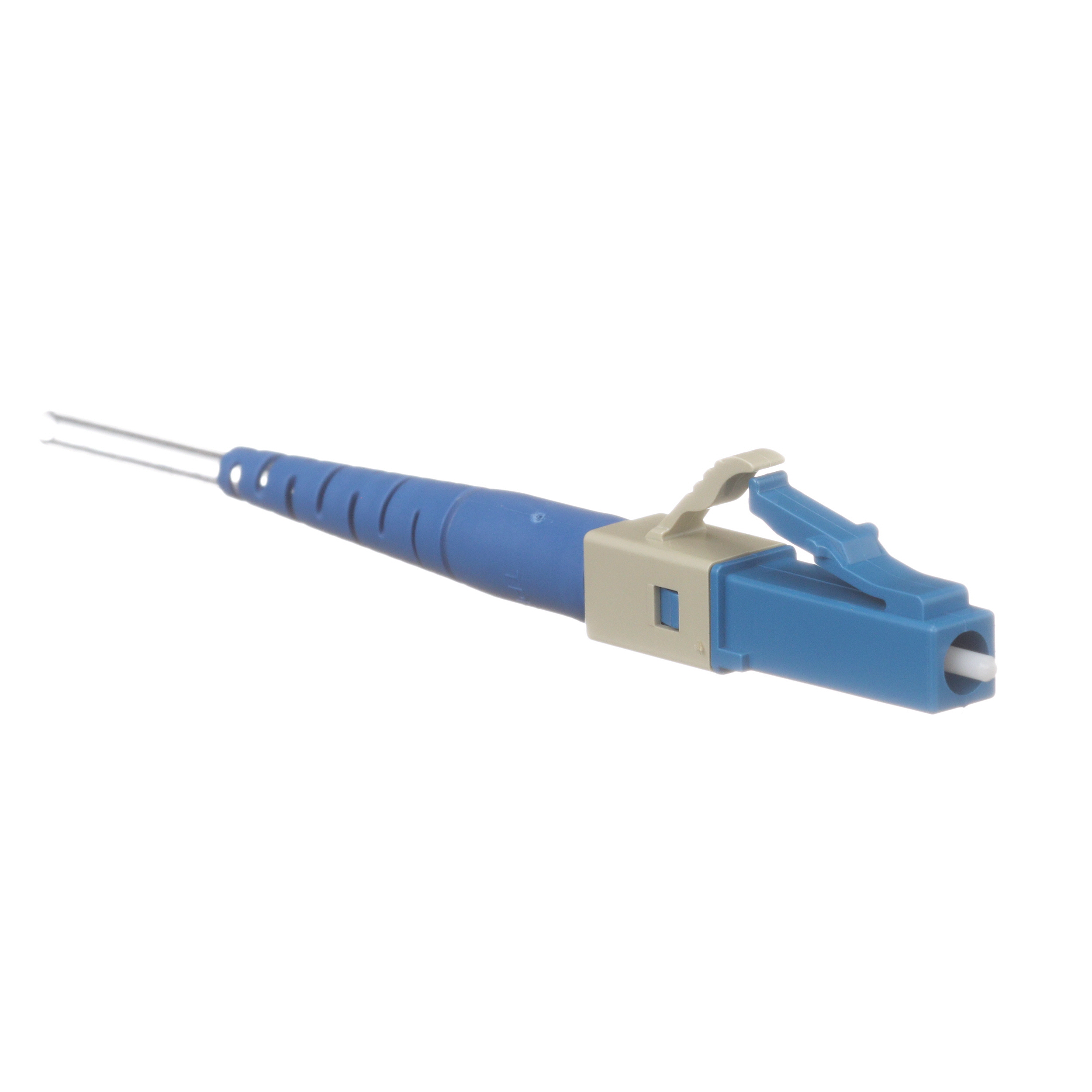

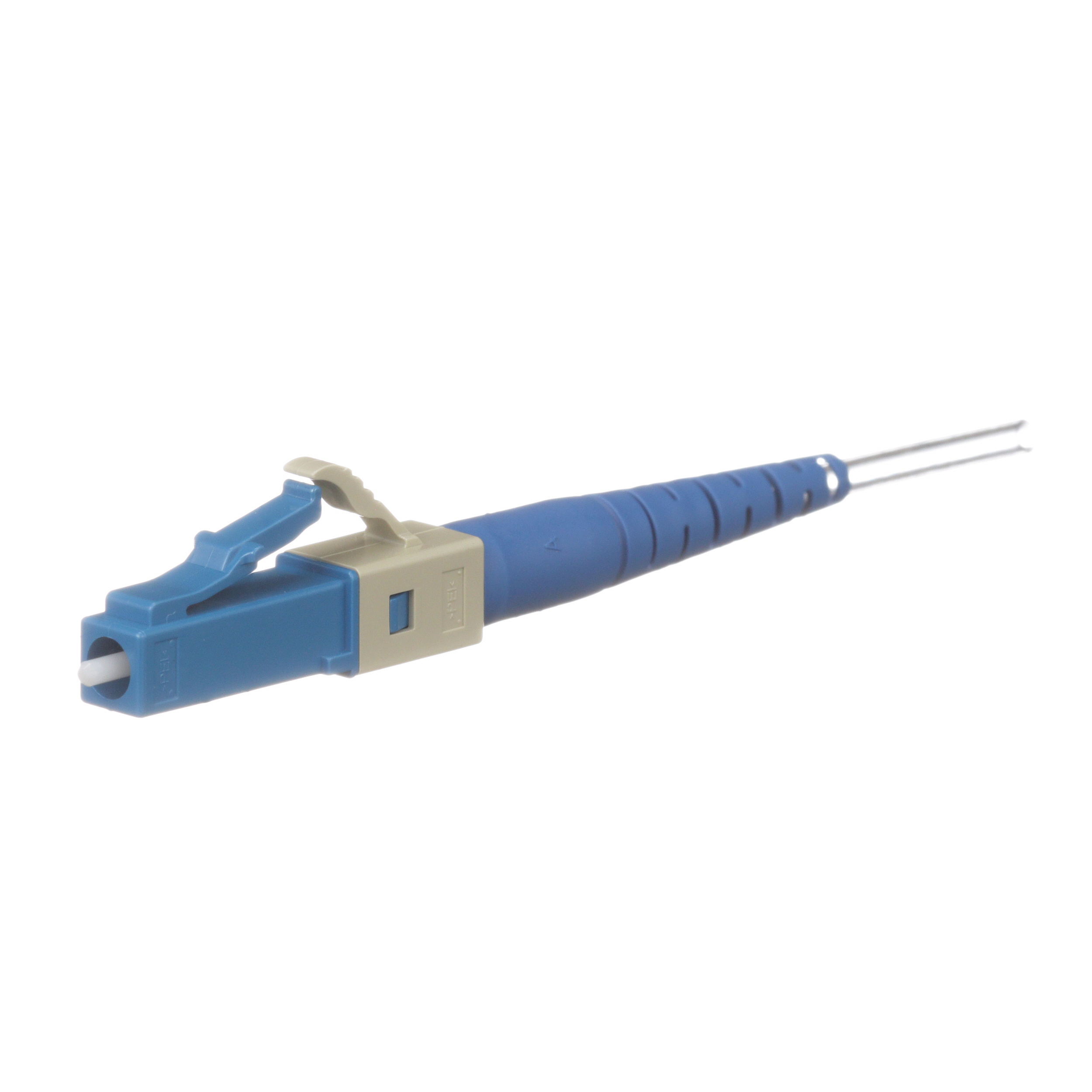

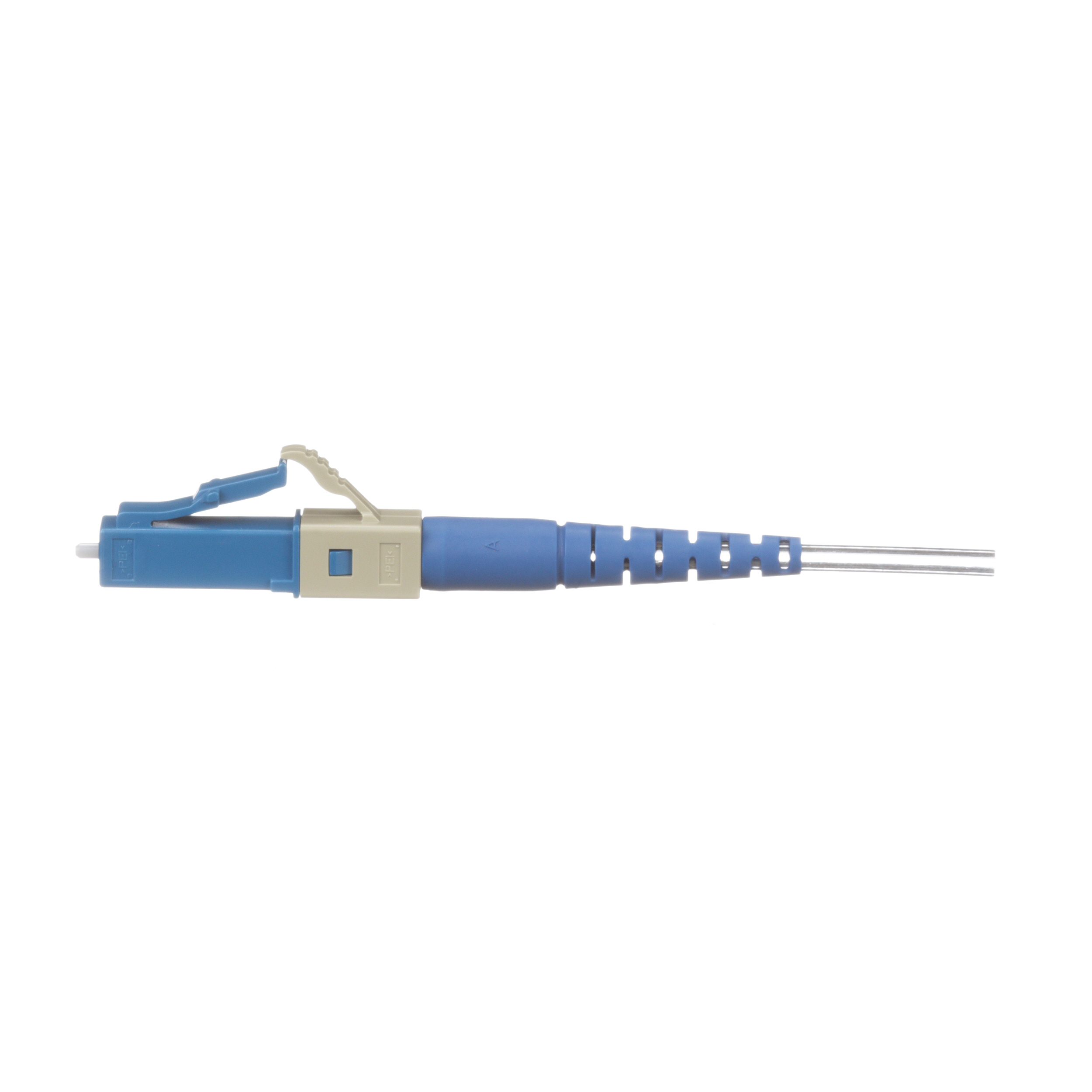

The Fusion Splice LC-UPC Fiber Optic Connector is a singlemode 9/125μm OS1/OS2 simplex fiber connector, intended for 900μm tight-buffered or 250μm loose-tube fiber installation. Field termination can be done in about two minutes on several common splice machine brands. The connector consists of a ferrule assembly with a bare fiber stub, a front housing, a rear housing with integral boot, and a splice protection sleeve.

Technical Information

Applications
Used for Initial Installation of Fiber Links, Mac Work or Repairs to Existing Links to Minimize Downtime
Body Type
Simplex
Boot Color
Blue
Connection Type
Fusion Splice
Connector Type
Pre-Polished LC
Fiber Type
OS1/OS2 9/125 µm Single Mode, 250/900 µm
Material
Zirconia Ceramic Ferrule
Max Operating Temperature
167 degrees F
Minimum Operating Temperature
-40 degrees C
Standard
CSA,RU Listed,RoHS
Temperature Rating
-40 to 167 degrees F
Type
Simplex, Fusion Splice-On

Manufacturer Information

Brand
Panduit

General Product Info

12-Digit UPC
613056573994
Color
Blue
GTiN
00613056573994
Product UPC
61305657399
Used With
250 or 900 µm Tight Buffered Fiber Installation

Dimensions

Depth
mm
Outer Diameter
0.035 in
Width
75 mm

Certifications & Compliance

Country of Origin
Japan
