Digital Angle Gauge and Level

Manufacturer: Klein Tools | Catalog # 935DAG | Electrozad South Part # 336549
$47.76 /ea
pc
Log in or register to view your price, purchase history, and more!
3 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL I INSTALL ASSEMBLY INSTRUCTIONS URL

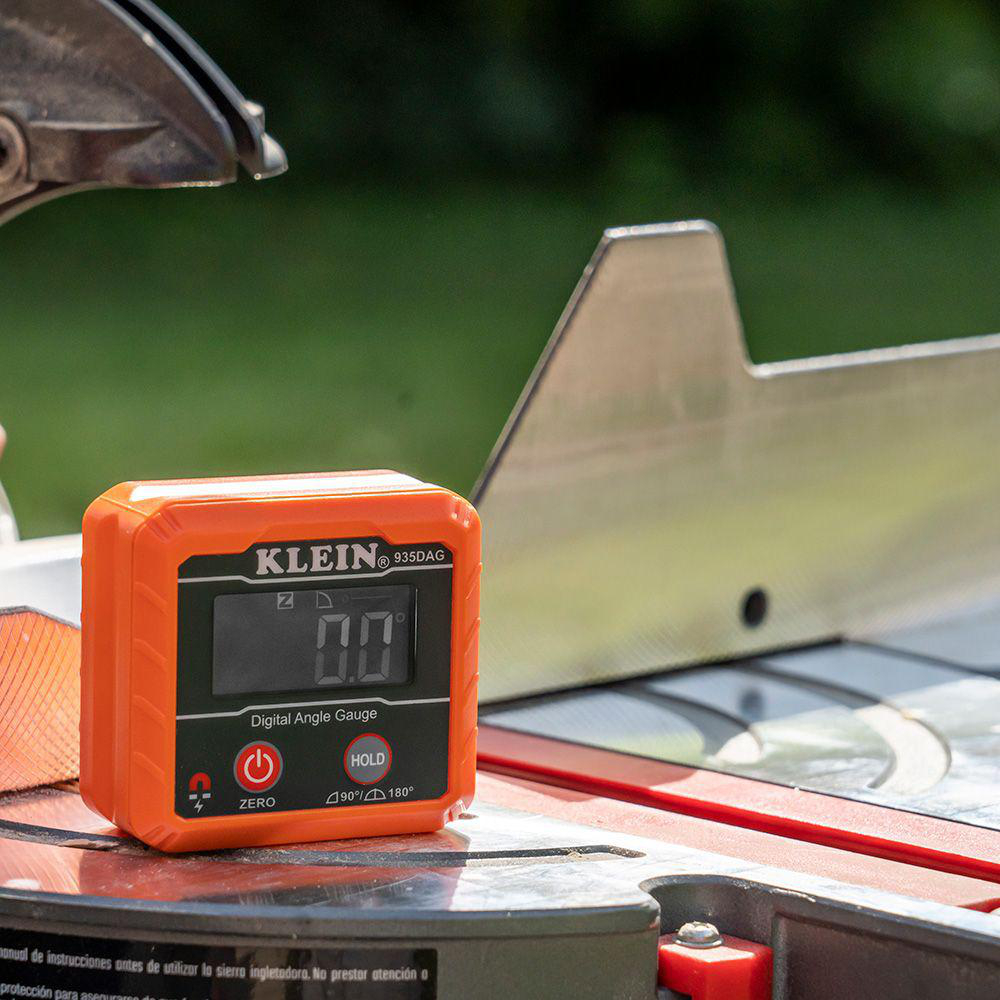

The Klein Tools Digital Angle Gauge and Level can measure or set angles, check relative angles, or can be used as a digital level. The strong magnetic base attaches to ferromagnetic surfaces such as conduit. Along with dual measurement ranges of 0 to 90-Degree and 0 to 180-Degree, this tool has a high visibility reverse contrast display for easy viewing.

Technical Information

Accuracy
+/-0.1° for 0° to 1°, 89° to 91°, 179° to 180°, +/-0.2° at All Other Angles
Applications
Measure or Set Angles, Check Relative Angles, or Use as a Digital Level
Battery Type
AAA
Material
ABS
Power Source
(2) 1.5 V AAA Batteries
Type
Permanent Rare Earth Magnetic

Manufacturer Information

Brand
Klein Tools

General Product Info

12-Digit UPC
092644692376
GTIN
00092644692376
Product UPC
09264469237
Weight
0.170 lb

Dimensions

Depth
2.360 in
Height
2.2 in
Length
2.36 in
Overall Length
2.36 in
Width
1.2 in

Certifications & Compliance

Country of Origin
China
Overview

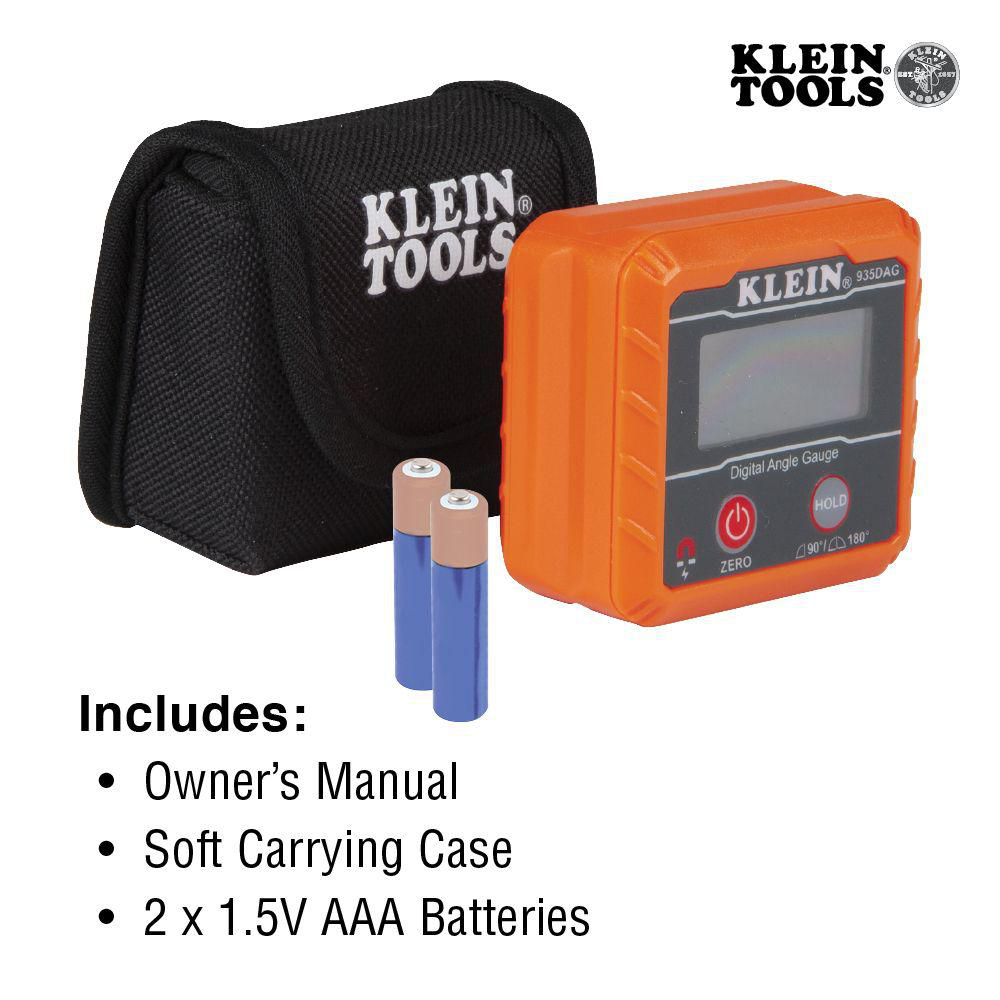

  • Soft carrying case and two AAA batteries included

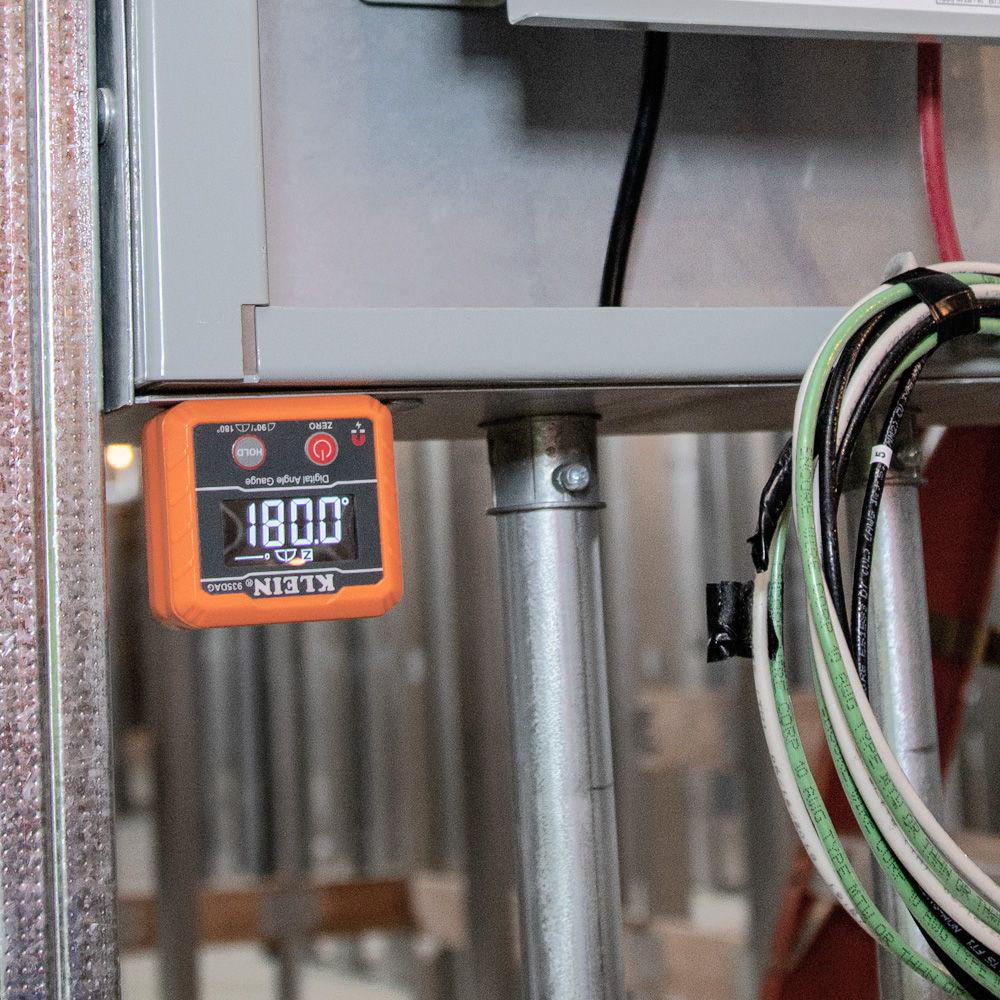

  • 0 to 90-Degree and 0 to 180-Degree measurement ranges provide easy use in applications such as woodworking, bending conduit, installing electrical panels, and working on machinery

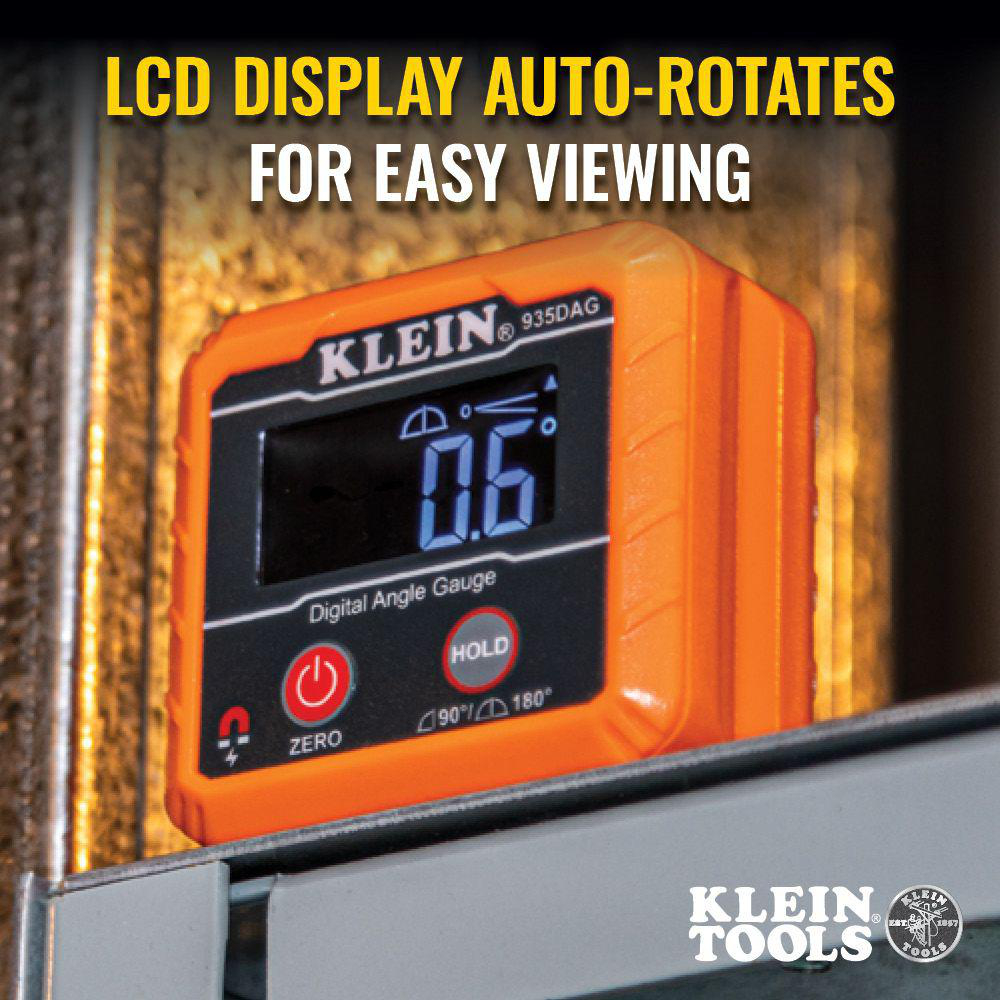

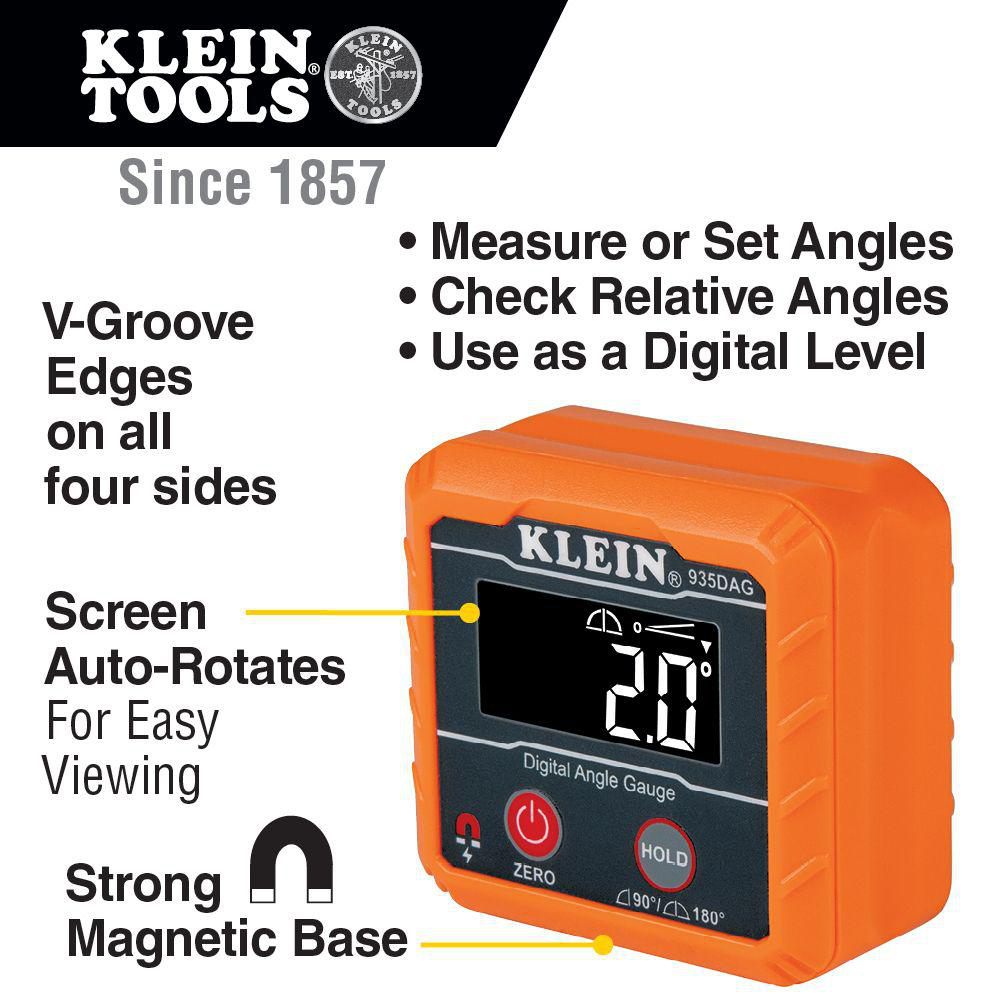

  • Display auto-rotates when upside-down for easy viewing

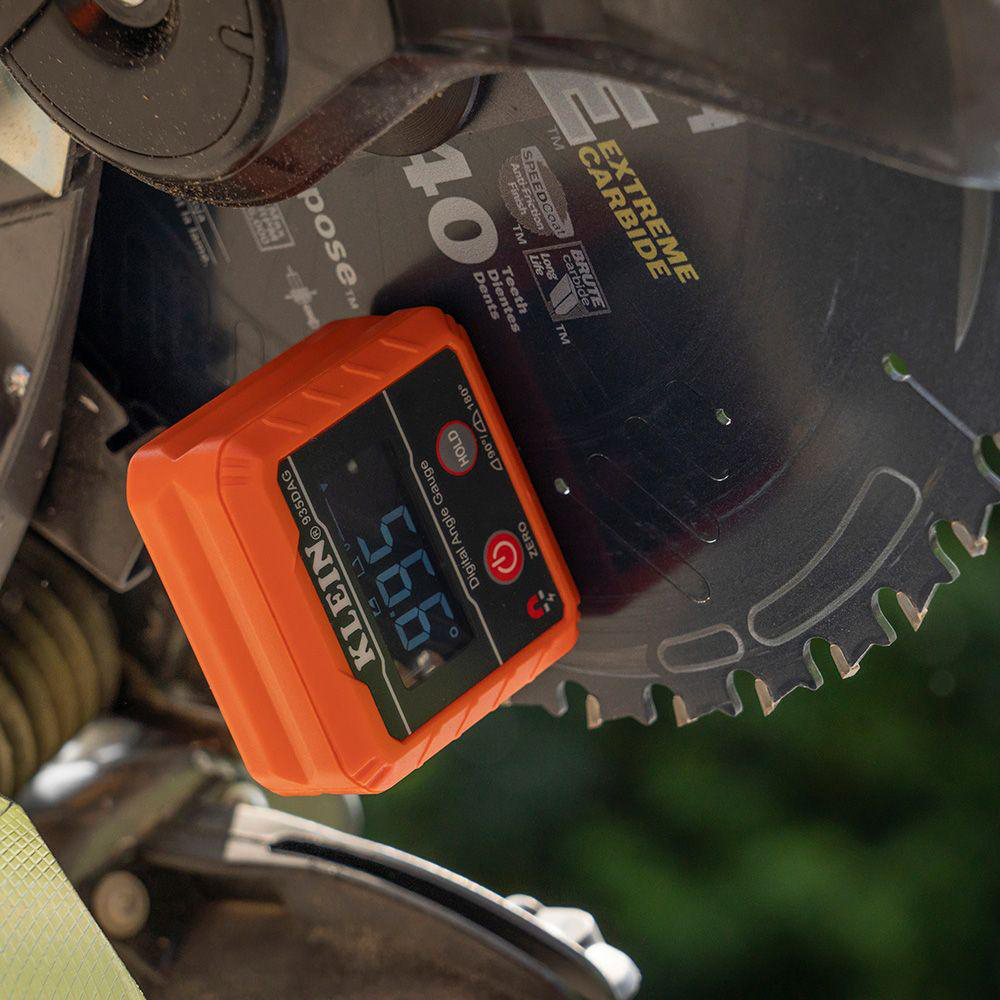

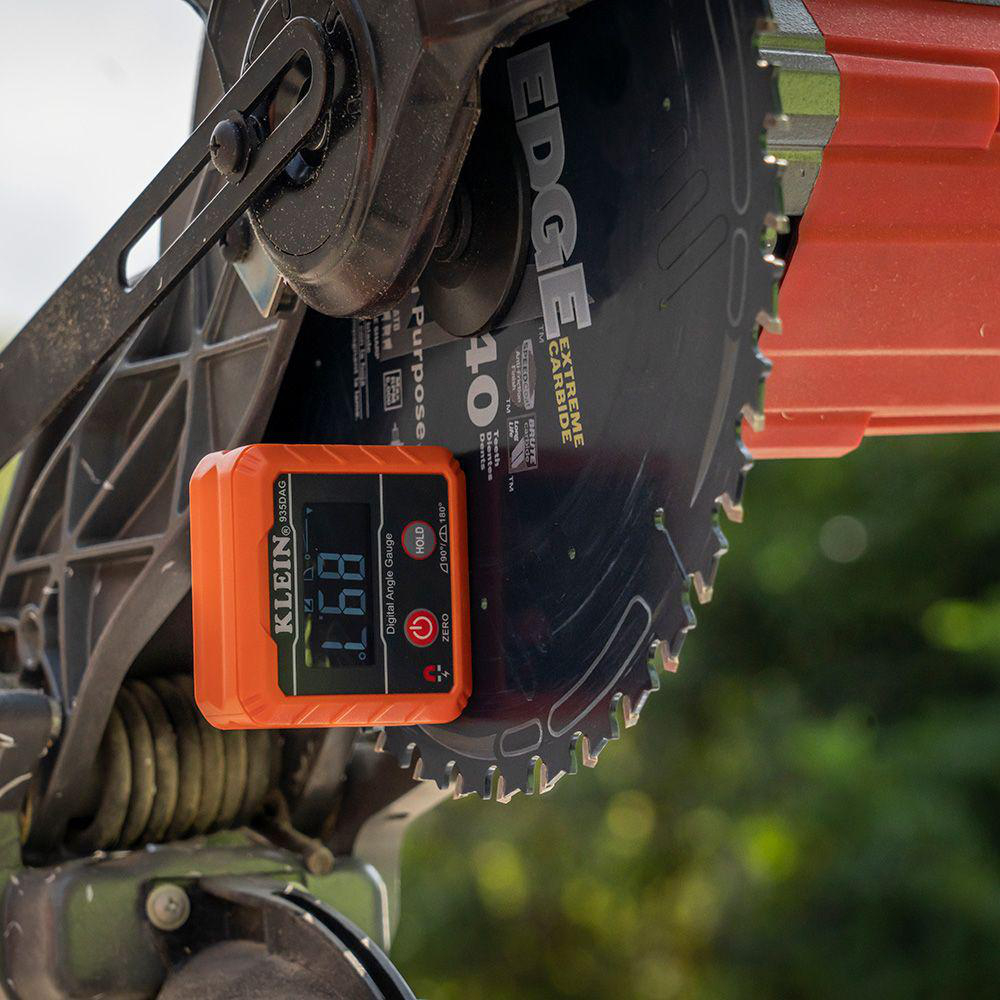

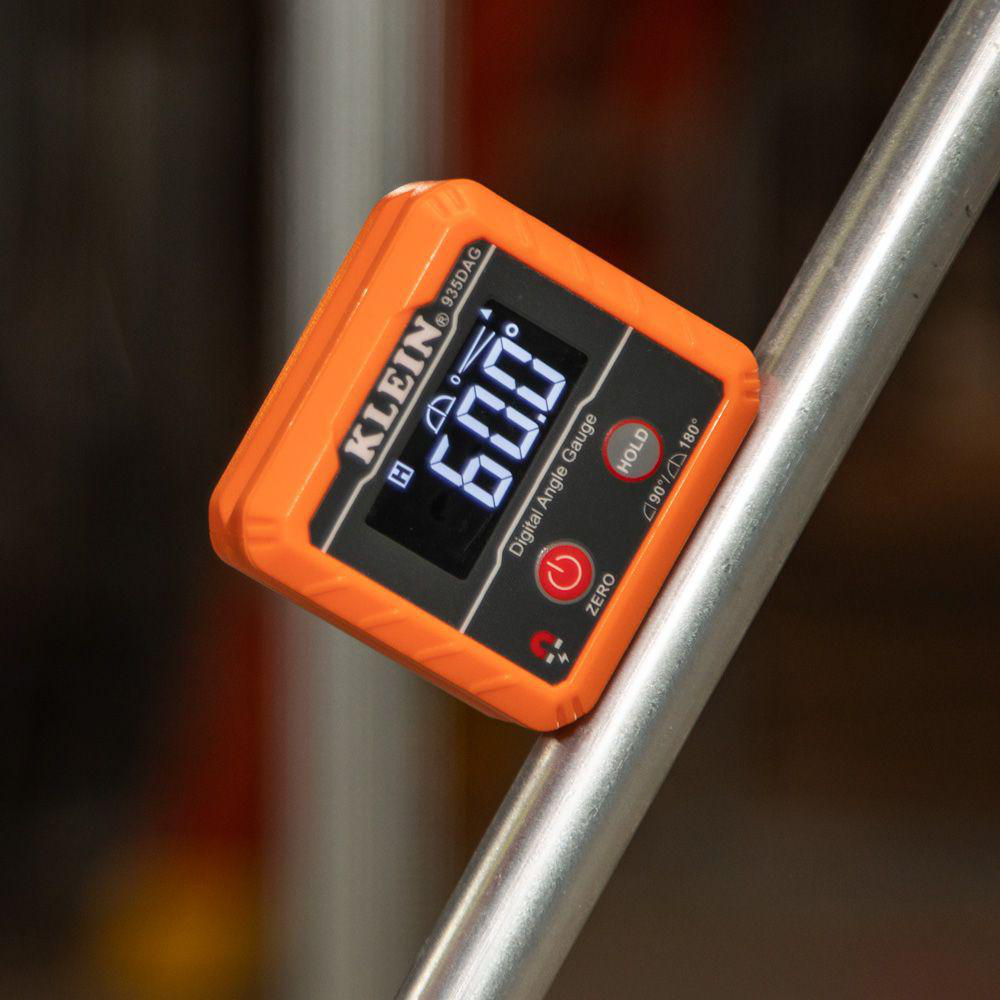

  • Strong magnetic base to attaches to conduit, pipes, saw blades, vents, ducts, and other ferromagnetic surfaces
  • Digital Angle Gauge and Level can measure or set angles, check relative angles with zero calibration feature, or can be used as a digital level
  • High visibility reverse contrast display improves visibility in dimly lit work environments

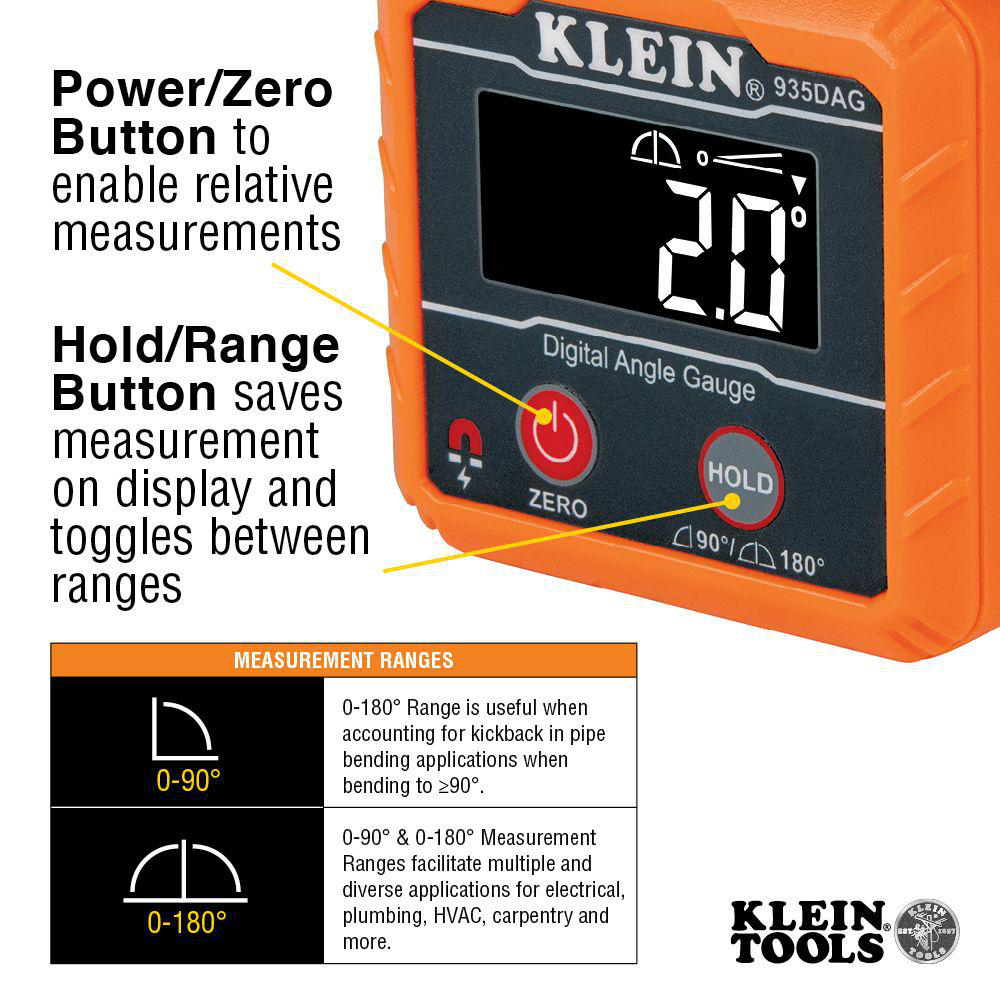

  • 0 to 180-Degree range is useful when accounting for kickback in pipe bending applications when bending to 90-Degree or more
  • Water and dust resistant with rating of IP42

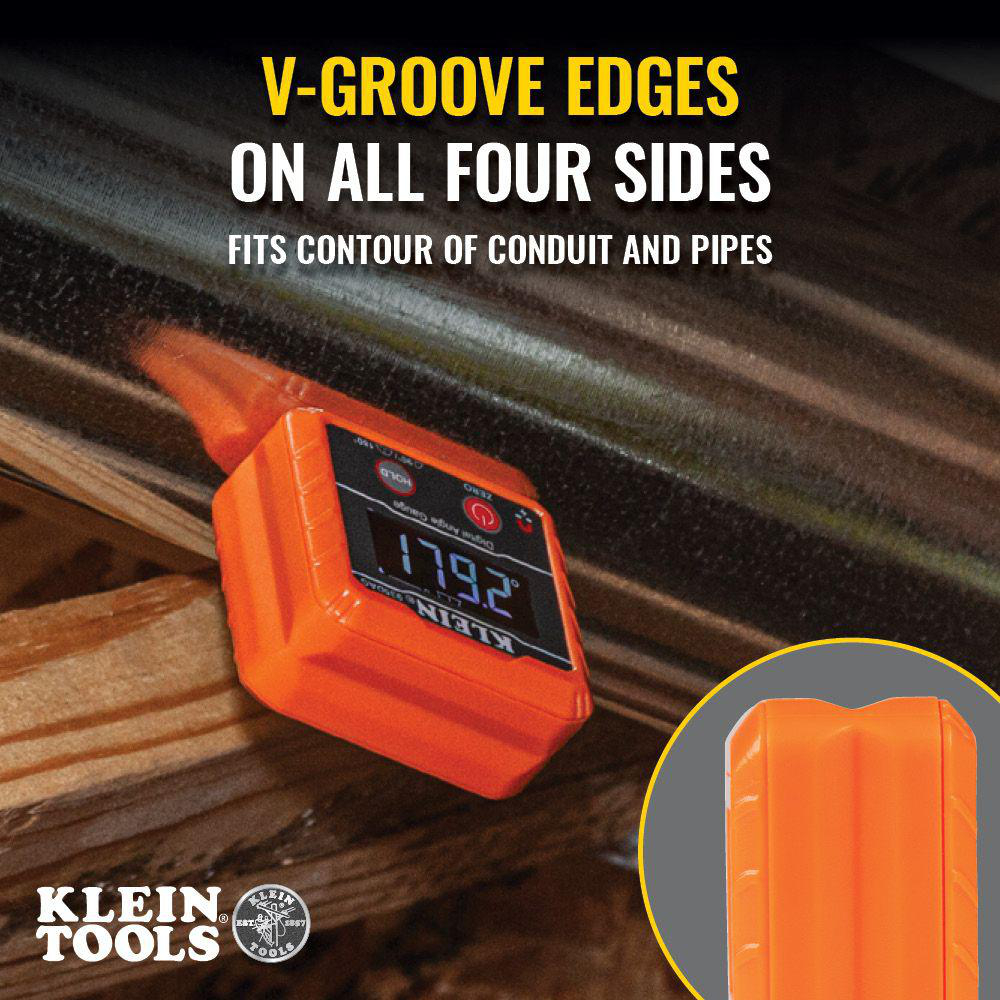

  • V-groove edges enable optimal alignment on conduits and pipes for bending and alignment
