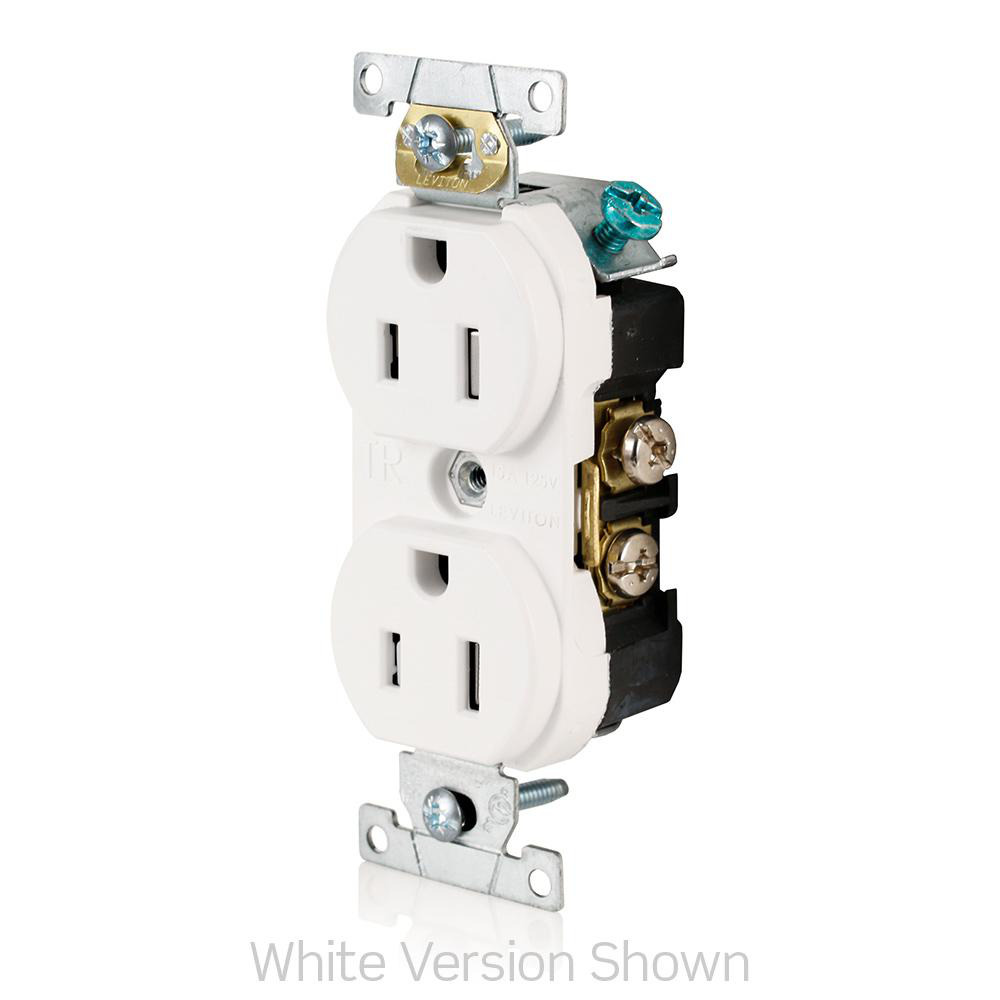

Receptacle straight duplex tamper-resistant 2P 3W 125V 15AMP white

Manufacturer: Leviton Manufacturing | Catalog # TCR15-W | Electrozad South Part # 343111

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Commercial spec grade tamper-resistant receptacle meet or exceed all existing codes and standards. NEC (National Electrical Code) requirements for commercial facilities necessitate the use of tamper-resistant receptacles and to bring you more options. Mechanical shutter mechanism prevents access to contacts unless a two-pronged plug is inserted, helping ensure that foreign objects will be locked out. Ultrasonically welded for additional assembly security. Body and face made of high impact thermoplastic for durability. Convenient break-off plaster ears for best flush alignment. Self-grounding clip staked on, will never fall off.

Technical Information

Amperage
15 A
Applications
Commercial
Body Material
Thermoplastic
Conductor Size
14-10 AWG
Connection Type
Side Wire
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 V
Enclosure
WD-6
Face Material
Thermoplastic
Flamability Class
Rated V-2 Per UL94
Grade
Commercial
Grounding
Self-Grounding
Horsepower
1/2 hp
Material
Thermoplastic
Mounting Type
Wallplate, Flush
NEMA
WD-1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
46 H x 1.36 W x 1.20 D IN
Standard
ANSI C-73
TC Connection
Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
150 %
Termination Type
Side Wire
Type
Outlet, Tamper-Resistant, Self Grounding
Voltage
125 V
Wire Count
3
Wire Size
14-10 AWG
Wire Type
Solid Building Wire,Stranded Building Wire

Manufacturer Information

Brand
Leviton
Sub Brand
TAMPER RESISTANT COMMERCIAL R

General Product Info

12-Digit UPC
078477655382
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Finish
Matte
GTIN
00078477655382
Product UPC
07847765538

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
