LEVITON T5633-E 15A TR RECPT USB TYPE-A TYPE-C

Manufacturer: Leviton Manufacturing | Catalog # T5633-E | Electrozad South Part # 344713
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page MSDS | SDS Safety Sheet

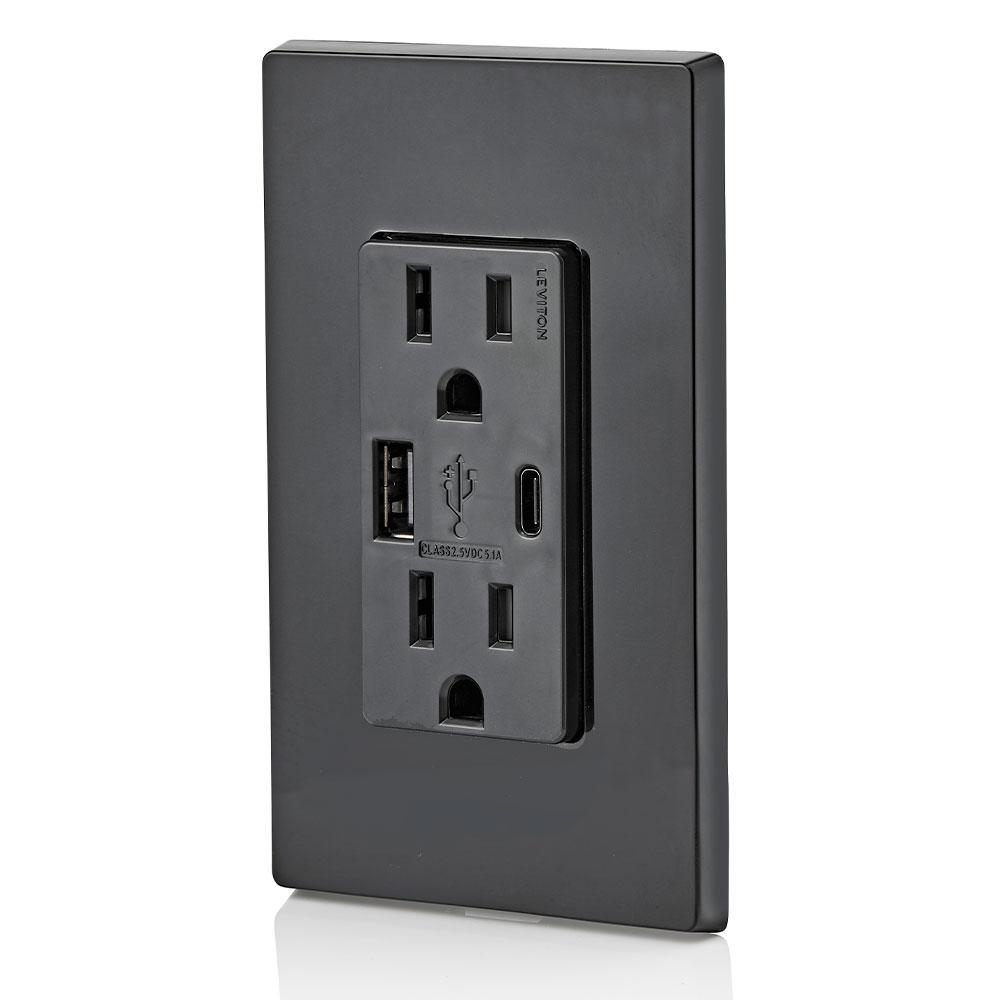

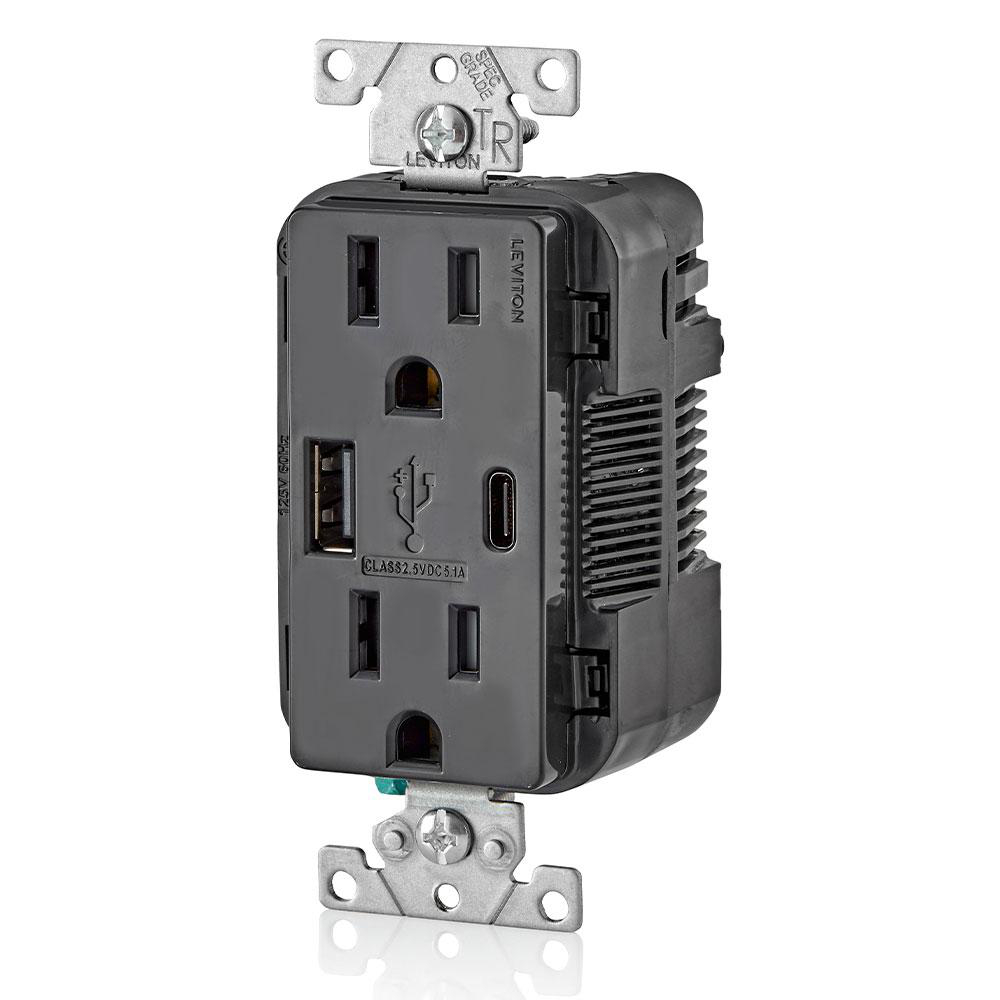

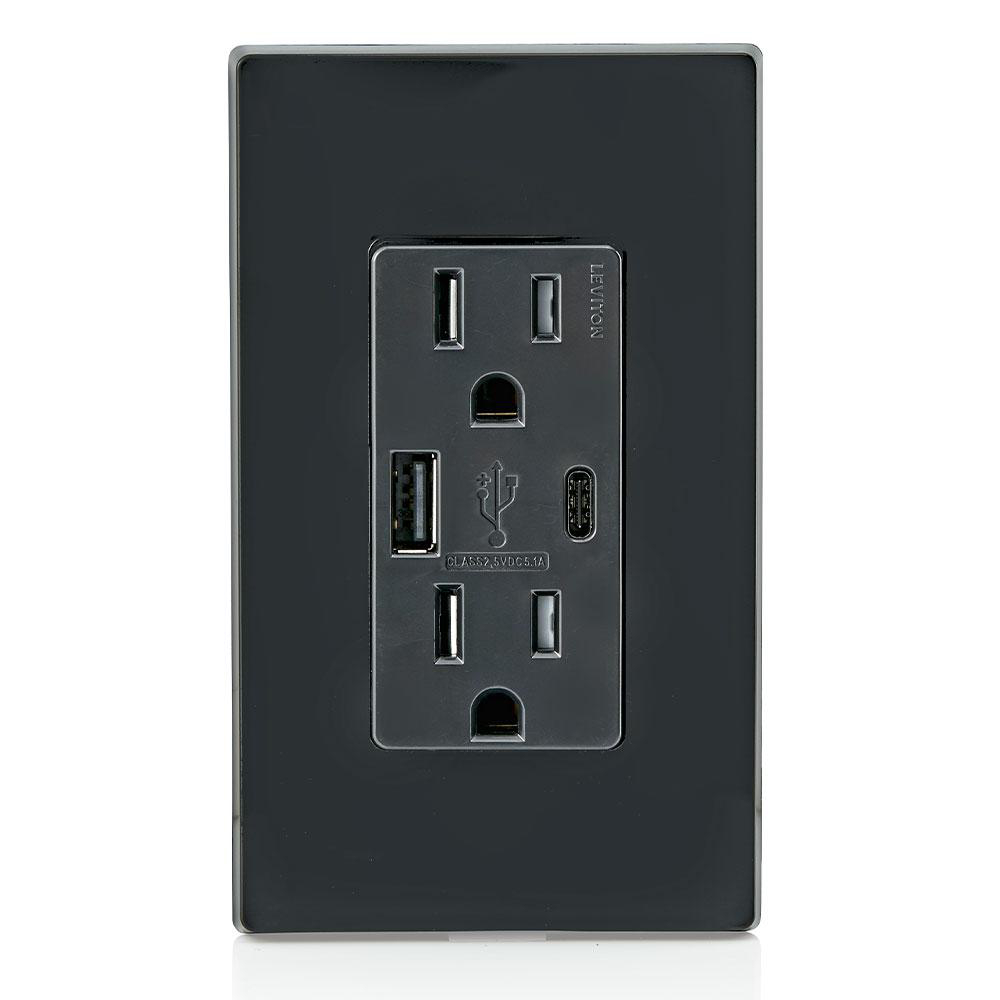

15 Amp, 125 Volt, Decora Tamper-Resistant Outlet. NEMA 5-15R, 25+W (5.1 Amp), Type A and Type-C USB In Wall Charger, Grounding, Side Wired & Back Wired - Black

Technical Information

Amperage
15 A
Applications
For Residential/Commercial Specification Grade
Body Material
Thermoplastic,Thermoplastic
Conductor Size
14-12 AWG
Cover Material
Thermoplastic,Thermoplastic
Flamability Class
Rated V-0 Per UL 94
Grade
Commercial Specification
Grounding
Grounding
Horsepower
1/2 hp
Material
Thermoplastic
NEMA
5-15R
Number of Poles
2
Number of Wires
3
Operating Temperature
40 degrees C
Outlet Type
Wall
Temperature Rating
-10 to 40 degrees C
Termination Type
Back Wire,Back Wire,Side Wire,Side Wire
Torque
14 lb-in
Type
Type A/C Duplex Receptacle

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477841358
Color
Black
GTIN
00078477841358
Product Type
Outlet/USB Combo
Product UPC
07847784135

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
Mexico - Pending
