LEVITON T5835-W 20A TR RECPT USB TYPE C

Manufacturer: Leviton Manufacturing | Catalog # T5835-W | Electrozad South Part # 344880
$99.20 /ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page MSDS | SDS Safety Sheet

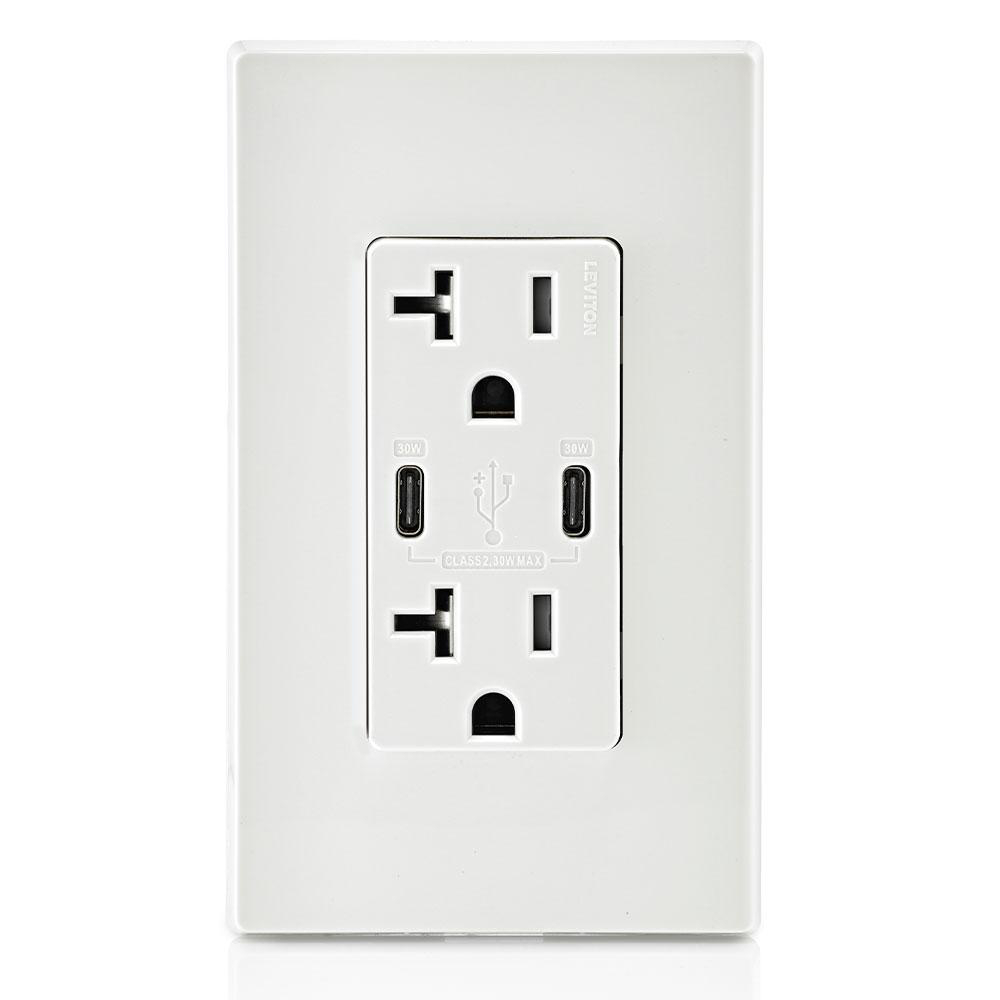

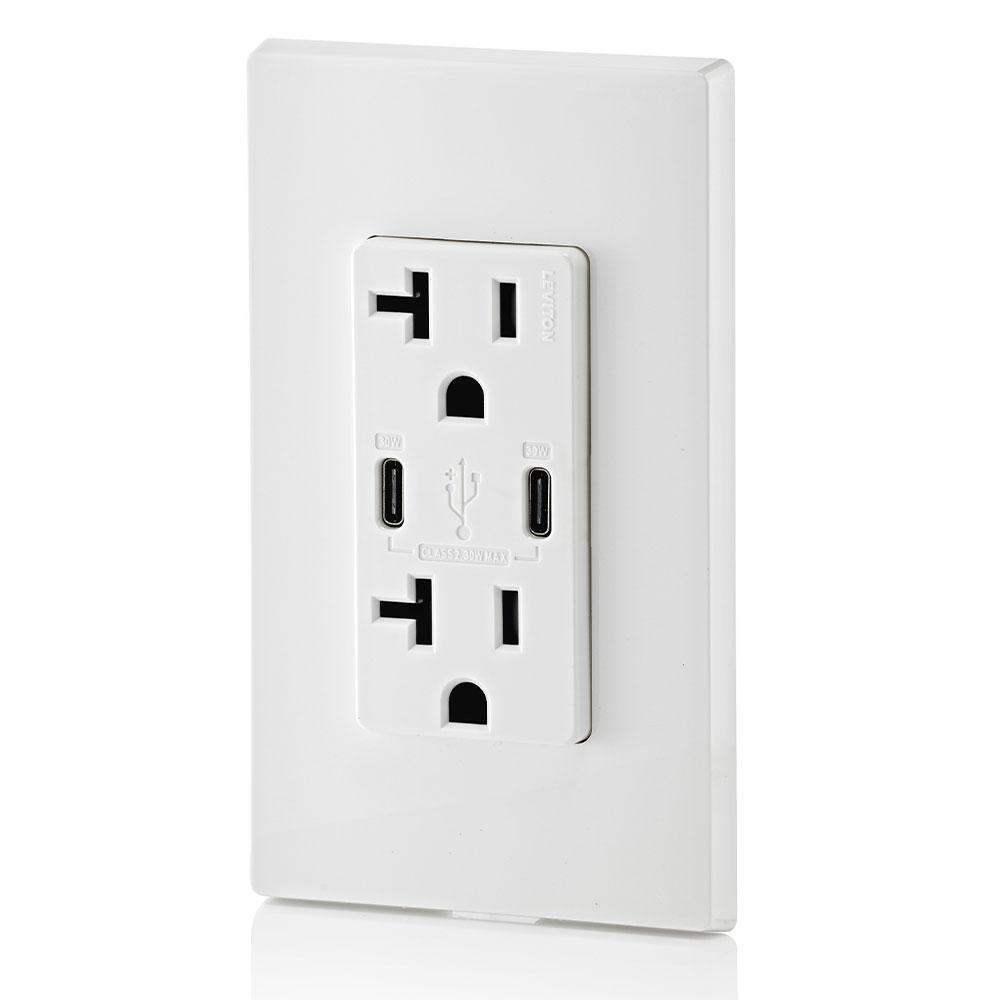

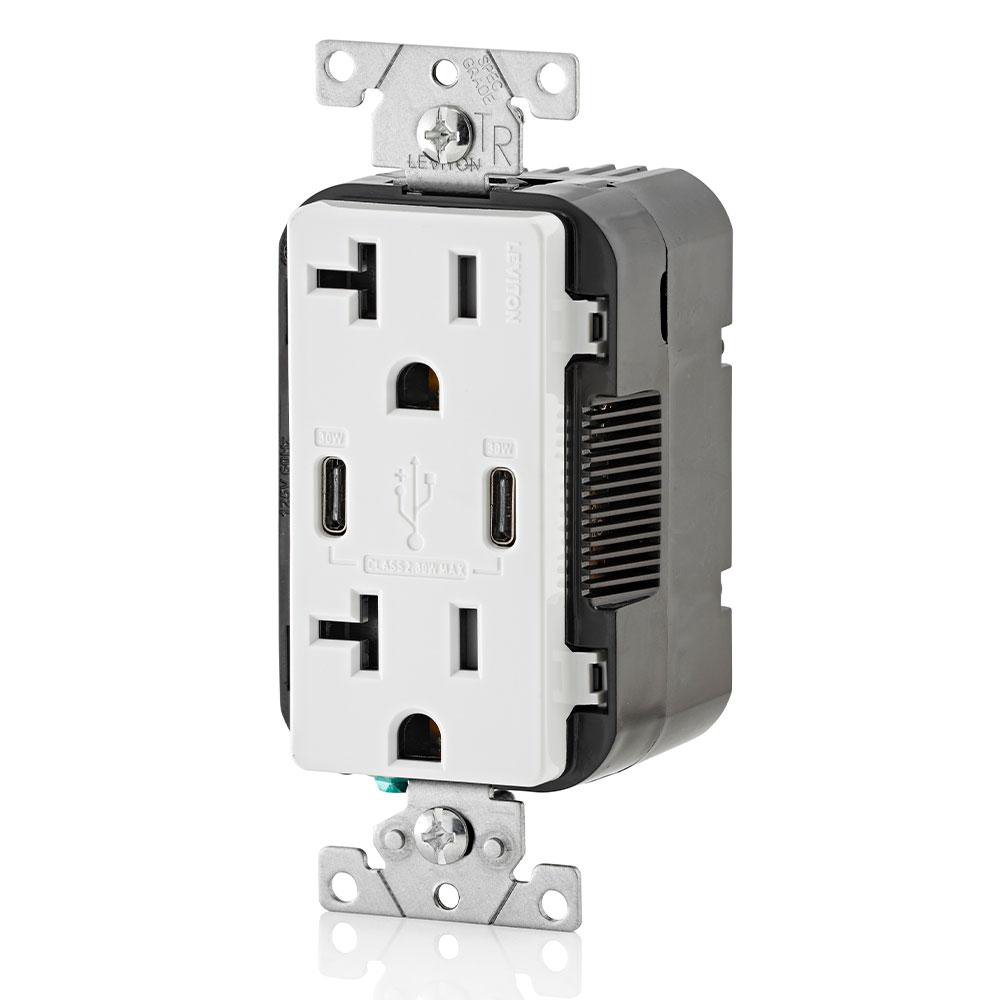

20 Amp, 125 Volt, Decora Tamper-Resistant Outlet. NEMA 5-20R, 30W (6 Amps), Dual Type-C/C Power Delivery USB Chargers, Grounding, Side Wired & Back Wired - White

Technical Information

Amperage
20 A
Applications
For Residential and Commercial Applications Including Kitchens, Bedrooms, Home Offices, College Dormitories, Airport Lounges, Hospitals, Salons and Spas, Hotels, Meeting Rooms, Cafes, Restaurants and More
Body Material
Thermoplastic,Thermoplastic
Conductor Size
14-12 AWG
Cover Material
Thermoplastic,Thermoplastic
Flamability Class
Rated V-0 Per UL 94
Grade
Commercial,Residential
Grounding
Grounding
Horsepower
-1/2 hp
Material
Thermoplastic
NEMA
5-20R
Operating Temperature
40 degrees C
Outlet Type
Duplex Receptacle
Temperature Rating
-10 to 40 degrees C
Termination Type
Back Wire,Back Wire,Side Wire,Side Wire
Torque
14 lb-in
Type
Combination, USB Type C/C, Tamper-Resistant

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477979396
Color
White
GTiN
00078477979396
Product Type
Outlet/USB Combo
Product UPC
07847797939
Used With
USB 3.1, 3.0, 2.0, 1.1 Devices

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
Mexico
