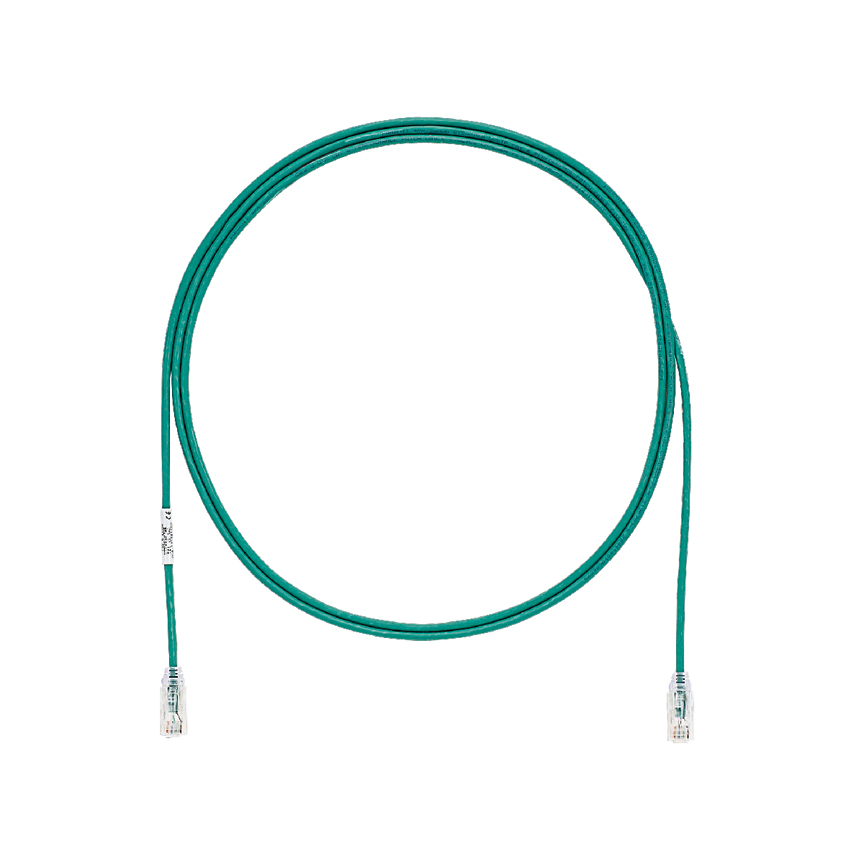

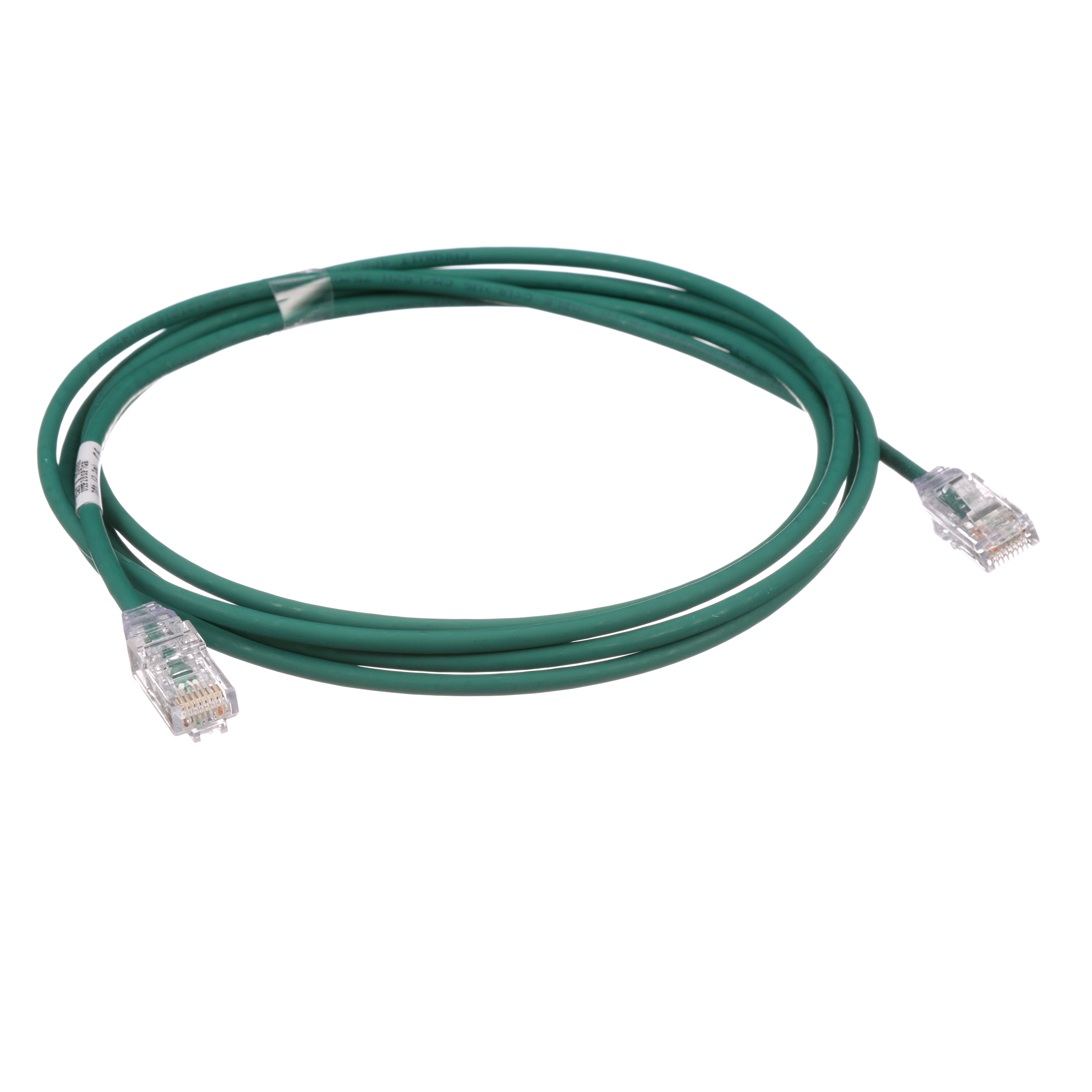

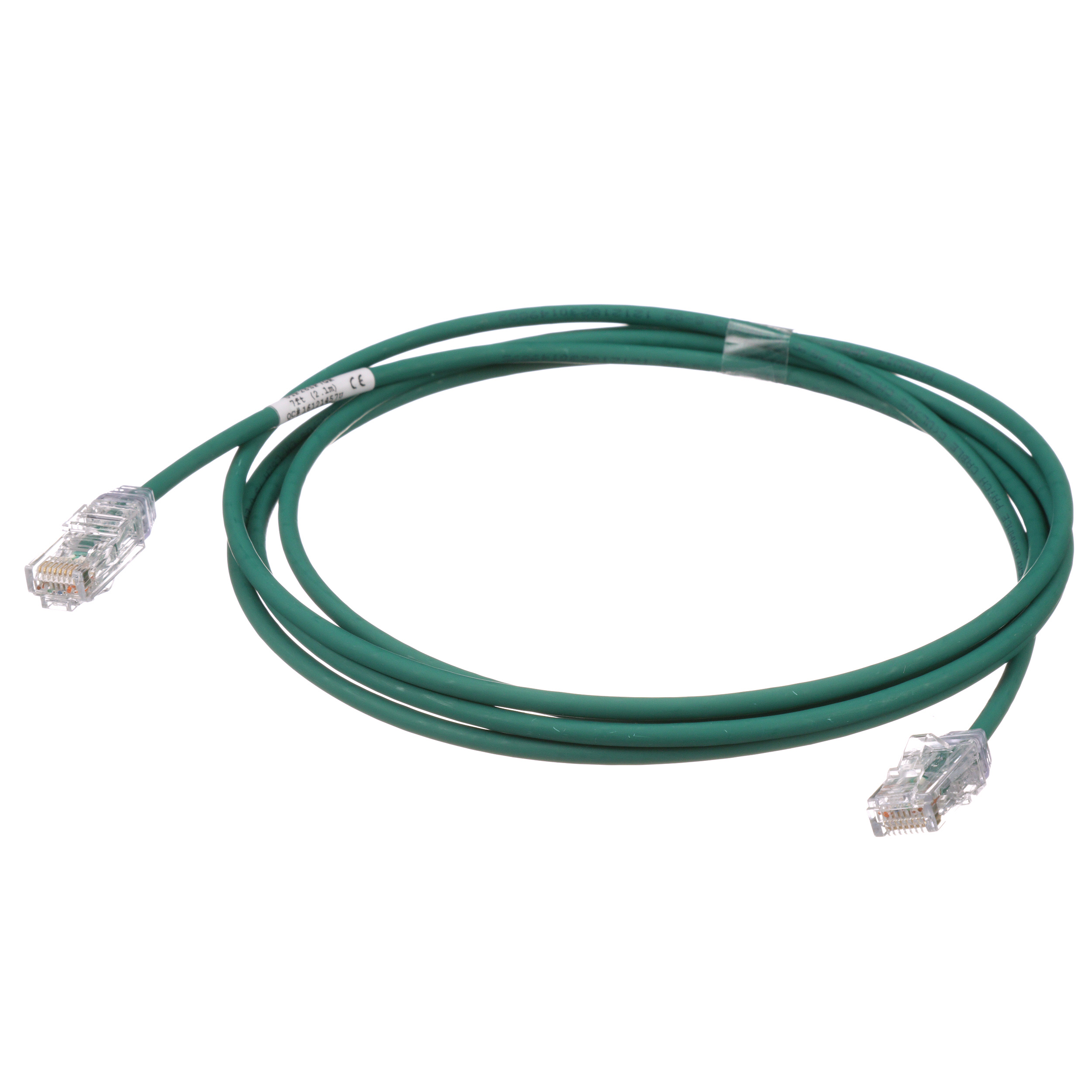

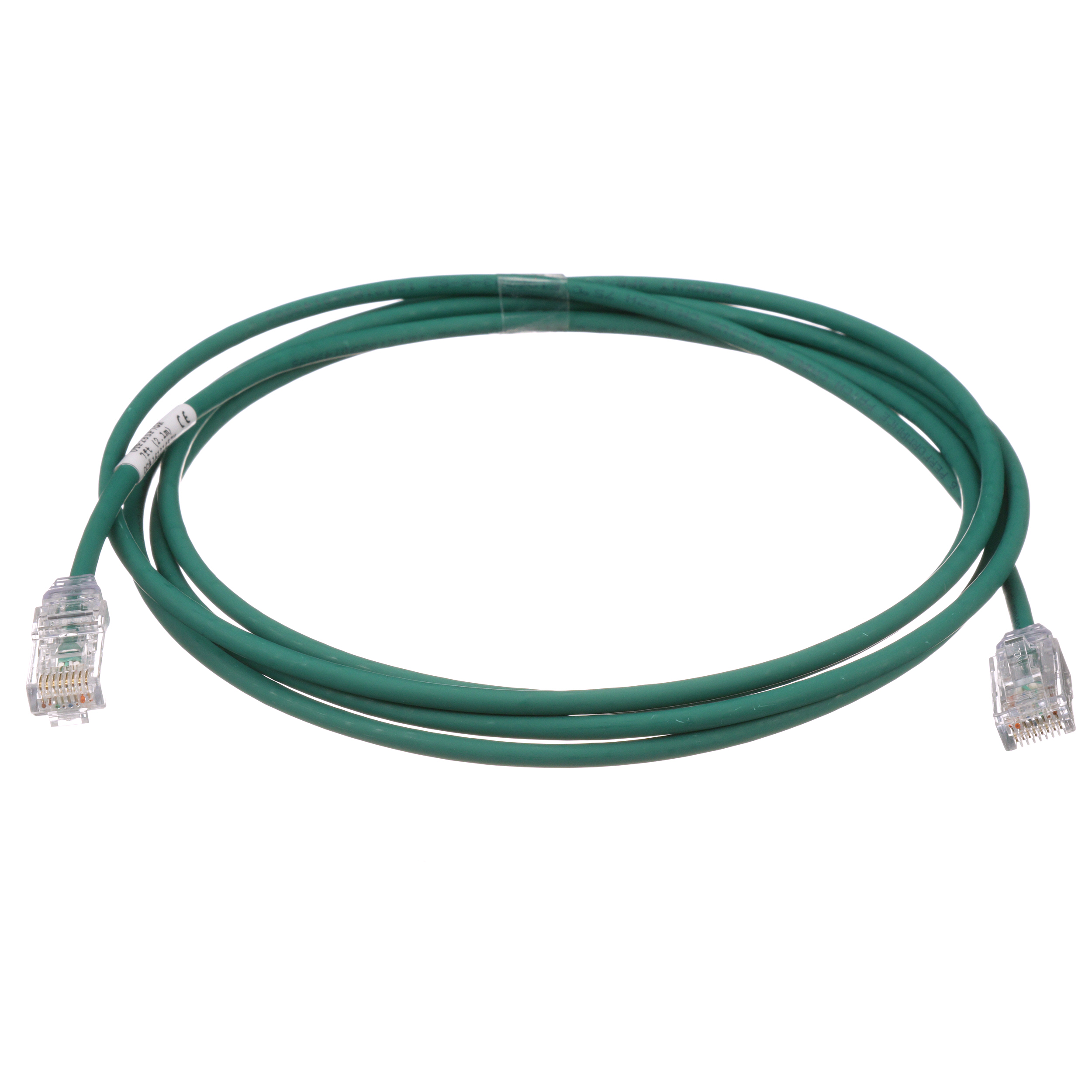

Product image for Cat 6 28 AWG UTP Copper Patch Cord, 7 ft, Green
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Cat 6 28 AWG UTP Copper Patch Cord, 7 ft, Green

Manufacturer: Panduit | Catalog # UTP28SP7GR | Electrozad South Part # 347397
$24.84 /ea
pk
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
The TX6-28™ Cat 6 UTP Patch Cord is a 7-Foot, 0.150-inch (3.8mm) diameter, Green cord constructed of 28 AWG, unshielded, twisted pair, stranded, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Technical Information

Applications
(1) 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet)(2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM(3) Digital video and broadband/baseband analog video(4) Voice/data systems(5) Voice over Internet Protocol (VoIP)
Boot Color
Clear
Cable Type
28 AWG U/UTP
Conductor Material
Copper
Conductor Size
28 AWG
Conductor Type
Stranded
Connector Type
Modular Plug
Material
Copper
Max Operating Temperature
140 degrees F
Minimum Operating Temperature
-10 degrees C
Performance Level
Category 6
Plug Type
Modular Plug with Bulkhead and Dust Cap
Temperature Rating
167 degrees F
Type
Category 6, Small Diameter
Wire Size
28

Packaging

Package Qty
1

Manufacturer Information

Brand
Panduit
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983652662
Color
Green
GTIN
00074983652662
Jacket Material
Polyvinyl Chloride
Product UPC
07498365266
UNSPSC
43223303

Dimensions

Cable Length
7 ft
Length
7.0 in
Outer Diameter
0.15 in
Outside Diameter
3.8 mm
Overall Length
7 ft

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
China,Costa Rica,Romania
