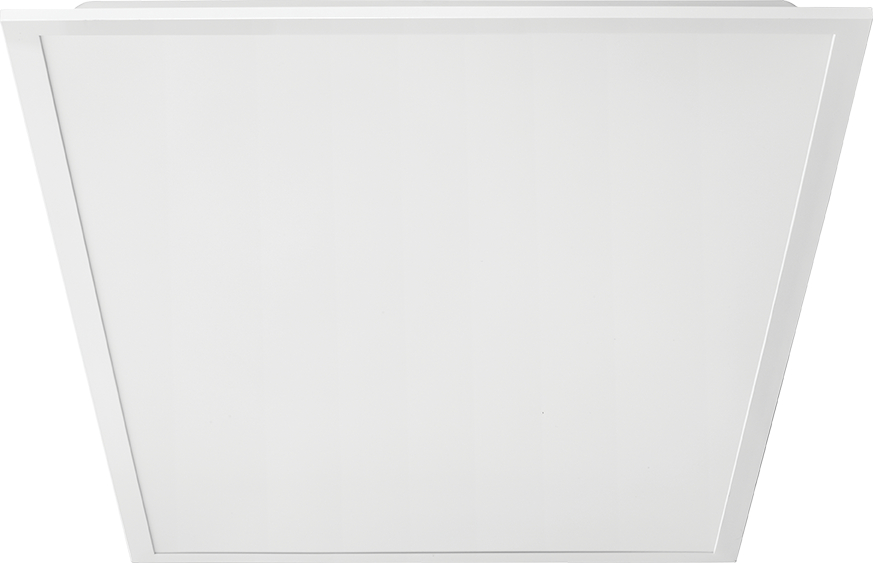

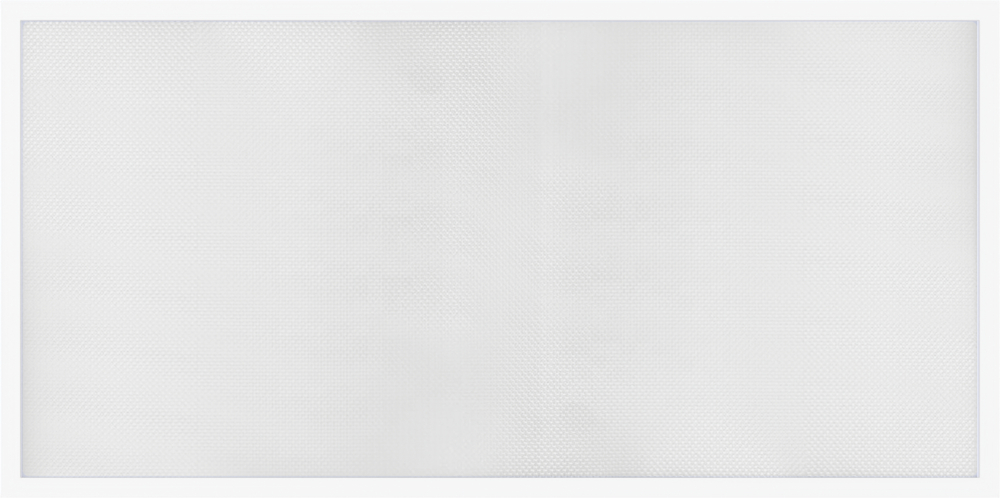

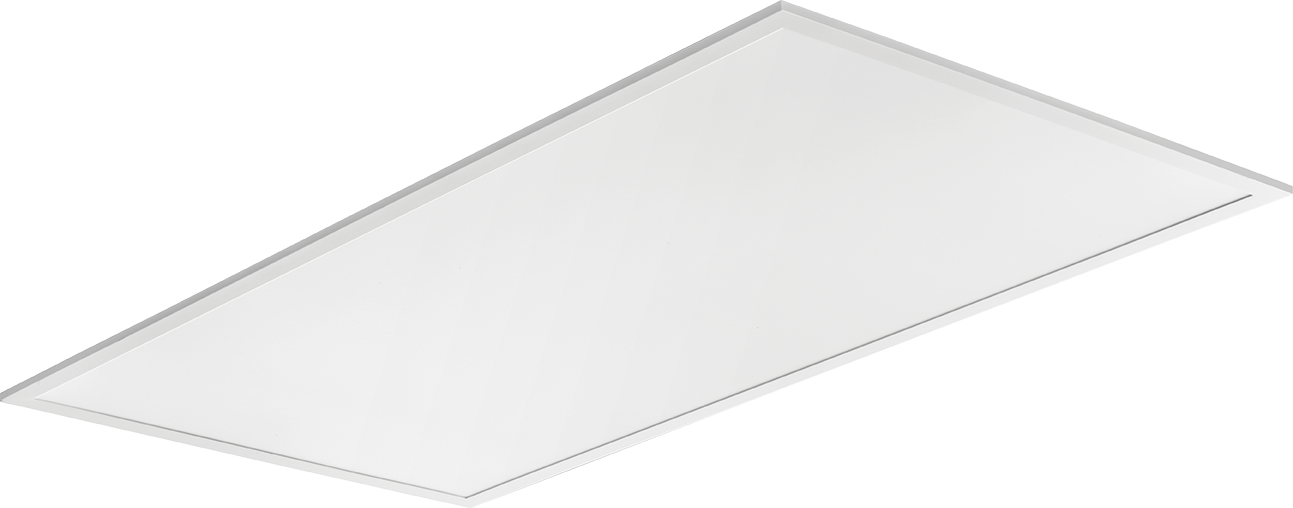

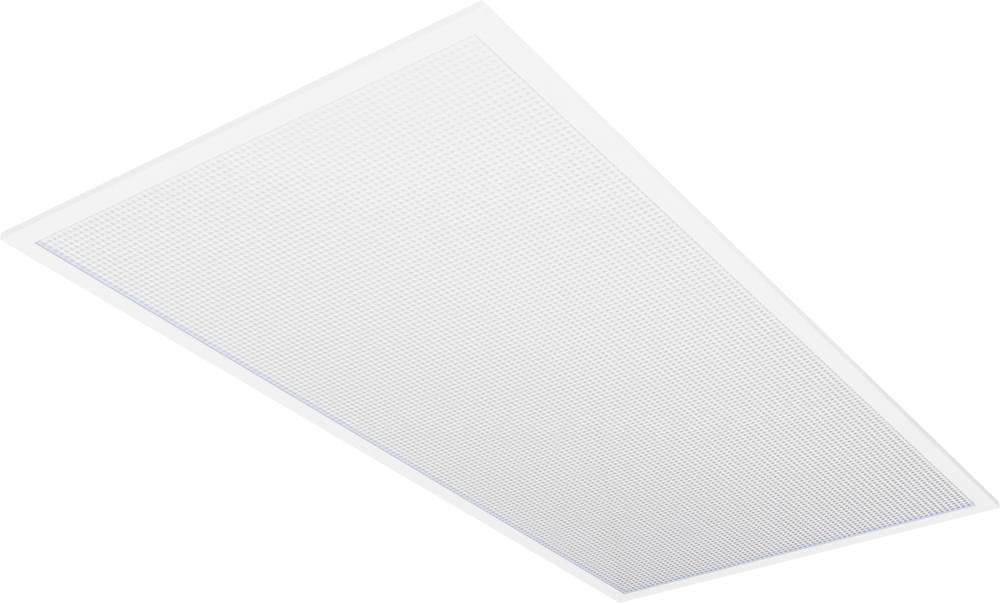

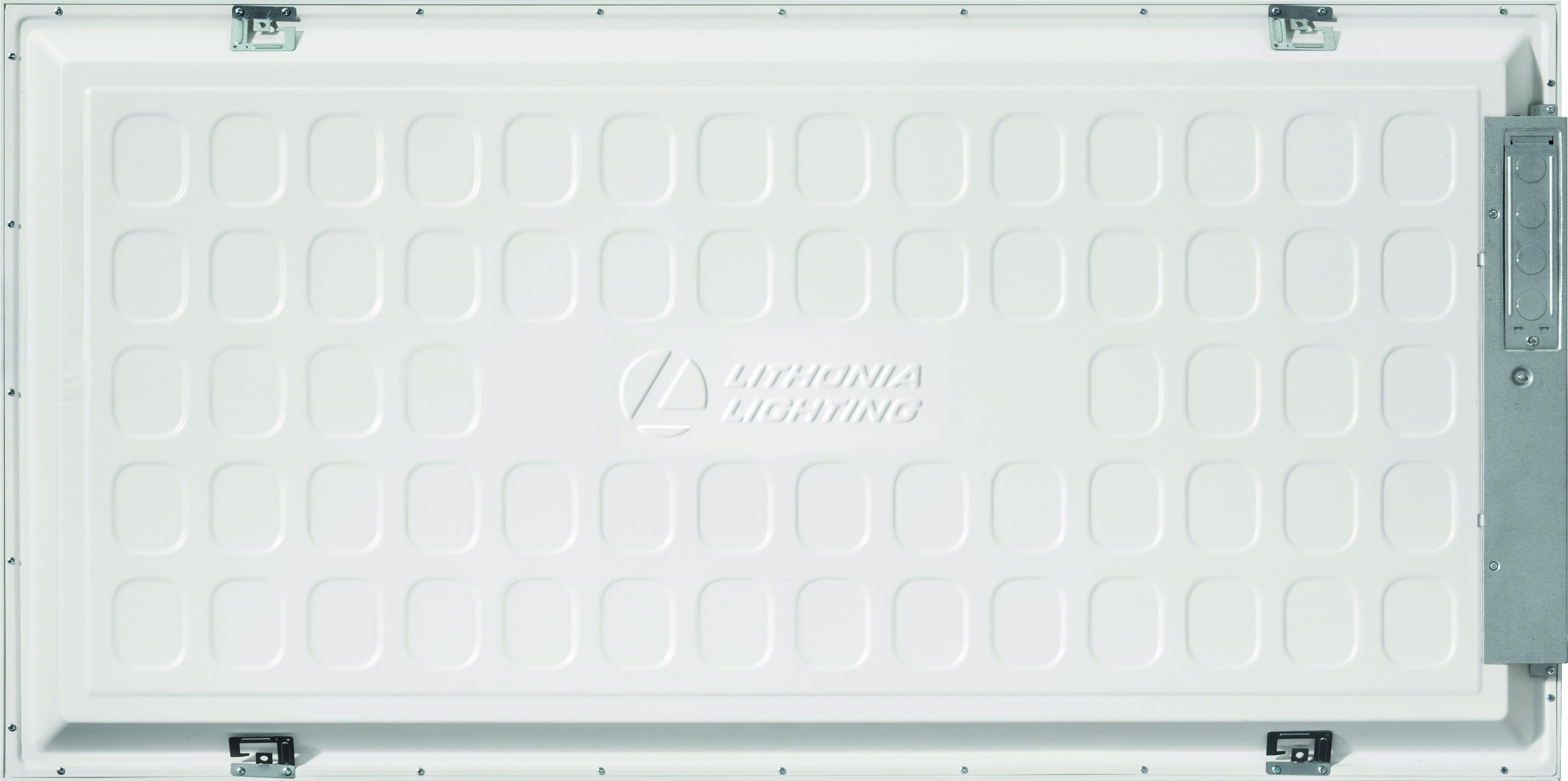

LED FLAT PANEL, 2FT X 4FT, SWITCHABLE LU

Manufacturer: Lithonia Lighting | Catalog # CPX 2X4 ALO8 SWW7 M2 | Electrozad South Part # 347791
$101.54 /ea
ea
Log in or register to view your price, purchase history, and more!
25 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure Installation / Instruction Manual I INSTALL ASSEMBLY INSTRUCTIONS URL

Technical Information

Applications
Budget Conscious School, Commercial Office or Small Retail Footprint Projects
Average Rated Life
60,000 hr
Ballast Type
0 - 10 V Dimming to 10%
Color Rendering Index
80 CRI
Color Temperature
3500/4000/5000 K
Dimmable?
Yes
Fixture Wattage
28.1 - 50.56 W
Lamp Life
50,000 hr
Lamp Type
LED
Lens Color
White
Lens Type
Satin White
Lumens
3813 - 6563 Im
Material
Steel
Mounting Type
Recessed
Power Source
Hardwired
Size
47.875x23.875x1.68
Style
Traditional
TC Connection
Hardwired
Type
Rectangular, Switchable
Voltage
120 V
Wattage
51.000 W

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
193048542844
Color
White
Construction
New Construction,Remodel
Environment
Indoor
Environmental Conditions
Indoor
Finish
Semi-Gloss
Fixture Type
Flat Panel
GTIN
00193048542844
Housing Finish
Semi-Gloss White
Housing Material
Extruded Aluminum
Product UPC
19304854284
Shape
Rectangular
Weight
11.02 lb

Dimensions

Height
1.7 in
Length
47.8 in
Width
23.8 in

Certifications & Compliance

Country of Origin
China,China
Overview
  • WARRANTY: 5-year limited warranty
  • VOLTAGE: Standard MVOLT for 120-277 volts
  • INSTALLATION: can be recessed, suspended or surface box mounted with additional kit
  • DIMMING: 0-10 volts driver for dimming down to 10 percent
  • TECHNOLOGY: Adjustable Lumen Output (ALO) and Switchable White (SWW) features allow for this panel to offer 9 potential configurations within one fixture, using two switches
  • ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
  • HOURS OF LIFE: Greater than 70 percent LED lumen maintenance at 50,000 hours (L70>50,000)
  • BATTERY: Field-installable LED emergency driver (PS1055CP) sold separately
  • DIMENSIONS: (l x w x h) 47.8 in. x 23.8 in. x 1.7 in.
  • RATINGS: Certified for damp locations, CSA certified, IC rated, DLC Standard
