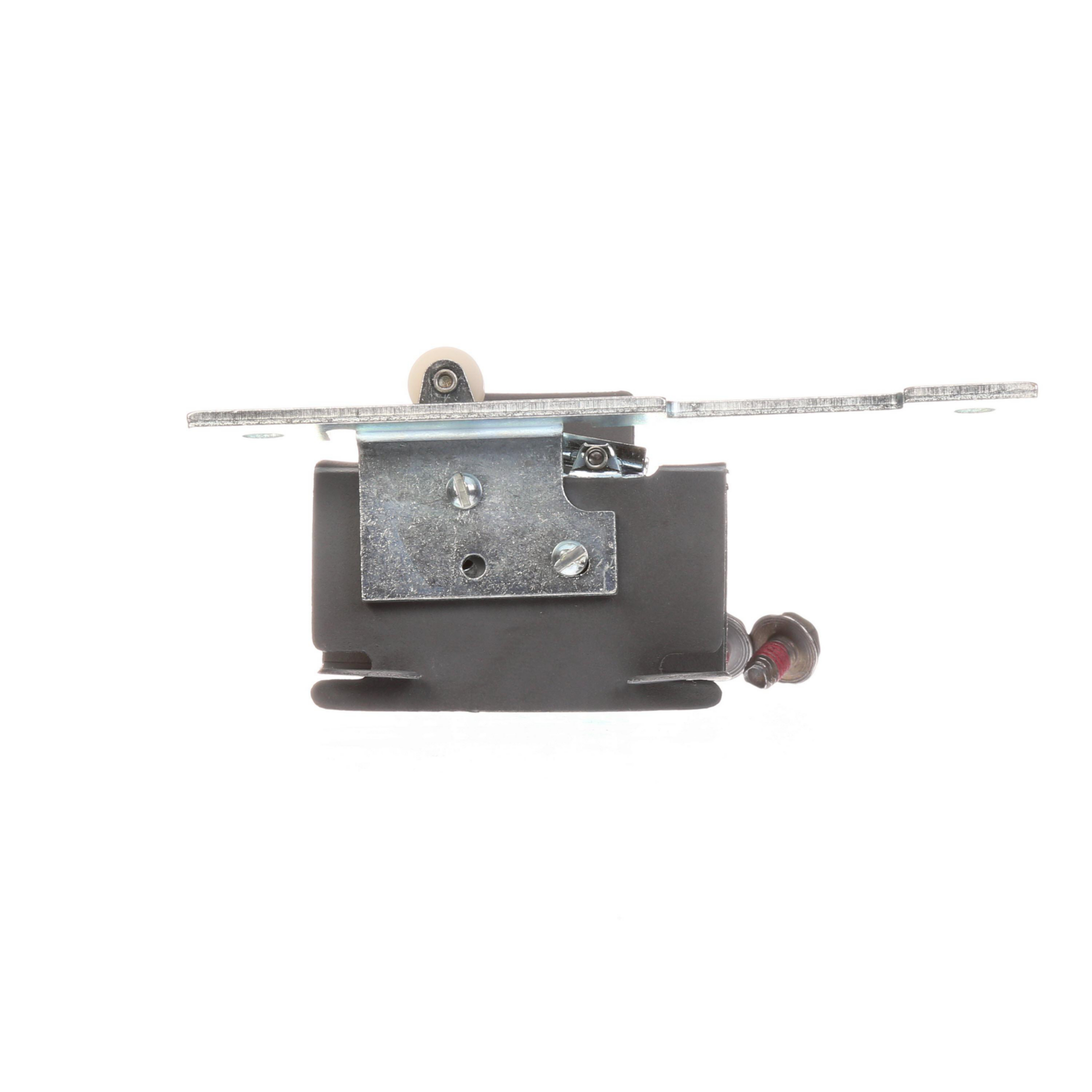

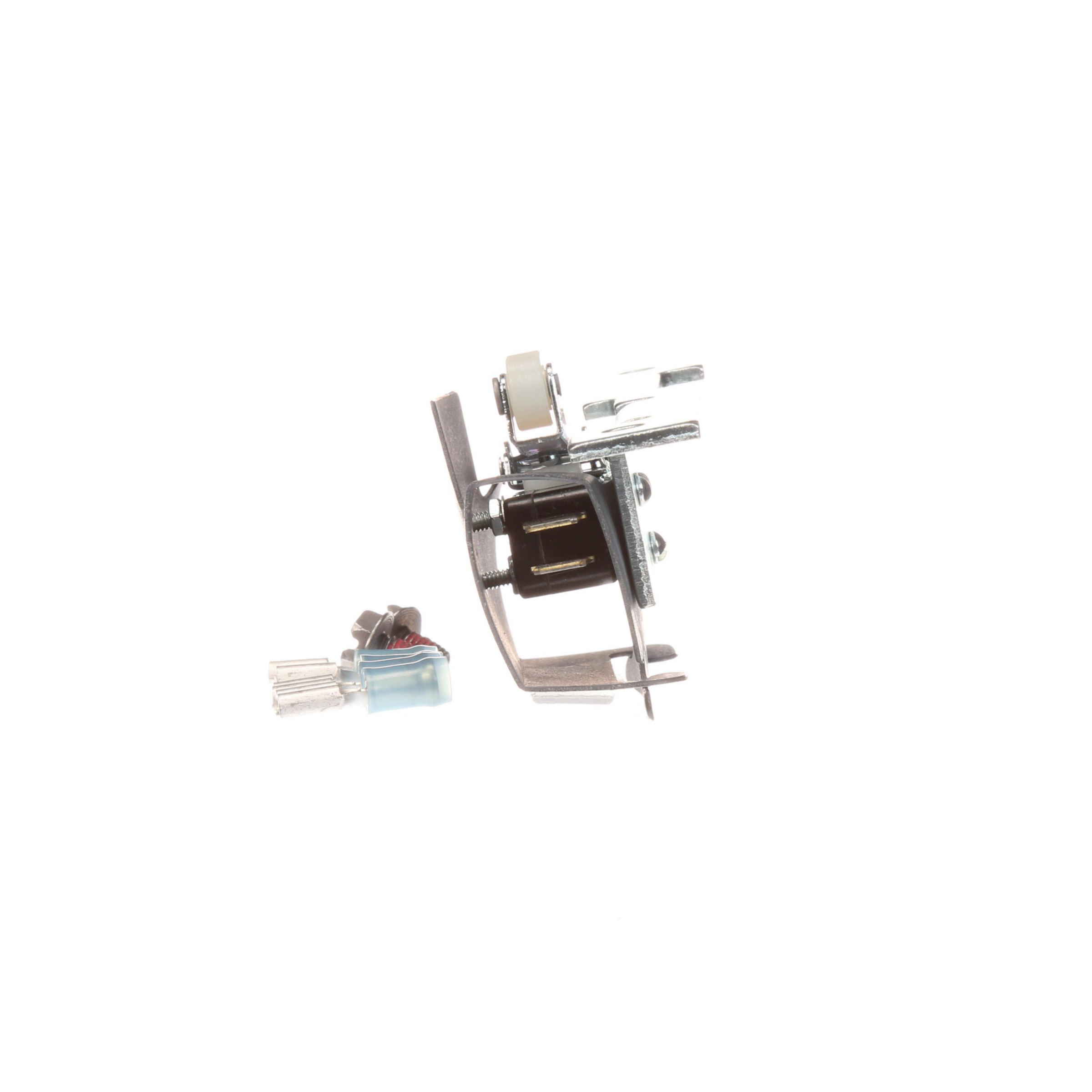

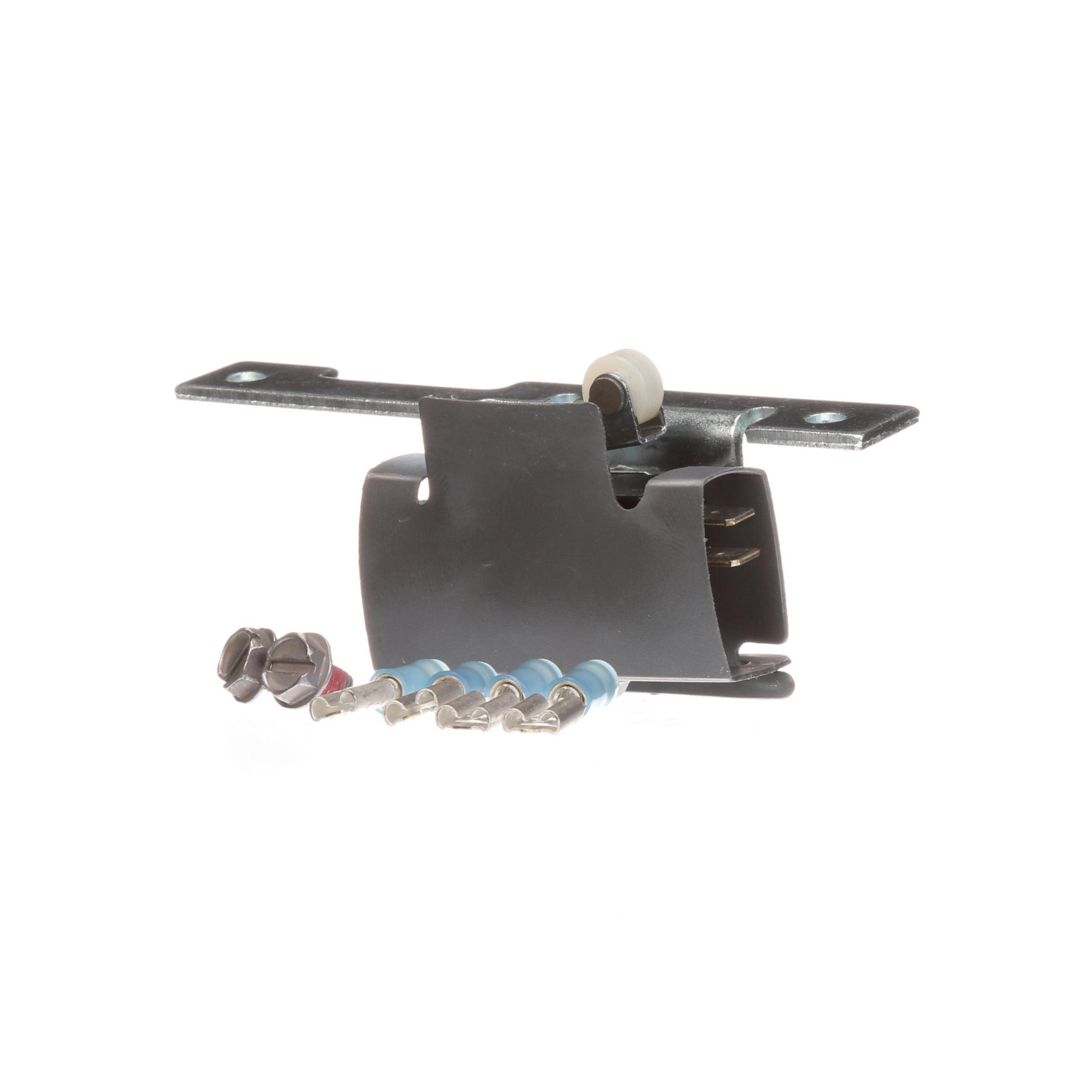

Product image for Auxiliary contact 1no-1nc isolated 250V 30-200A
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Auxiliary contact 1no-1nc isolated 250V 30-200A

Manufacturer: Siemens Distribution | Catalog # HA161234 | Electrozad South Part # 34785
$507.71 /ea
ea
Log in or register to view your price, purchase history, and more!
4 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page D BRAND LOGO IMAGE URL G USERS MANUAL URL
Auxiliary contact with 1 NO-1 NC isolated contact, 30-200 A switch rating, Siemens offers a PLC auxiliary switch that has very low resistance for low voltage and current typical in PLC circuits. All auxiliary contacts make after and break before main switch contacts.

Technical Information

Applications
Construction, Industrial, Residential
Connection Type
Screw
Contact Configuration
1 NO, 1 NC
Type
AUXILLARYSWITCH1NO/1NC

Manufacturer Information

Brand
Siemens
Sub Brand
Safety Switches

General Product Info

12-Digit UPC
783643173712
GTIN
00783643173712
Product UPC
78364317371
Used With
600 V, 30 - 600 A Heavy Duty Safety Switch
Weight
0.230 lb

Dimensions

Height
2.700 in
Length
3.500 in
Width
3.500 in

Certifications & Compliance

Country of Origin
USA
