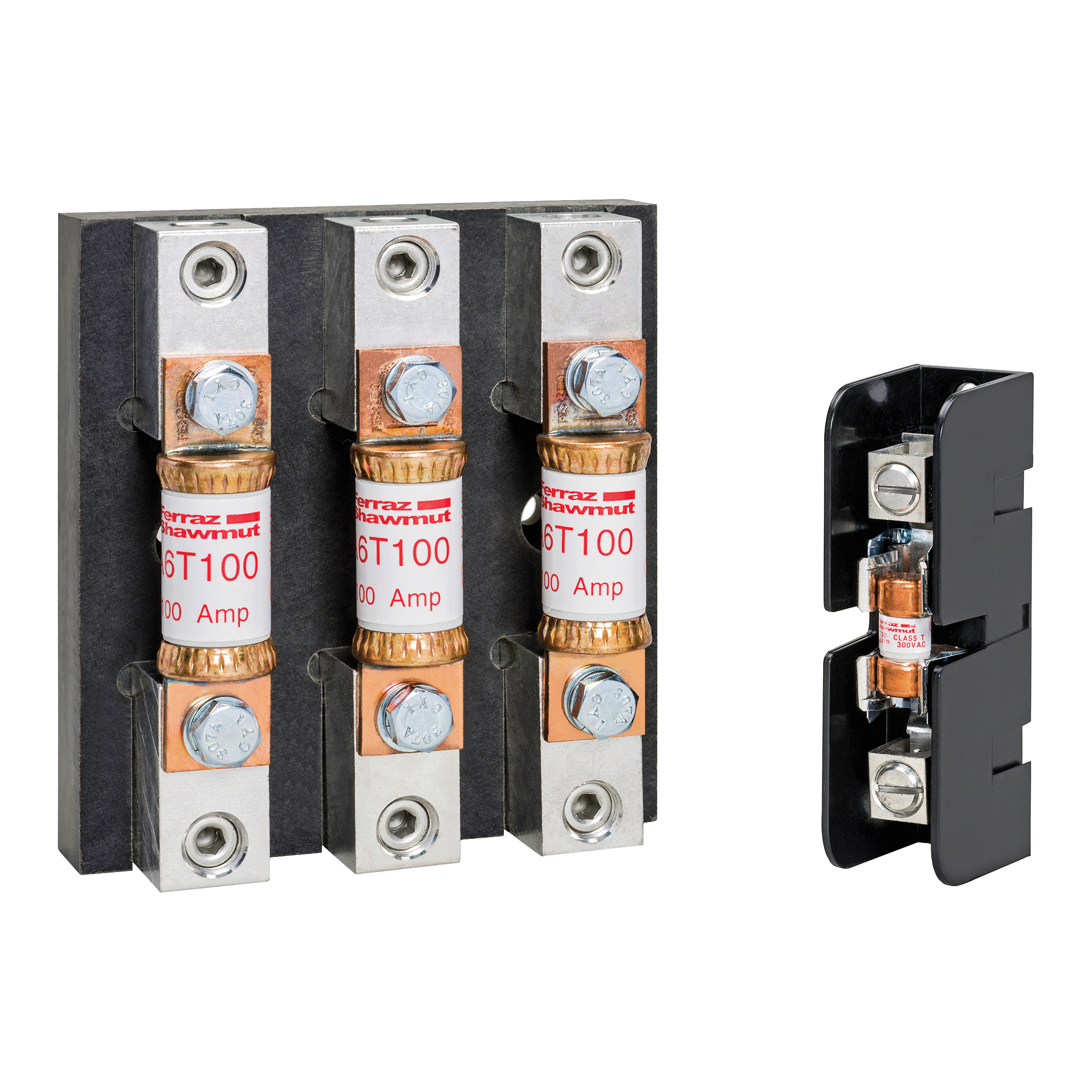

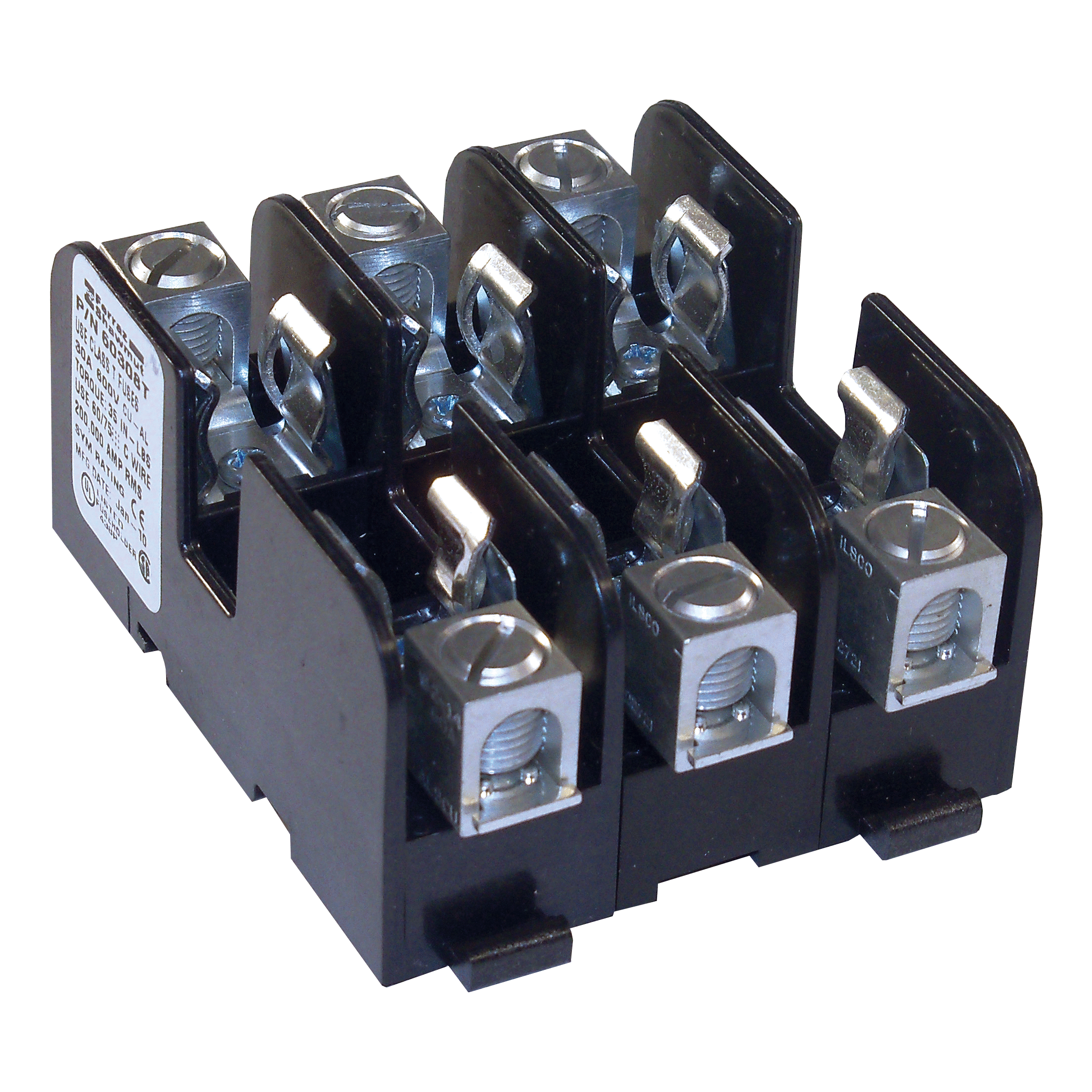

Product image for MERSEN 60308T FUSEBLOCK CLASS T 30A 3-POLE 600V SPRING REINFORCED BOX TYPE #2G- #14G WIRE RANGE ALUM COPPER
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

MERSEN 60308T FUSEBLOCK CLASS T 30A 3-POLE 600V SPRING REINFORCED BOX TYPE #2G- #14G WIRE RANGE ALUM COPPER

Manufacturer: Ferraz Shawmut Mersen | Catalog # 60308T | Electrozad South Part # 35010
*Call For Price*
Log in or register to view your price, purchase history, and more!
3 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet
Mersen Class T fuse blocks accommodate Class T fuses up to 600A. Insulators are either durable, glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. Mersen is the only manufacturer to offer Class T blocks with copper connectors.

Technical Information

Amperage
30 A
Frequency
50/60 Hz
Fuse Class
Class T
Fuse Interrupt Rating
30 A
Fuse Type
Class T
Insulation Material
GFPC
Material
GFPC
Max Operating Temperature
80 degrees C
Mounting Type
DIN Rail,Screw Mount
Number of Poles
3
Rated Voltage AC
600 V
Rated Voltage DC
600 V
TC Connection
Box
Torque
35 lb-in
Torque Rating
35 lb-in
Type
Open Style
Voltage
600 V

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001675523
Class
T
GTIN
00782001675523
Product UPC
78200167552
Weight
0.37 lb

Dimensions

Height
1.56 in
Length
3.13 in
Width
2.75 in

Certifications & Compliance

Country of Origin
Mexico
