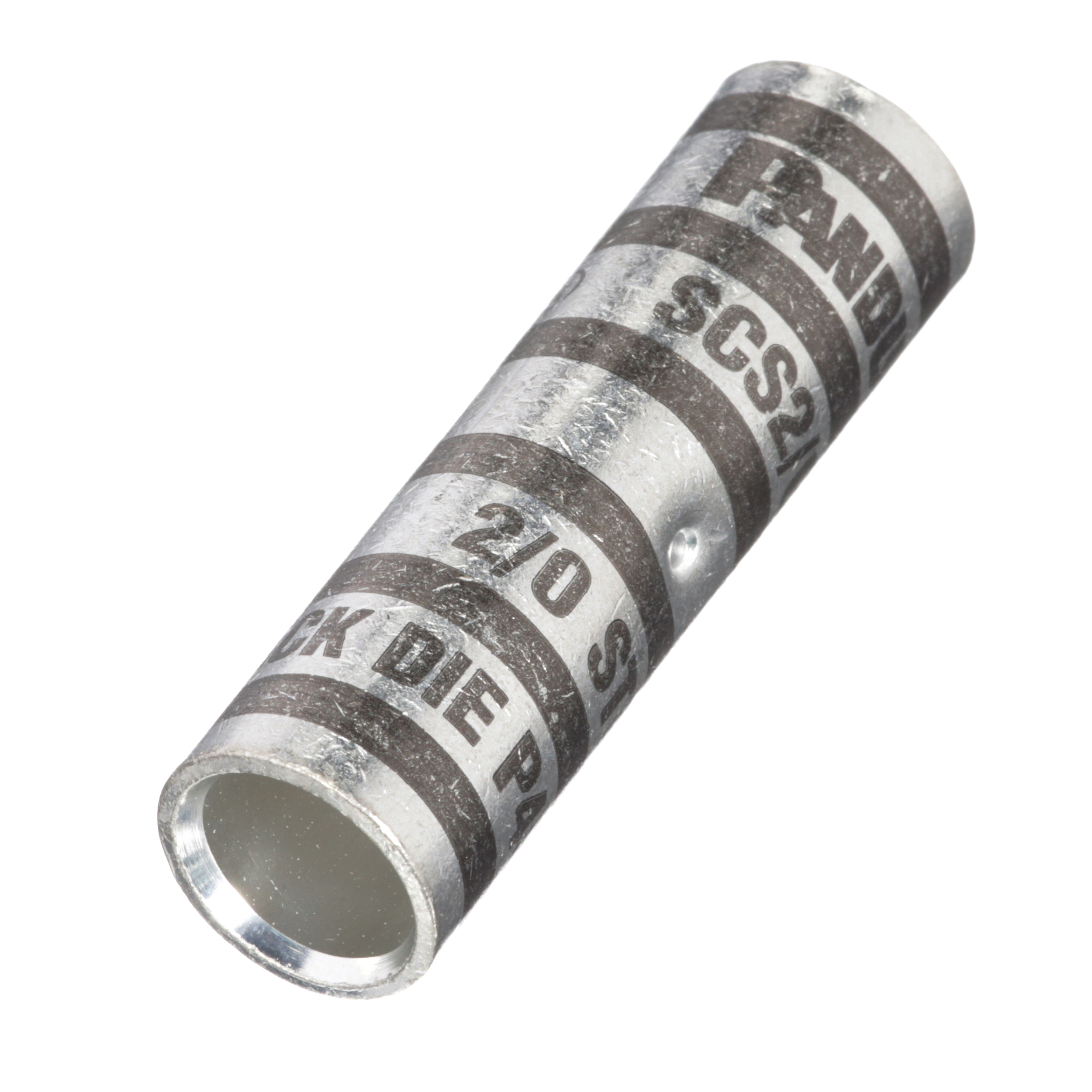

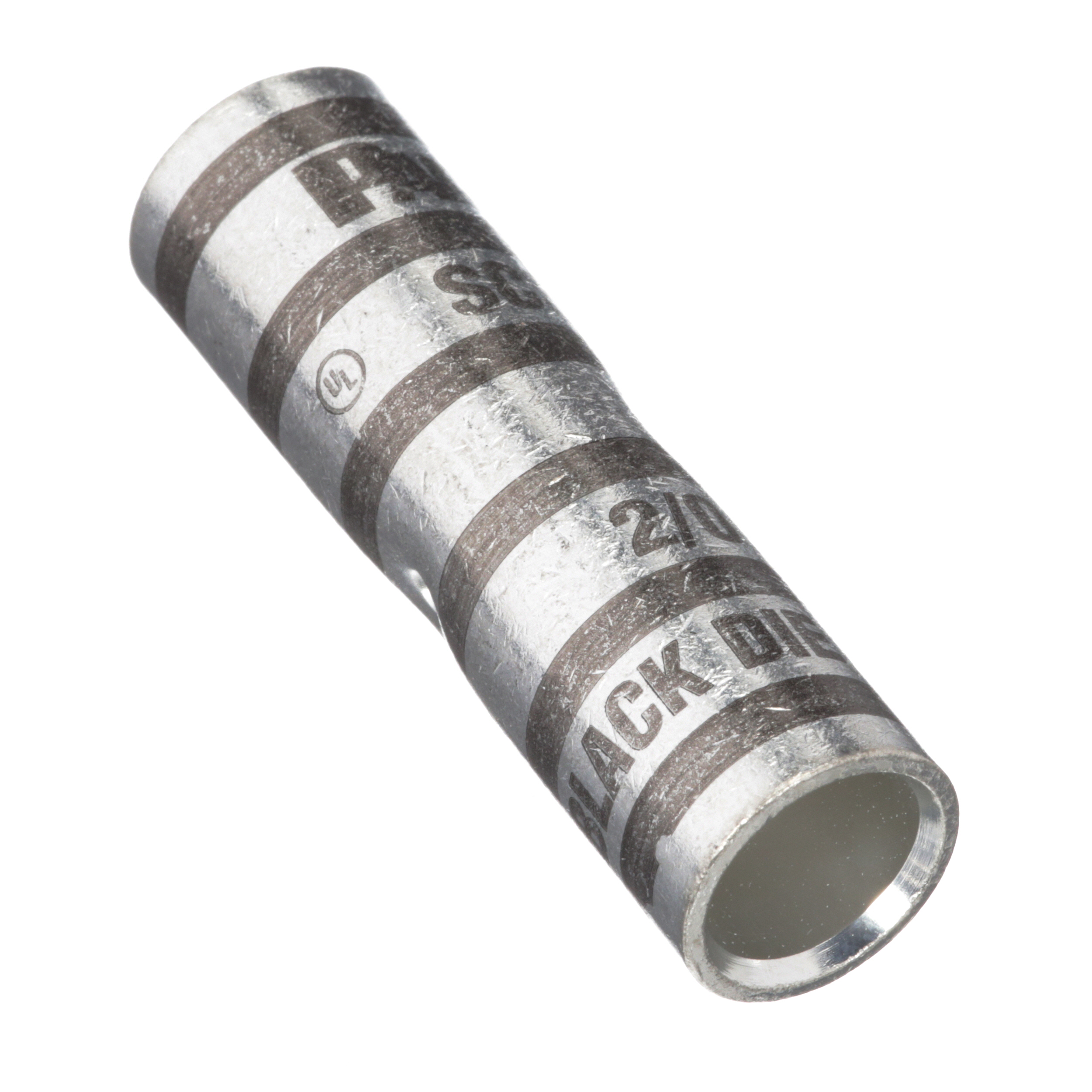

Splice butt copper standard-barrel 2/0AWG black

Manufacturer: Panduit | Catalog # SCS2/0-X | Electrozad South Part # 35224
$1,865.17 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
Butt splice for use with stranded copper conductors. Colour-coded barrels. Internal wire stops to prevent over-insertion of conductor. Tin-plated to inhibit corrosion.

Technical Information

Barrel Type
Standard
Conductor Size
2/0 AWG
Contact Material
Copper
Material
Copper
Size
4 - 00
Strip Length
15/16 in
Temperature Rating
90 degrees C
Type
Compression Splice

Packaging

Package Qty
10

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983903306
Color
Black
Finish
Tin-Plated
GTIN
00074983903306
Product UPC
07498390330
UNSPSC
39121449
Used With
Stranded Copper Conductors

Dimensions

Overall Length
2 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
