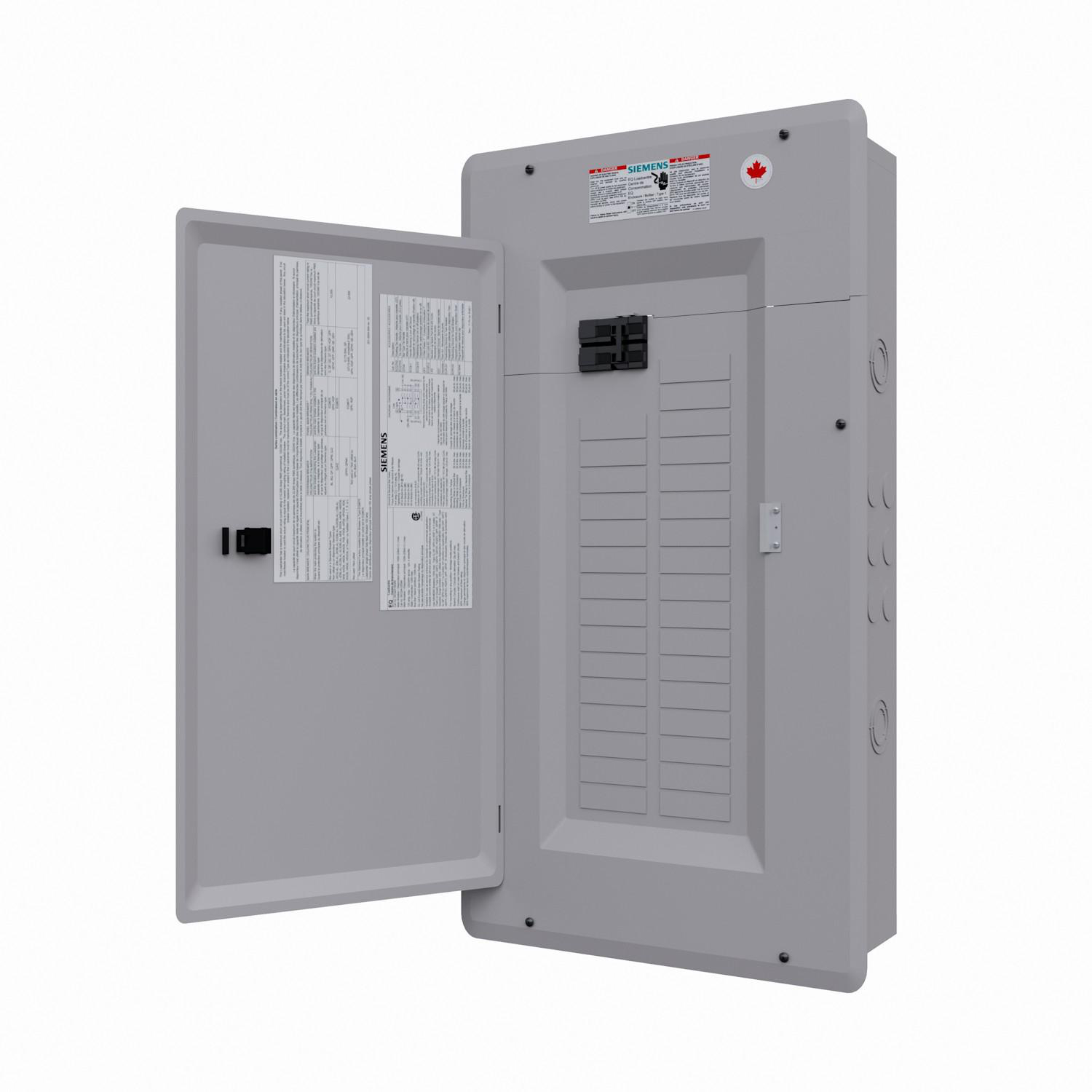

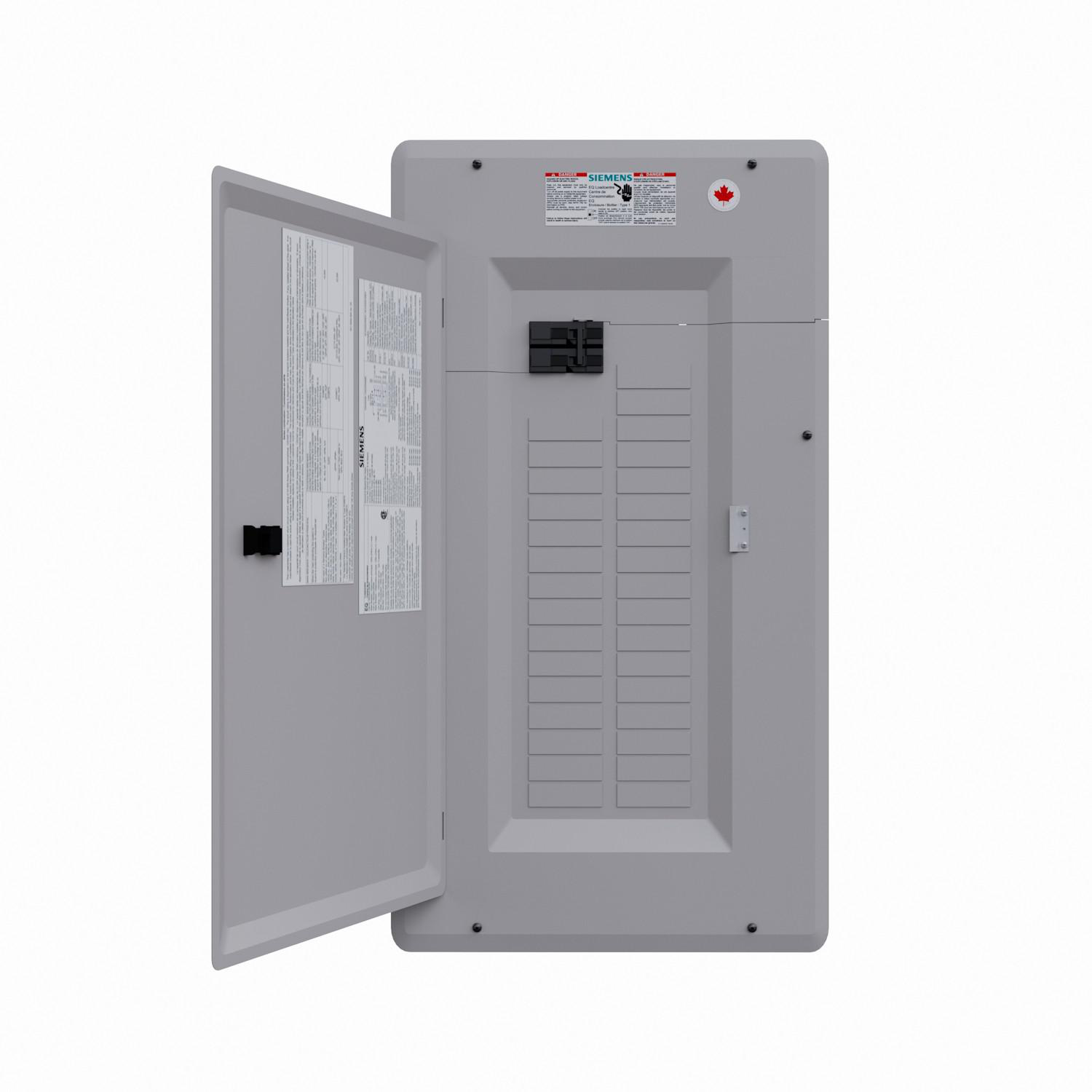

Loadcenter main 1-phase 32/64cct 100A 240V side mounted NEMA1

Manufacturer: Siemens Distribution | Catalog # SEQ32100SM | Electrozad South Part # 35264
$199.67 /ea
ea
Log in or register to view your price, purchase history, and more!
38 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL I INSTALL ASSEMBLY INSTRUCTIONS URL
Loadcenters are classified into 4 types EQL (1 phase main lug distribution no main), SEQ (1 phase with main breaker), EQ4 (3 phase with main breaker) and EQD(generator suuply) consists of the enclosure, the interior connection and the trim panel. Available in version 120/240vac 60/200A-40/80 circuits or 120/208vac 100/225A-12/42 circuits all type eemac 1 interior or 3R outdoor. Made of cold rolled gauge steel finished with gray paint, they are certified listed CSA.

Technical Information

Applications
For Residential
Cable Size
4-2/0
Conductor Size
4-2/0 AWG
Mounting Type
Combination Flush/Surface
Number of Circuits
32
Number of Poles
2
Number of Spaces
32S/64S
Type
SEQ, Side

Manufacturer Information

Brand
Siemens
Sub Brand
Loadcentres

General Product Info

12-Digit UPC
662862004628
Construction
Steel Housing
GTIN
00662862004628
