LOW-PEAK CLASS J T/D

Manufacturer: Bussman Cooper Fuses | Catalog # LPJ-90SP | Electrozad South Part # 35294
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure H TECHNICAL DRAWING URL

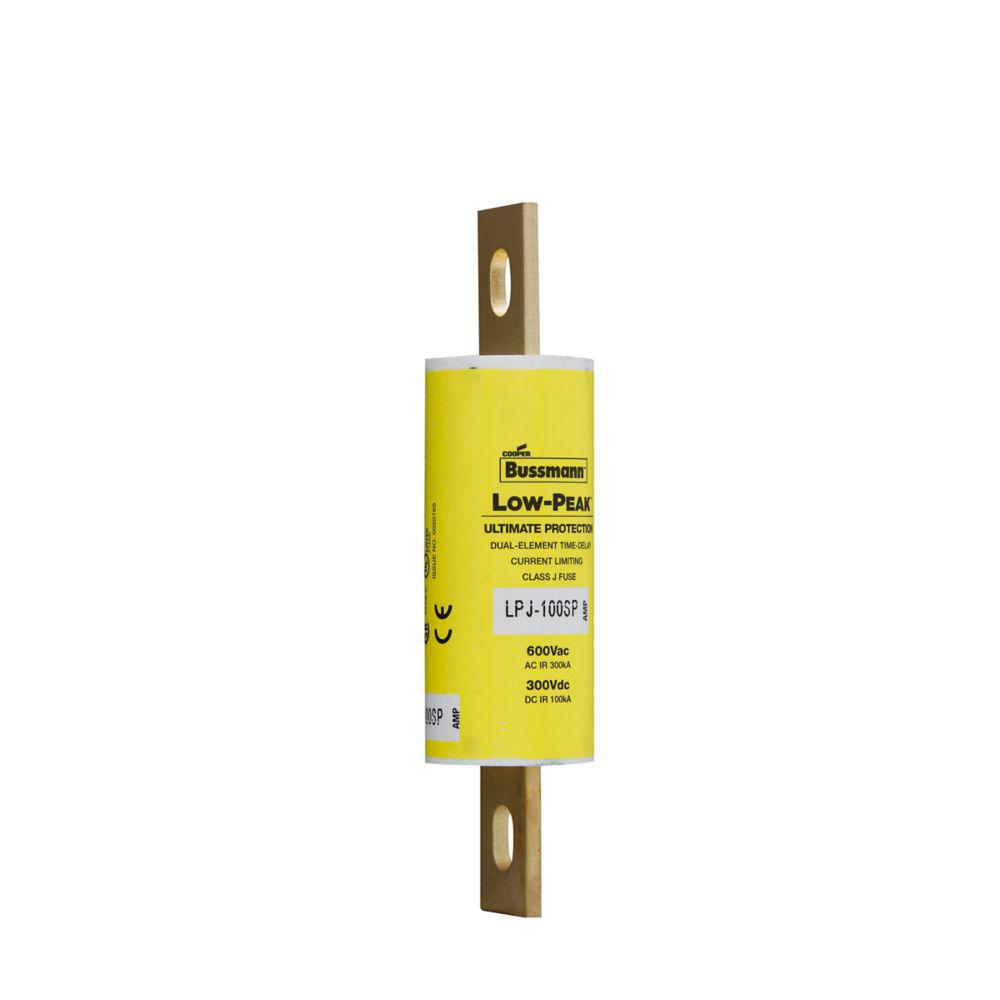

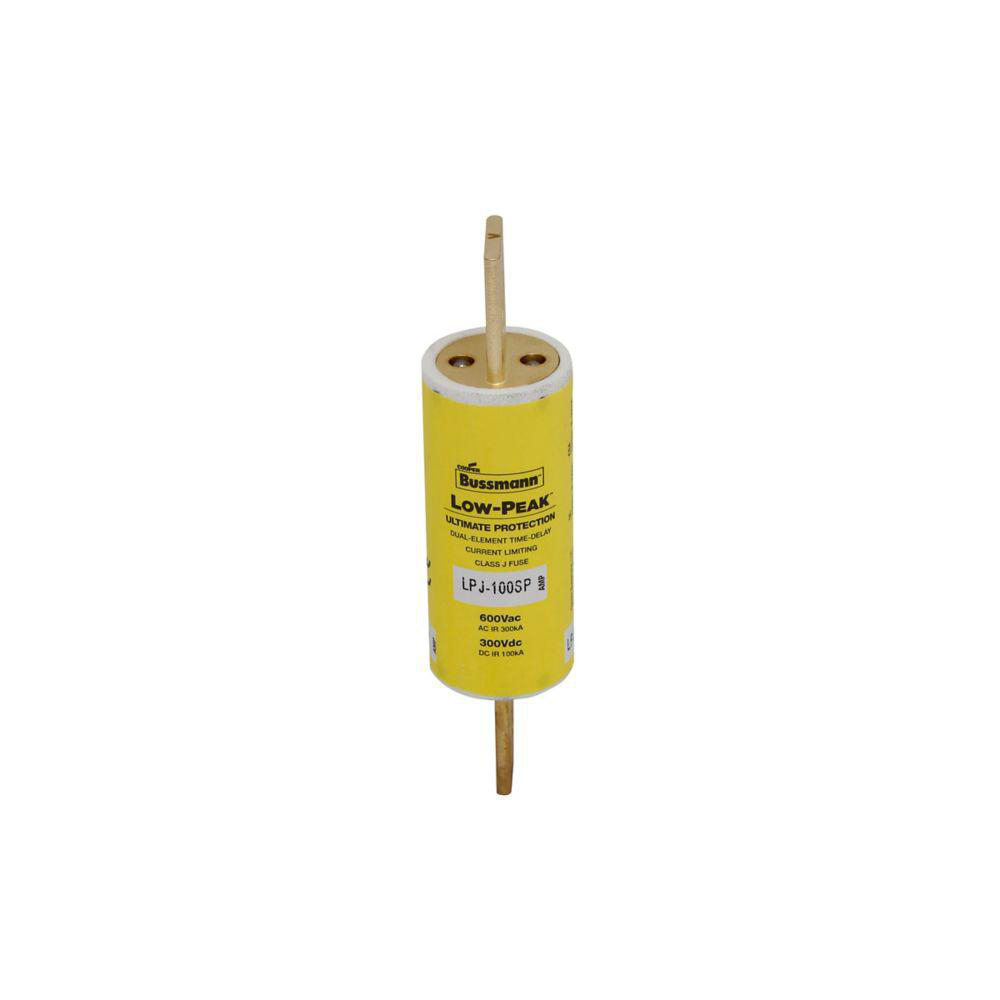

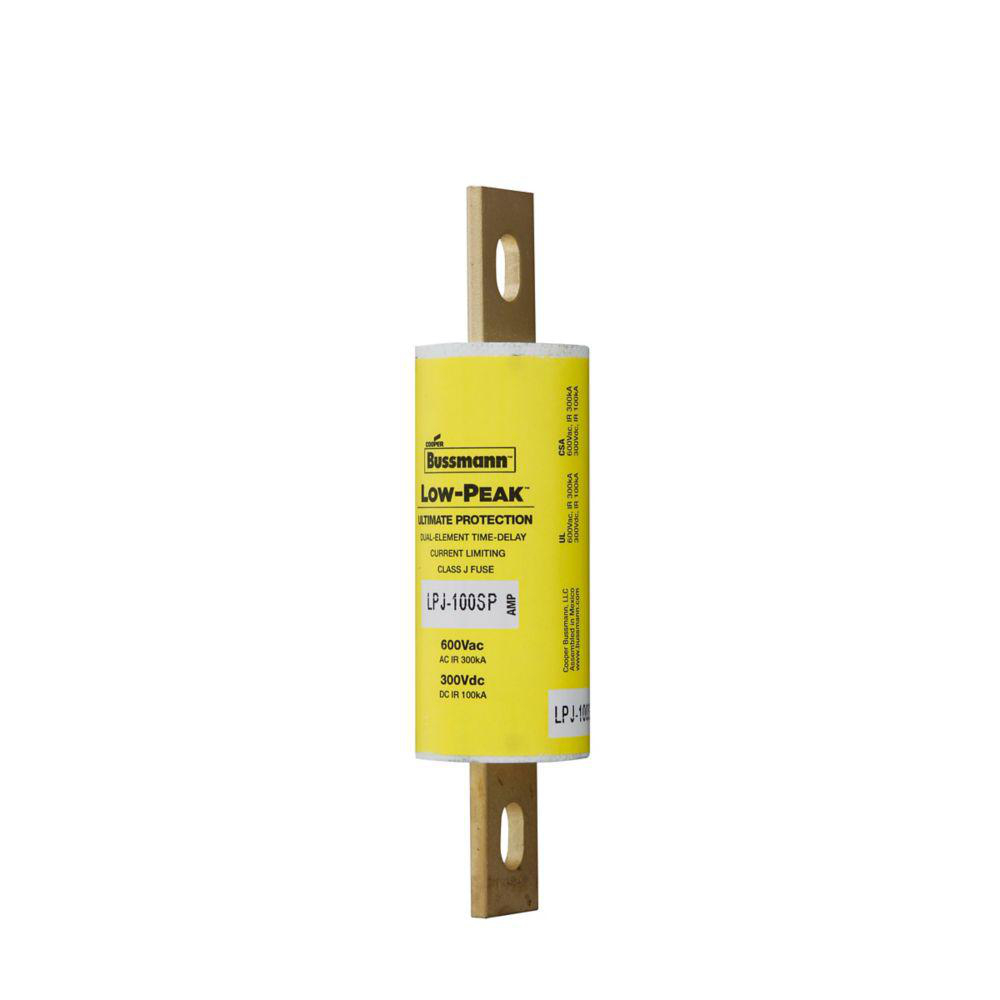

Eaton Bussmann Series Class J fuse, LPJ, time-delay, dual-element current limiting fuse, 90 A, non-idicating fuse, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc

Technical Information

Amperage
90 A
Applications
Branch Circuit Breaker Panelboard Mains, Industrial Control, Machinery Disconnects and Power Panelboards Applications
Connection Type
Blade
Element
Dual
End Type
Blade,Bolted
Fuse Class
Class J
Interrupt Rating
100 kA
Response Time
10 sec at 500%
Size
1.13 In Diameter X 4.63 In Length
Standard
CSA,E2186,UL
TC Connection
Bolted / Mechanical
Type
Current Limiting, Time Delay
Voltage
300 V

Manufacturer Information

Brand
Cooper Industries
Sub Brand
Bussmann™, Low-Peak™

General Product Info

12-Digit UPC
051712523394
Class
J
GTIN
00051712523394
Product UPC
51712523394
Weight
.3 lb

Dimensions

Diameter
1.13 in
Height
1.13 in
Length
4.63 in
