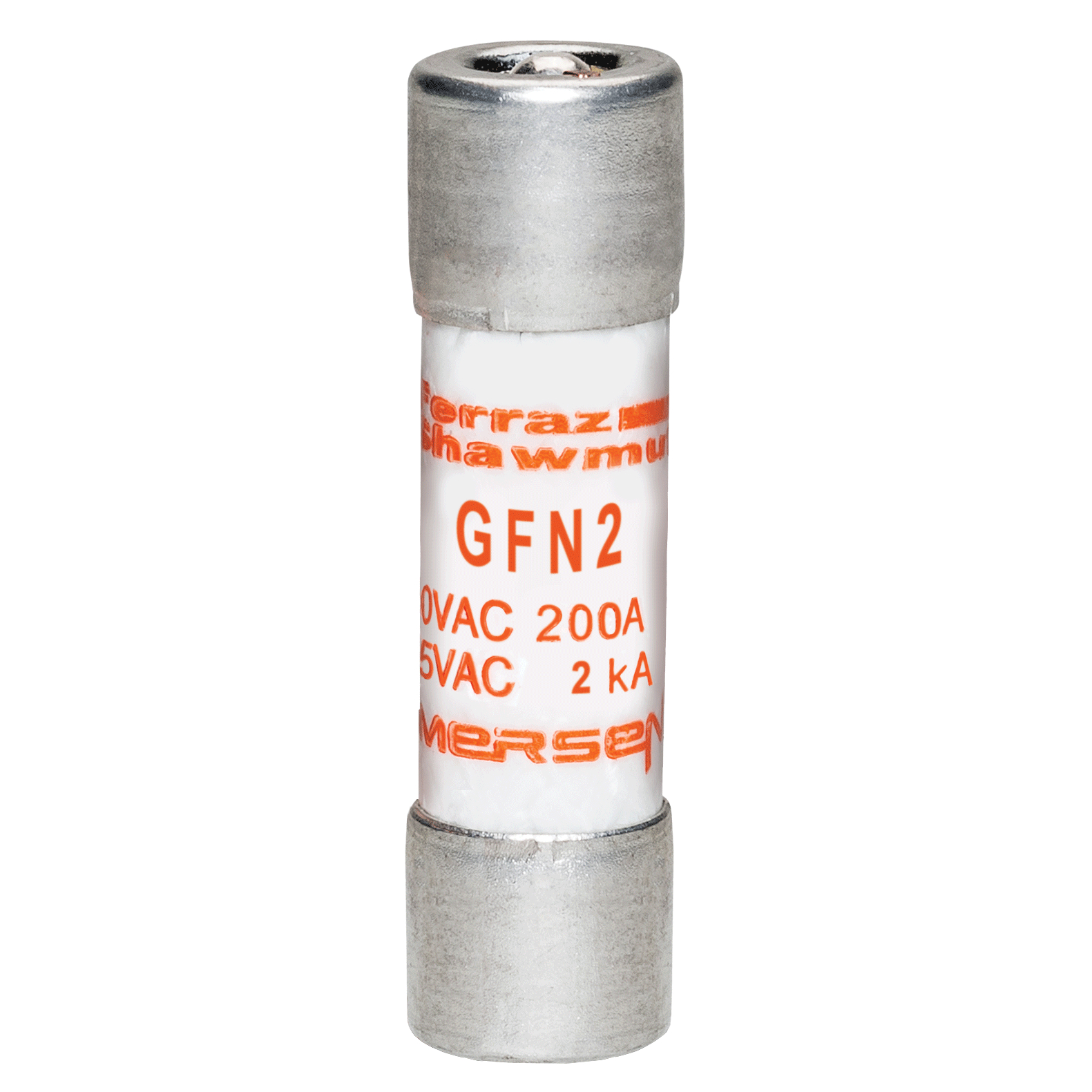

MERSEN GFN2 FUSE MIDGET 2A 250VAC 12SEC TIME DELAY PIN INDICAT 1-1/2" X 13/32" 200A IR RATED

Manufacturer: Ferraz Shawmut Mersen | Catalog # GFN2 | Electrozad South Part # 35723
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet

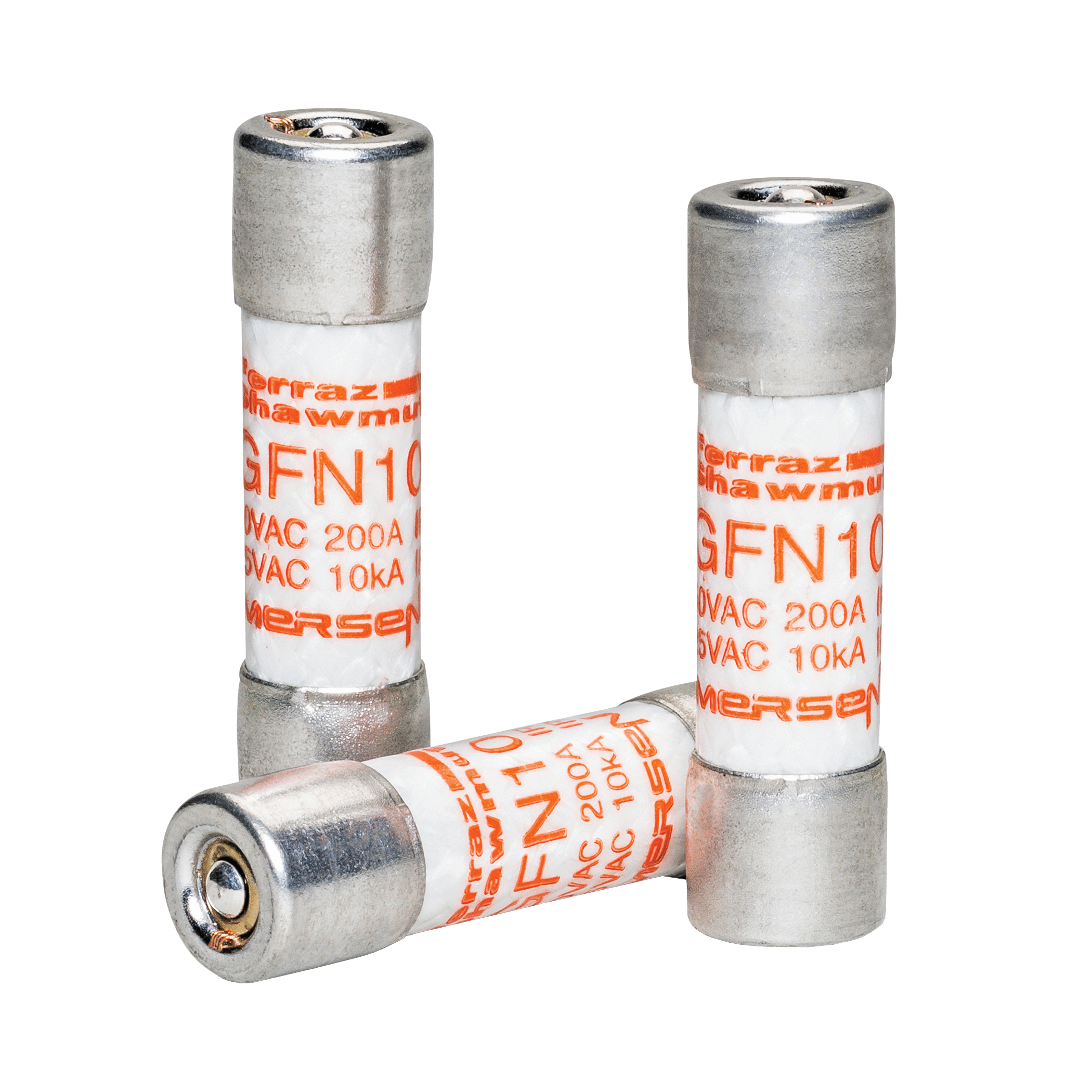

GFN midget indicating fuses are available in 34 ratings from 1/10A through 30A. These time-delay fuses have built-in blown fuse indicators which pop out at the end of the fuse to visually indicate when the fuse has operated. Indicators may be used to trip a switch for remote as well as visual indication. (Not for Branch Circuit Protection).

Technical Information

Amperage
2 A
Applications
For Supplemental Protection of Circuits Where Time-Delay and Blown Fuse Indication are Required, Such as Solenoid Circuits or Control Circuits
Connection Type
Ferrule
Frequency
50/60 Hz
Fuse Class
Class M
Indicator
Visual Indicator
Insulation Material
PolyTube
Interrupt Rating
200 kA
Mounting Type
Clip
Rated Voltage AC
250 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Fast Acting

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001761653
Class
M
GTIN
30782001761654
Product UPC
78200176165
Weight
0.012 lb

Dimensions

Diameter
0.41 in
Length
1.5 in
