MERSEN A70Q350-4 FUSE F101 350A 700VAC 650VDC SEMICONDUCTOR FORM101 F OL & SCP 150D-C MAX TEMP BLADE | Electrozad South

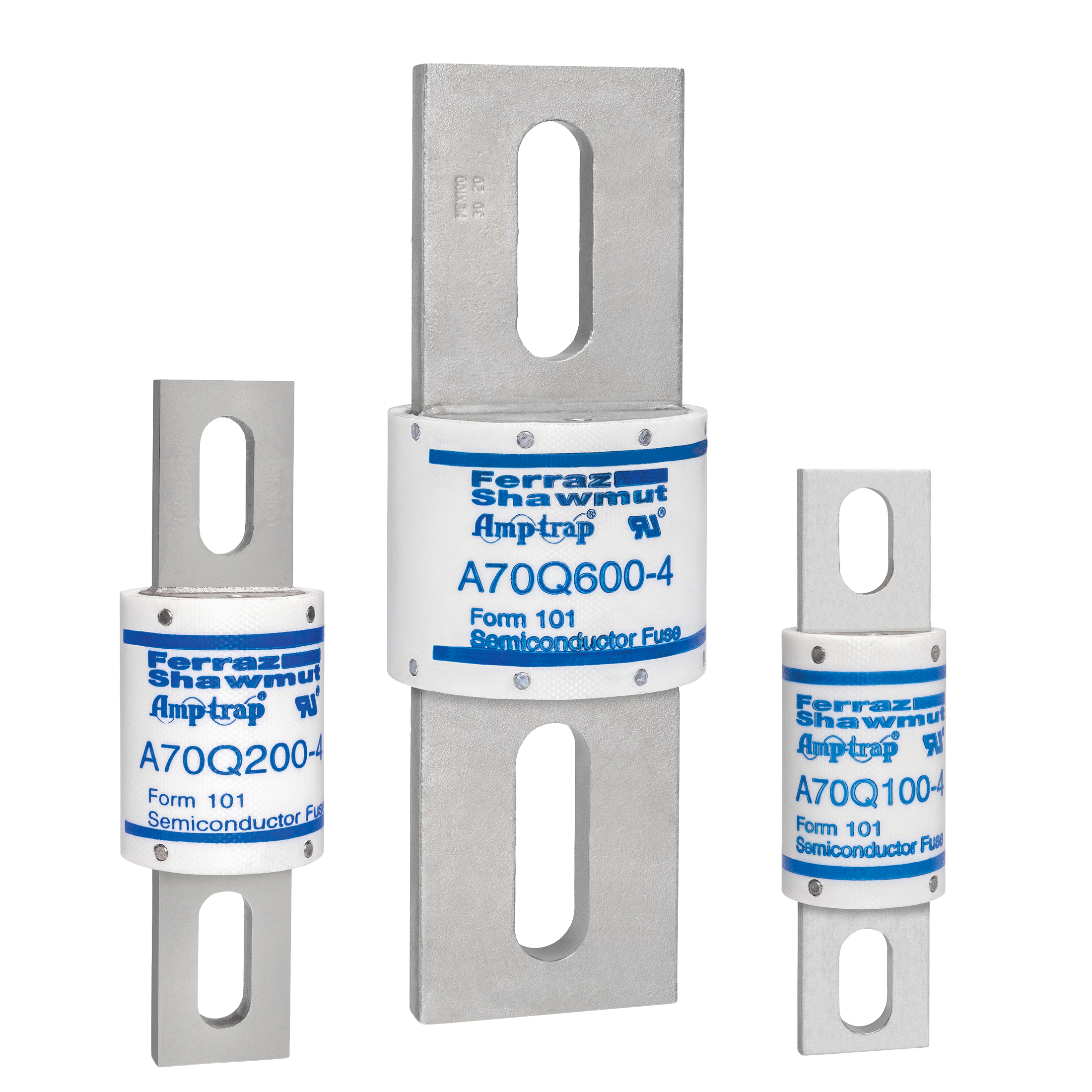

Product image for MERSEN A70Q350-4 FUSE F101 350A 700VAC 650VDC SEMICONDUCTOR FORM101 F OL & SCP 150D-C MAX TEMP BLADE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

MERSEN A70Q350-4 FUSE F101 350A 700VAC 650VDC SEMICONDUCTOR FORM101 F OL & SCP 150D-C MAX TEMP BLADE

Manufacturer: Ferraz Shawmut Mersen | Catalog # A70Q350-4 | Electrozad South Part # 36613
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
A70Q Amp-Trap® high speed fuses were developed for inverter applications requiring extremely low I2t. A70Q fuses provide the most responsive protection for applications not required to sustain heavy overloads. Typically used for replacement purposes.

Technical Information

Amperage
350 A
Applications
Protection of Inverters and Other Equipment Requiring the Best AC or DC Protection in This Voltage Range
Connection Type
Blade
Frequency
50/60 Hz
Insulation Material
GMG
Interrupt Rating
100 kA
Max Operating Temperature
80 degrees C
Mounting Type
Bolt
Rated Voltage AC
700 V
Rated Voltage DC
650 V
TC Connection
Bolted
Terminal Material
Tin-Plated Copper
Terminal Type
Bolted
Type
Q Style, North American
Voltage
700 V

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001141028
GTIN
30782001141029
Product UPC
78200114102
Weight
0.95 lb

Dimensions

Diameter
2 in
Length
5.09 in

Certifications & Compliance

Country of Origin
Mexico
