Pan-Term® DV14-250P-LYY Loose Piece Disconnect

Manufacturer: Panduit | Catalog # DV14-250P-LYY | Electrozad South Part # 366440
$224.37 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL

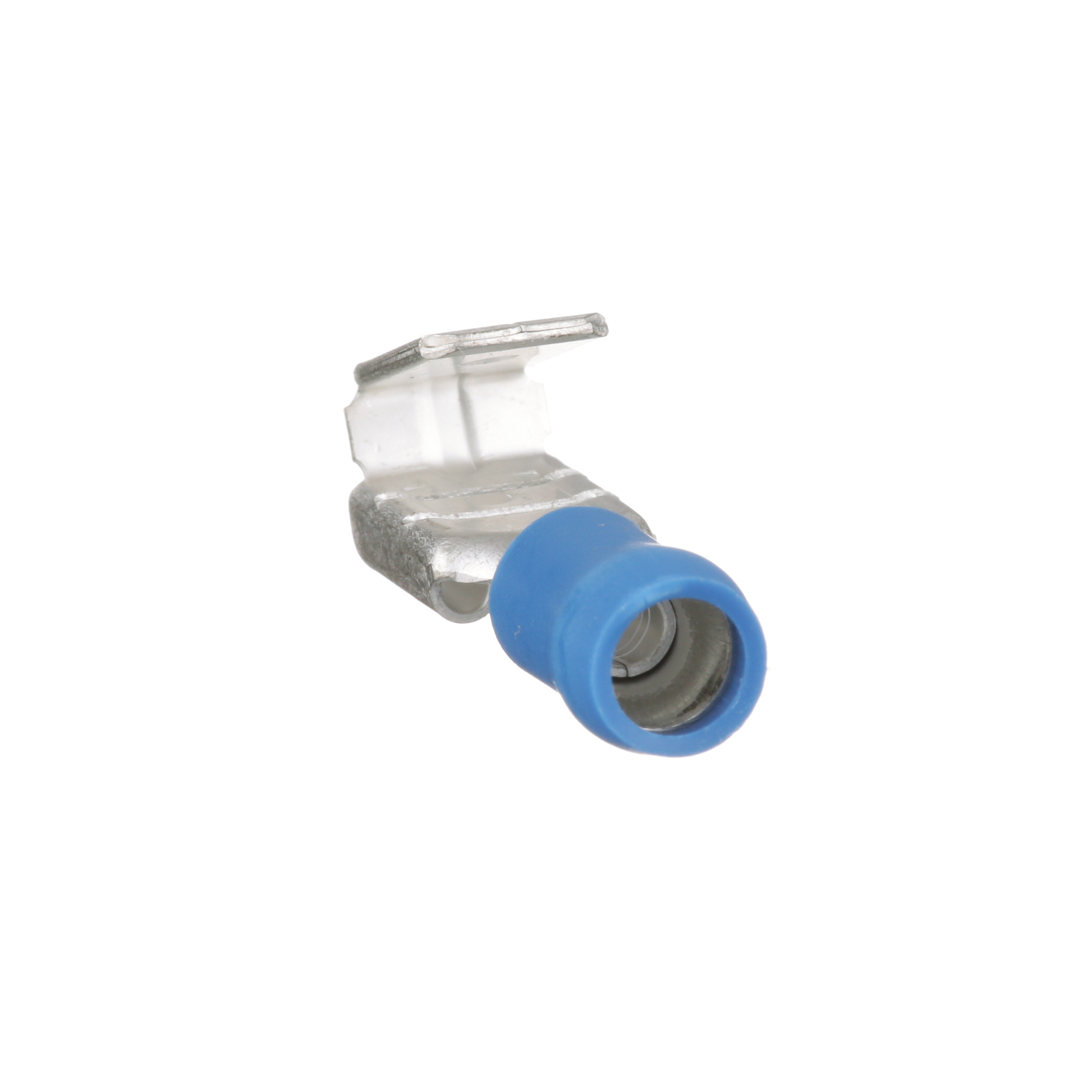

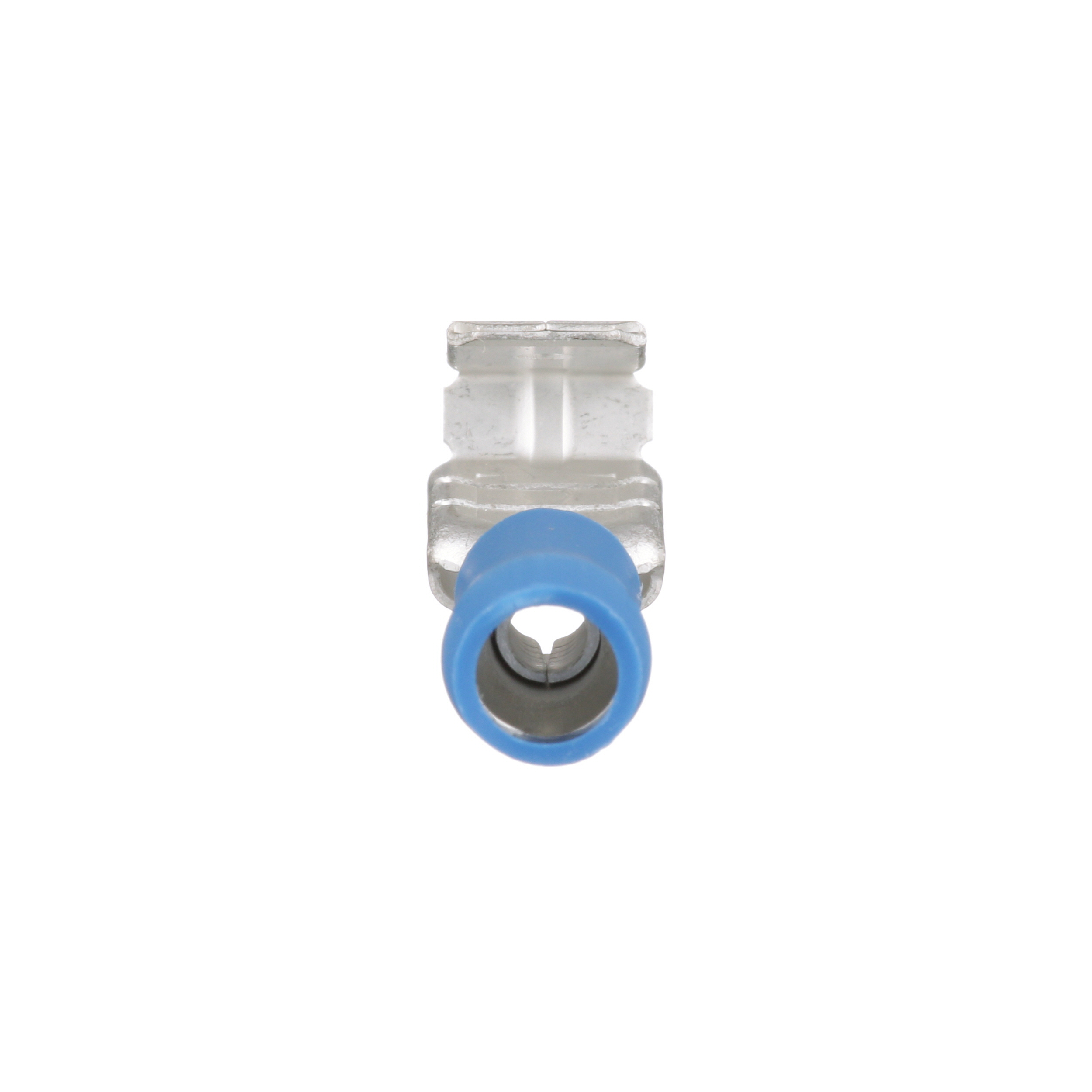

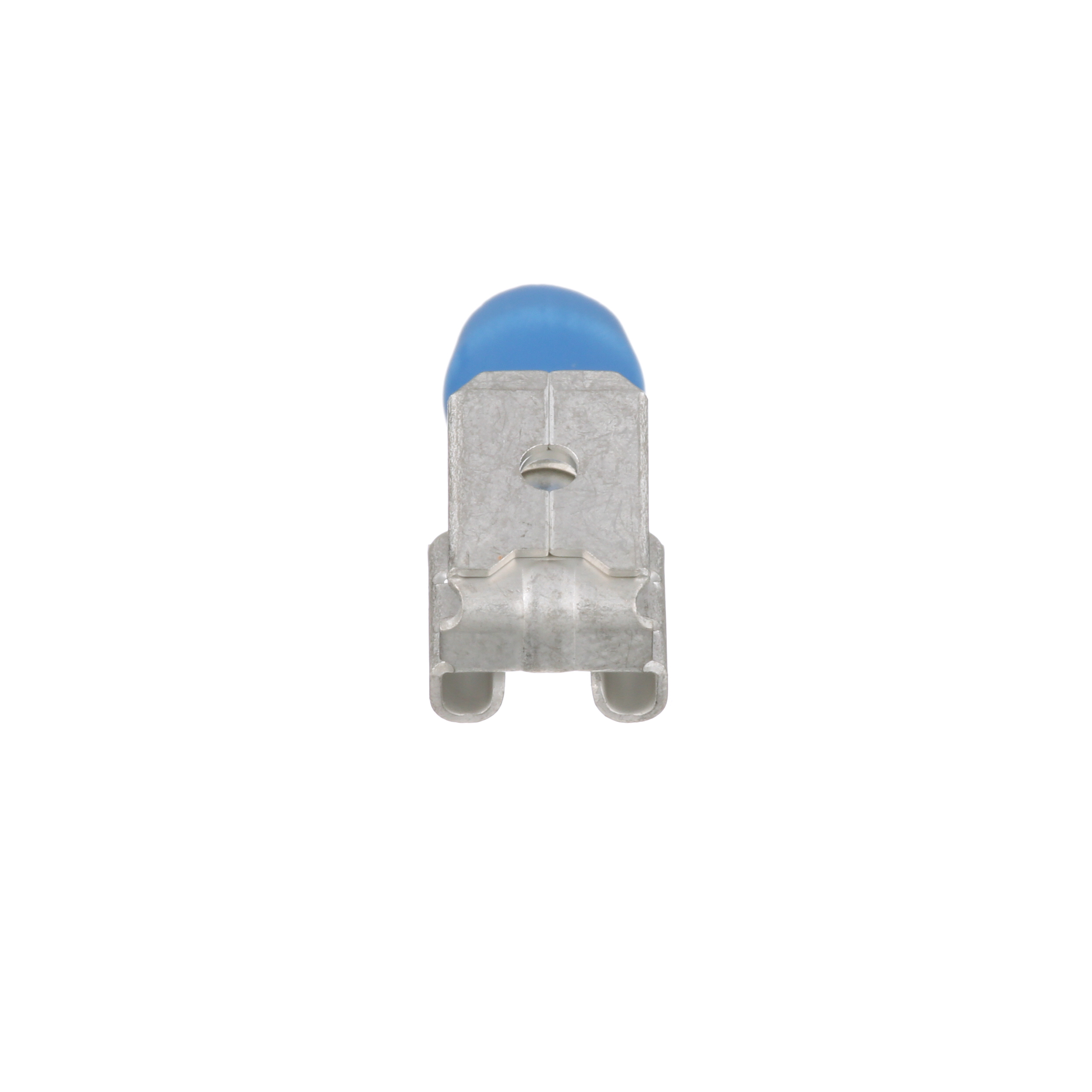

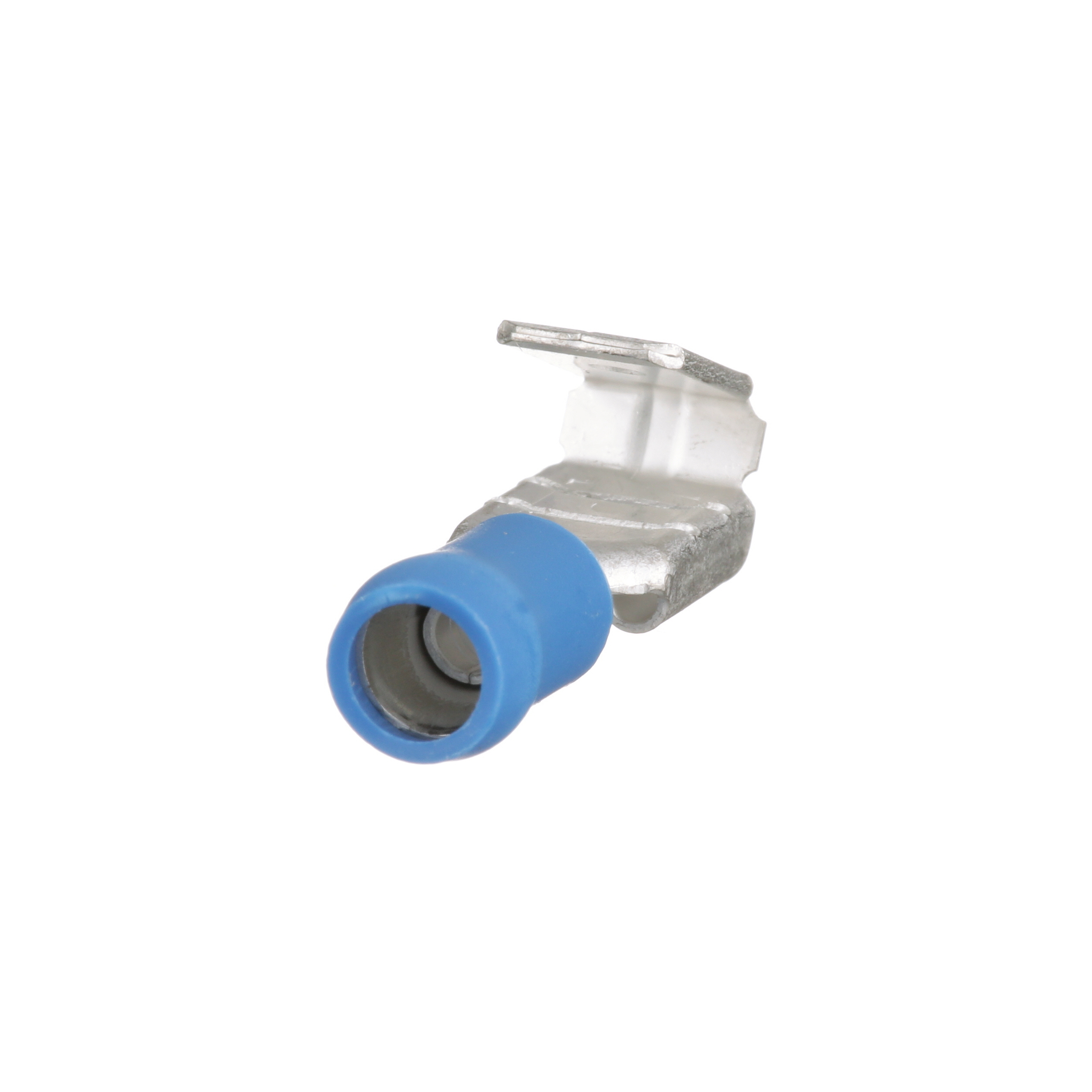

The vibration resistant piggyback disconnect is made of brass and is tin-plated. It is barrel insulated in blue vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm..). It is 0.88" (22.4 mm) long and 0.29" (7.4 mm) wide. The disconnect has a standard barrel configuration and a sleeved barrel. It comes in bottles of 50.

Technical Information

Material
Brass
TC Connection
Standard
Type
Disconnect
Wire Size
#14 AWG

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
613056757820
Finish
Tin Plated
GTIN
00613056757820
Product UPC
61305675782

Dimensions

Overall Length
0.88 in
Width
0.29 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Indonesia
