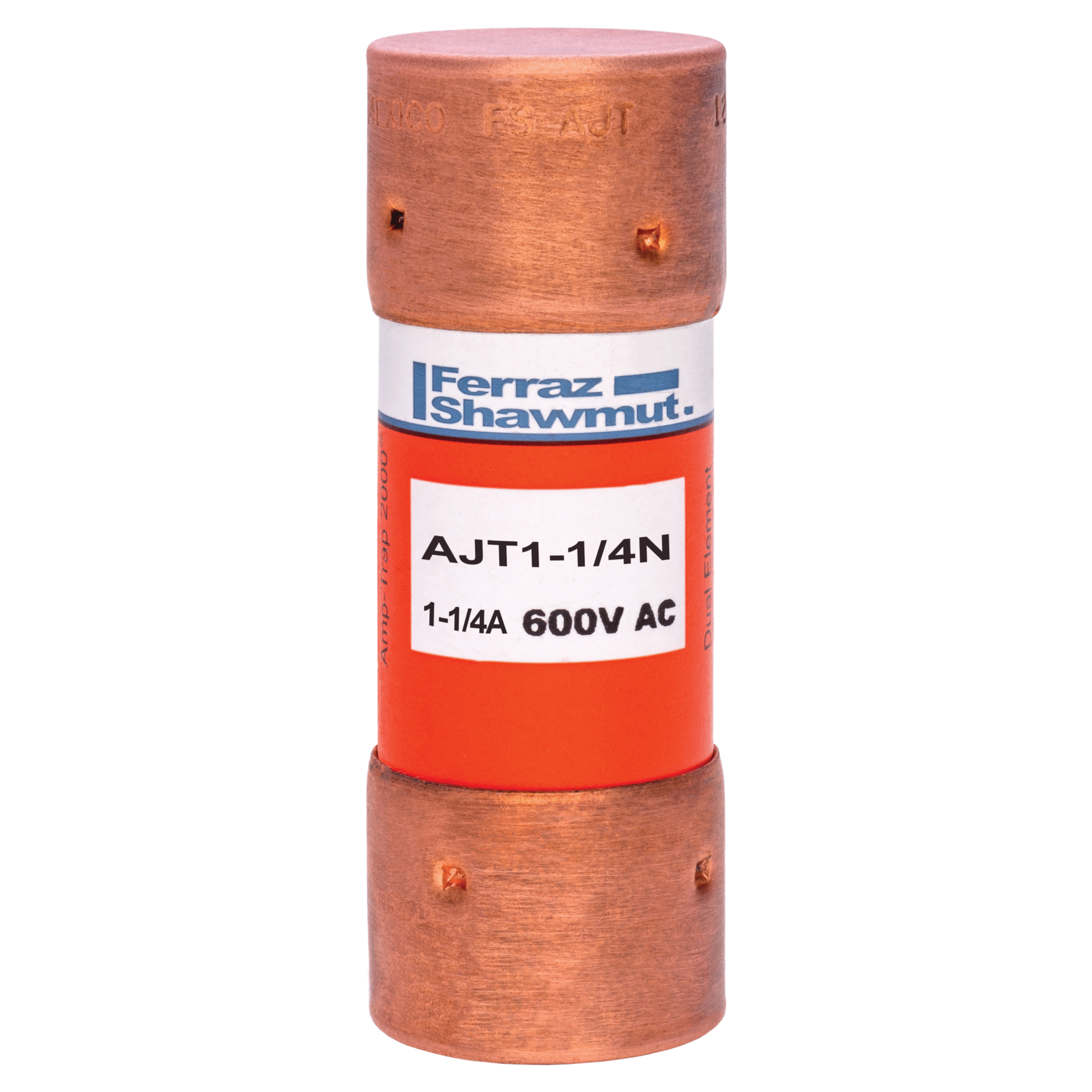

Product image for MERSEN AJT1-1/4N FUSE HRCI-J 1-1/4A 600VAC 500VDC NON INDICATING CLASS J TIME DELAY
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Email

MERSEN AJT1-1/4N FUSE HRCI-J 1-1/4A 600VAC 500VDC NON INDICATING CLASS J TIME DELAY

Manufacturer: Ferraz Shawmut Mersen | Catalog # AJT1-1/4N | Electrozad South Part # 366517
$14.60 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads ... yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT...s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.

Technical Information

Applications
For Handling Typical Motor and Transformer Inrush Currents, while also Providing Superior Current-Limiting Ability
Connection Type
Ferrule
Contact Material
Tin-Plated Copper
Frequency
50/60 Hz
Fuse Class
Class J
Insulation Material
GMG
Interrupt Rating
100 kA at 500 VDC, 200 kA at 600 VAC
Mounting Type
Clip
Rated Voltage AC
600 V
Rated Voltage DC
500 V
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Time Delay

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap® 2000

General Product Info

12-Digit UPC
782001497972
Construction
Melamine
GTIN
30782001497973
Product UPC
78200149797
Used With
Motor Circuits, Mains, Feeders, Branch Circuits, Lighting, Heating and General Loads, Transformers, Control Panels, Circuit Breaker Back-up, Bus Duct, Load Centers
Weight
0.097 lb

Dimensions

Diameter
0.81 in
Length
2.25 in
