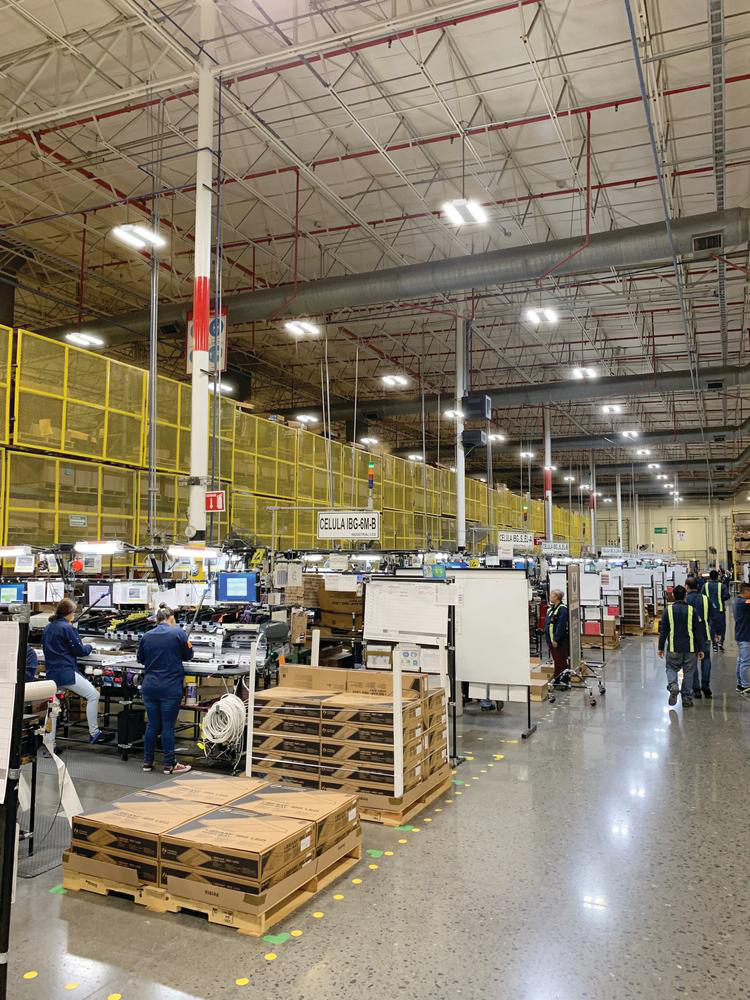

Image thumbnail 10
Email

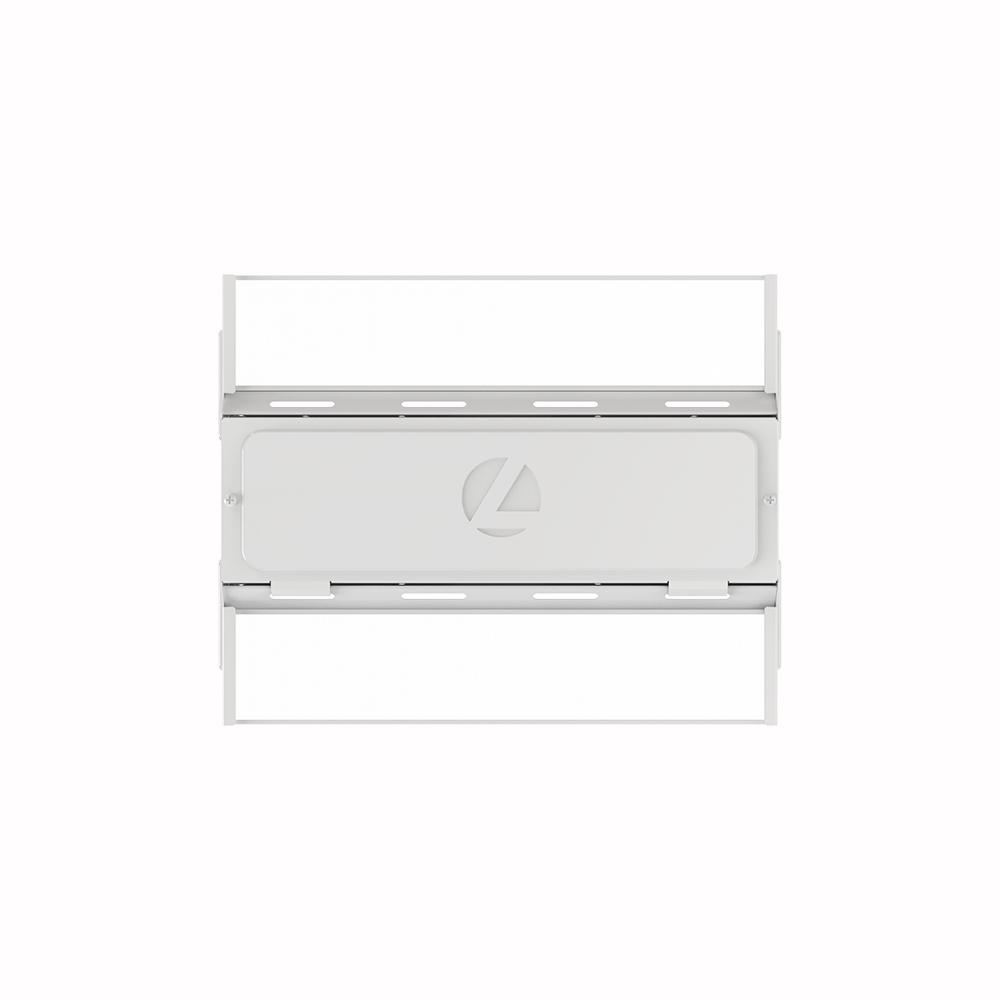

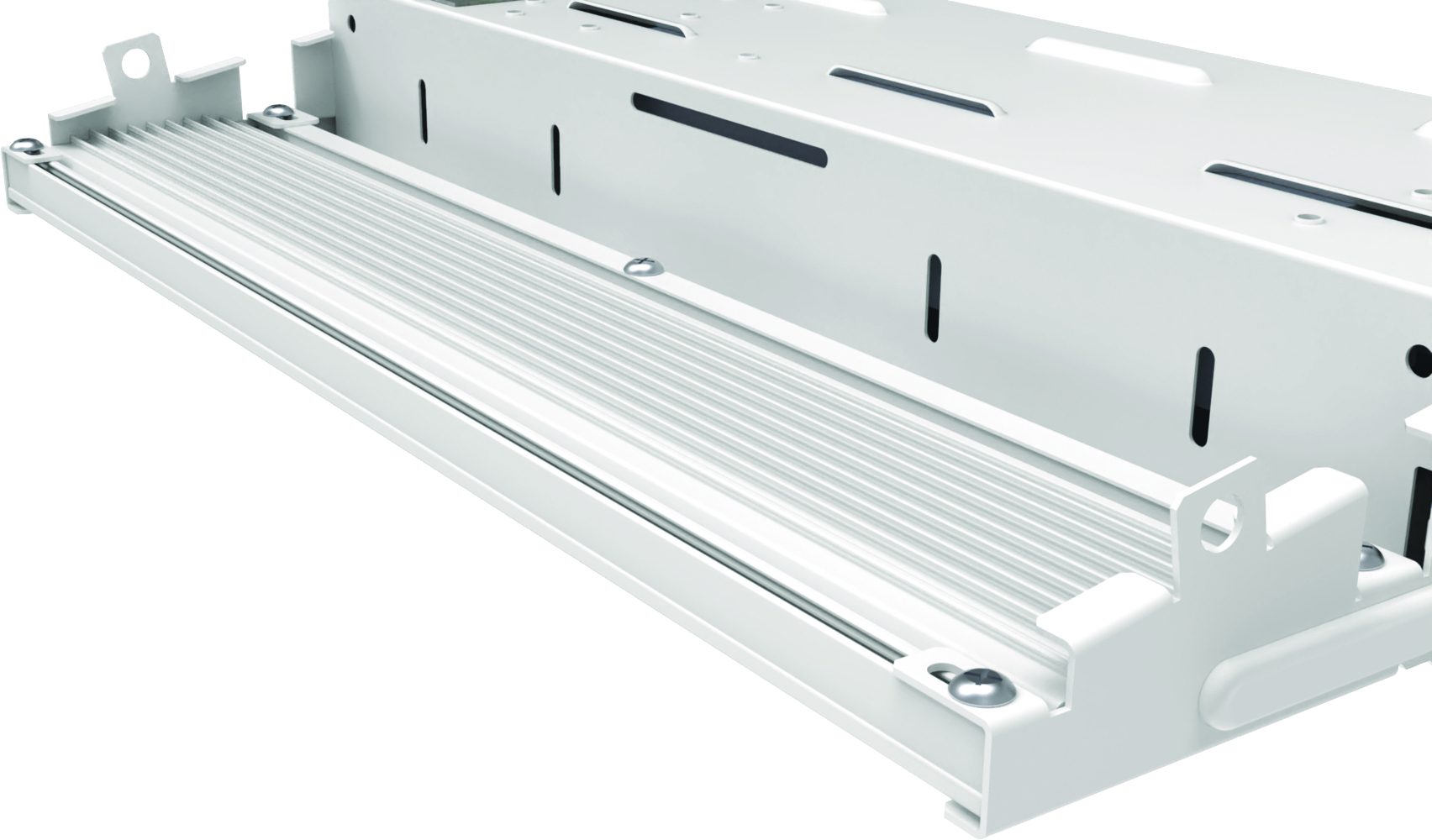

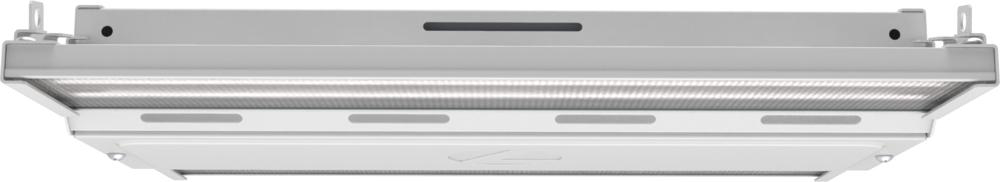

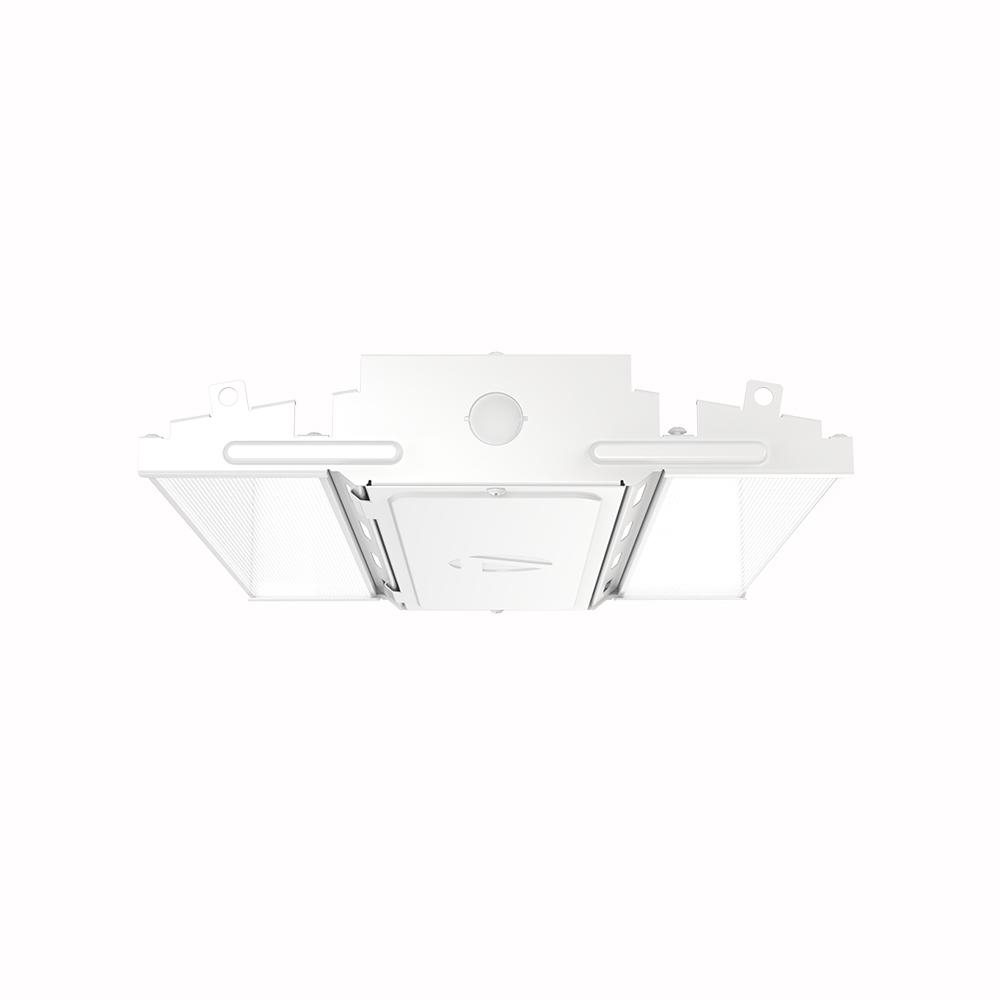

COMPACT PRO HIGH BAY, LED, 18LM, 120V-27

Manufacturer: Lithonia Lighting | Catalog # CPHB 18LM MVOLT 40K | Electrozad South Part # 367280
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure Installation / Instruction Manual I INSTALL ASSEMBLY INSTRUCTIONS URL

Technical Information

Applications

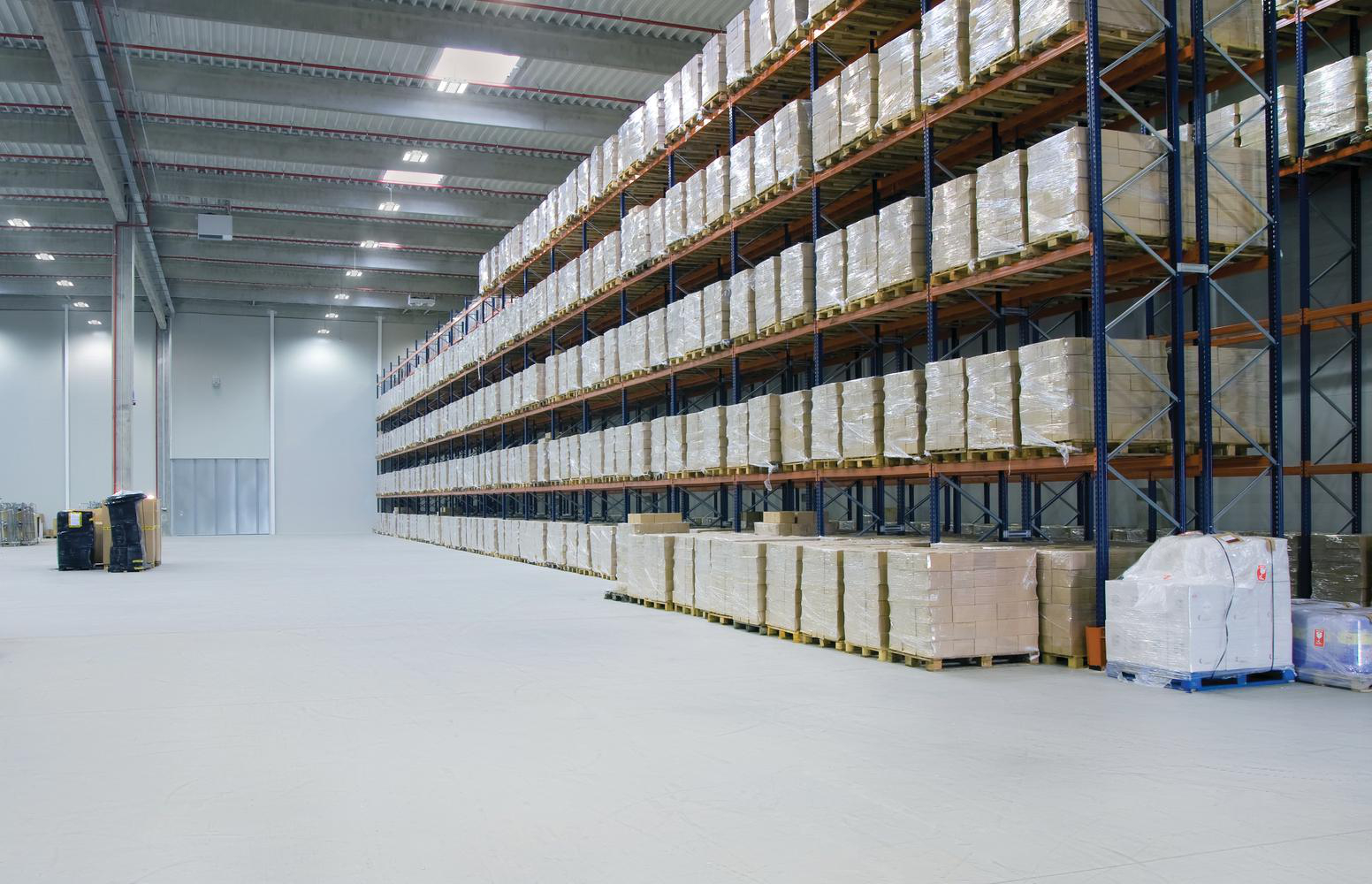

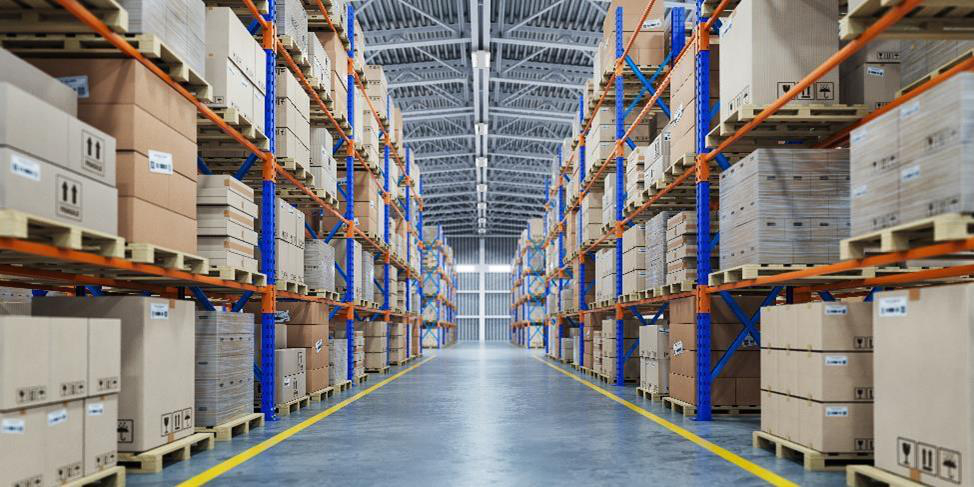

For Retrofit, Warehouses
Average Rated Life
100,000 hr
Color Rendering Index
80 CRI
Color Temperature
4000 K
Dimmable?
Yes
Fixture Wattage
134 W
Lamp Life
100,000 hr
Lamp Type
LED
Lens Color
Clear
Lens Material
Acrylic
Lumens
18000 lm
Material
Aluminum
Mounting Type
Pendant, Surface, Suspended
Power Source
Hardwired
Size
14.4x11.5x2.3 IN
Style
Traditional
TC Connection
Hardwired
Type
Rectangular
Voltage
120 V
Wattage
133 W

Manufacturer Information

Brand
Acuity Brands
Sub Brand
Compact Pro™

General Product Info

12-Digit UPC
194994608295
Color
White
Construction
New Construction,Remodel
Environment
Indoor
Environmental Conditions
Indoor
Finish
Gloss
Fixture Type
High Bay
GTIN
00194994608295
Product UPC
19499460829
Shape
Rectangular
Weight
5 lb

Dimensions

Height
2.3 in
Length
14.4 in
Width
11-1/2 in

Certifications & Compliance

Country of Origin
Mexico,Mexico
Overview
  • WARRANTY: Buy with confidence, 5 year limited warranty
  • VOLTAGE: Multi-volt driver, 120-277V standard
  • INSTALLATION: Fixture is suitable for mounting by chain, cable, surface-mount bracket, pendant monopoint, or hook monopoint
  • DIMMING: Thermally protected driver standard with 0-10V dimming
  • TECHNOLOGY:Glare reduction optics featuring WhiteOptics® Technology allowing for maximum light output while reducing glare
  • ENERGY SAVINGS:LEDs provided 80 color rendering index (CRI), nominal 12,000 lumens at 4000K with a cool white color temperature
  • HOURS OF LIFE: 70% lumen maintenance at > 100,000 hours
  • BATTERY: LED emergency driver sold separetly
  • Length 14.4 in. x Width 11.5 in. x Depth 2.3 in.
  • RATINGS: Suitable for damp location, CSA listed.
