PANDUIT FR6X4YL6 FIBERRUNNER CHANNEL 6X4 YELLOW | Electrozad South

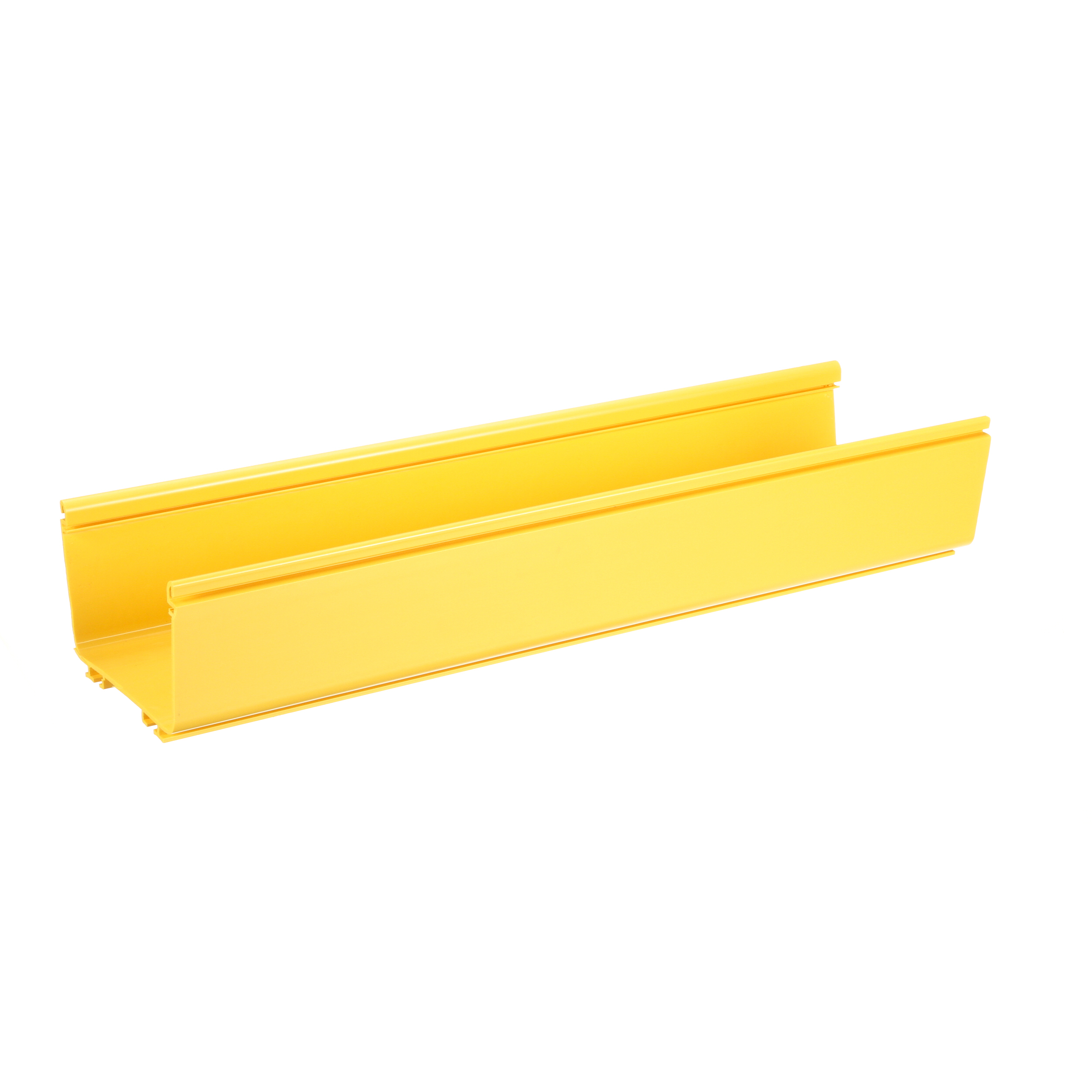

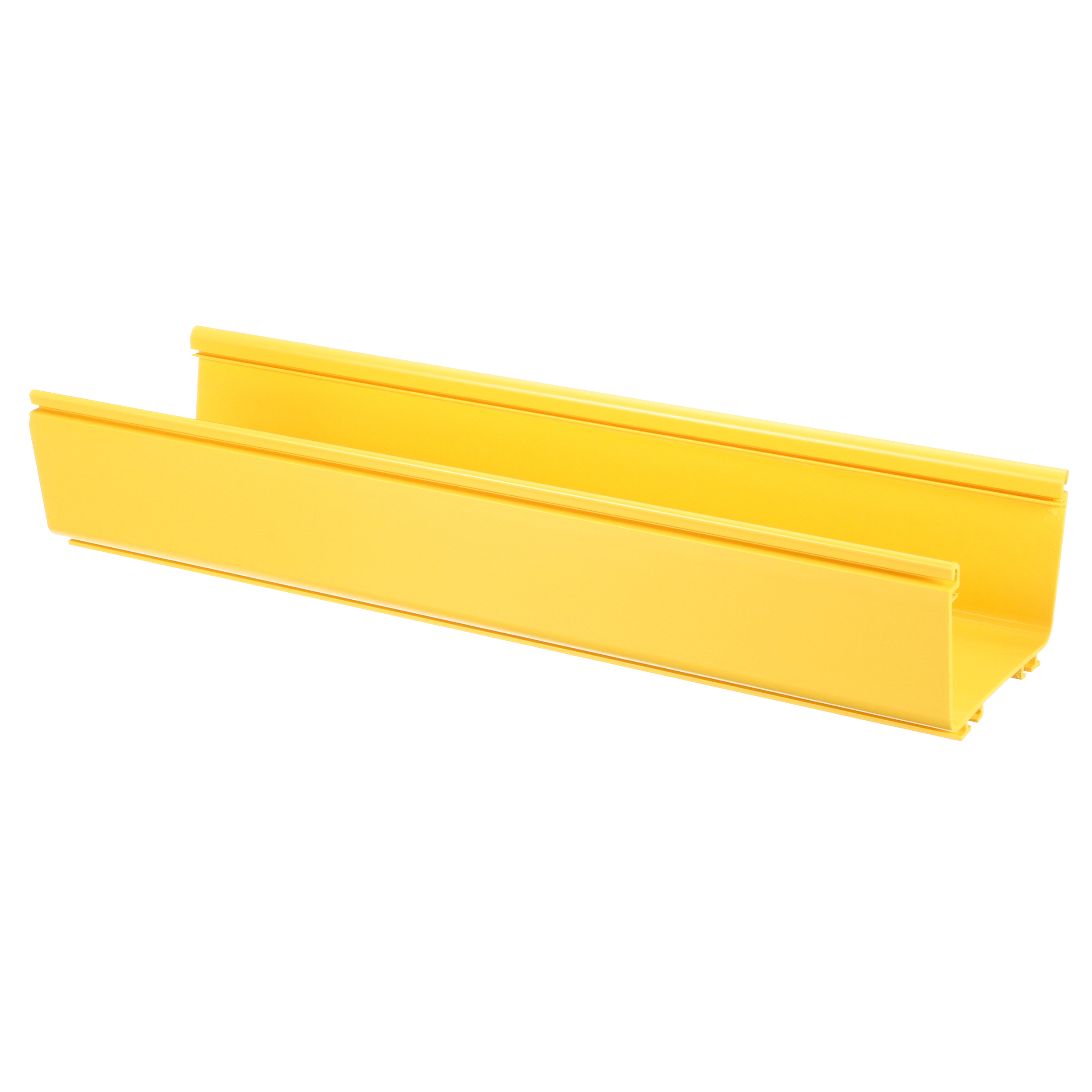

Product image for PANDUIT FR6X4YL6 FIBERRUNNER CHANNEL 6X4 YELLOW
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

PANDUIT FR6X4YL6 FIBERRUNNER CHANNEL 6X4 YELLOW

Manufacturer: Panduit | Catalog # FR6X4YL6 | Electrozad South Part # 367806
$33.04 /ea
ft
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Installation / Instruction Manual
Used to carry the cables horizontally throughout the system. Accepts hinged cable retainers FRCR6BL-X, hinged cover FRHC6YL6 or split hinged cover FRSHC6YL6. Use QuikLock™ Coupler FRBC6X4YL to attach channel and/or fittings.

Technical Information

Applications
(1)The Fiber-Runner™6X4 Routing System is Comprised of Channel, Fittings, and Brackets Designed to Segregate, Route, and Protect Fiber Optic Cable and Copper Cabling.(2) It is Suited for Data Center Applications where Cable is Routed from Distribution Ar
Material
PVC
Mounting Hole Size
0 ft
Mounting Type
Snap-On
Size
NA
Slot Size
6 x 4 in
Standard
CSA,E2186,UL
TC Connection
Snap-On
Type
Channel
Wire Size
NA

Packaging

Package Qty
6

Manufacturer Information

Brand
Panduit
Sub Brand
FiberRunner

General Product Info

12-Digit UPC
074983783991
Color
Yellow
GTIN
00074983783991
Product UPC
07498378399
Used With
FRCR6BL-X Hinged Cable Retainers, FRHC6YL6 Hinged Cover or FRSHC6YL6 Split Hinged Cover, FRBC6X4YL QuikLock™ Coupler

Dimensions

Height
4.441 in
Length
1.8 m
Overall Length
6 ft
Thickness
3.2 mm
Width
6.58 in

Certifications & Compliance

Country of Origin
USA
