SIEMC 3LD2203-0TK53 DISCONNECT 32AMP 3 POLE

Manufacturer: Siemens Motor Control | Catalog # 3LD2203-0TK53 | Electrozad South Part # 368212
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page

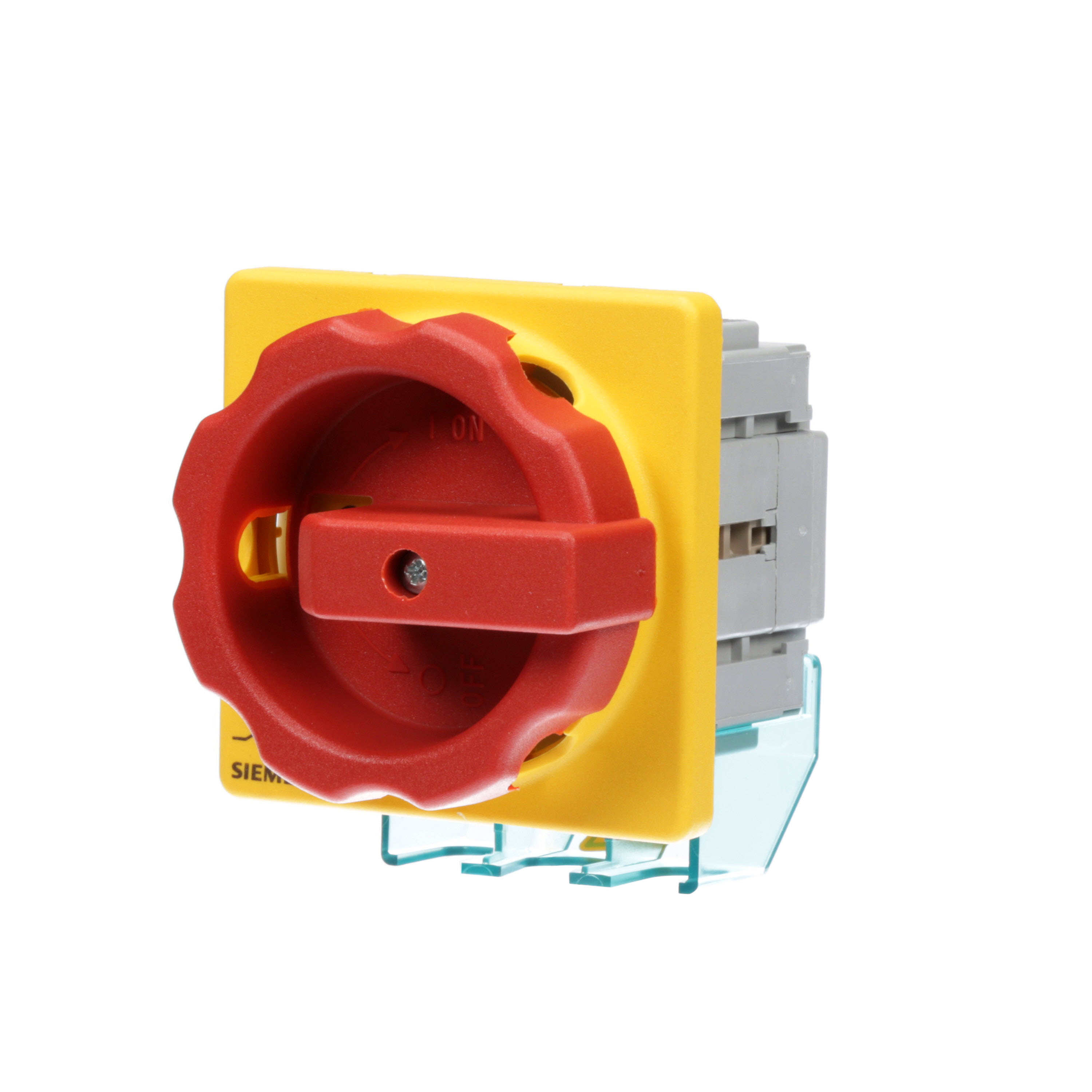

Switch disconnector with EMERGENCY-STOP switch, 3-pole, operational power at AC-23 A at 400 V, front- mounted, rotary operating mechanism, red/yellow and 4-hole mounting of the handle.

Technical Information

Actuator
Rotary
Applications
OEM Disconnect
Contact Configuration
N/A
Contact Rating
N/A
Enclosure
N/A
Indicator
N/A
Load Rating
9.5 kW, 11.5 kW
Mounting Type
4 Hole, Screw
Number of Poles
3
Operating Cycles
N/A
Operating Temperature
-20F to 120F Ambient Temp
Size
4x3x3
TC Connection
N/A
Temperature Rating
-20 to 120 degrees F
Trip Type
N/A
Type
3LD

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
754554732039
Color
Red and Yellow Handle
Environmental Conditions
Indoor Use Only
GTIN
00754554732039
Weight
0.460 lb

Dimensions

Height
3.050 in
Length
2.850 in
Width
3.600 in

Certifications & Compliance

Country of Origin
Germany
