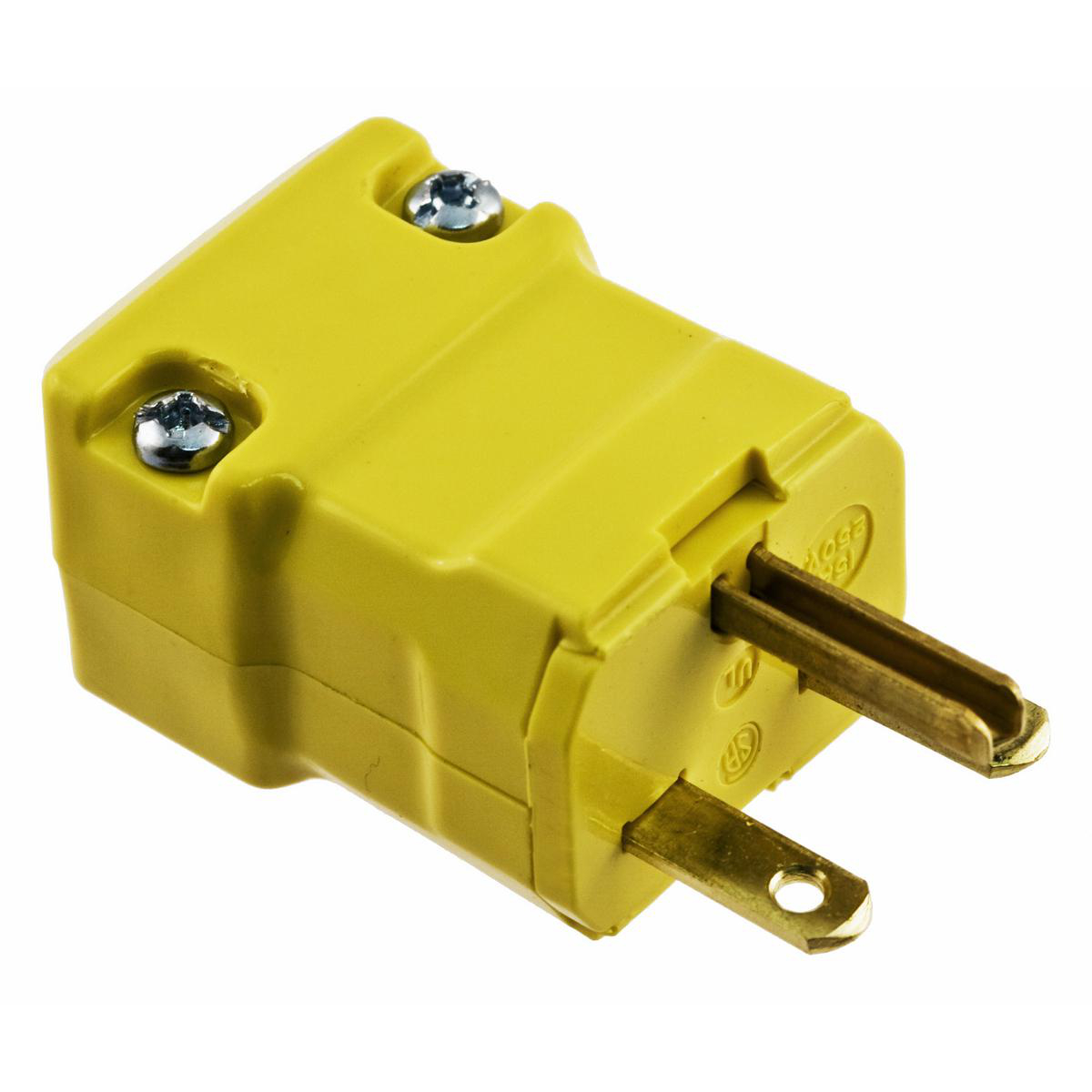

Plug 6-15P cable valise 2P 15A 250V yellow

Manufacturer: Hubbell Wiring Devices | Catalog # HBL5666VY | Electrozad South Part # 37089
$31.54 /ea
pc
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Hubbell VALISE strait blade cable plugs and connectors are made of one piece yellow thermoplastic strait blade insert and cover that hold securely cable with 2 screws (full black, yellow & white model available). They come in version 2 poles, 3 wires, 15-20 amp, 125-250 volts.

Technical Information

Amperage
15 A
Applications
Industrial/Commercial
Conductor Size
16-10 AWG
Cord Type
Portable
Current
15 A
Grounding
Yes
Horsepower
1.5 hp
Material
Thermoplastic
Mounting Type
Cord
NEMA
6-15P
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
1.88 in x 1.5 in x 1.13 in
Standard
C22.2 No. 42 File 280C,CSA,NEMA® WD-6,UL,UL498 File E1706
Style
Standard
TC Connection
Terminal Screws
Type
Standard Sized
Voltage
250 V
Wattage
3750 W
Wire Count
3
Wire Size
18-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Valise®

General Product Info

12-Digit UPC
783585013053
Color
Yellow
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTIN
00783585013053
Product Series
Valise
Product UPC
78358501305
Weight
0.15 lb

Dimensions

Height
1.13 in
Length
1.88 in
Width
1.5 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Assembly screws are captive and will not fall out while wiring
  • Hinged one piece body design for easy assembly
  • Powerful, offsetting cord grips clamp on individual conductors
