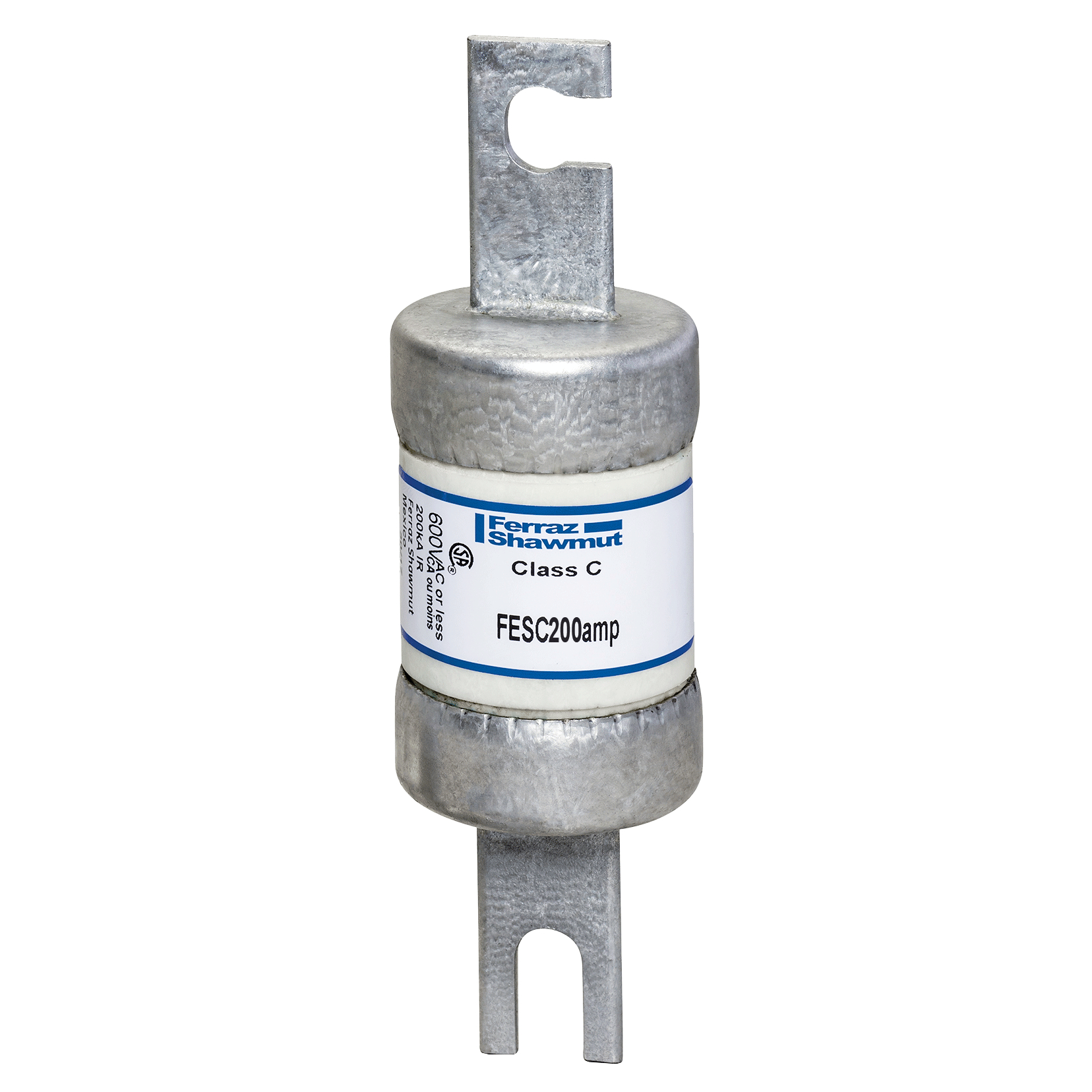

Fuse FES ... HRC-II 600VAC 350VDC 200A Blade FESC

Manufacturer: Ferraz Shawmut Mersen | Catalog # FESC200 | Electrozad South Part # 37126
$68.51 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Ferraz Shawmut Class C fuses have British standard (BS88) dimensions and are exact replacements for the British fuses and older HRCII-C fuses. Class C fuses are not dimensionally or electrically interchangeable with other North American fuses. They feature ceramic bodies and bolt-in mounting. They are for short-circuit protection only, in motor controllers, for example, where overload protection is provided by an overload relay.

Technical Information

Amperage
200 A
Applications
For Short Circuit and Back-Up Protection of Motor Controllers and Components
Connection Type
Blade
Frequency
50/60 Hz
Fuse Class
Class C
Insulation Material
PolyTube
Interrupt Rating
200 kA
Mounting Type
Bolt-On
Rated Voltage AC
600 V
Rated Voltage DC
350 V
Terminal Material
Tin-Plated Copper
Terminal Type
Blade
Type
Canadian

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
068938904166
Class
C
GTIN
30068938904167
Product UPC
06893890416
Weight
1 lb

Dimensions

Diameter
1.59 in
Length
5.31 in
