SIED LFC211N DISC 30A 2P 120/240V SN FUSED

Manufacturer: Siemens Distribution | Catalog # LFC211N | Electrozad South Part # 37138
$85.22 /ea
ea
Log in or register to view your price, purchase history, and more!
4 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page

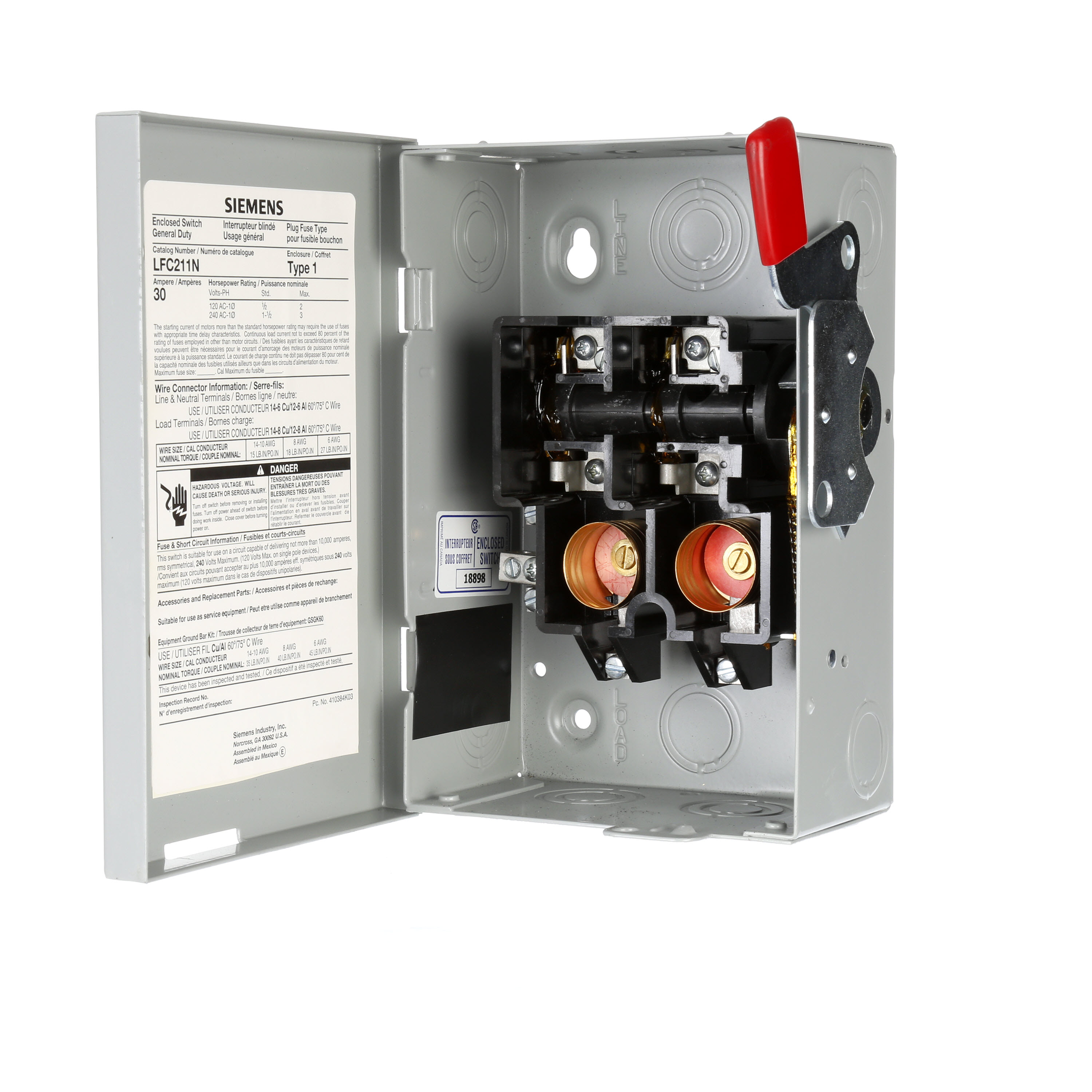

Safety switch, 2 pole and solid neutral, 3 wire, 120/240 V, 2 phase, 30 A, Compact size, Indoor-type 1, Quick make-quick break mechanism, Visible ON-OFF indications, Padlock-off handle feature, Door padlock provision. Lugs suitable for copper or aluminium wire. Switches accept plug fuses only-fuses not included.

Technical Information

Action
SINGLETHROW
Amperage
30 A
Applications
For Indoor use
Connection Type
Flat Blade
Enclosure
TYPE 1
Frequency
60 Hz
Insulated?
No
Material
Steel
Mounting Type
2 or 3 Point Hole
Net Weight
3,77 lb
Number of Poles
2
Operating Cycles
10000
Operating Temperature
-20 To 120 degrees F
Temperature Rating
-20 to 120 degrees F Ambient
Type
Light Duty, Fusible, Long Handle, Single Throw

Manufacturer Information

Brand
Siemens
Sub Brand
Disconnect Switches

General Product Info

12-Digit UPC
783643101289
GTIN
00783643101289
Housing Material
Steel
Product UPC
78364310128
Weight
3.755 lb

Dimensions

Height
5.000 in
Length
8.000 in

Certifications & Compliance

Country of Origin
Mexico
