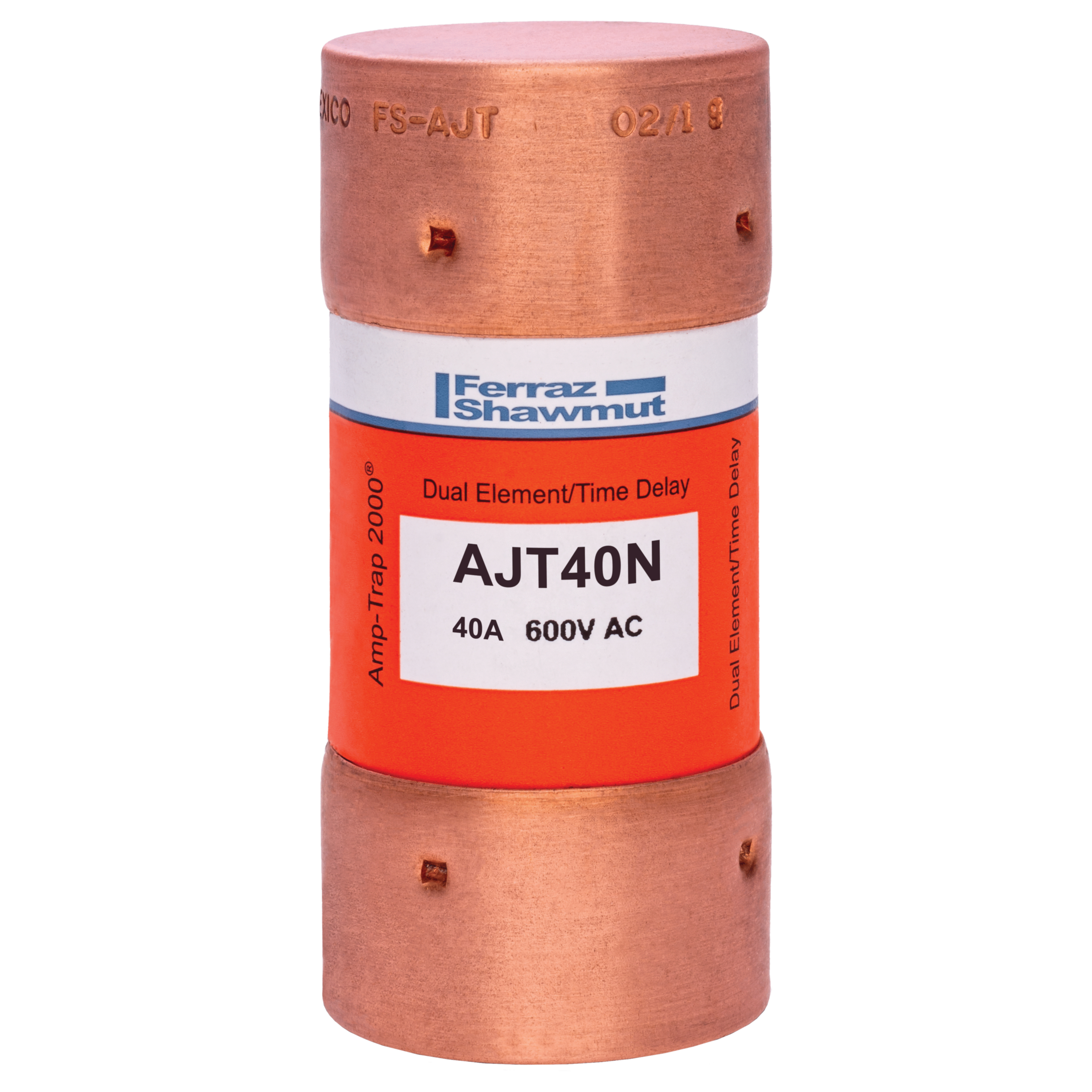

MERSEN AJT40N FUSE HRCI-J 40A 600V 600VAC 500VDC NON INDICATING CLASS J TIME DELAY

Manufacturer: Ferraz Shawmut Mersen | Catalog # AJT40N | Electrozad South Part # 371621
*Call For Price*
Log in or register to view your price, purchase history, and more!
4 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet
Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads ... yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT...s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.

Technical Information

Amperage
40 A
Applications
For Damage Protection to Main, Feeder, Branch Circuits, All Types of Loads, Handling Typical Motor and Transformer Inrush Currents
Connection Type
Ferrule
Frequency
50/60 Hz
Fuse Class
Class J
Insulation Material
GMG
Mounting Type
Clip
Rated Voltage AC
600 V
Rated Voltage DC
500 V
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Time-Delay

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap® 2000

General Product Info

12-Digit UPC
782001497750
GTIN
30782001497751
Product UPC
78200149775
Weight
0.167 lb

Dimensions

Diameter
1.06 in
Length
2.38 in
