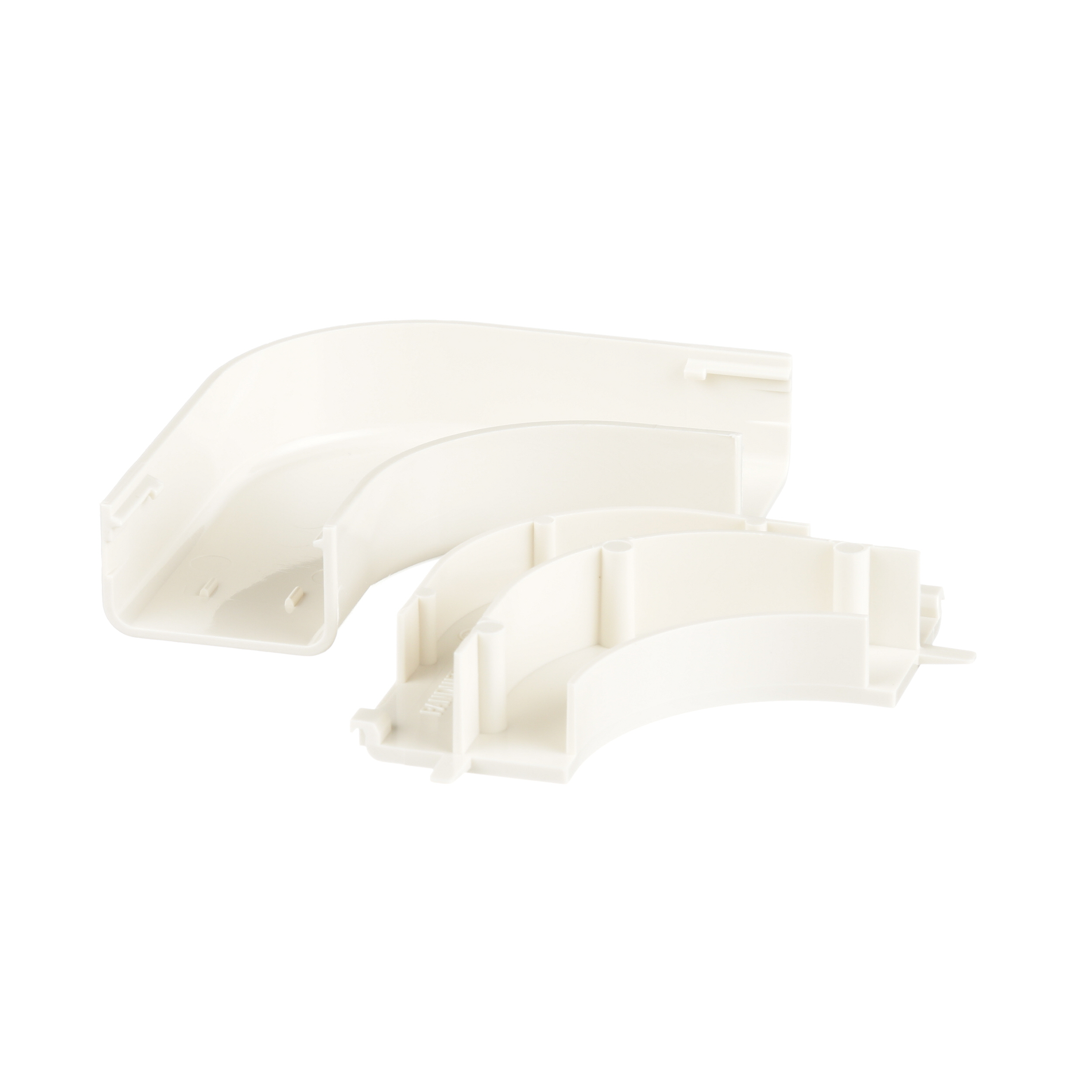

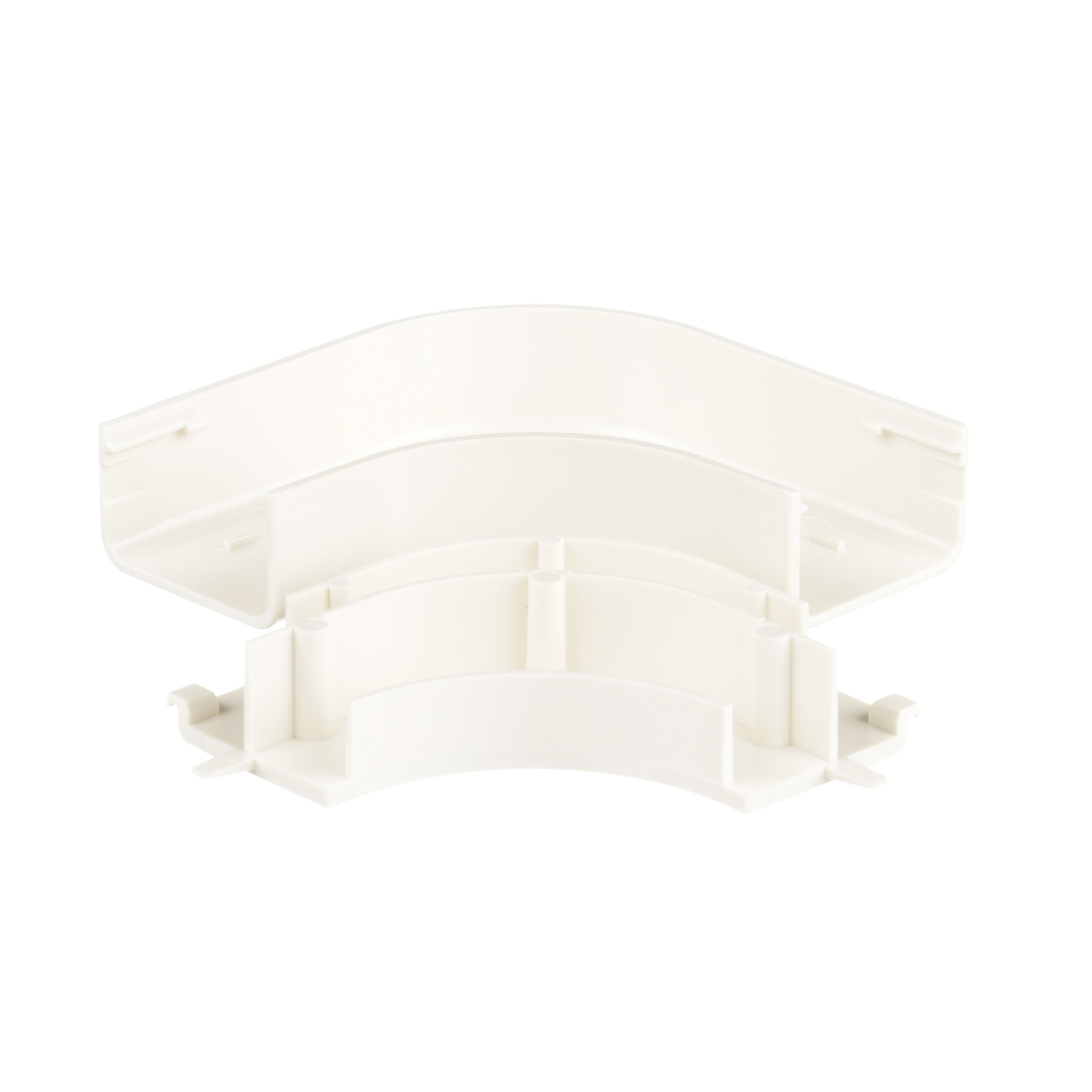

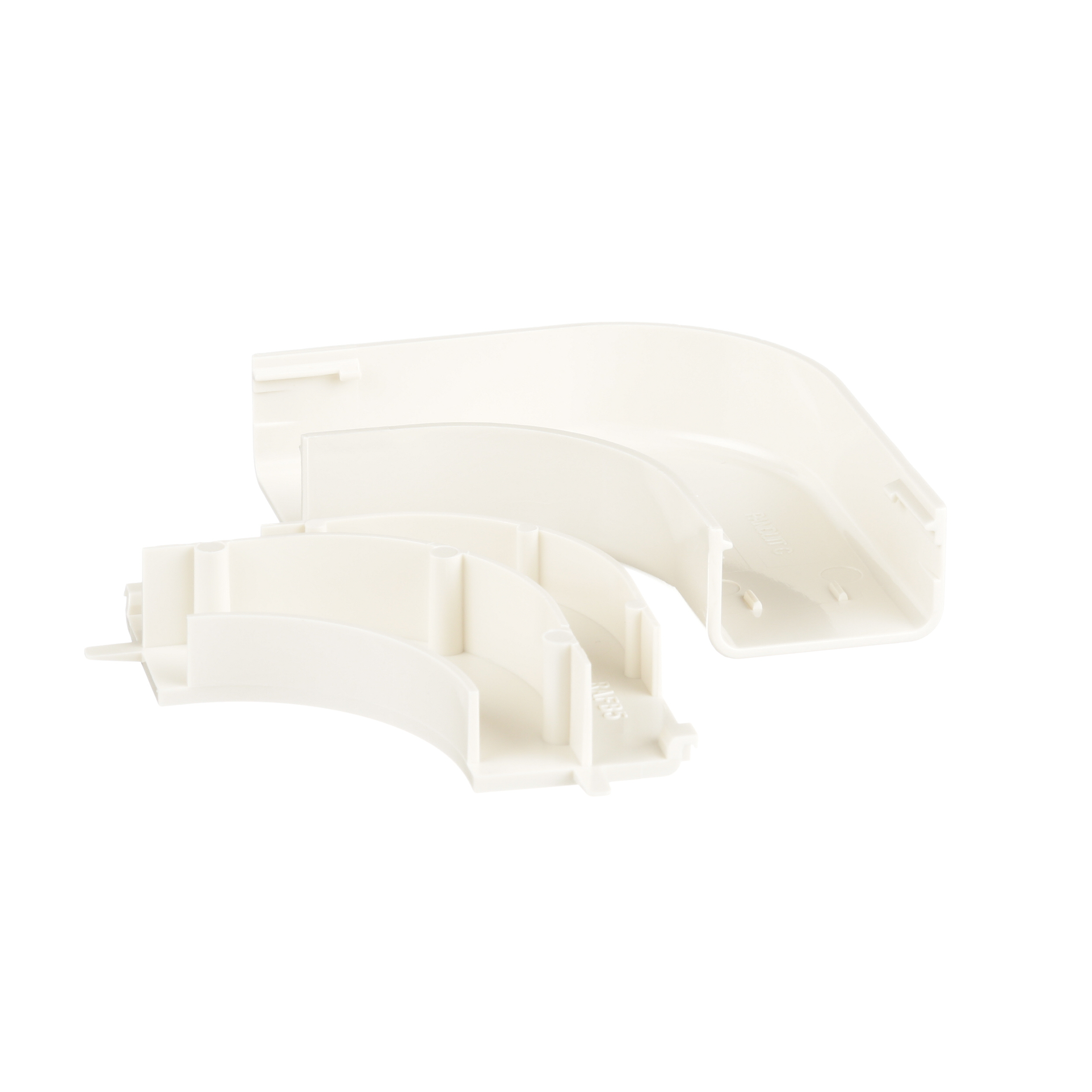

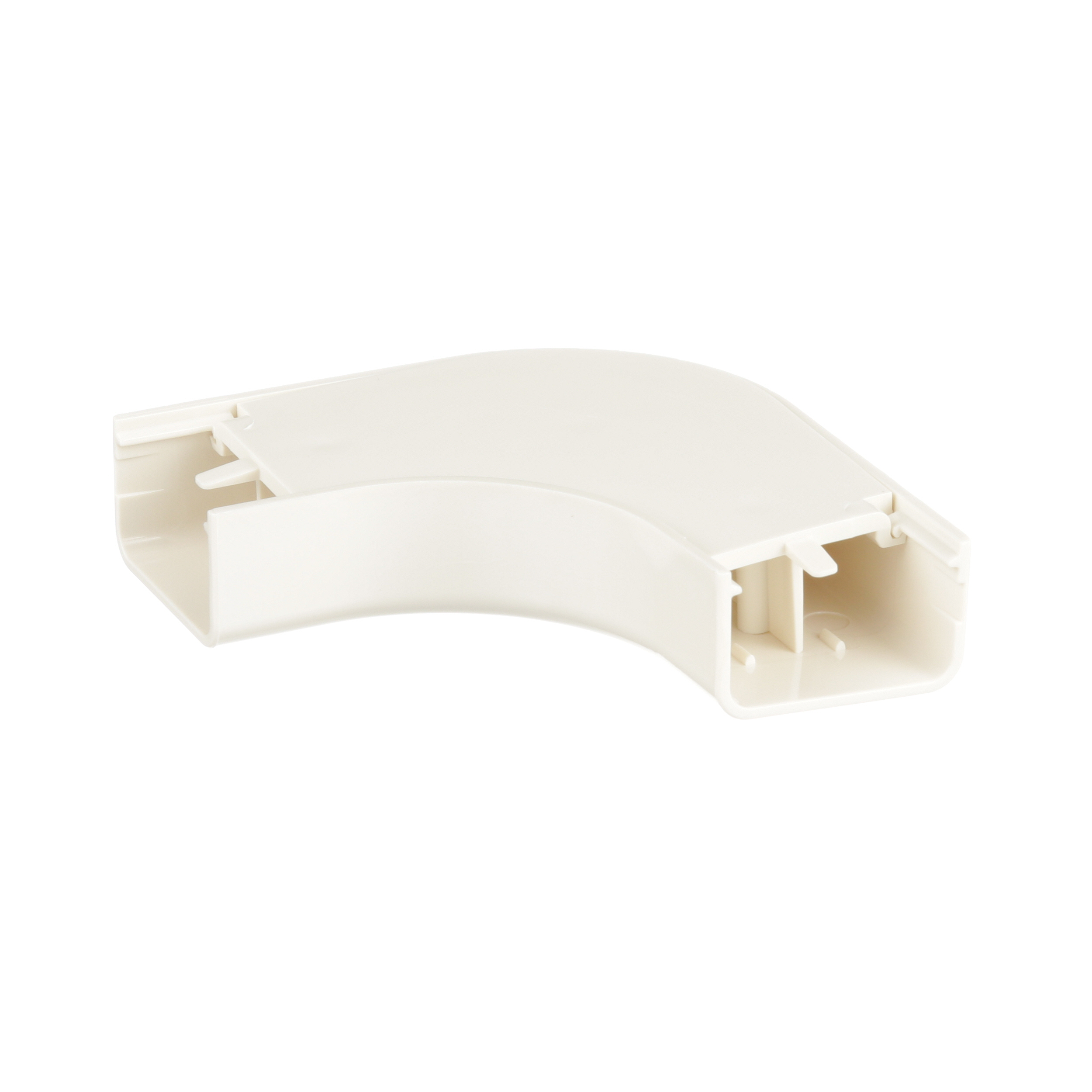

Fitting 90° ABS for LDPH5 & LDS5 raceway off-white

Manufacturer: Panduit | Catalog # RAFX5IW-X | Electrozad South Part # 3720
$5.59 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
Right angle fitting for use with LDPH5 and LDS5 raceway.

Technical Information

Applications
Pan-Way ® LD2P10 Profile Raceway is a One-Piece Multi-Channel Channel Raceway Which Provides Solutions for Routing Both Power and Data Cabling Along Perimeter Walls. Ld2P10 Profile Raceway is Available With Multi-Channel Fittings.
Cover Type
Right Angle
Material
ABS
Mounting Type
Snap-On
Type
4-Inlet, 1-Outlet, Rectangular, Power/Communication

Packaging

Package Qty
10

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Way

General Product Info

12-Digit UPC
074983529872
Color
Off-White
GTIN
30074983529873
Product UPC
07498352987
UNSPSC
39131711
Used With
LD5 Surface Raceway System

Dimensions

Depth
16.1 mm
Height
0.64 in
Length
65.4 mm
Overall Length
2.58 in
Width
65.4 mm

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Costa Rica
