30A Flush Mount Outlet/Receptacle

Manufacturer: Leviton Manufacturing | Catalog # 5207-S10 | Electrozad South Part # 372070
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL

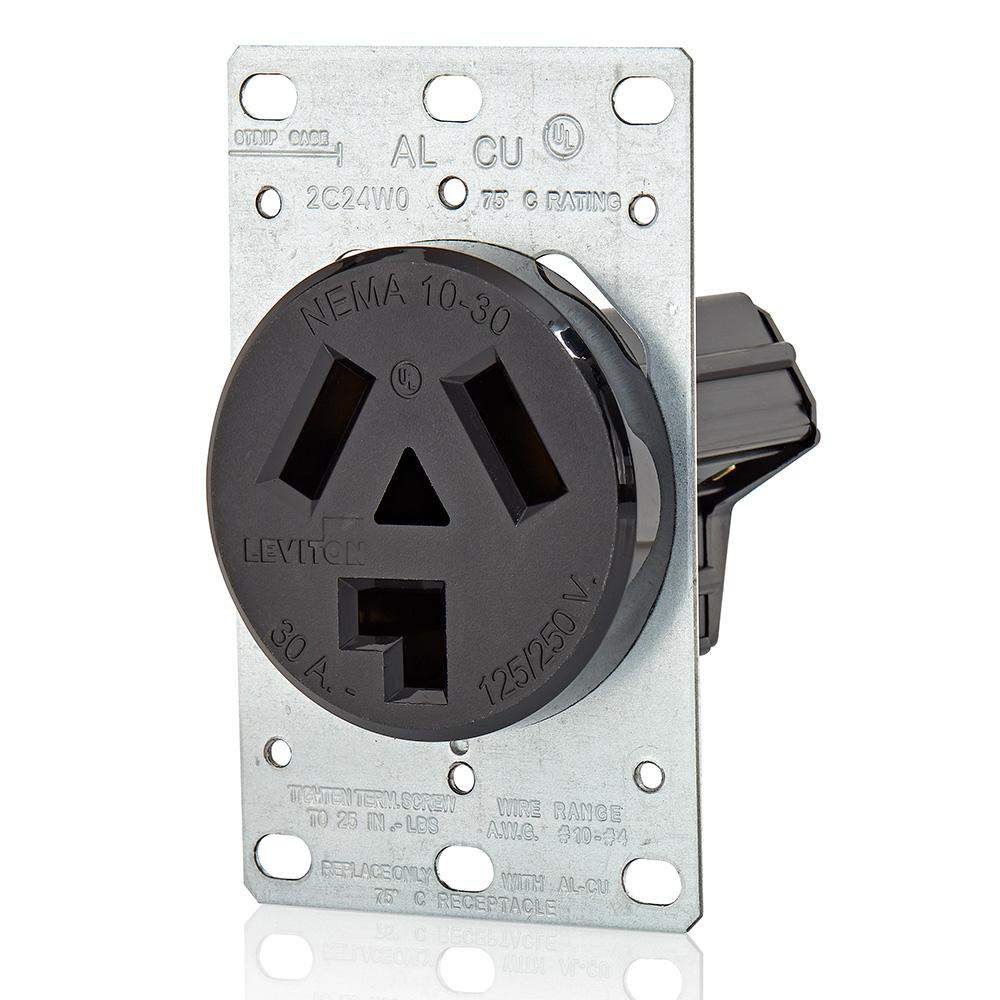

30 Amp, 125/250 Volt, NEMA 10-30R, 3P, 3W, Flush Mtg Receptacle, Straight Blade, Industrial Grade, Non-grounding, Side Wired, Steel Strap ... Black

Technical Information

Amperage
30 A
Applications
For Industrial Use
Conductor Size
4 AWG
Connection Type
Side Wired
Contact Material
Double-Wipe Brass
Device Type
Single Receptacle
Dielectric Strength
2000 V
Grade
Industrial
Grounding
Non-Grounding
Material
Thermoplastic, Galvanized Steel
Mounting Type
Flush
NEMA
10-30R
Number of Poles
3
Number of Wires
3
Standard
UL
Temperature Rating
-40 degrees C to 60 degrees C
Termination Type
Side Wire
Torque
25 lb-in
Type
Receptacle

Manufacturer Information

Brand
Leviton
Sub Brand
RESIDENTIAL RECEPTACLES

General Product Info

12-Digit UPC
078477905753
Color
Black
Environmental Conditions
UL 94-V2 Flammability
GTIN
00078477905753
Product UPC
07847790575

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
