Through floor fitting dual channel w/junction box

Manufacturer: Hubbell Wiring Devices | Catalog # S1PTFITJ | Electrozad South Part # 373041
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL

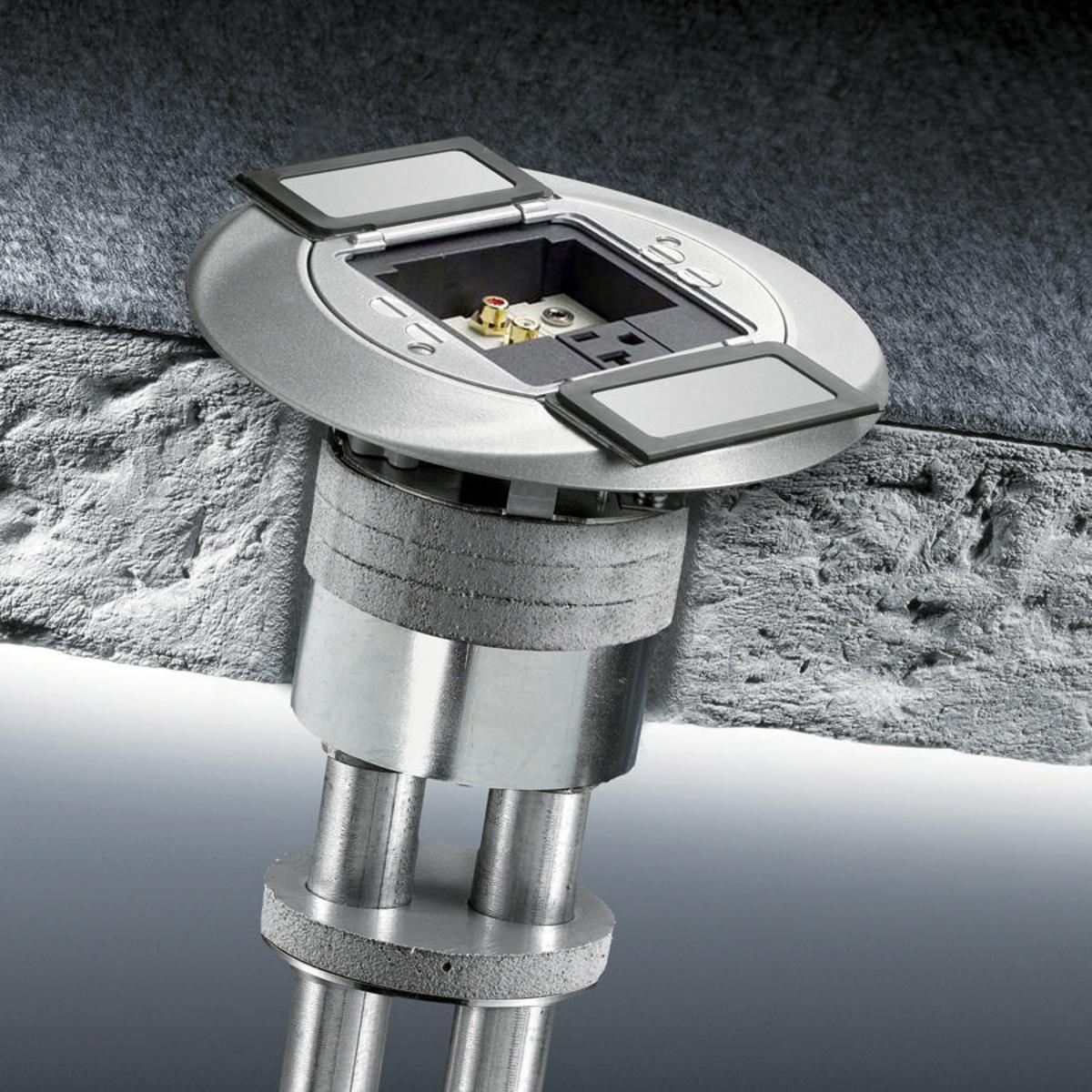

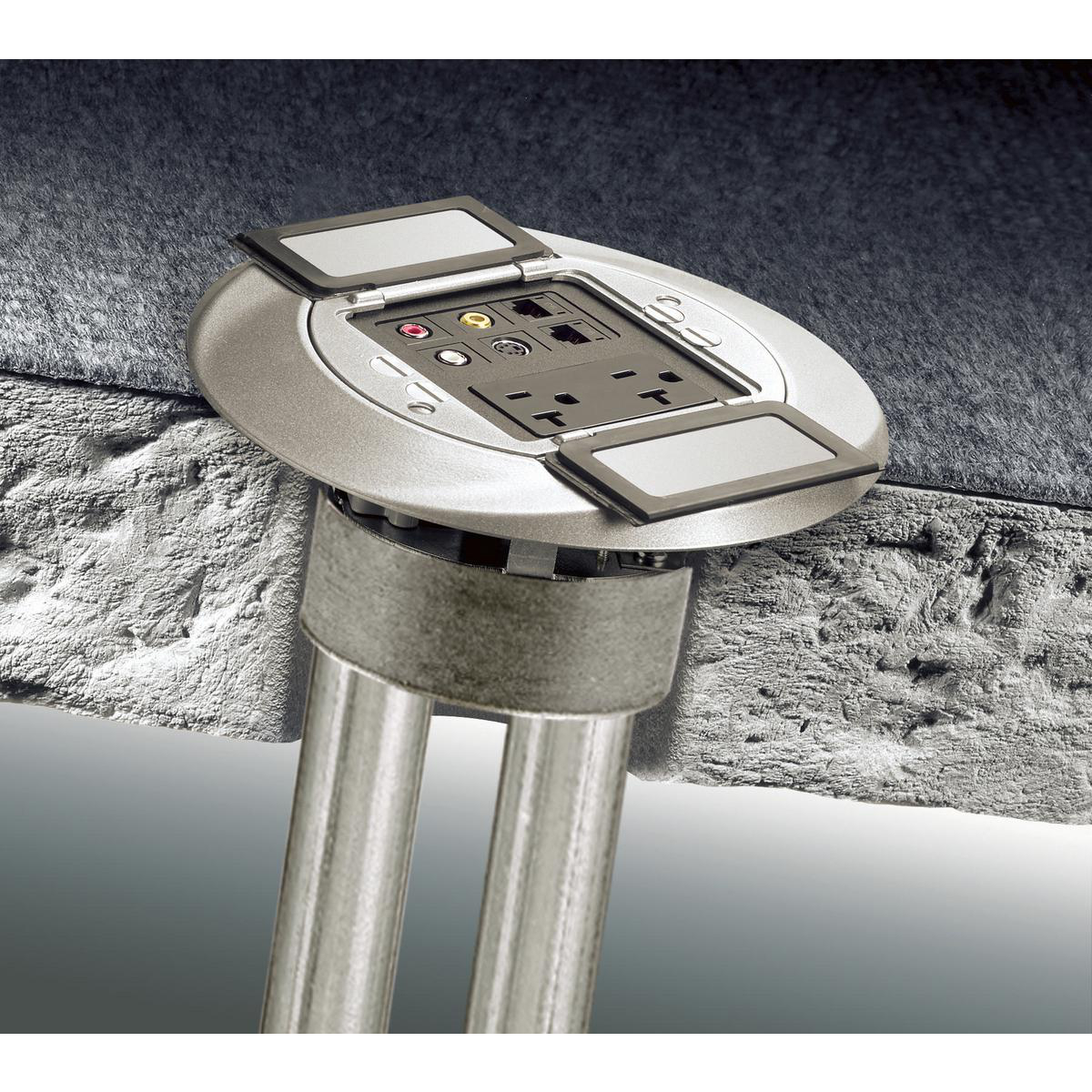

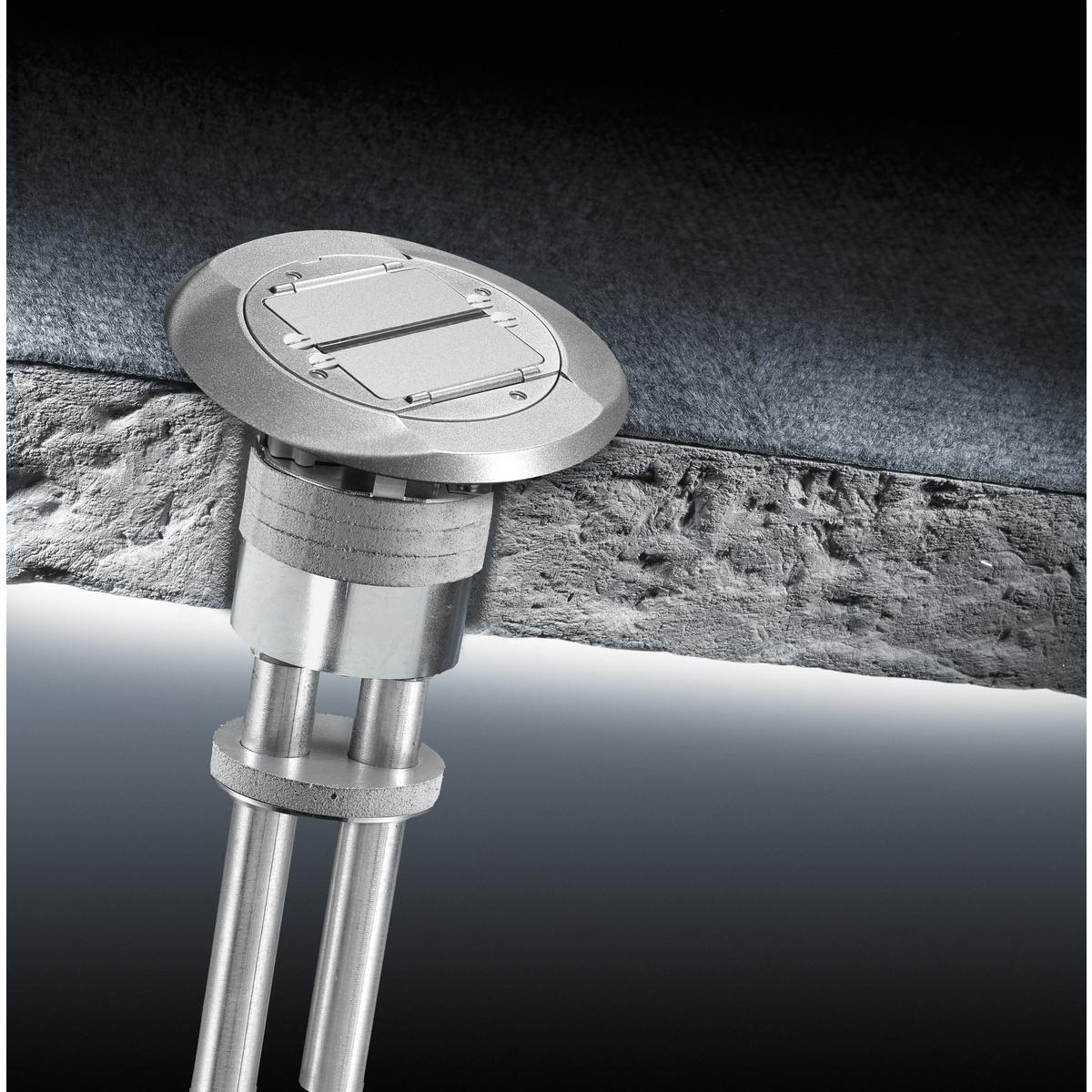

Through floor fitting with two 1 in. EMT conduit stems to feed power and/or communication services. For use with Hubbell SystemOne universal covers and all Hubbell sub-plates except S1SP4X4 and S1SPTL series. Universal cover and sub-plate ordered separately. 4-hour fire classification.

Technical Information

Applications
Through Floor Fitting
Cable Entry
Through Cover
Material
Composite
Mounting Type
4 in Core Hole in Concrete Floor
Size
Standard Sized Product
Standard
CULus
Style
FRPT Furniture Feed Fittings
Type
Fabricated, Dual-Channel

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
SystemOne

General Product Info

12-Digit UPC
783585373010
Color
Metallic
Construction
Fabricated
GTIN
00783585373010
Product UPC
78358537301

Dimensions

Height
9 in
Length
24.000 in
Width
9.4 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Includes Junction Box
  • (1) 1\" EMT for Power
  • 4\" Fire-Rated Poke-Through
  • For use with Universal Flange/Cover Assemblies and Subplates
  • (1) 1\" EMT Stem for Low Voltage
