PANDUIT CCH50-S10-C CLAMP CABLE .50" 12.7MM BUNDLE #10S FIXED DIAM WHITE

Manufacturer: Panduit | Catalog # CCH50-S10-C | Electrozad South Part # 37329
$47.59 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Product Brochure

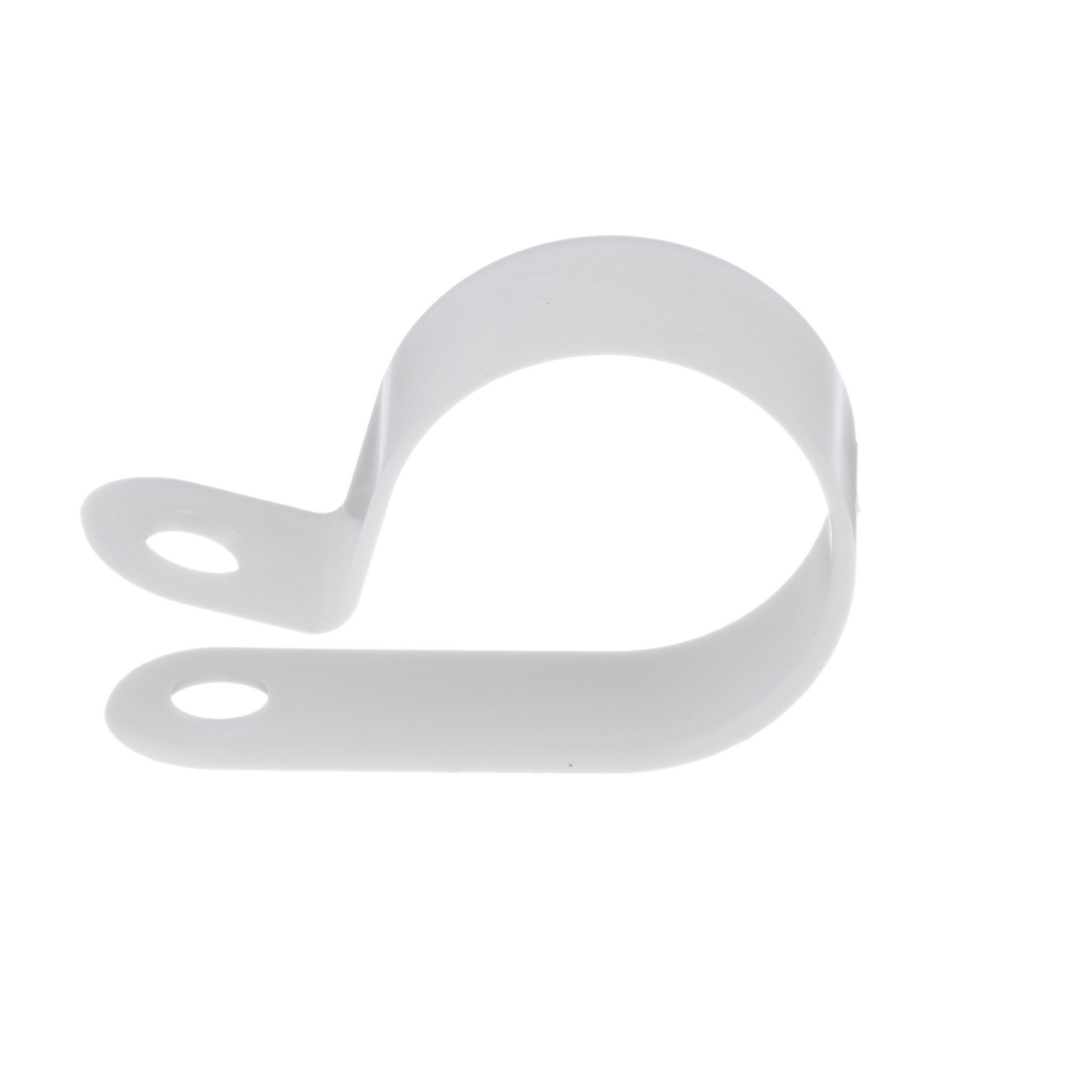

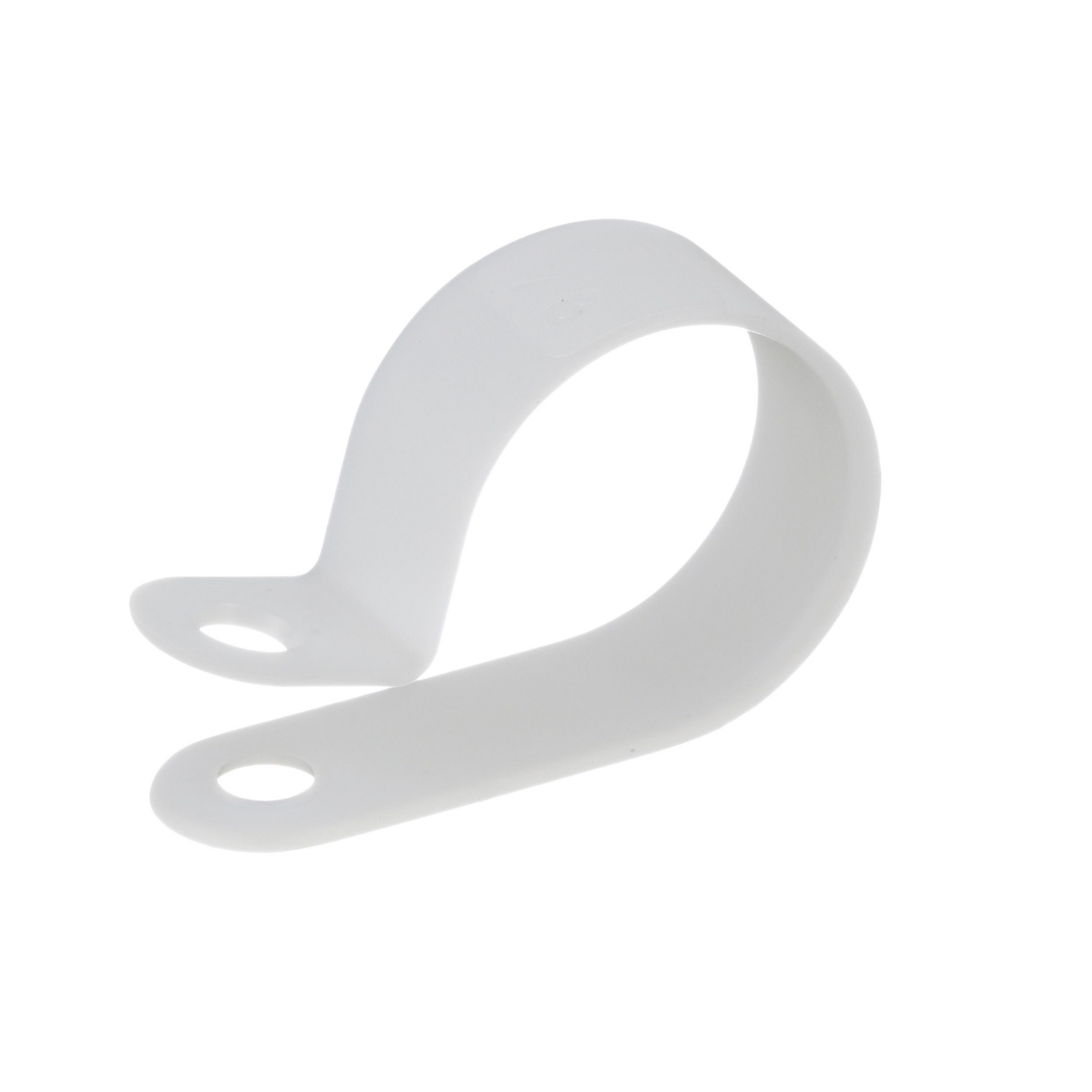

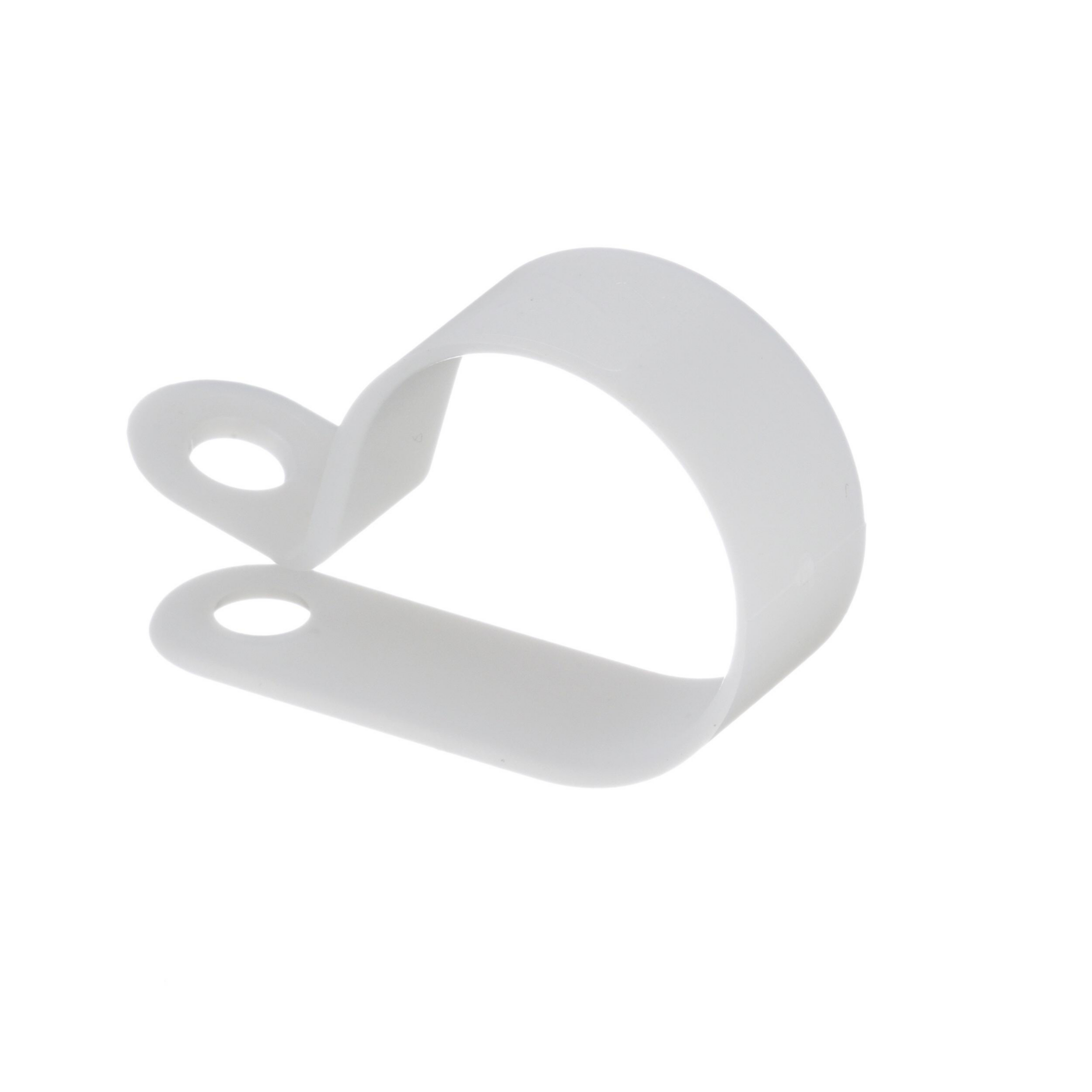

Fixed diameter cable clamp. Nylon material. Natural colour. No.10 screw. 0.5 inch bundle diameter. Standard package. Fully radiused edges.

Technical Information

Applications
Indoor
Cable Size
12.7 mm
Cable Type
Cable Clamp
Material
Nylon 6/6
Max Operating Temperature
185 degrees F
Minimum Operating Temperature
-60 degrees C
Mounting Type
Screw-On
Standard
CSA,E2186,UL
Type
Fixed Diameter, Double Shape, Heavy Duty

Packaging

Package Qty
100

Manufacturer Information

Brand
Panduit

General Product Info

12-Digit UPC
074983600113
Color
Natural
Environment
Indoor
Finish
Natural Anodized Tube
GTIN
00074983600113
Product UPC
07498360011
UNSPSC
39121702

Dimensions

Height
0.6 in
Overall Length
22.65 mm
Width
12.7 mm

Certifications & Compliance

Country of Origin
USA
