Disco-Grip™ DPF14-250FIB-C Disconnect, Blue, Premium Nylon, 14-16 AWG, 0.25"

Manufacturer: Panduit | Catalog # DPF14-250FIB-C | Electrozad South Part # 37462
$153.61 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL

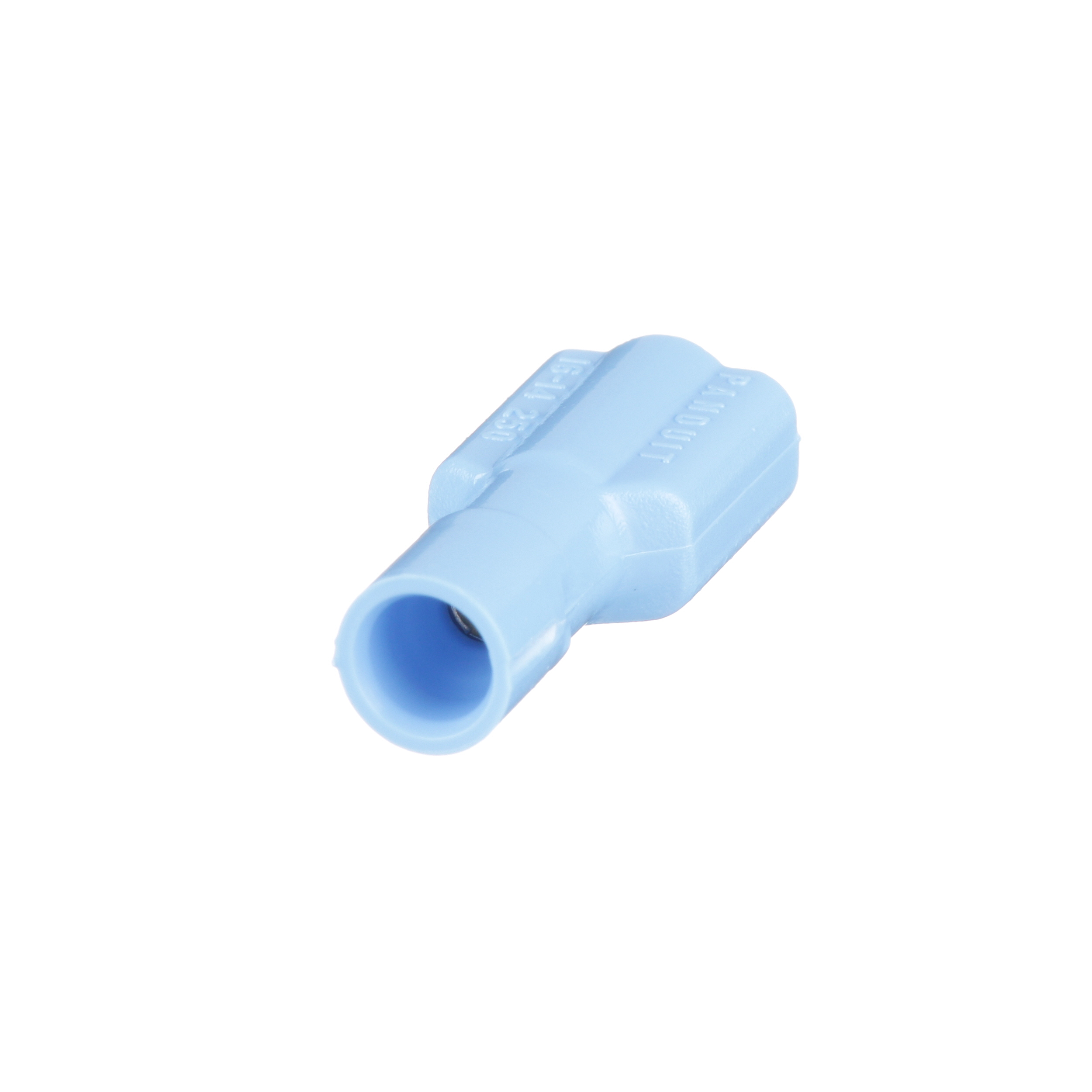

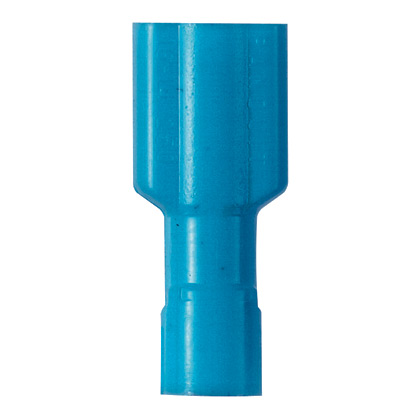

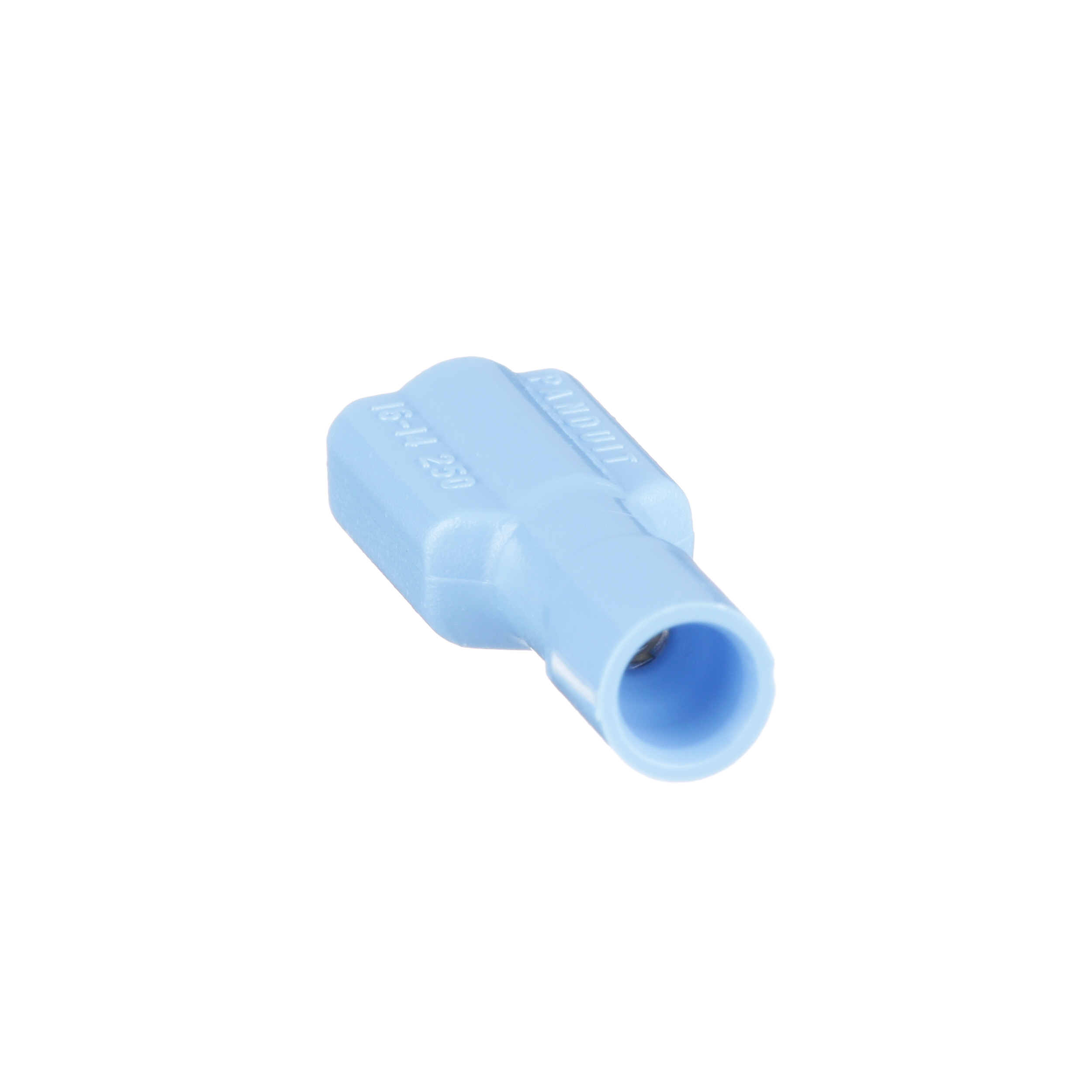

The vibration resistant DiscoGrip™ female disconnect is made of brass and is tin-plated. It is fully insulated in blue premium nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm..). It is 0.84" (21.3 mm) long and 0.35" (8.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.

Technical Information

Barrel Type
Butted Seam
Material
Brass
Max Operating Temperature
105 degrees C
Standard
CSA,E2186,UL
TC Connection
Funnel
Temperature Rating
221 degrees F
Type
Disconnect
Wire Size
1.5 - 2.5 mm²

Packaging

Package Qty
100

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983203888
Color
Blue
Finish
Rust-Proof Plating, Vinyl Coated
GTIN
00074983203888
Product UPC
07498320388
UNSPSC
39121409

Dimensions

Height
0.22 in
Overall Length
0.84 in
Width
0.35 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
