LEVITON GUSB1-W GFCI COMBO USB CHARGER

Manufacturer: Leviton Manufacturing | Catalog # GUSB1-W | Electrozad South Part # 375072
*Call For Price*
Log in or register to view your price, purchase history, and more!
9 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet

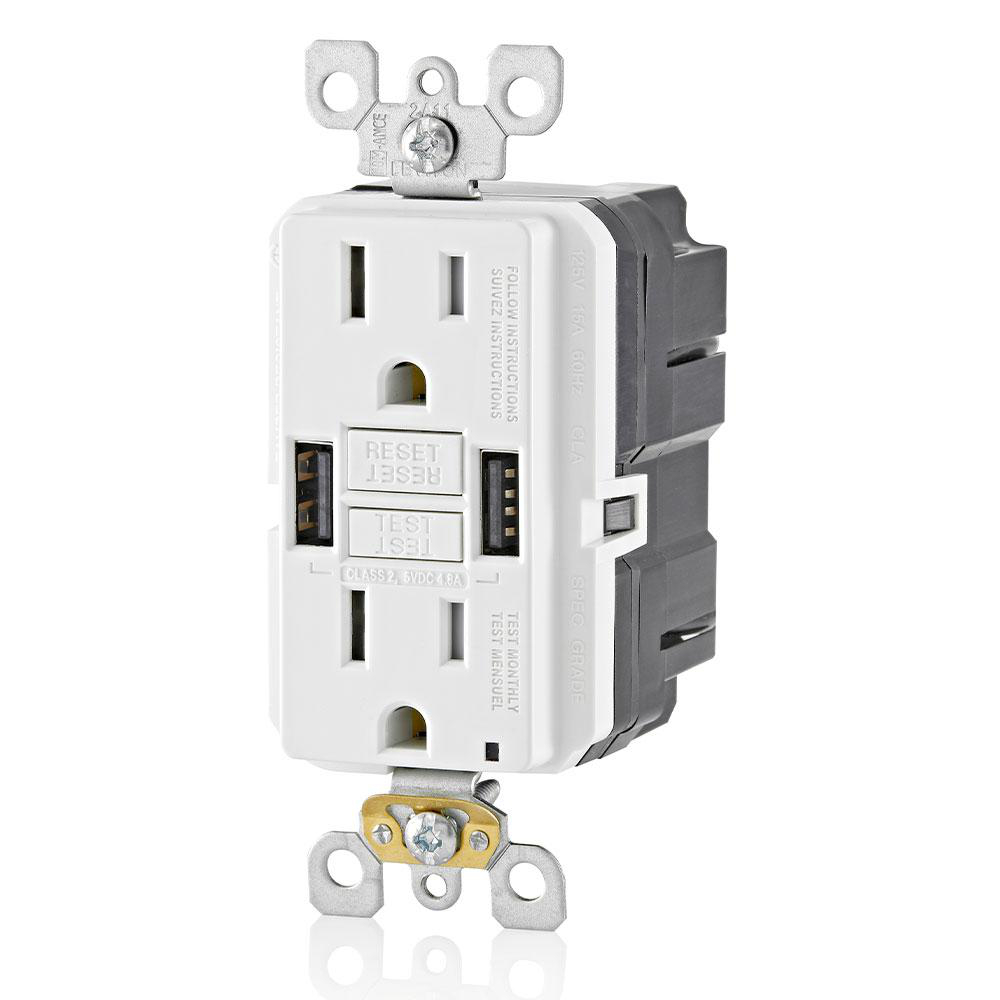

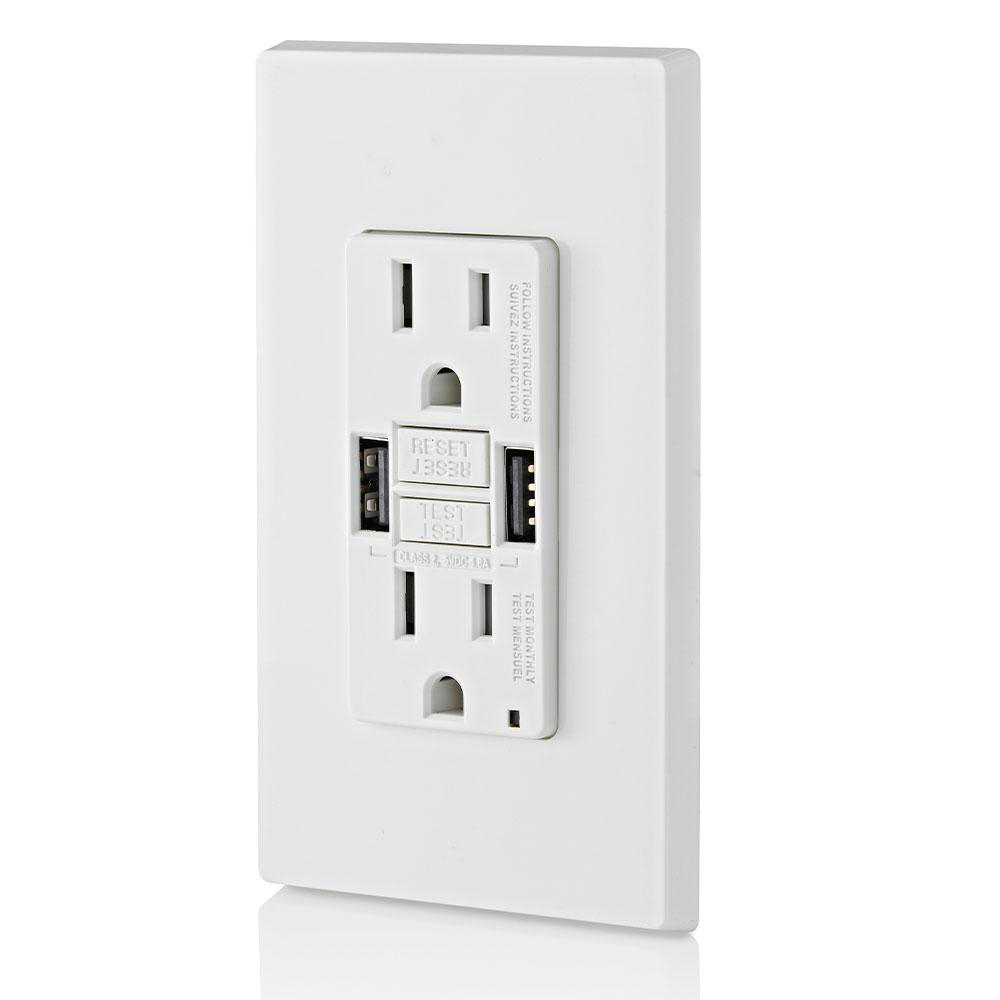

15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, SmartlockPro® Self-Test GFCI Combination Type A USB In-Wall Charger, Wire Leads, NEMA 5-15R, 24W (4.8 Amps), Dual Type-A/A USB Chargers, screws and self-grounding clip included - White

Technical Information

Amperage
15 A
Body Material
Thermoplastic
Conductor Size
12 AWG
Dielectric
1250 V
Face Material
Thermoplastic
Flamability Class
UL94, 5VA
Grade
Commercial,Residential
Grounding
Self-Grounding
Material
Thermoplastic/Galvanized Steel Strap
Mounting Type
Wall
NEMA
5-15R
Number of Poles
2
Number of Wires
5
Operating Temperature
-10 degrees C
Outlet Type
Tamper Resistant
Switch Type
Combination
Temperature Rating
-10 to 40 degrees C
Temperature Rise
150 %
Termination Type
Wire Leads
Torque
14 lb-in
Type
GFCI/USB Combo, Type A

Manufacturer Information

Brand
Leviton
Sub Brand
Smart-Lock Pro

General Product Info

12-Digit UPC
078477999967
Color
White
GTiN
00078477999967
Product UPC
07847799996

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
China
