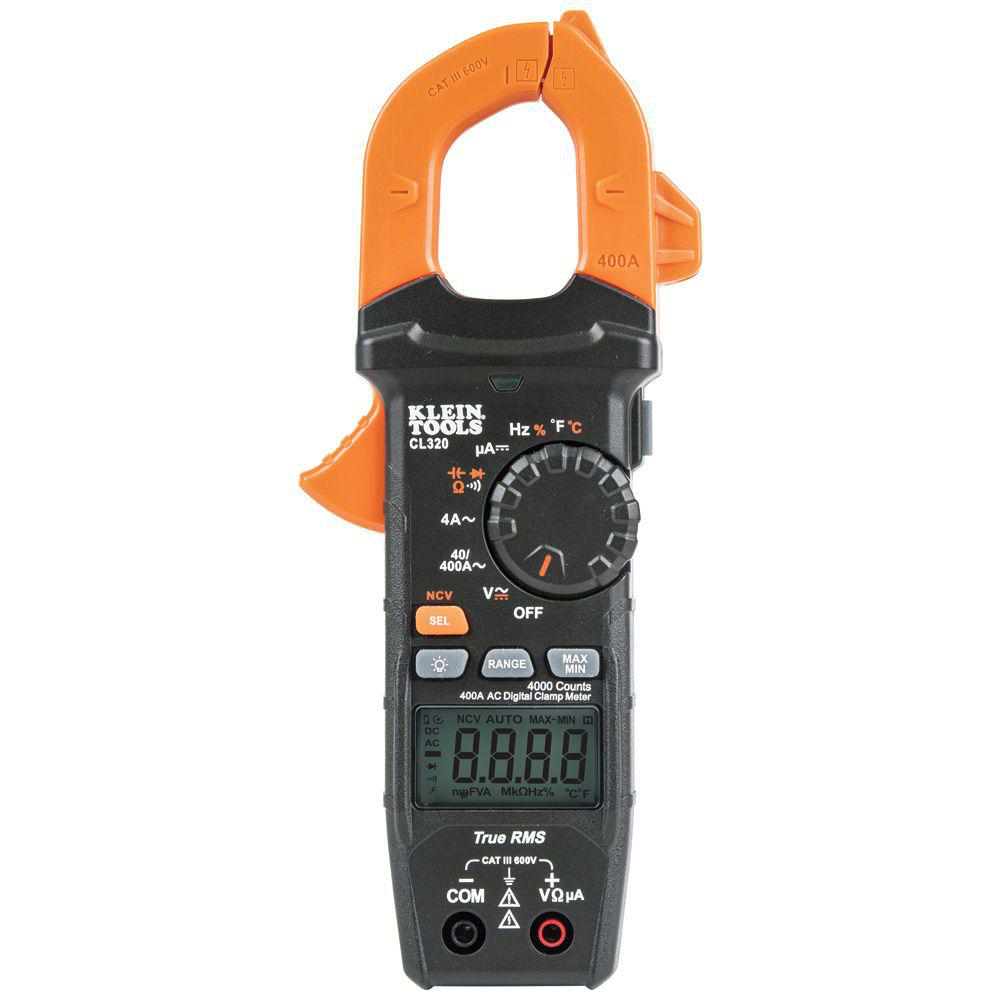

HVAC Digital Clamp Meter, AC Auto-Ranging 400 Amp

Manufacturer: Klein Tools | Catalog # CL320 | Electrozad South Part # 375232

$123.24 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Klein Tools CL320 Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter that measures AC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. Features include Auto Range to improve efficiency and speed when making measurements; Diode Test to troubleshoot malfunctioning diodes; Max/Min to understand the variability from average of an electrical property being measured, and DC Microamps measurements when working with flame sensors.

Technical Information

Applications
Measures AC Current and NCVT via Clamp and AC/DC Voltage, Resistance, Frequency, DC Micro-Amp, Capacitance, Duty Cycle, Diode Test, and Continuity via Test Leads, and Temperature with Thermocouple
Battery Type
(3) AAA
Current
400 A
Display Type
LCD
Frequency
10 Hz
Jaw Capacity
1.61 in
Material
ABS,Electronic Components
Resistance
40 m
Type
TRMS
Voltage
600 V

Manufacturer Information

Brand
Klein Tools

General Product Info

12-Digit UPC
092644692864
GTIN
00092644692864
Product UPC
09264469286
Weight
11 oz

Dimensions

Depth
8.450 in
Height
1.5 in
Length
8.45 in
Overall Length
8.45 in
Width
3.5 in

Certifications & Compliance

Country of Origin
China
Overview
  • Auto-Range, Data Hold, and Max/Min value
  • Clamp Meter measures AC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
