KLEIN NCVT-5A NON-CONTACT VOLTAGE TESTER PEN DUAL RANGE WITH POINTER

Manufacturer: Klein Tools | Catalog # NCVT-5A | Electrozad South Part # 376183
$39.06 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet

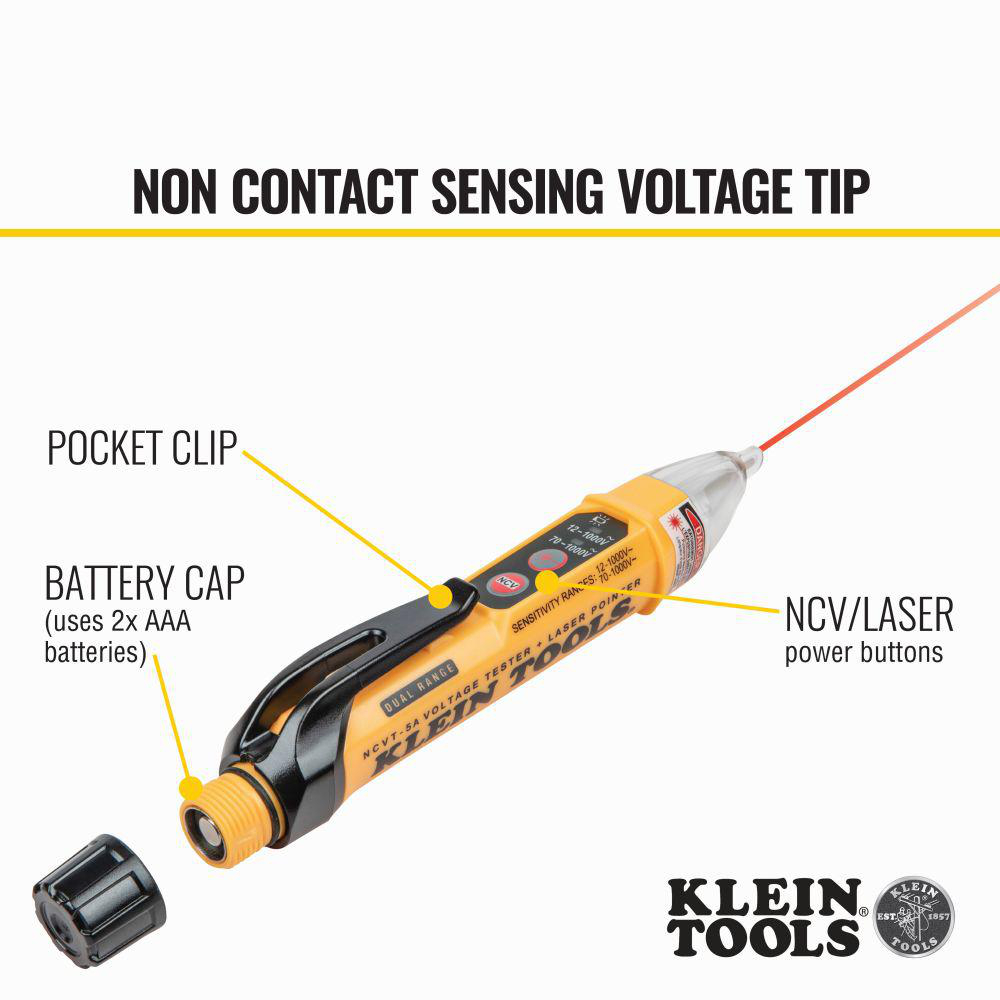

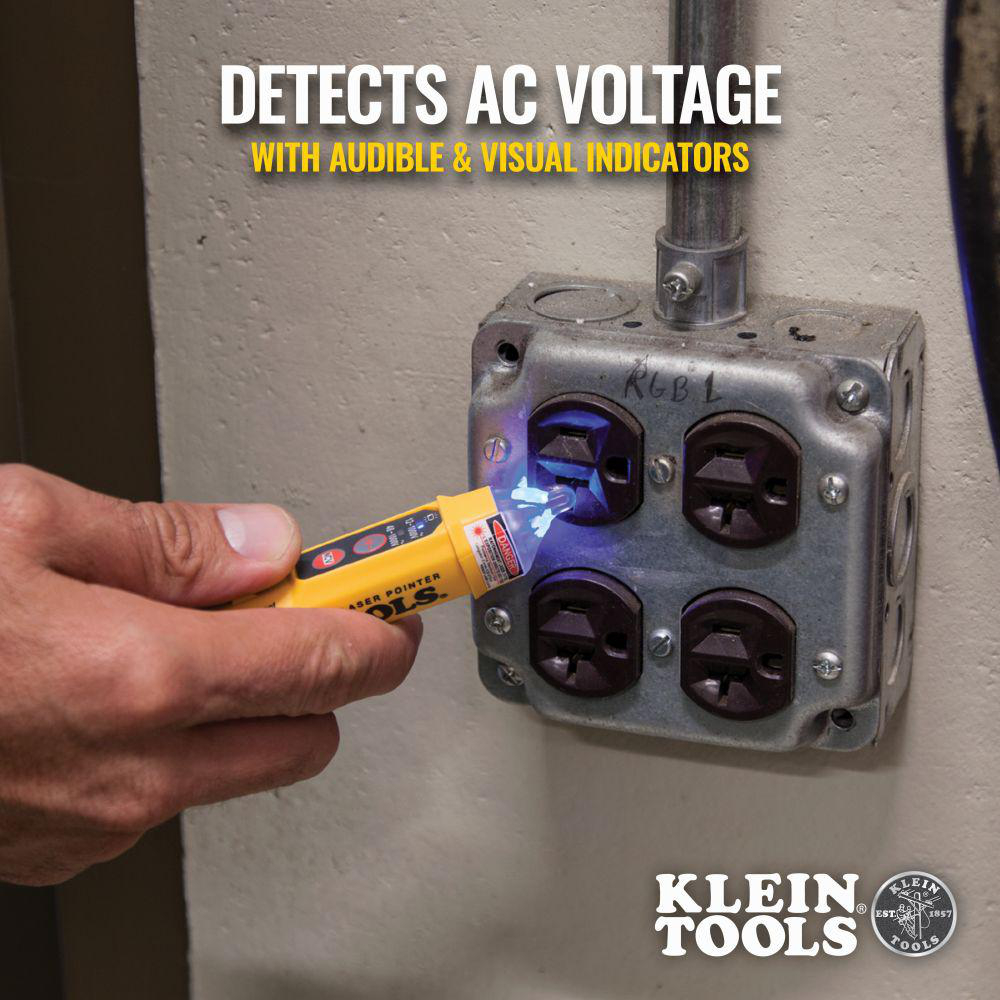

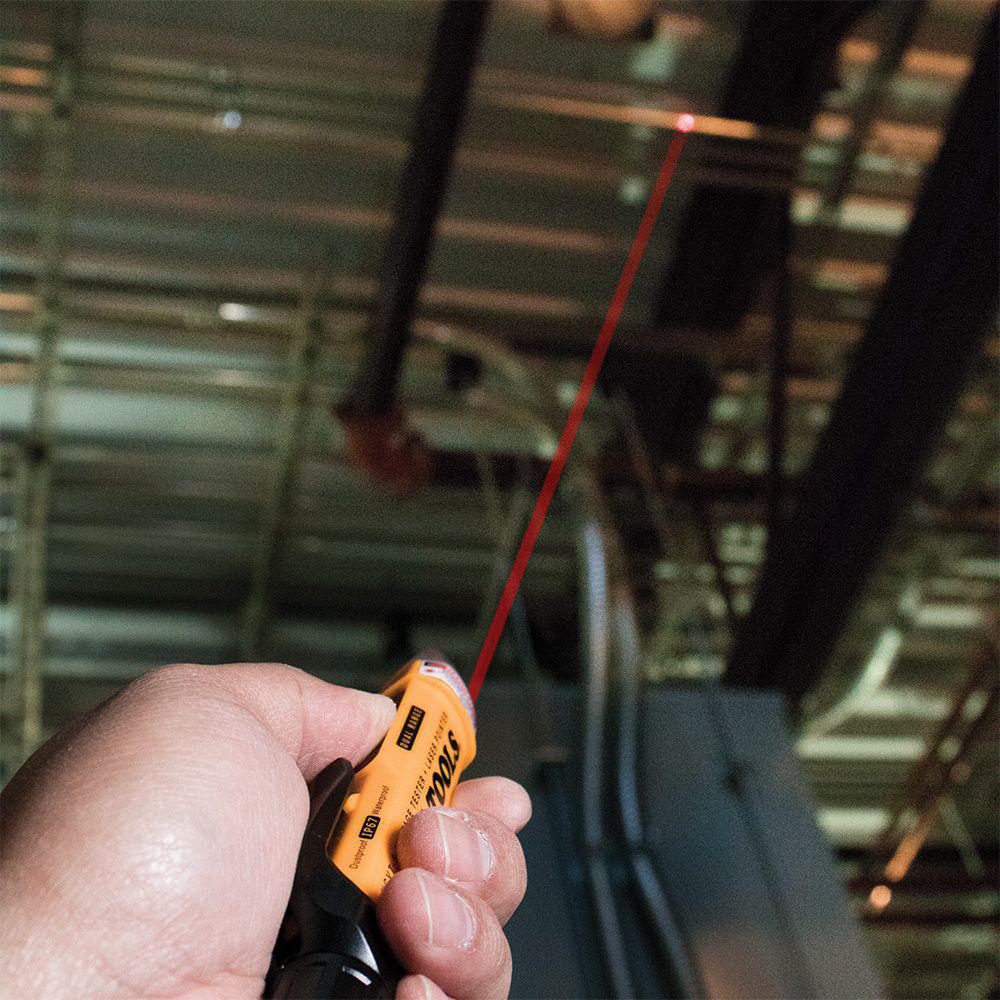

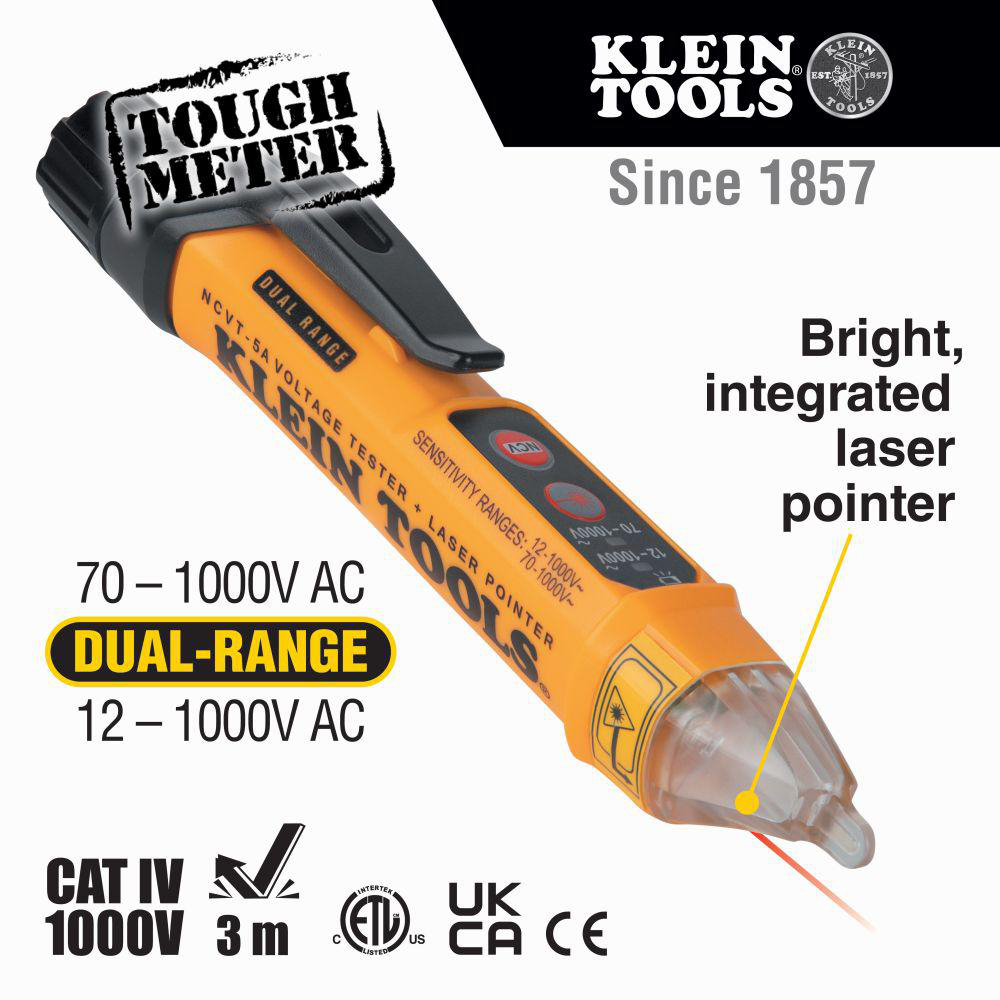

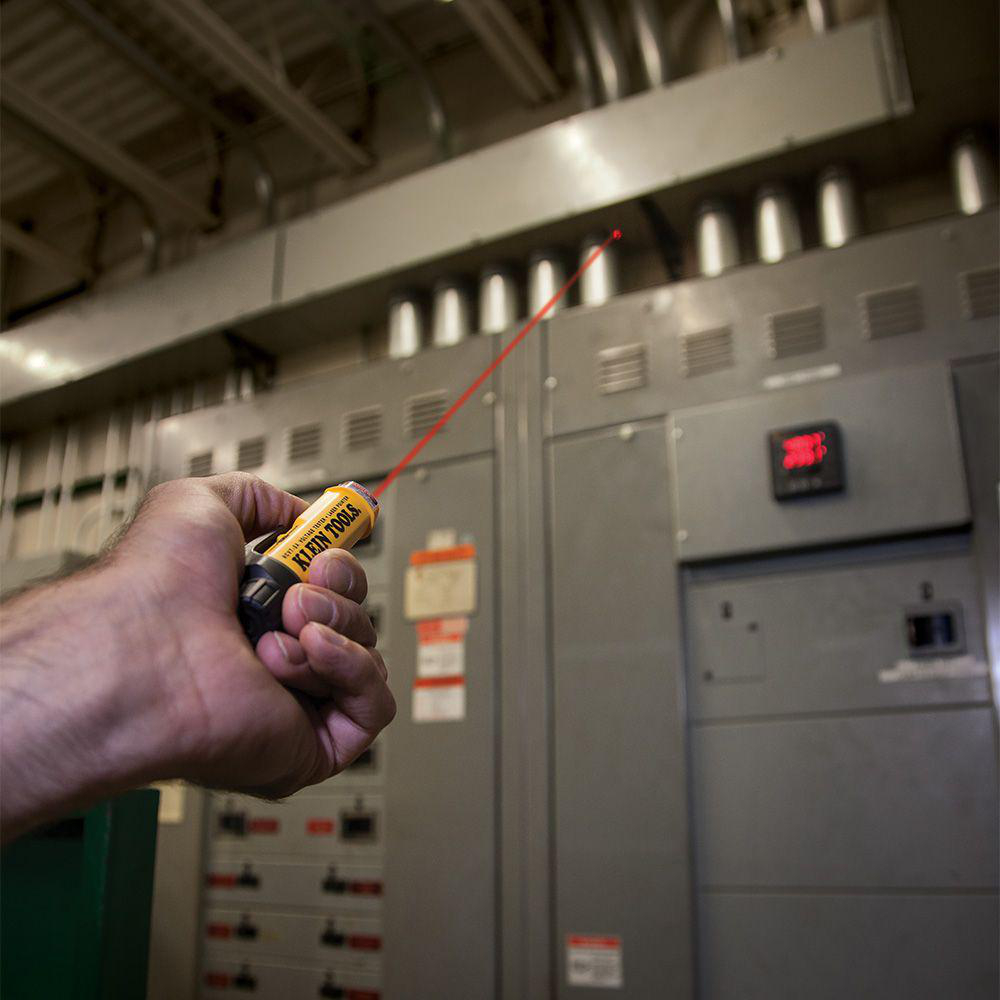

The Klein Tools NCVT-5A is a dual-range non-contact voltage tester (NCVT) with integrated laser pointer. The tester can be set to detect voltage from 70 to 1000V AC (Mode 1) or from 12 to 1000V AC (Mode 2). High pitched audible alerts beep at greater frequency as higher voltage is sensed, or proximity to the voltage source gets closer. The laser pointer can function independent of or simultaneously with the NCVT. CAT IV 1000V safety rating.

Technical Information

Applications
Dual-Range Non-Contact Detection of the Presence of AC Voltage from 12 - 1000 VAC or From 70 - 1000 VAC
Battery Life
25 hr
Battery Type
2 X AAA
Frequency
500 Hz
Material
Plastic
Number of Rows
3
Power Supply
Battery
Type
Non-Contact, Dual Range
Voltage
1000 V

Manufacturer Information

Brand
Klein Tools

General Product Info

12-Digit UPC
092644692949
Environmental Conditions
2° Pollution
GTIN
00092644692949
Product UPC
09264469294
Weight
0.093 lb

Dimensions

Depth
6.000 in
Diameter
1.16 in
Height
1.16 in
Length
6 in
Overall Length
6 in
Width
0.96 in

Certifications & Compliance

Country of Origin
China
