LEVITON DOS05-1LZ WH/IV/LA OCC SENSOR 600WINC 300WLED

Manufacturer: Leviton Manufacturing | Catalog # DOS05-1LZ | Electrozad South Part # 376349
$26.68 /ea
ea
Log in or register to view your price, purchase history, and more!
7 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Installation / Instruction Manual

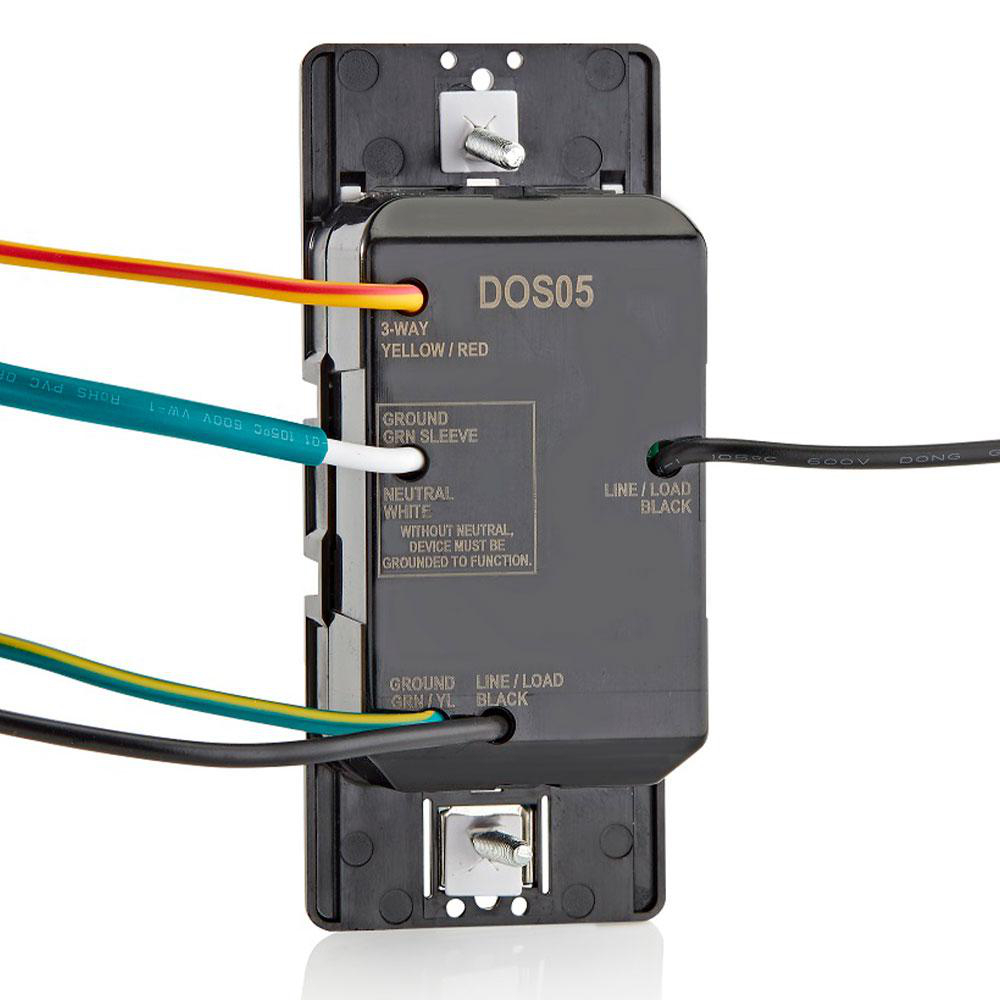

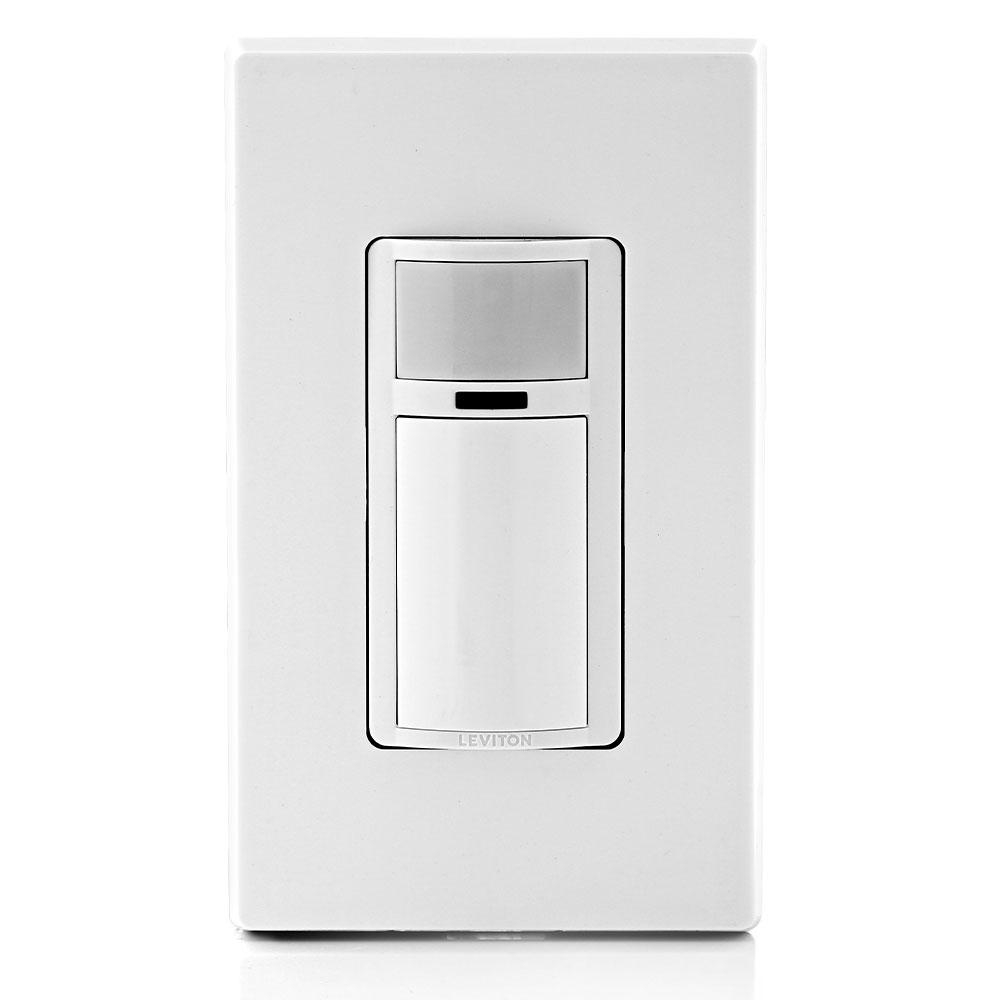

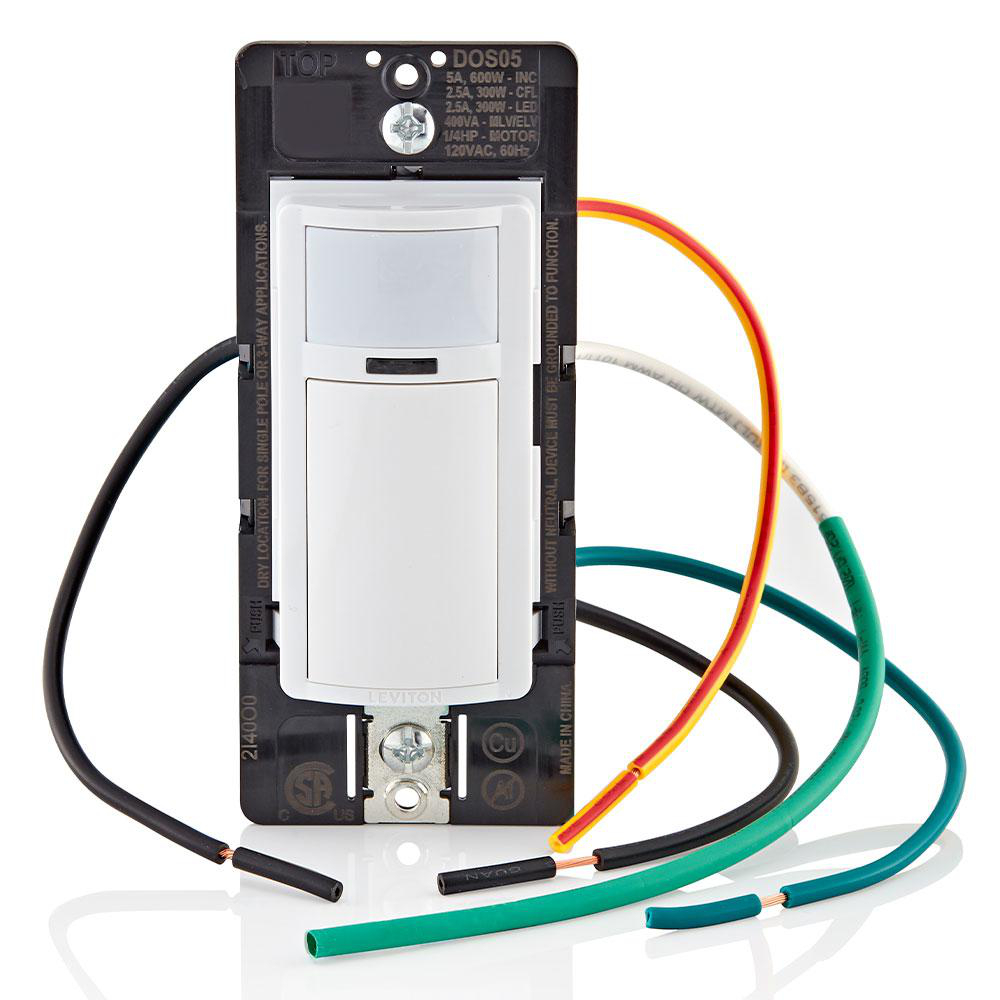

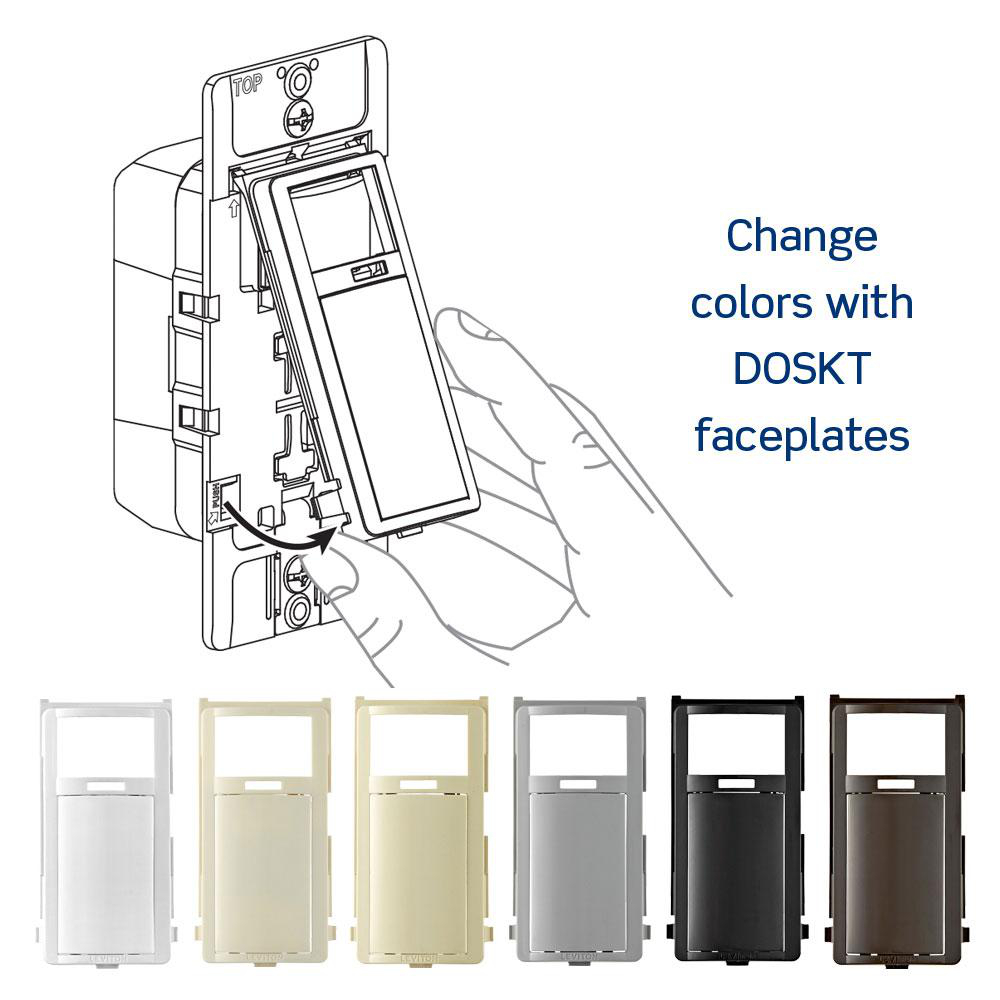

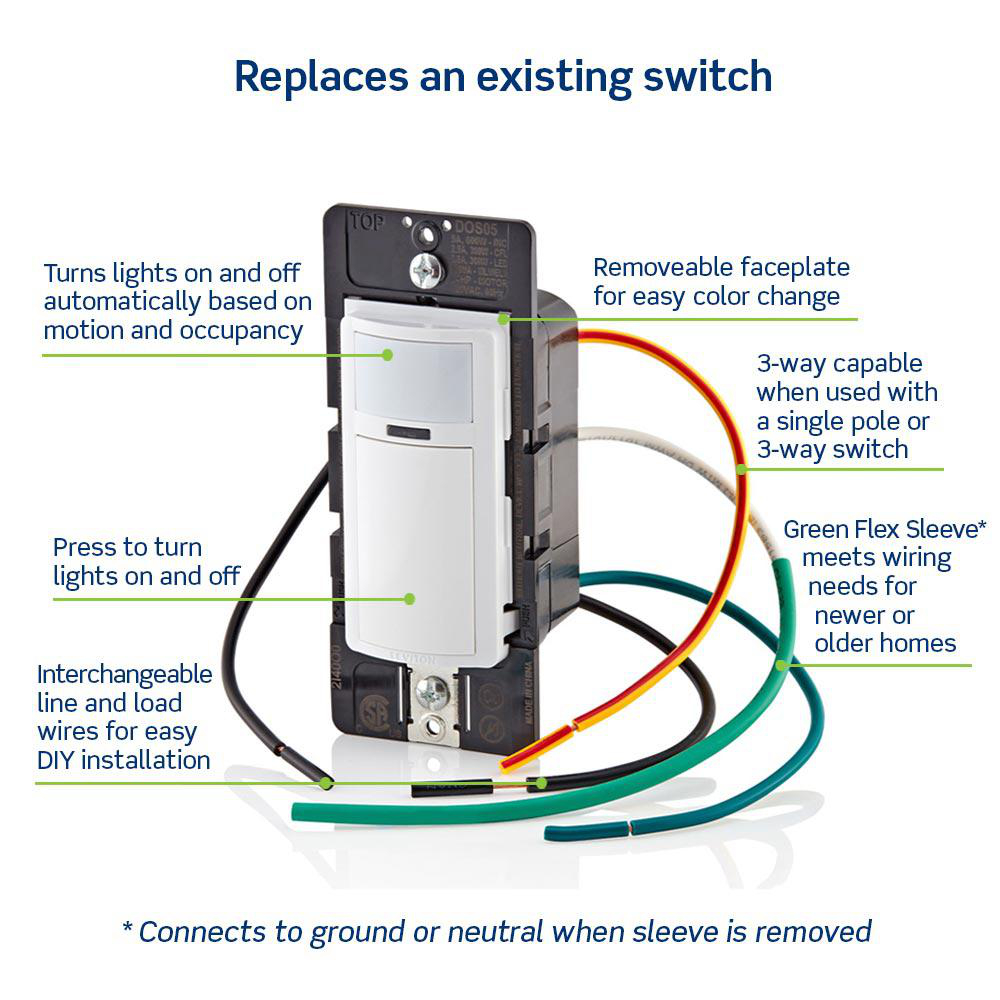

Decora Occupancy Motion Sensor Light Switch. 180.. PIR automatic-on wallbox sensor, single pole or 3-way when used with a single pole or 3-way switch, 300W LED/CFL, 600W Incandescent/Halogen, 400VA Magnetic Low Voltage, 400VA Electronic Low Voltage, .. HP Motor, 5A Resistive, wallplate sold separately. Can be used to comply with the California Title 24, Part 6, Automatic-off Controls and IECC ... White with ivory and light almond faceplates included

Technical Information

Applications
Ideal for Pantries, Closets, Laundry Rooms and Basements
Grade
Residential
LED Color
Green,Red
Lens Type
Green and Red LED
Mounting Type
Wall
Number of Poles
3
Response Time
1 min, 5 min, 10 min, 20 min
Sensor Type
Passive Infrared
Type
Auto-On/Off

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477572603
Color
White/Ivory/Light Almond
GTIN
00078477572603
Product UPC
07847757260

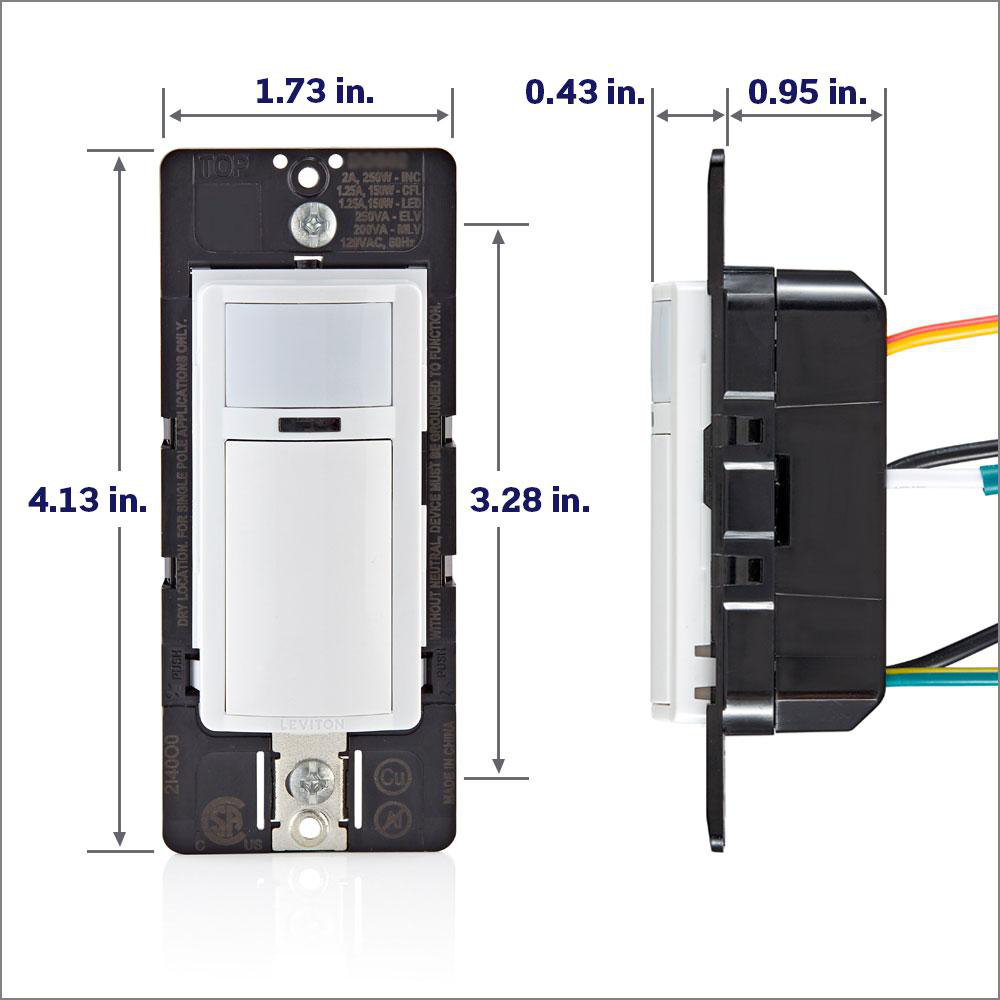

Dimensions

Warranty Length
5 yr

Certifications & Compliance

Country of Origin
China
