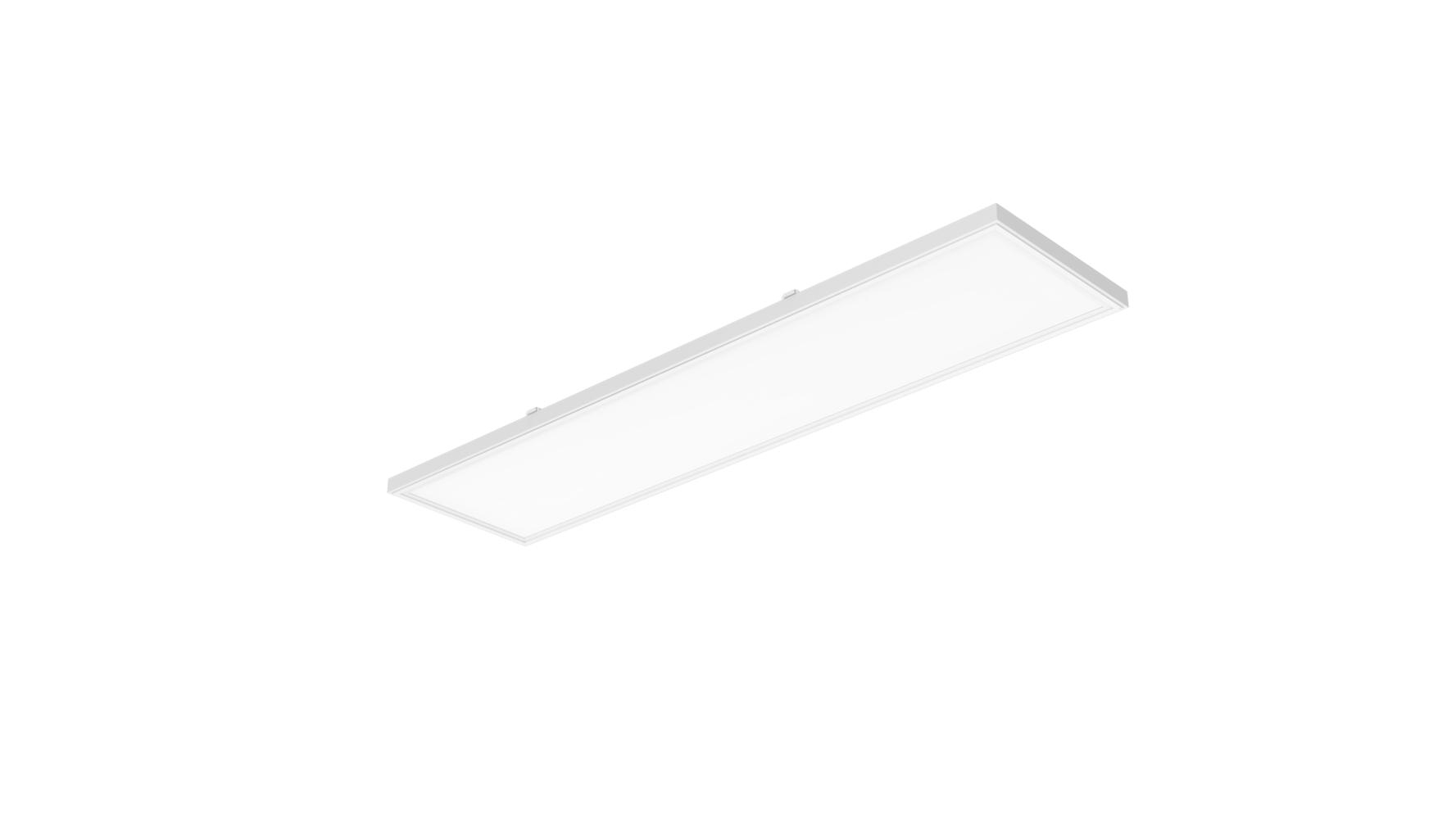

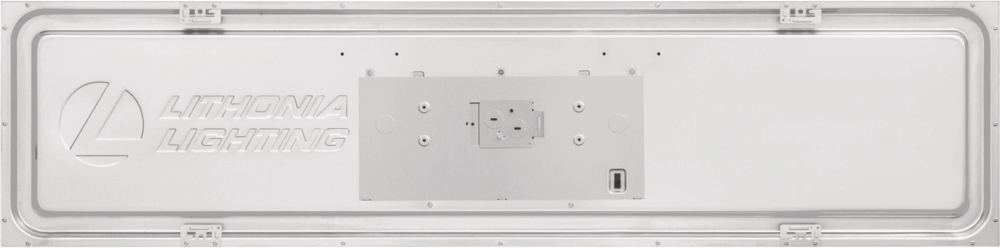

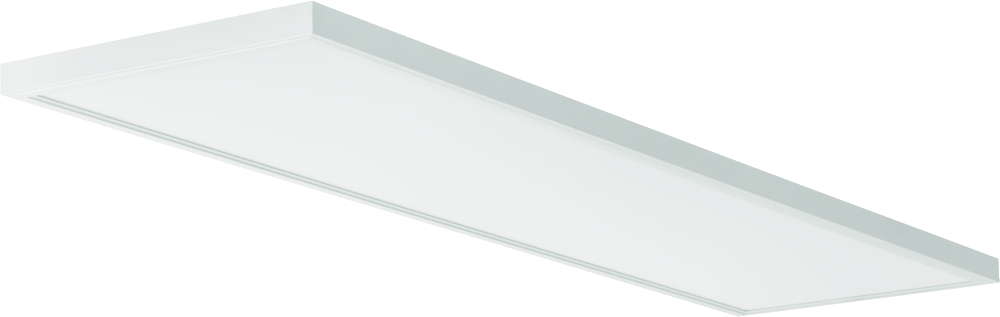

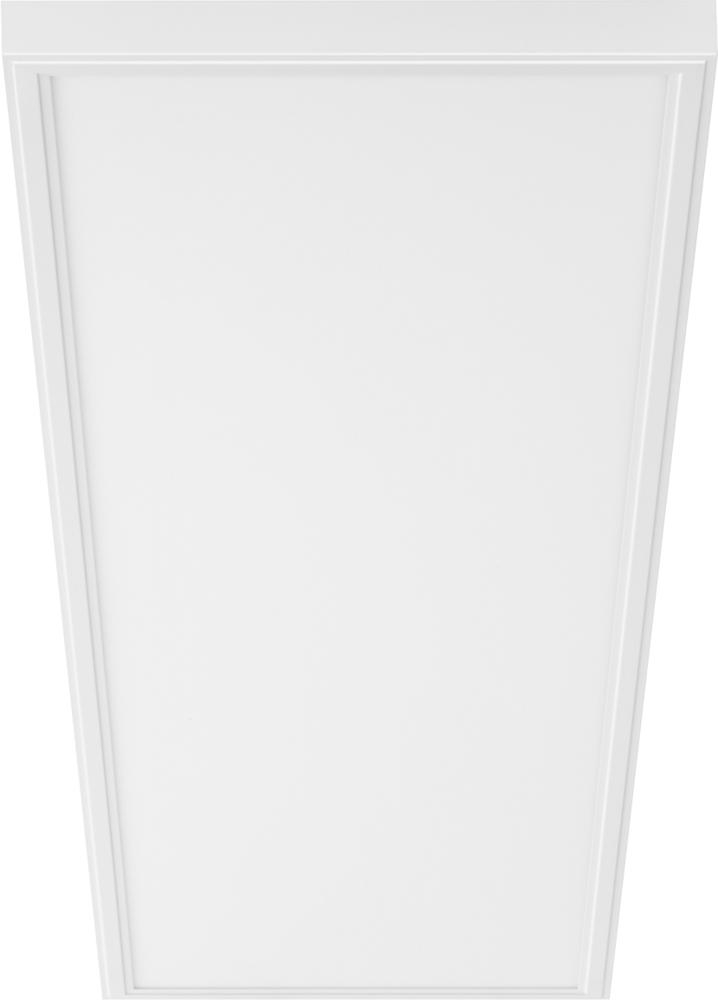

CPANL, 1FT X 4FT, SWITCHABLE LUMENS ... 24

Manufacturer: Lithonia Lighting | Catalog # CPANL 1X4 ALO1 SWW7 M4 | Electrozad South Part # 376447
$105.62 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Installation / Instruction Manual I INSTALL ASSEMBLY INSTRUCTIONS URL

Technical Information

Applications

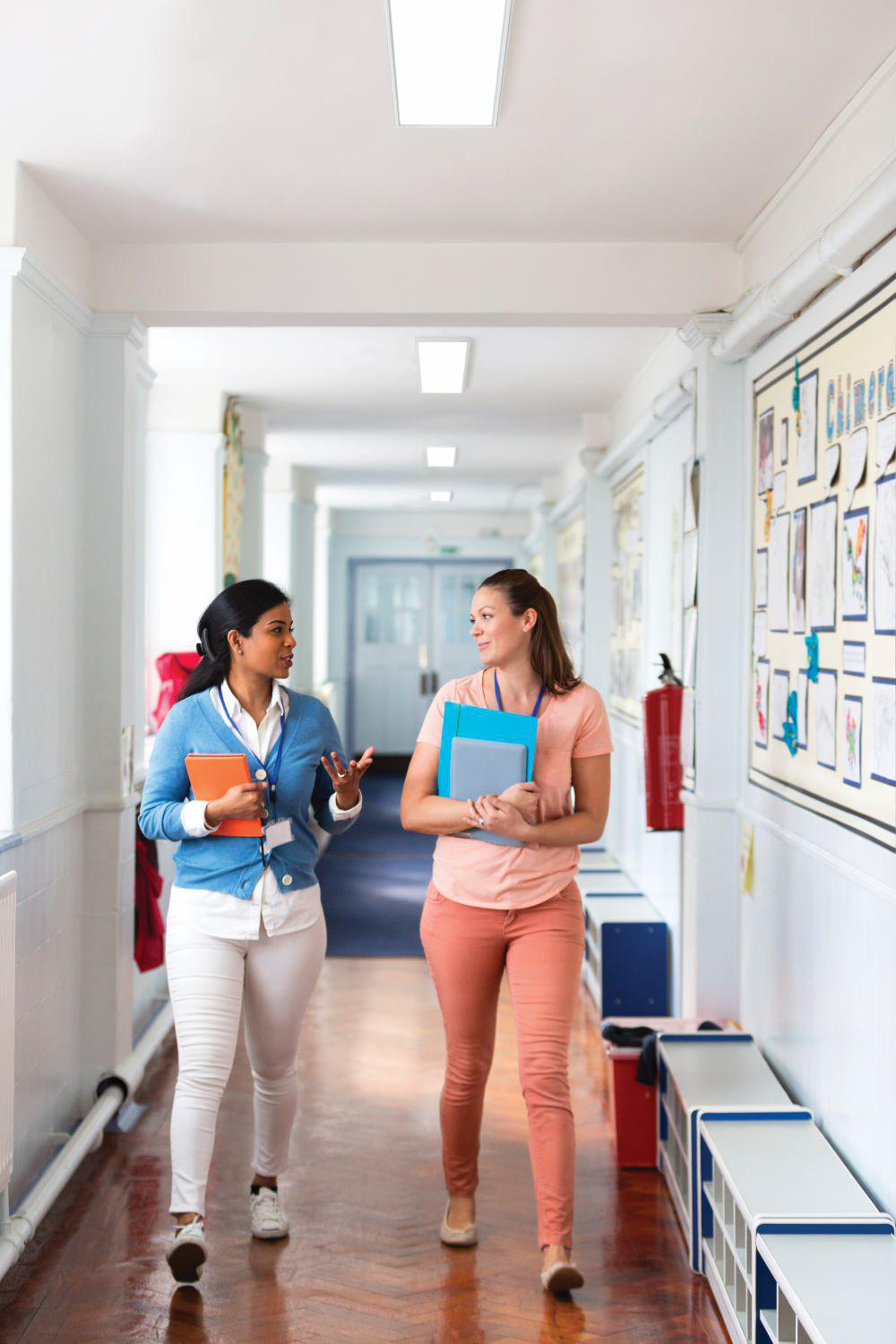

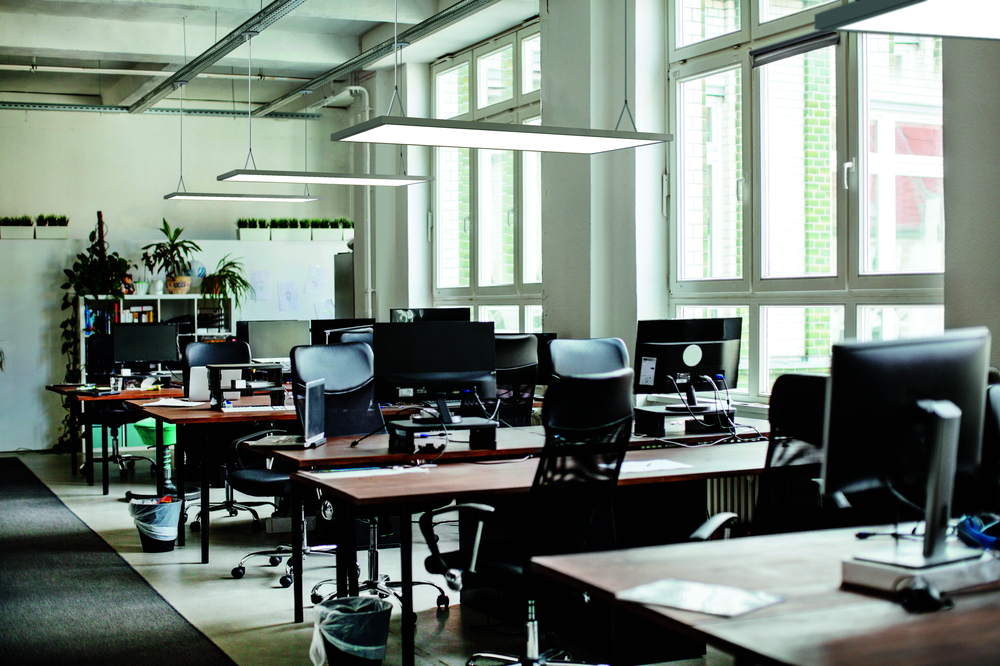

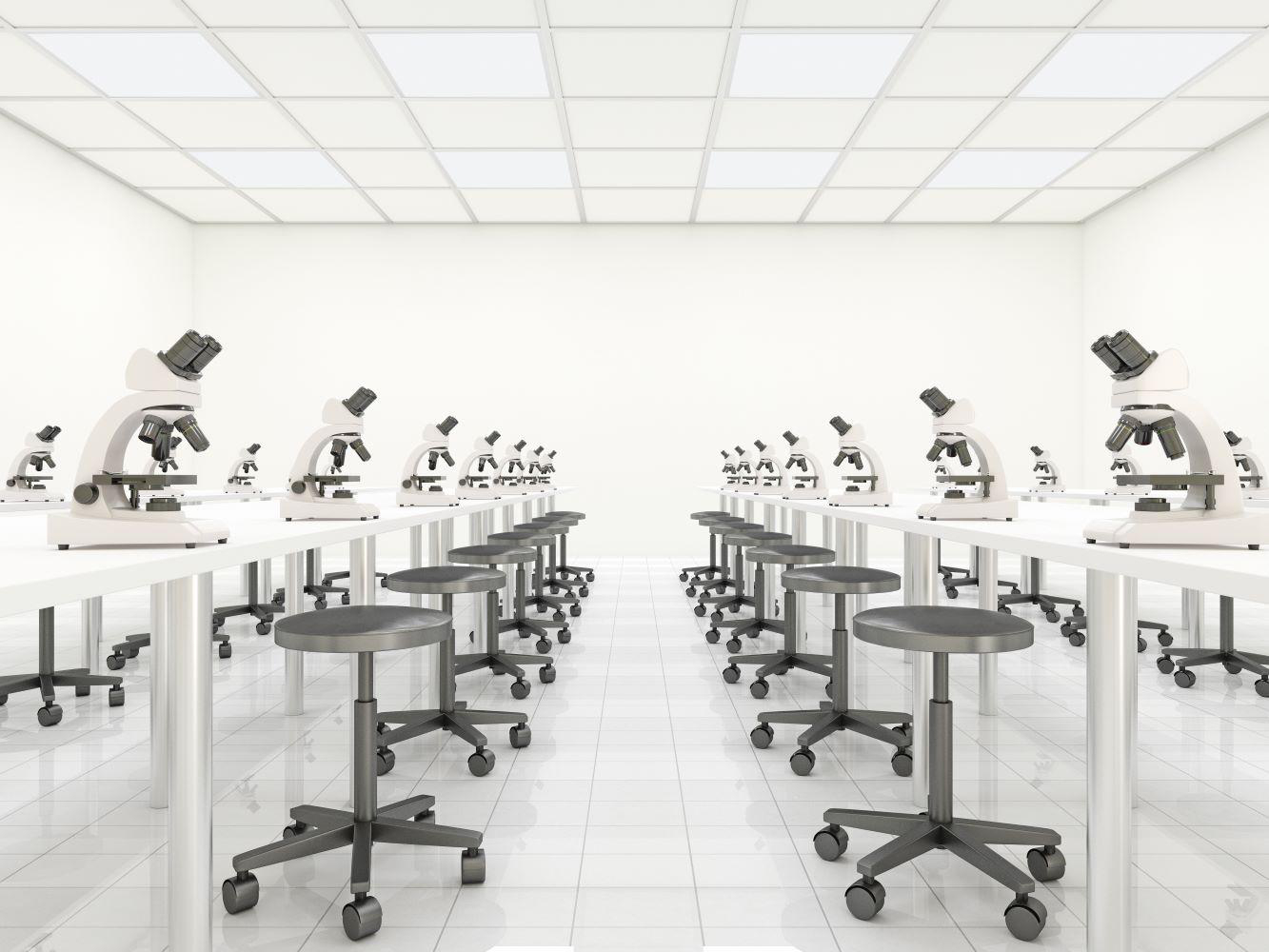

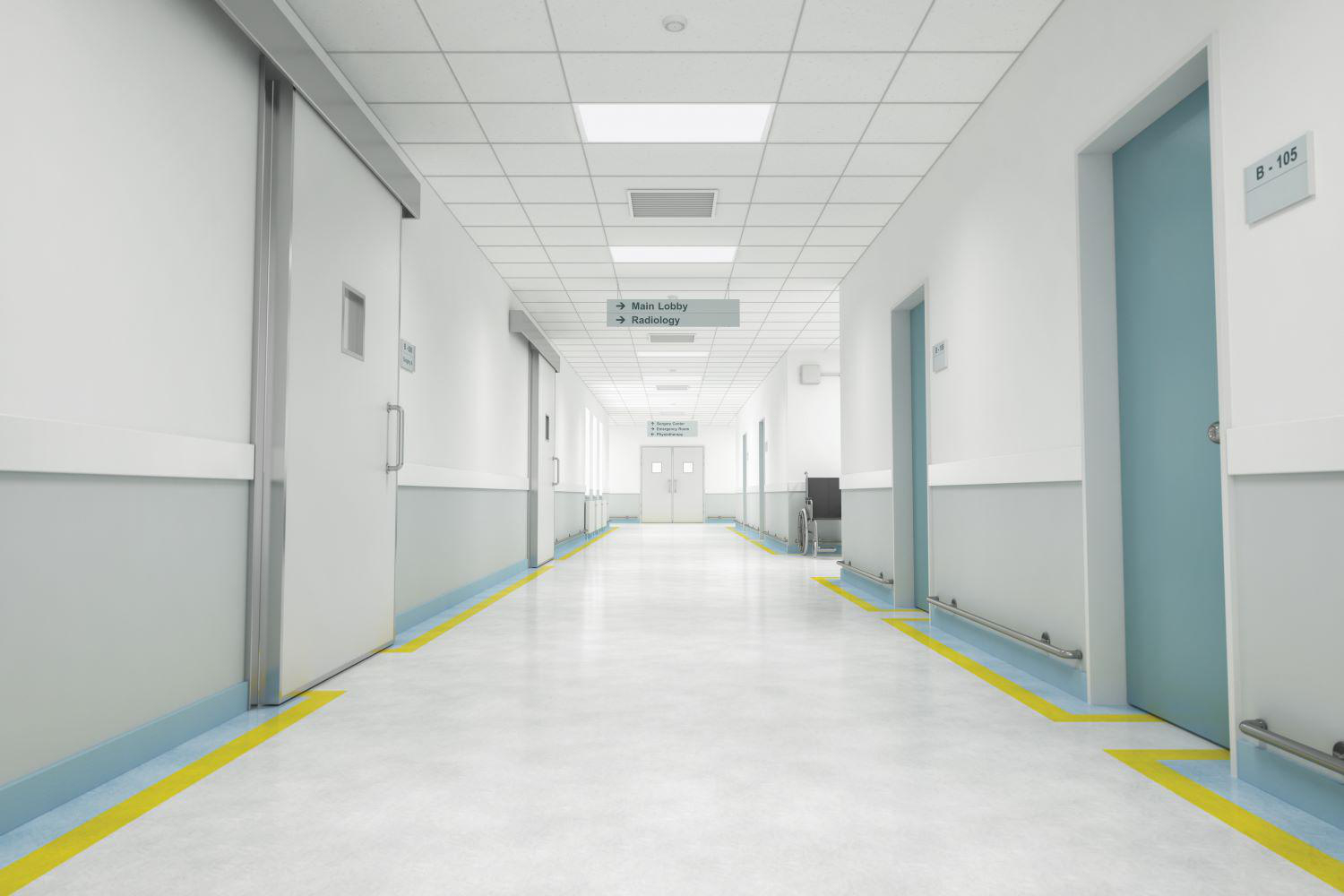

Education,Government,Healthcare,Hospitality,House Of Worship,Offices & Banks
Color Rendering Index
80 CRI
Color Temperature
3500 K
Dimmable?
Yes
Lens Color
White
Lens Material
Acrylic
Lumens
2400 lm
Material
Steel
Mounting Type
Recessed,Surface
Power Source
Hardwired
Type
Flat Panel
Voltage
120 V

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
194995124930
Color
White
Environment
Indoor
Environmental Conditions
Indoor
Finish
Semi-Gloss
GTIN
00194995124930
Product UPC
19499512493
Shape
Rectangular
Weight
9.45 lb

Dimensions

Height
1.1 in
Length
47.7 in
Width
11.9 in

Certifications & Compliance

Country of Origin
China,China
Overview
  • WARRANTY: 5-year limited warranty
  • VOLTAGE: Standard MVOLT for 120-277 volts
  • INSTALLATION: Can be installed directly to the ceiling; If a mounting kit is needed, Direct ceiling surface mount kit (DCMK 14) is sold separately
  • DIMMING: 0-10 volts driver for dimming down to 10 percent
  • TECHNOLOGY: Features adjustable lumen output (ALO) and switchable color technology (SWW) allowing for more flexibility and customization for your space
  • ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
  • HOURS OF LIFE: Greater than 70 percent LED lumen maintenance at 60,000 hours (L70>60,000
  • BATTERY: Field-installable LED emergency driver sold separately
  • DIMENSIONS: 47.7 x 11.9 x 1.1 inches
  • RATINGS: Certified for damp locations, CSA certified, IC certified, DLC certified
