LEVITON T5633-GY GY COMBDUP REC TYPE AC USBPT CHGR15A125V

Manufacturer: Leviton Manufacturing | Catalog # T5633-GY | Electrozad South Part # 379753
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page MSDS | SDS Safety Sheet

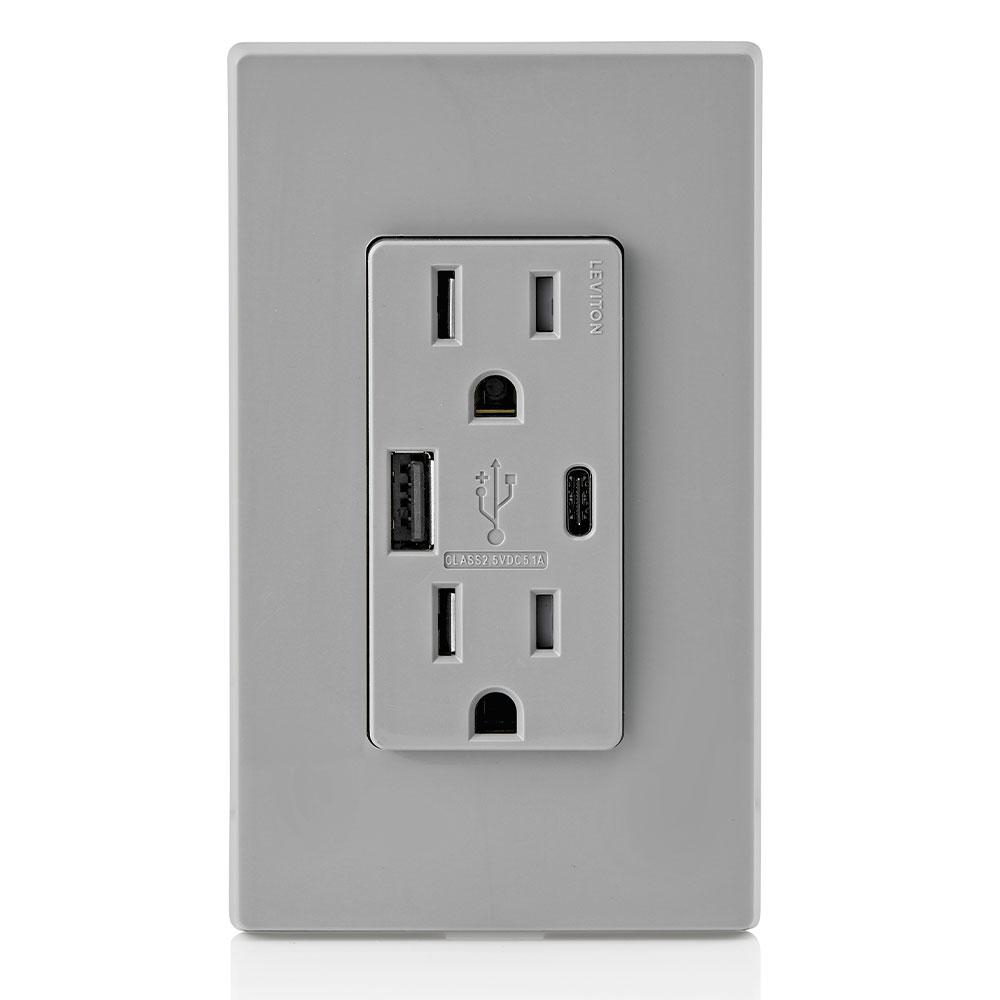

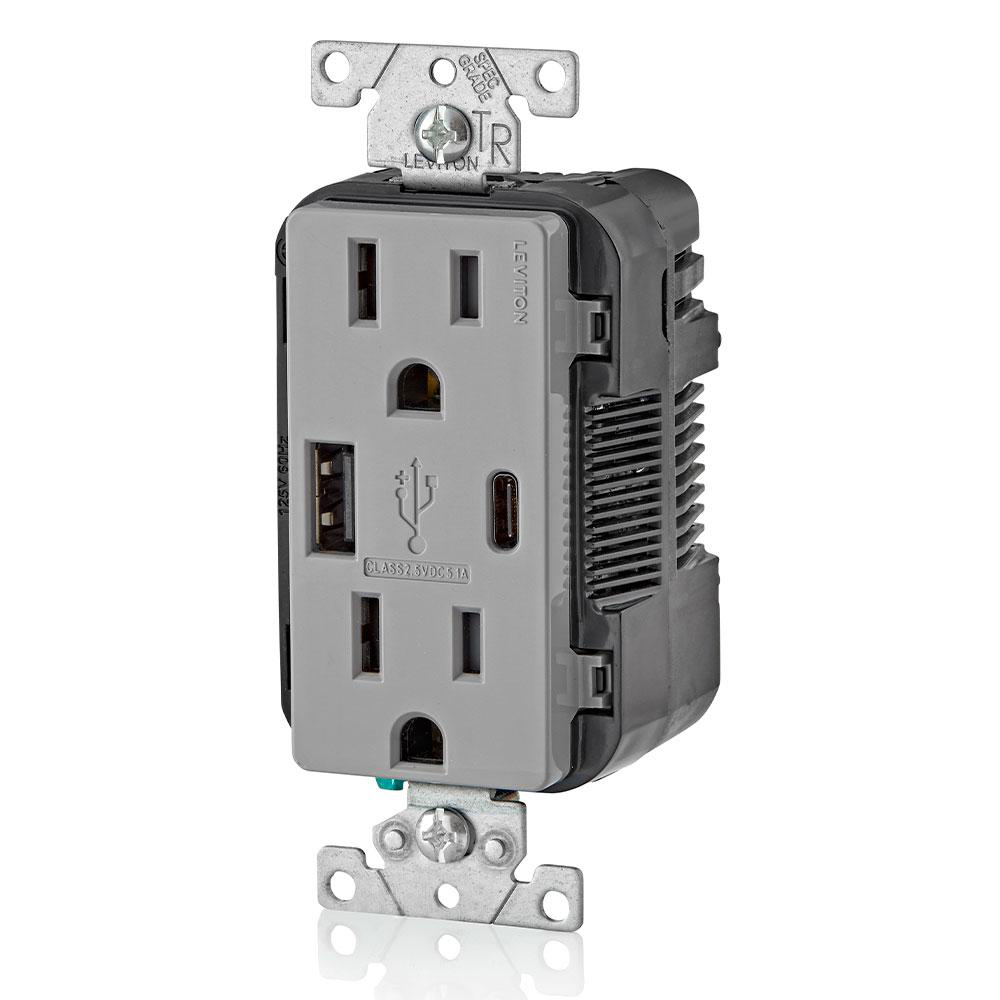

15 Amp, 125 Volt, Decora Tamper-Resistant Outlet. NEMA 5-15R, 25+W (5.1 Amp), Type A and Type-C USB In Wall Charger, Grounding, Side Wired & Back Wired - Gray

Technical Information

Amperage
15 A
Applications
For Residential/Commercial Specification Grade
Body Material
Thermoplastic,Thermoplastic
Conductor Size
14-12 AWG
Cover Material
Thermoplastic,Thermoplastic
Flamability Class
Rated V-0 Per UL 94
Grade
Commercial Specification
Grounding
Grounding
Horsepower
1/2 hp
Material
Thermoplastic
NEMA
5-15R
Number of Poles
2
Number of Wires
3
Operating Temperature
40 degrees C
Outlet Type
Wall
Temperature Rating
-10 to 40 degrees C
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Type A/C Duplex Receptacle

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477841235
Color
Gray
GTiN
00078477841235
Product Type
Outlet/USB Combo
Product UPC
07847784123

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
Mexico
